Advance Tabco  |  SKU: FC-3-2030-24RL-X  |  UPC: 747545128676

Advance Tabco FC-3-2030-24RL-X Compartment Sinks

$3,231.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Leg clearances
Related Searches
3-compartment Sinks Commercial Plumbing Supplies Commercial Sinks Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

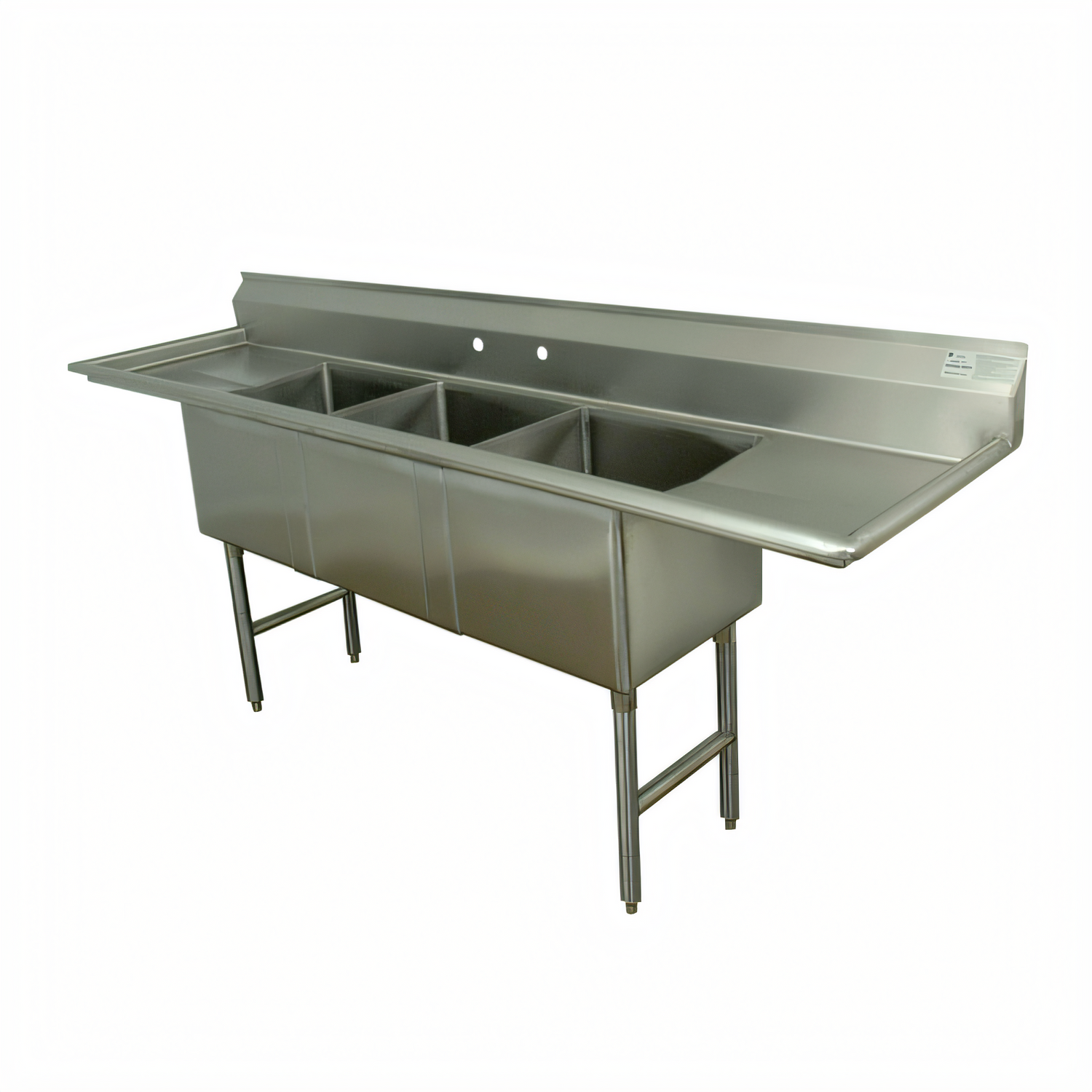

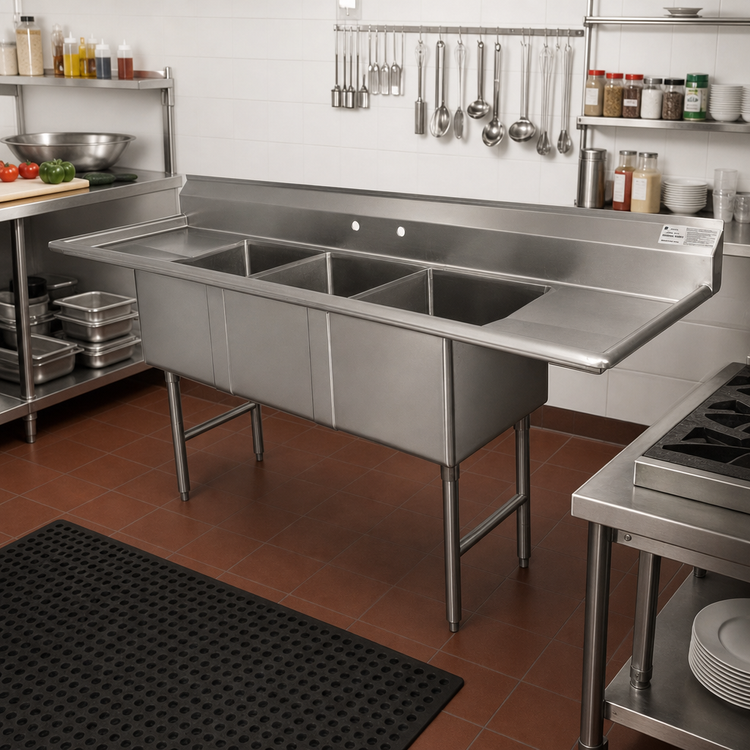

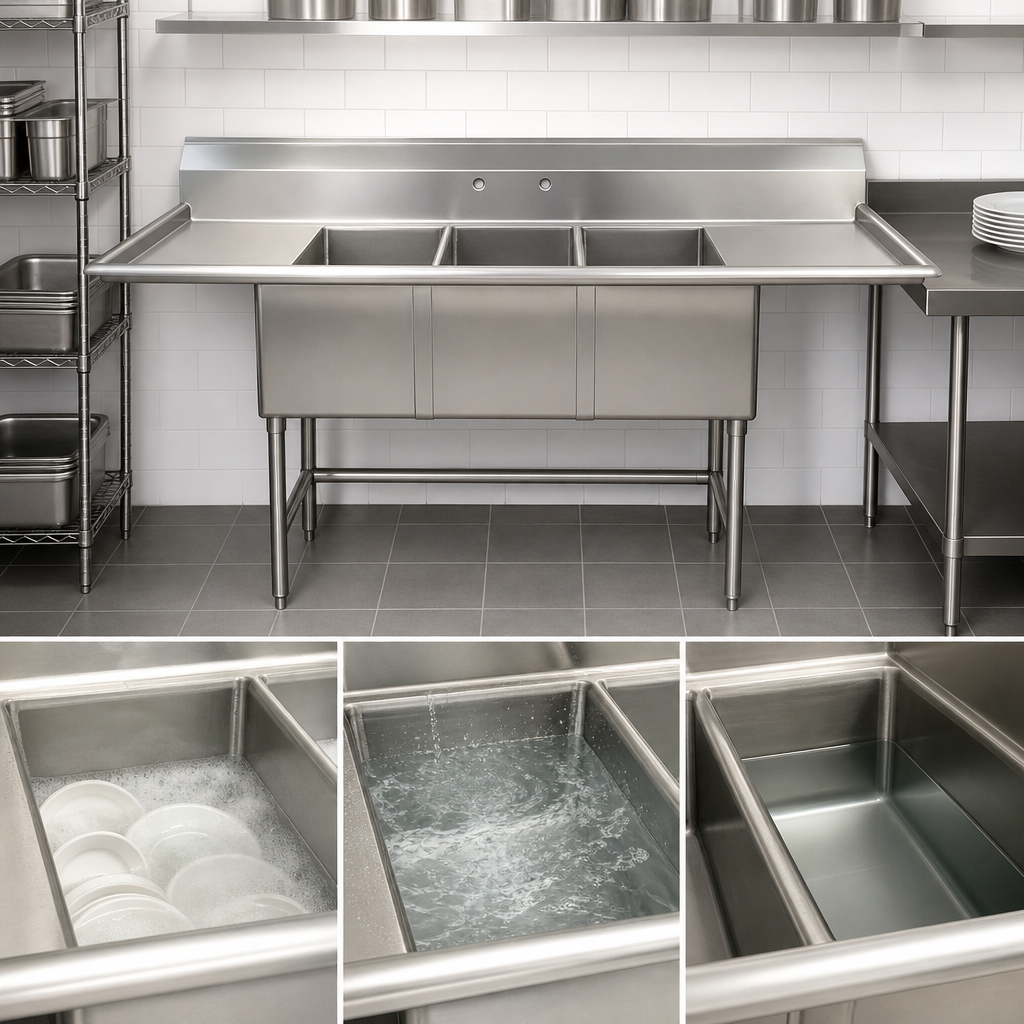

Advance Tabco 108" 3-Compartment Fabricated Sink w/ Dual 24" Drainboards

Model reference – 20" × 30" × 14" bowls • 16 ga 304 stainless steel • NSF

Engineered for demanding food-service environments, this Advance Tabco fabricated sink delivers maximum washing capacity, long-term durability and effortless installation. Three extra-large compartments and full-size drainboards on both sides make it the perfect solution for high-volume kitchens, commissaries and production bakeries.

Why this sink stands out

  • Three welded 20" × 30" × 14" deep bowls create a seamless, watertight workspace.
  • Two 24" drainboards (right & left) with positive pitch keep dishes and sheet pans draining properly.
  • 8 ⅜" tile-edge backsplash with 8" on-center faucet holes for quick, square installation against any wall.
  • Rolled rim edge provides additional strength and eliminates sharp corners.
  • Heavy-duty 16 gauge, type 304 stainless steel resists corrosion and everyday abuse.
  • 1 ⅝" Ø stainless steel legs with adjustable side cross-bracing for rock-solid stability.
  • 1" adjustable stainless steel bullet feet level the sink on uneven floors.
  • (3) 1 ½" IPS stainless steel basket drains included; centered in each bowl.
  • TIG-welded construction, ground and polished to a sanitary satin finish.
  • NSF certified for food-service sanitation compliance.

Specifications

Overall size 108" L × 36" F/B (front to back)
Number of compartments 3
Inside bowl size (each) 20" W × 30" L × 14" D
Drainboard length 24" (right) & 24" (left)
Backsplash height 8 ⅜" with 1" tile edge
Material thickness 16 ga (0.0625") type 304 stainless steel
Legs / bracing Stainless, 1 ⅝" Ø, adjustable side cross-brace
Feet 1" adjustable stainless bullet feet
Faucet mount 8" on-center (faucets sold separately)
Drain openings 1 ½" IPS, basket type
Certifications NSF

Faucets, pre-rinse units and overflow fittings are available under “Recommended Accessories.”

Freight Notice: This sink ships on a pallet and requires a loading dock or liftgate service. Verify all doorway and hallway clearances (min. 36" wide) before ordering.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

42.0in

Width

108.0in

Depth

36.0in

Shipping Weight

330.0lbs

Sink Depth (rim - drain)

14"

Top Gauge

16 gauge

Overall Length

97" - 108"

Base Type

legs with side crossrails

Splash Height

8-1/2"

Top Stainless Series

300 series

Base Construction

stainless steel

Compartment Width (side - side)

20"

Compartment (front - back)

30"

Drainboards

with left & right-hand drainboards

Specifications

Fabricated Sink, 3-compartment, 24" right & left drainboards, bowl size 20" x 30" x 14" deep, 16 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 36" F/B x 108" L/R, NSF (Special Value NET Pricing)
