Advance Tabco  |  SKU: FC-3-2030-20RL  |  UPC: 747545128676

Advance Tabco FC-3-2030-20RL Compartment Sinks

$2,639.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Leg clearances
Related Searches
3-compartment Sinks Commercial Plumbing Supplies Commercial Sinks Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

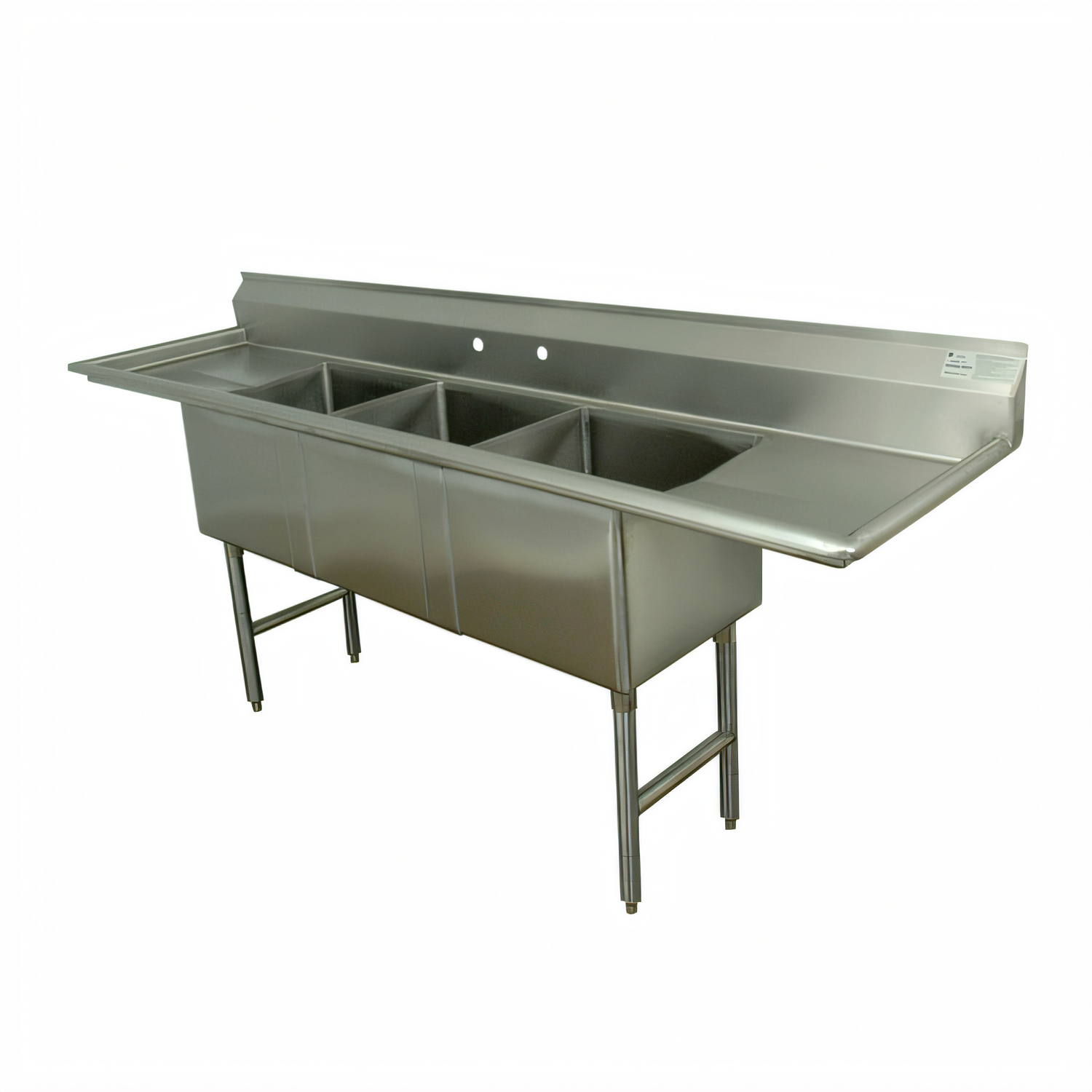

Advance Tabco FC-3-2030-20RL | 3-Compartment Fabricated Sink with (2) 20" Drainboards

100" L × 36" F/B • 20" × 30" × 14" Bowls • 16 ga 304 Stainless Steel

Engineered for high-volume dish rooms, commissaries and prep areas, the Advance Tabco FC-3-2030-20RL delivers generous capacity, rugged construction and time-saving workflow features—all in a single NSF-listed unit ready for heavy-duty service.

Top Features

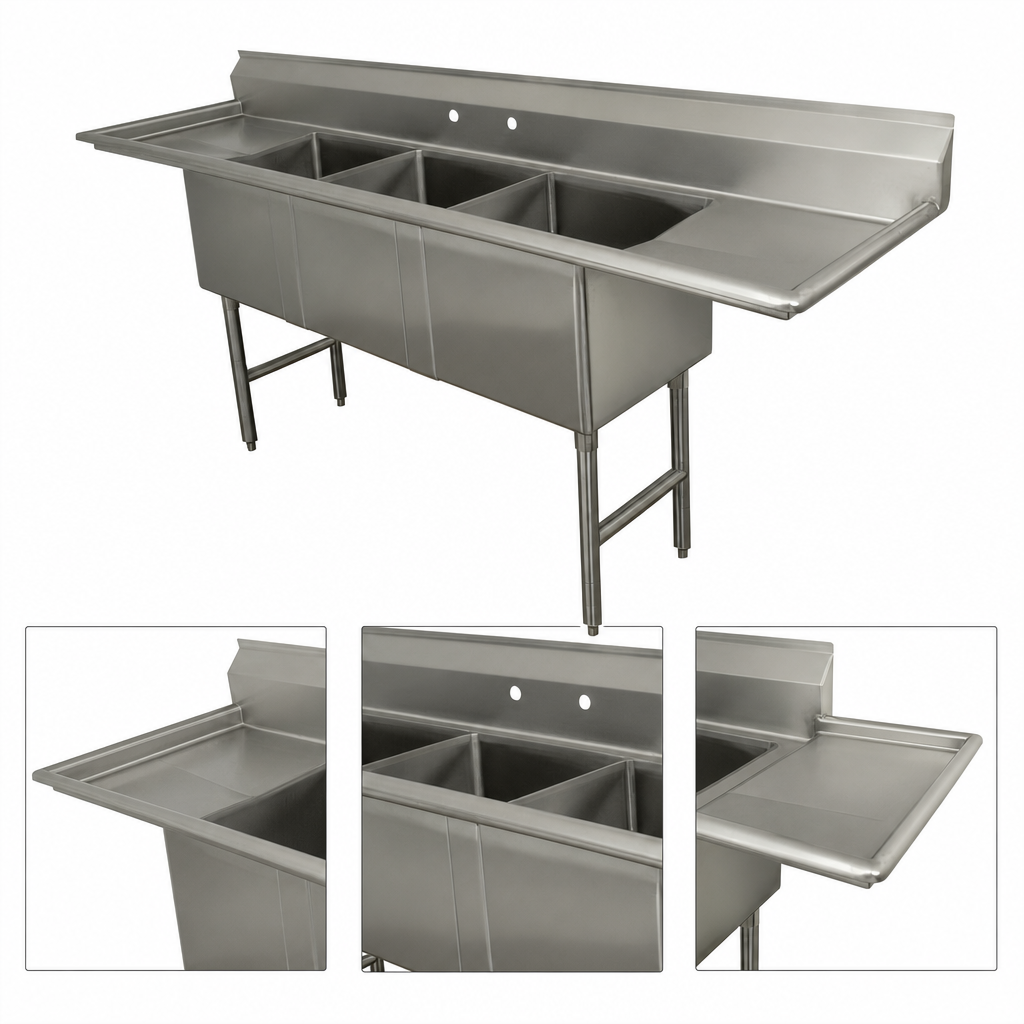

  • Three fabricated 20" × 30" × 14" deep bowls provide ample room for wash, rinse & sanitize setups.
  • Dual 20" right & left drainboards keep soiled ware organized and allow air-drying on the clean side.
  • 16 gauge 304 stainless steel throughout—corrosion resistant and built to last.
  • Rolled rim edge adds extra rigidity and comfort while loading/unloading.
  • Tile-edge 9" backsplash (typical) speeds installation and protects adjoining walls.
  • 8" on-center faucet holes pre-punched; accepts most commercial deck-mount faucets.
  • 1 ½" IPS basket drains (one per bowl) included and factory-installed.
  • TIG-welded seams are blended to a smooth satin finish for easy cleaning and NSF compliance.
  • 1 5/8" O.D. stainless steel legs with adjustable side cross-bracing for rock-solid stability.
  • 1" adjustable stainless steel bullet feet level the sink on uneven floors.

Specifications

Model FC-3-2030-20RL
Compartments 3
Overall Dimensions 100" L × 36" F/B
Bowl Interior (WxLxD) 20" × 30" × 14"
Drainboards (2) 20" – right & left
Material / Gauge 304 stainless steel / 16 ga
Backsplash Tile edge, rolled top, 3/4" coved corners
Faucet Holes 8" on-center (1/2" IPS hot & cold)
Drains 1 ½" IPS stainless basket drains (centered)
Legs & Feet 1 5/8" Ø S/S legs, side cross-bracing, 1" adjustable bullet feet
Certification NSF
Shipping Weight Approx. 315 lb

Popular Accessories (Sold Separately)

  • Deck-mount faucets (8" O.C.)
  • K-700 removable side splashes (fits either drainboard)
  • BK series pre-rinse units
  • Drainboard drying racks & overshelves

NSF listing applies only when installed and maintained in accordance with manufacturer guidelines.

Important: Faucet sets and side splashes are not included and must be ordered separately.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

43.0in

Width

100.0in

Depth

36.0in

Shipping Weight

318.0lbs

Compartment Width (side - side)

20"

Overall Length

97" - 108"

Splash Height

8-1/2"

Sink Depth (rim - drain)

14"

Base Type

legs with side crossrails

Top Gauge

16 gauge

Top Stainless Series

300 series

Compartment (front - back)

30"

Drainboards

with left & right-hand drainboards

Base Construction

stainless steel

Specifications

Fabricated Sink, 3-compartment, 20" right & left drainboards, bowl size 20" x 30" x 14" deep, 16 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 36" F/B x 100" L/R, NSF
