Advance Tabco FC-3-1824-24R Compartment Sinks

$2,337.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Leg clearances
Related Searches
3-compartment Sinks Commercial Plumbing Supplies Commercial Sinks Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

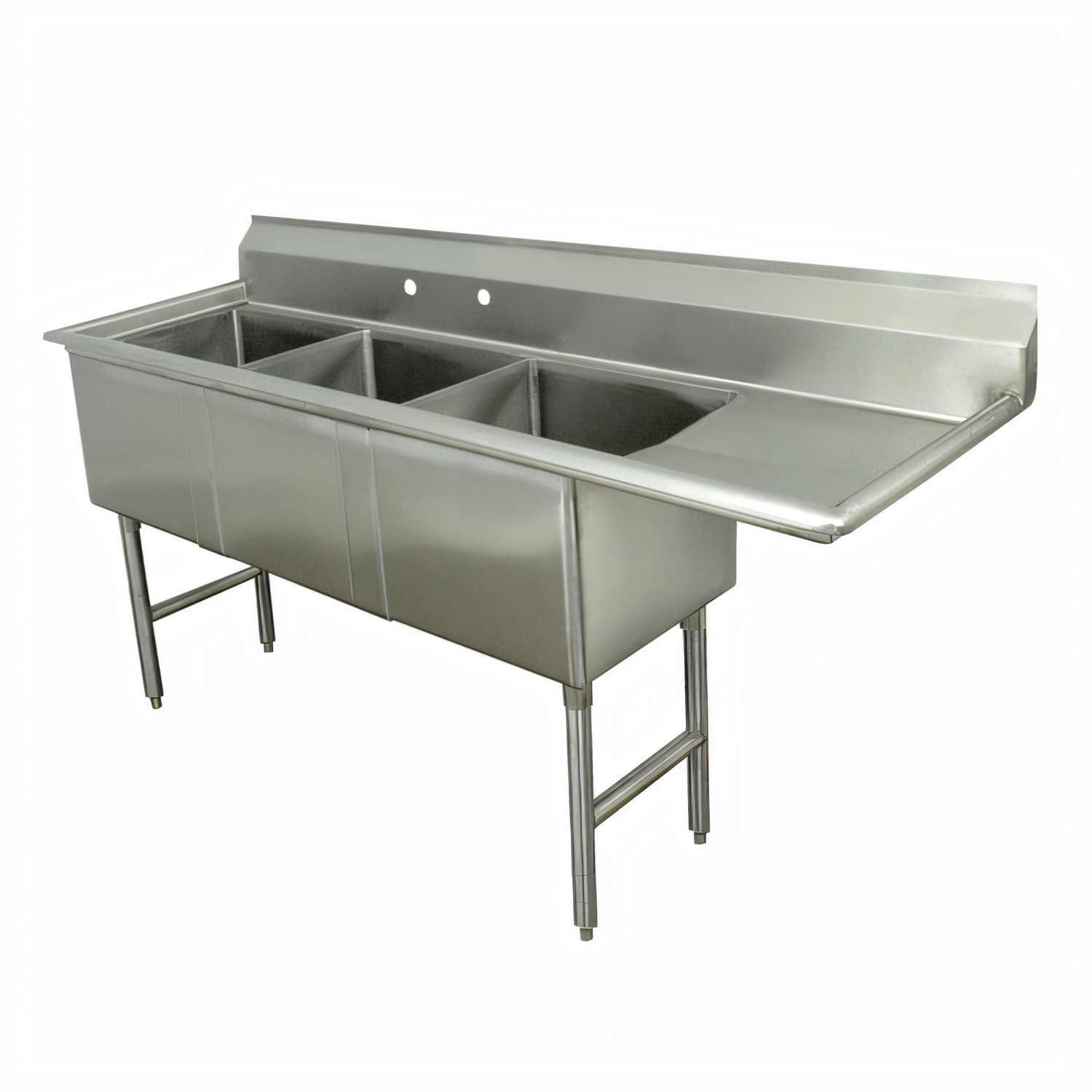

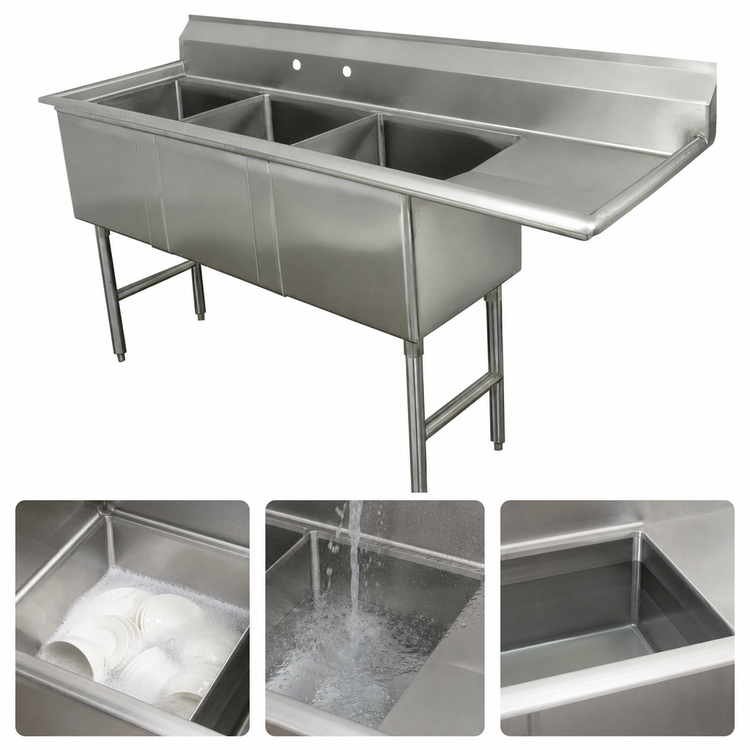

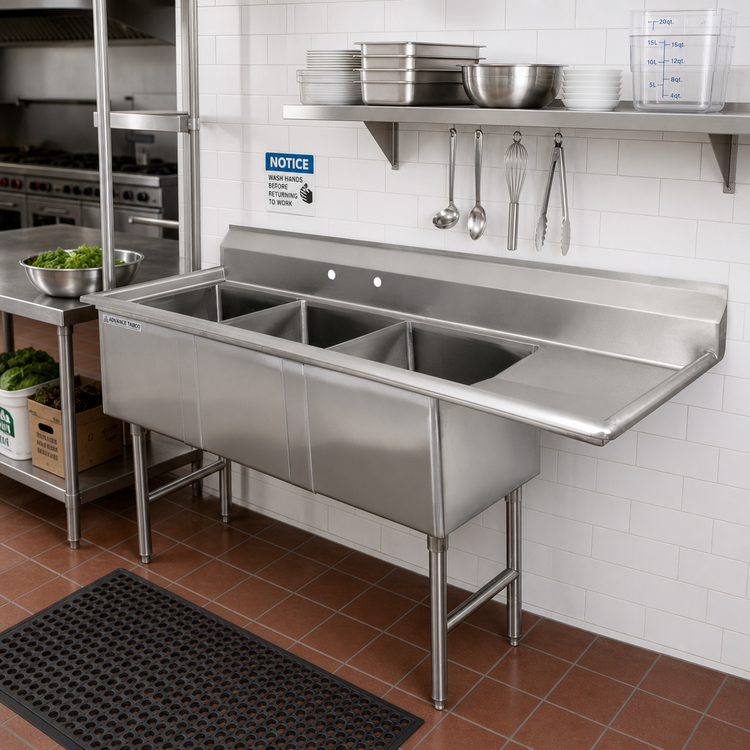

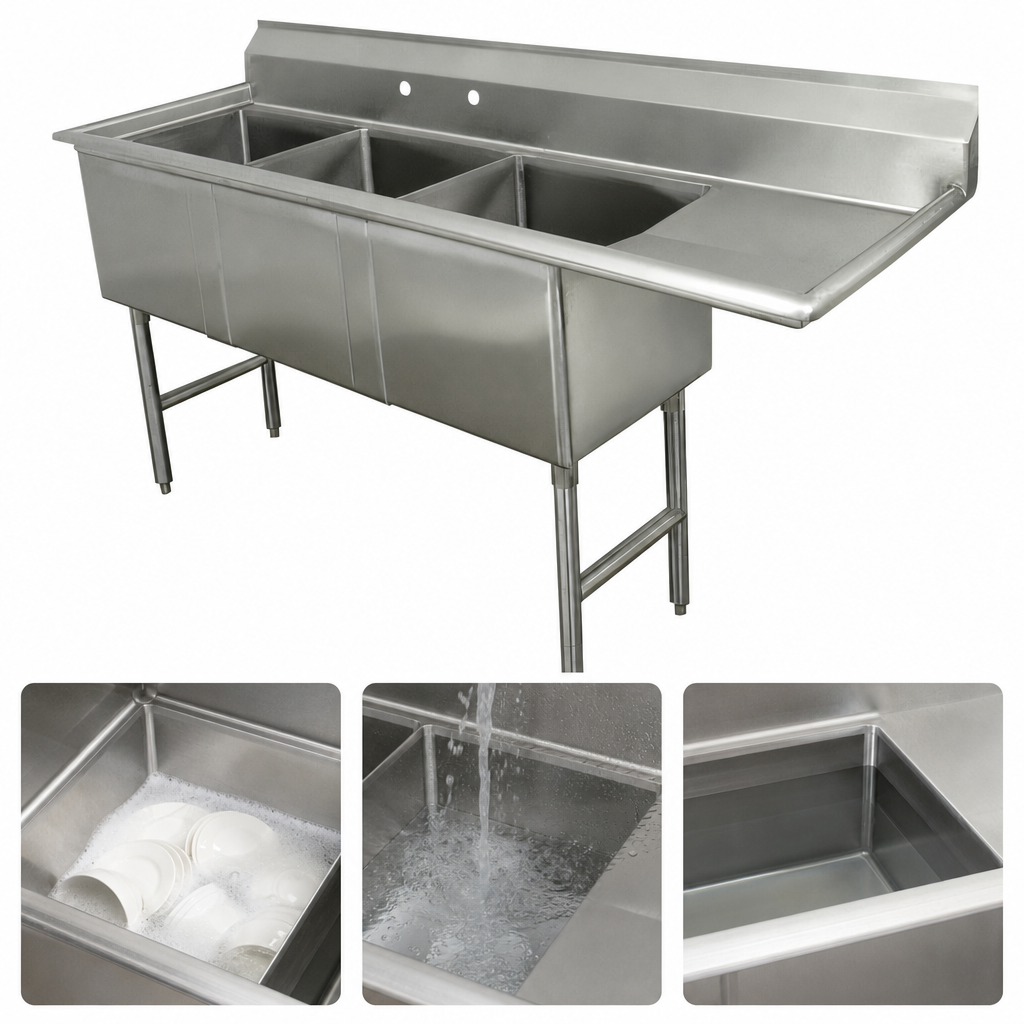

Advance Tabco FC-3-1824-24R 3-Compartment Fabricated Sink

80-1/2" L x 29-1/2" F/B • 24" Right Drainboard • NSF

Built for demanding commercial kitchens, this Advance Tabco Smart Fabrication™ sink gives you three spacious compartments for wash-rinse-sanitize tasks plus a full-size 24" drainboard on the right— all in heavy-duty 16-gauge 304 stainless steel.

Key Benefits

  • Three 18" x 24" bowls, 14" deep — ample capacity for sheet pans and stock pots.
  • Fabricated & TIG-welded construction with satin-polished seams for long-lasting durability.
  • Rolled rim edge adds rigidity and helps prevent damage from daily use.
  • Tile-edge 9" backsplash speeds up installation and creates a sanitary seal against the wall.
  • Pre-punched 8" on-center faucet holes (faucets sold separately).
  • 1-1/2" IPS stainless steel basket drains included; center mounted for optimal drainage.
  • 1-5/8" Ø stainless steel legs with adjustable side cross-bracing for rock-solid stability.
  • 1" adjustable stainless steel bullet feet level the sink on uneven floors.
  • NSF listed for food-service sanitation compliance.

Specifications

Model FC-3-1824-24R
Compartments 3
Bowl Interior (W × L × D) 18" × 24" × 14"
Drainboard 24" — Right side
Overall Dimensions (L × F/B) 80-1/2" × 29-1/2"
Gauge / Material 16 ga 304 stainless steel
Backsplash Height 9" with tile edge
Faucet Holes 8" on-center, 1-1/8" Ø (2 holes)
Waste Drains 1-1/2" IPS stainless basket strainers (included)
Legs / Feet 1-5/8" Ø S/S legs, adjustable side cross-braces, 1" adjustable bullet feet
Certifications NSF
Ship Weight Approx. 150 lb

Ideal For

  • Restaurants & cafés
  • Ghost & commissary kitchens
  • Catering prep areas
  • Bakeries & delis
Note: Faucets and plumbing connections are shown for reference only and are not included with the sink.

Need a left-hand drainboard or other custom modifications? Contact us for Advance Tabco Smart Fabrication™ options.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

43.0in

Width

80.5in

Depth

30.0in

Shipping Weight

230.0lbs

Sink Depth (rim - drain)

14"

Drainboards

with right-hand drainboard

Base Construction

stainless steel

Compartment Width (side - side)

18"

Overall Length

73" - 84"

Top Gauge

16 gauge

Base Type

legs with side crossrails

Splash Height

8-1/2"

Top Stainless Series

300 series

Compartment (front - back)

24"

Specifications

Fabricated Sink, 3-compartment, 24" right drainboard, bowl size 18" x 24" x 14" deep, 16 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 29-1/2" F/B x 80-1/2" L/R, NSF
