Description

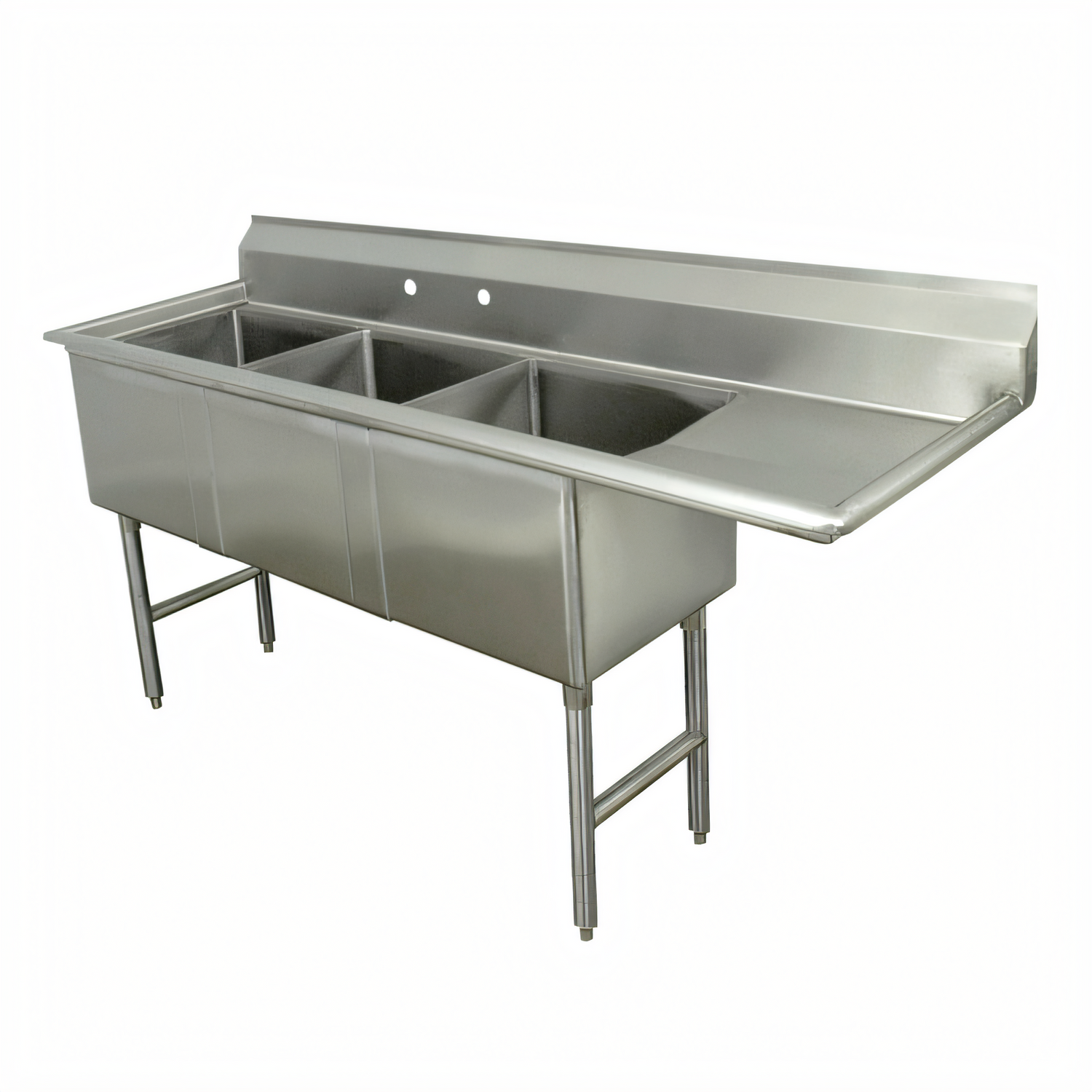

Advance Tabco FC-3-1818-18R Fabricated 3-Compartment Sink with 18" Right Drainboard
74-1/2" L × 24" W • 18" × 18" × 14" Bowls • 16-Gauge 304 Stainless Steel • NSF ListedTough enough for high-volume kitchens yet designed for effortless sanitation, the FC-3-1818-18R packs three full-size compartments and a handy right-hand drainboard into one space-saving, Easy-to-install unit.
Key Benefits

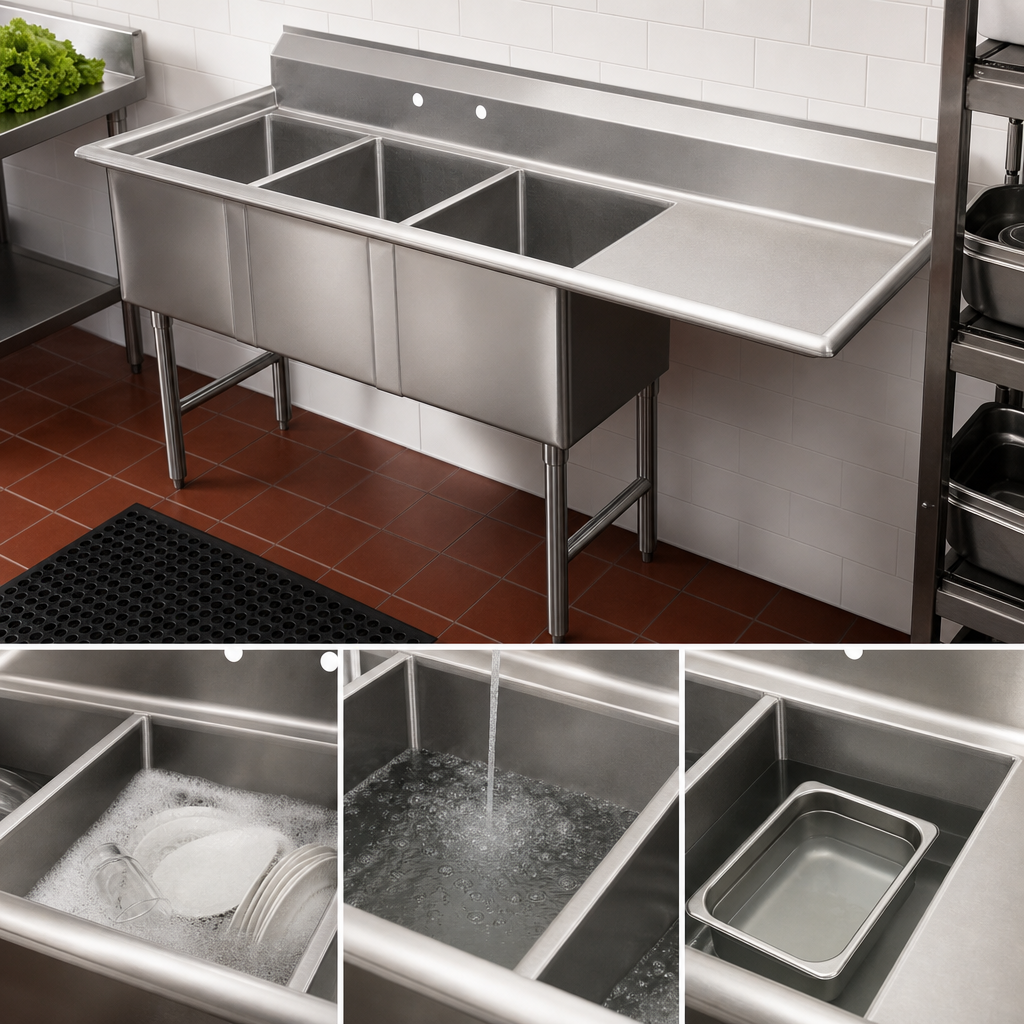

- Three 18" × 18" × 14" deep bowls accommodate sheet pans, stock pots & large wares.
- 18" right-side drainboard keeps rinsed items organized and off the worktop.
- Rugged 16-gauge, type 304 stainless steel delivers superior corrosion resistance.
- TIG-welded seams with 3/4" coved corners and blended satin finish meet NSF food-safety standards.
- Rolled rim edge adds rigidity and eliminates sharp edges.
- 8-1/2" tile-edge backsplash speeds installation and protects nearby walls.
- Pre-punched 8" on-center faucet holes; 1/2" IPS hot & cold connections.
- Includes (3) 1-1/2" IPS stainless steel basket drains—one per compartment.
- 1-5/8" Ø stainless legs with adjustable side cross-bracing and 1" bullet feet for rock-solid, level placement.
Dimensions & Clearances
| Overall Length (L/R) | 74-1/2" |
|---|---|
| Overall Width (F/B) | 24" |
| Compartment Interior | 18" W × 18" D × 14" H |
| Drainboard Length | 18" (Right side) |
| Backsplash Height | 8-1/2" with tile edge |
| Front-to-Back Leg Clearance (X) | 11" |
| R/L Leg Clearance Under Drainboard (Y) | 19" |
| Approx. Shipping Weight | 128 lb. |
Specifications at a Glance
| Model # | FC-3-1818-18R |
|---|---|
| Compartments | 3 |
| Material / Thickness | 16-ga. type 304 stainless steel |
| Faucet Centers | 8" on center (deck mount) |
| Drain Size | 1-1/2" IPS basket-type (included) |
| Legs & Bracing | 1-5/8" Ø S/S legs with adjustable side cross-bracing |
| Feet | 1" adjustable stainless bullet feet |
| Certification | NSF |
Faucets, side splashes, and other accessories are sold separately. Compatible items include Advance Tabco K-700 removable side splashes and standard 8" OC deck-mount faucets.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Height
43.0in
Width
74.5in
Depth
24.0in
Shipping Weight
235.0lbs
Compartment Width (side - side)
18"
Compartment (front - back)
18"
Base Type
legs with side crossrails
Sink Depth (rim - drain)
14"
Drainboards
with right-hand drainboard
Overall Length
73" - 84"
Splash Height
8-1/2"
Base Construction
stainless steel
Top Gauge
16 gauge
Top Stainless Series
300 series
Specifications
Fabricated Sink, 3-compartment, 18" right drainboard, bowl size 18" x 18" x 14" deep, 16 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 24" F/B x 74-1/2" L/R, NSF
