Advance Tabco FC-2-2424-24L Compartment Sinks
Description
Advance Tabco Fabricated 2-Compartment Sink | 24" Left Drainboard
Model FC-2-2424-24L • 16 ga 304 Stainless Steel • NSF ListedBuilt for demanding commercial kitchens, this Advance Tabco economy series sink combines two spacious 24" × 24" × 14" bowls with a full-size 24" left-hand drainboard. Heavy-duty 16 gauge 304 stainless steel, TIG-welded seams and a rolled rim edge guarantee years of corrosion-resistant service while meeting the latest NSF sanitation standards.
Key Features

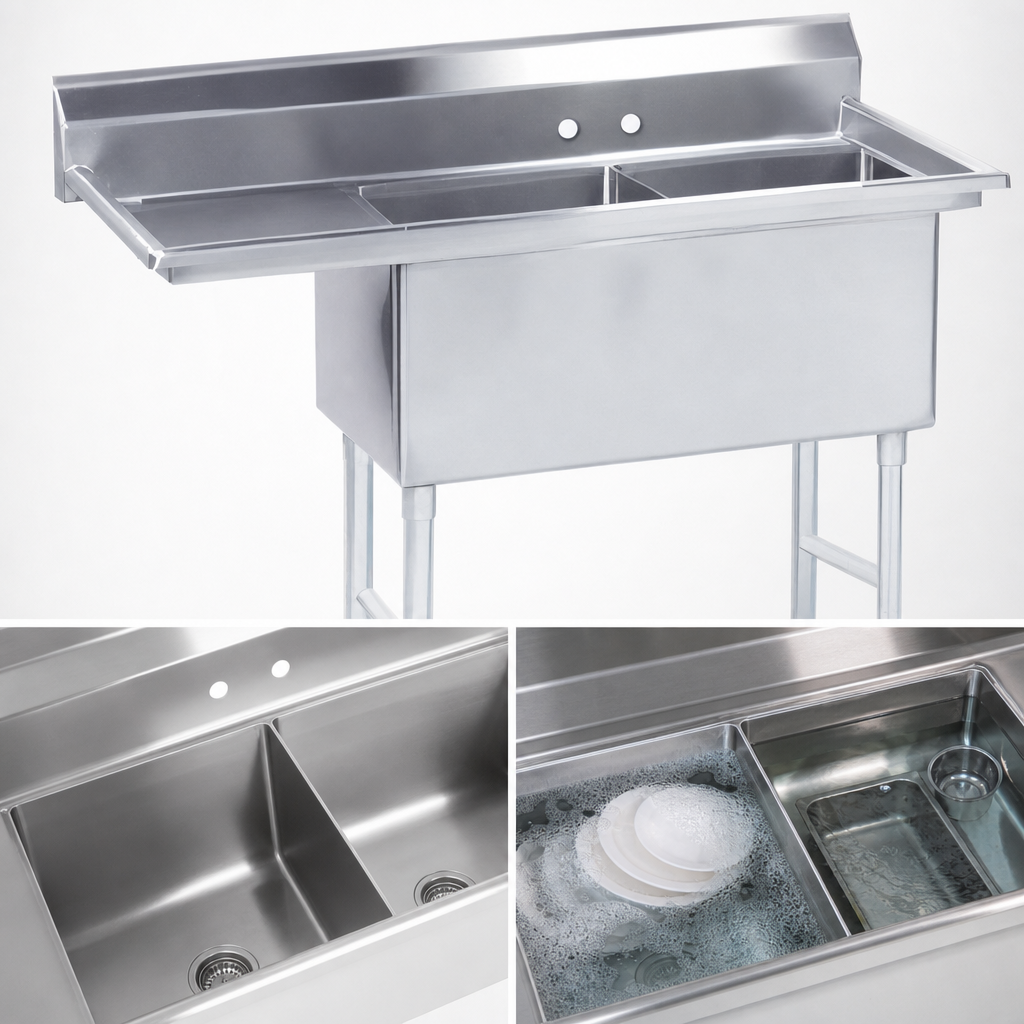

- Two fabricated 24" × 24" × 14" deep bowls with ¾" coved corners for fast, sanitary clean-up.
- Integrated 24" drainboard on the left provides ample landing & drying space.
- 16 ga type 304 stainless steel top, bowls, backsplash and gussets—built to resist rust and pitting.
- Rolled rim edge increases rigidity and prevents painful sharp edges.
- 8" on-center faucet holes punched in backsplash; accepts most commercial faucets (sold separately).
- Tile-edge 9" backsplash speeds installation and creates a watertight seal against the wall.
- 1 ⅝" Ø stainless steel legs with adjustable side cross-bracing for maximum stability.
- 1" adjustable stainless steel bullet feet level the unit on uneven floors.
- (2) 1 ½" IPS stainless steel basket drains located in bowl centers—included.
- NSF certified & fully TIG-welded; welds are ground and polished to a uniform satin finish.
Dimensions & Specifications
| Overall length (L/R) | 74 ½" |
|---|---|
| Overall front-to-back | 29 ½" |
| Bowl count | 2 compartments |
| Individual bowl size | 24" W × 24" F/B × 14" D |
| Drainboard size | 24" L (left-side) |
| Backsplash height | 9" |
| Faucet holes | (2) holes on 8" centers, 1 ⅛" Ø |
| Drain size | 1 ½" IPS basket drains (included) |
| Water supply | ½" IPS hot & cold inlets |
| Material / gauge | 16 ga type 304 stainless steel |
| Legs & feet | 1 ⅝" Ø S/S legs, adjustable cross-bracing & 1" bullet feet |
| Shipping weight | Approx. 195 lb |
| Certifications | NSF |
Designed for High-Volume Workflows
Advance Tabco engineered this sink to deliver maximum capacity without sacrificing floor space. The combination of deep double bowls and an oversized drainboard streamlines your wash-rinse-sanitize routine, while the reinforced leg frame keeps the unit rock-solid—even under stacked bus tubs or heavy dish racks.
Popular Accessories (sold separately)
- K-700 removable side splashes – field install on either side to contain overspray.
- Commercial swing or gooseneck faucets with 8" centers.
- Pre-rinse spray units for faster food-soil removal.
- Stainless steel scrap baskets & overflow tubes.
Need a custom configuration or additional compartments? Contact our support team for Advance Tabco Smart Fabrication™ quotes.
