Advance Tabco FC-2-2030-24R Compartment Sinks
Description

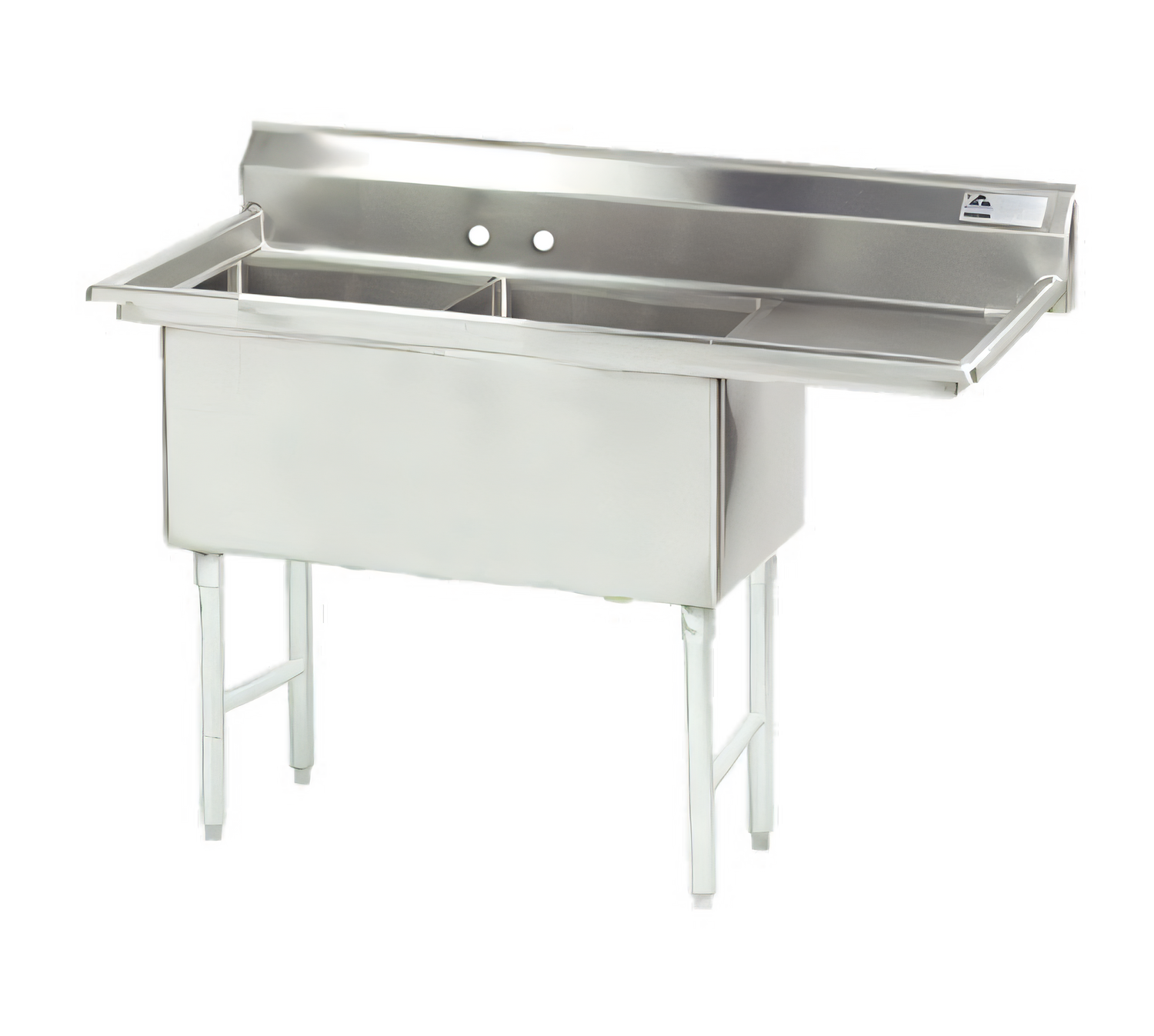

Advance Tabco Fabricated Economy Sink – 2 Compartment, 24" Right Drainboard
20" × 30" × 14" Deep Bowls | 16 ga 304 Stainless Steel | NSF CertifiedBuilt for demanding food-service environments, this Advance Tabco economy series sink combines heavy-duty 16-gauge, type 304 stainless steel construction with thoughtful ergonomic details. Two spacious 20" × 30" × 14" bowls handle high-volume warewashing while the 24" right-side drainboard keeps workflow organized and efficient.
Why You’ll Love It
- Rugged, food-safe build – 16 ga 304 stainless steel throughout, fully TIG-welded and blended to a smooth satin finish.
- High-capacity bowls – Extra-large 14" depth with ¾" coved corners meets NSF cleaning requirements and speeds rinsing.
- 24" integrated drainboard – Right-hand drainboard with positive pitch keeps dishes, glassware and prep pans draining properly.
- Rolled rim edge – Adds strength where it’s needed most and softens the edge for safer, more comfortable use.
- Tile-edge backsplash – 8-½" high splash with tiled top edge simplifies wall sealing and prevents water intrusion.
- Plumb-ready with 8" on-center faucet holes (½" IPS hot & cold supply) and 1½" IPS stainless steel basket drains included.
- Rock-solid base – 1 ⅝" Ø stainless steel legs, adjustable side cross-bracing, and 1" S/S bullet feet level easily on uneven floors.
Technical Specifications
| Compartments | 2 |
|---|---|
| Bowl Inside Dimensions (each) | 20" W × 30" L × 14" D |
| Drainboard | 24" Right-side, integrally welded with pitched surface |
| Overall Size | 35 ½" Front-to-Back × 66 ½" Left-to-Right |
| Material / Gauge | 16 ga Type 304 Stainless Steel (sink top, bowls & drainboard) |
| Backsplash Height | 8 ½" |
| Faucet Centers | 8" on center (faucet not included) |
| Drains | 1 ½" IPS S/S basket type (centered in each bowl, included) |
| Legs & Bracing | 1 ⅝" Ø S/S tubular legs with adjustable side cross-bracing |
| Feet | 1" adjustable stainless steel bullet feet |
| Certifications | NSF |
Faucet, side splashes and other accessories are sold separately. Contact us for compatible Advance Tabco add-ons or custom fabrication requests.
