Advance Tabco  |  SKU: FC-2-1620-18R  |  UPC: 747545177889

Advance Tabco FC-2-1620-18R Compartment Sinks

$1,397.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Leg clearances
Related Searches
Advance Tabco Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Restaurant Equipment Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

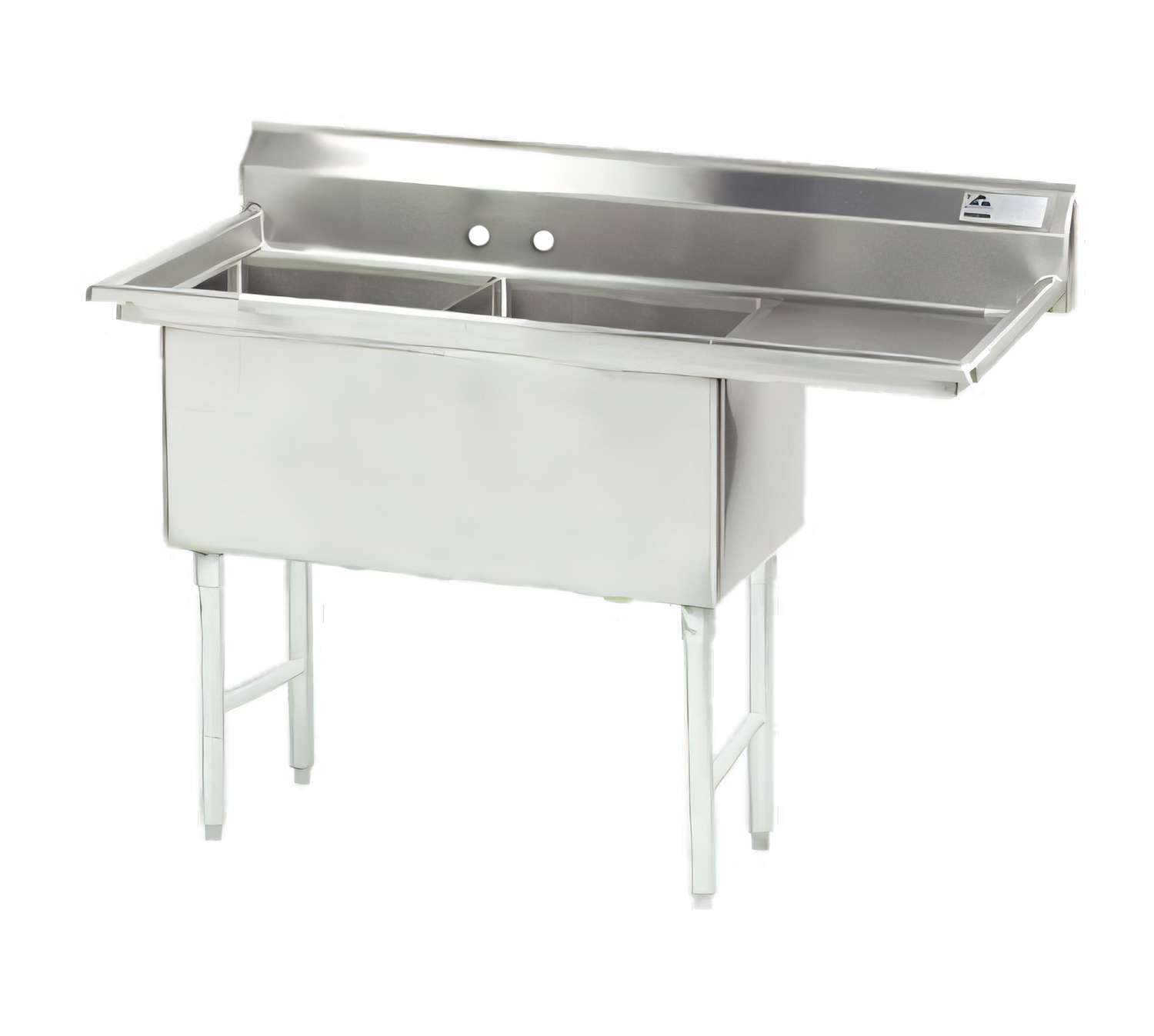

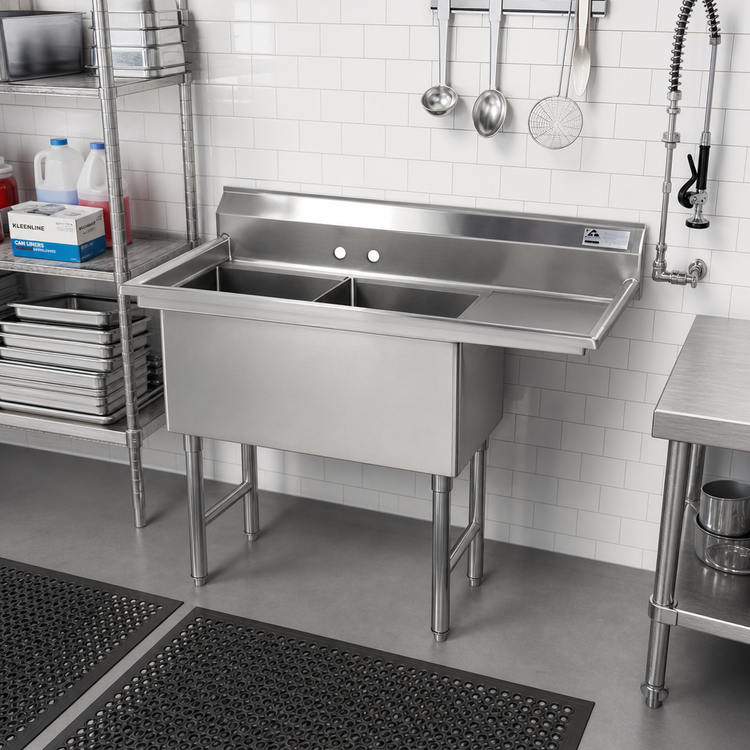

Advance Tabco FC-2-1620-18R Fabricated Sink

2-Compartment • 18" Right Drainboard • 16 ga 304 Stainless Steel

Built for busy food-service kitchens that demand durability, sanitation, and workflow efficiency, the Advance Tabco FC-2-1620-18R combines two generous 16" × 20" compartments with a space-saving 18" right-hand drainboard. Heavy-duty 16-gauge, type 304 stainless steel construction—reinforced by a rolled rim edge, welded gussets, and adjustable cross-bracing—stands up to years of daily scrubbing, soaking, and sanitizing while meeting NSF standards.

Key Features

  • Two 16" × 20" × 14" deep fabricated bowls boost capacity for prep and ware-washing.

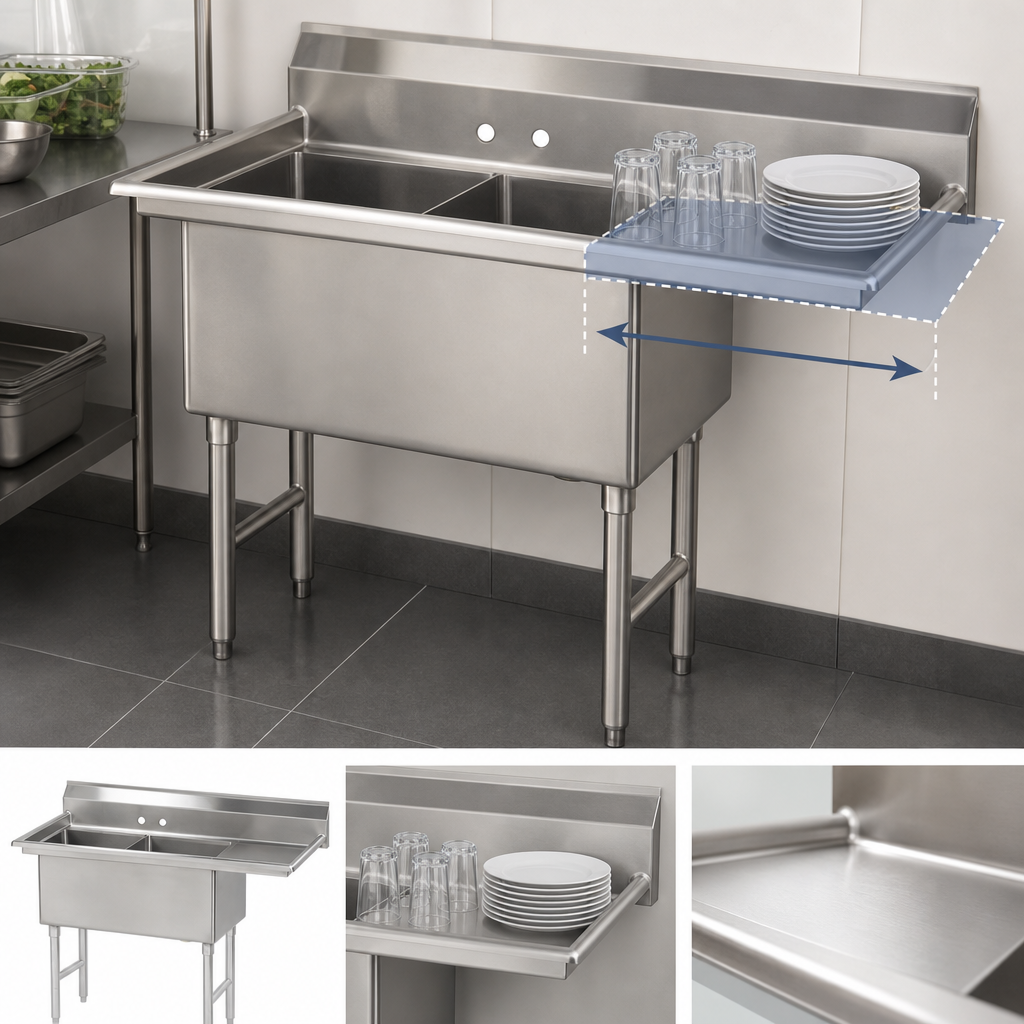

  • 18" drainboard (right side) speeds drying and keeps work tables clutter-free.
  • 16 ga type 304 stainless steel—corrosion-resistant & easy to sanitize.
  • 3/4" coved bowl corners & welded seams meet NSF cleaning requirements.
  • Rolled rim edge adds strength and resists denting.
  • 8" on-center faucet holes in the backsplash (1/2" IPS hot & cold connections).
  • 1-1/2" IPS stainless steel basket drains included—centered for optimal flow.
  • 1-5/8" Ø stainless steel legs with side cross-bracing for rock-solid stability.
  • 1" adjustable stainless steel bullet feet level the sink on uneven floors.
  • Tile-edge backsplash simplifies a flush, watertight installation.

At-a-Glance Specs

Manufacturer / Model Advance Tabco FC-2-1620-18R
Compartments 2
Bowl Interior (W × L × D) 16" × 20" × 14"
Drainboard 18" (Right side)
Overall Dimensions 52-1/2" L × 26" F/B × ≈43" H*
Material / Gauge 304 Stainless Steel / 16 ga
Backsplash 9-1/2" H backsplash with tile edge & 8" O.C. faucet holes
Drains 1-1/2" IPS basket type (centered, included)
Legs & Feet 1-5/8" Ø S/S legs, adjustable side cross-bracing, 1" bullet feet
Shipping Weight Approx. 100 lb
Certifications NSF

*Overall height measured to top of backsplash; working height is approx. 37".

Faucet & side splashes sold separately. Browse compatible Advance Tabco K-700 removable side splashes and commercial faucets in our Sink Accessories collection.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

42.0in

Width

52.5in

Depth

26.0in

Shipping Weight

62.0lbs

Drainboards

with right-hand drainboard

Top Gauge

16 gauge

Top Stainless Series

300 series

Compartment (front - back)

20"

Base Construction

stainless steel

Compartment Width (side - side)

16"

Base Type

legs with side crossrails

Sink Depth (rim - drain)

14"

Splash Height

8-1/2"

Overall Length

40" - 53"

Specifications

Fabricated Sink, 2-compartment, 18" right drainboard, bowl size 16" x 20" x 14" deep, 16 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 26" F/B x 52-1/2" L/R, NSF
