Advance Tabco  |  SKU: FC-1-3024-24RL

Advance Tabco FC-1-3024-24RL Compartment Sinks

$2,581.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Leg clearances
Related Searches
1-compartment Sinks Advance Tabco Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Restaurant Equipment Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

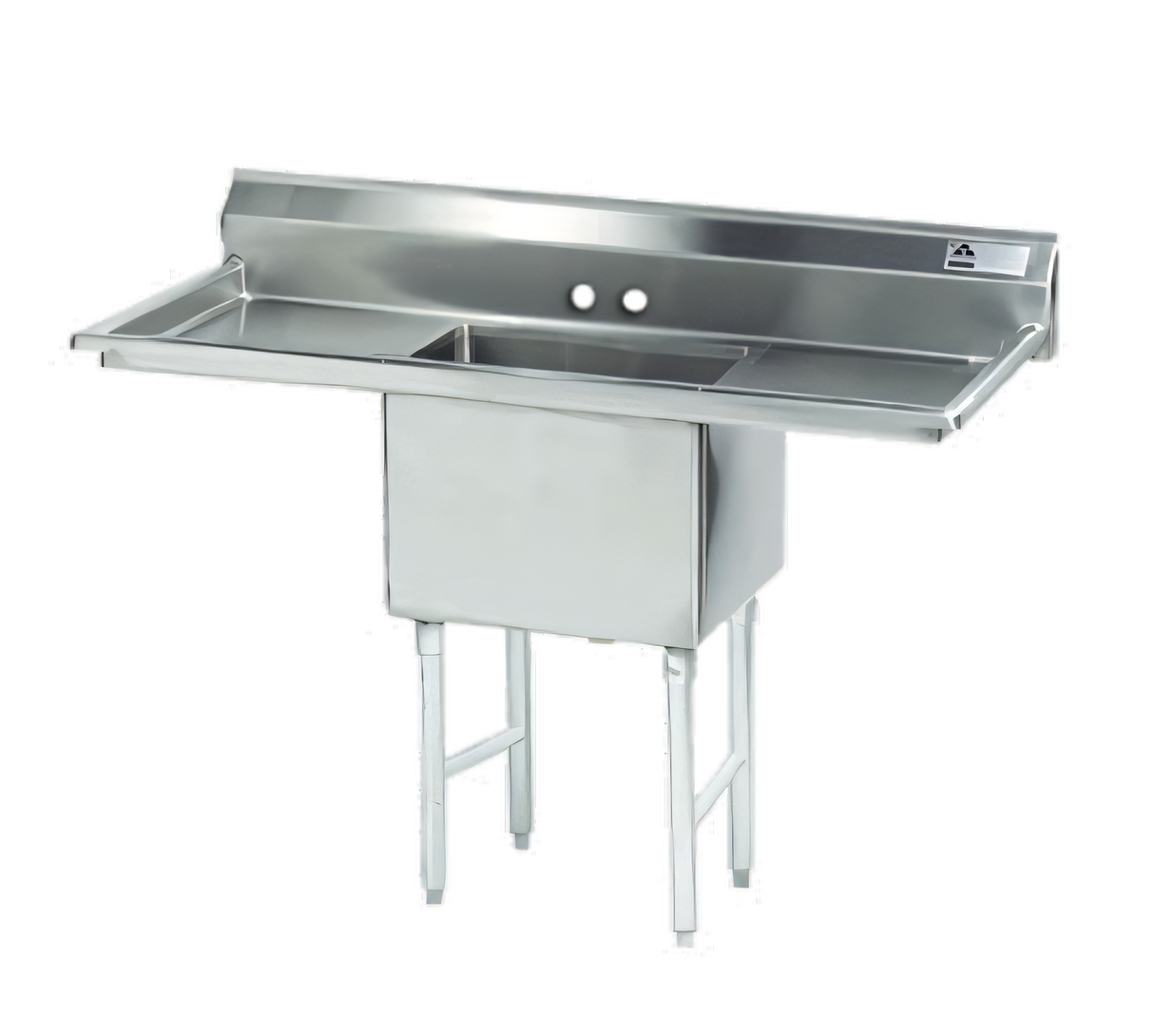

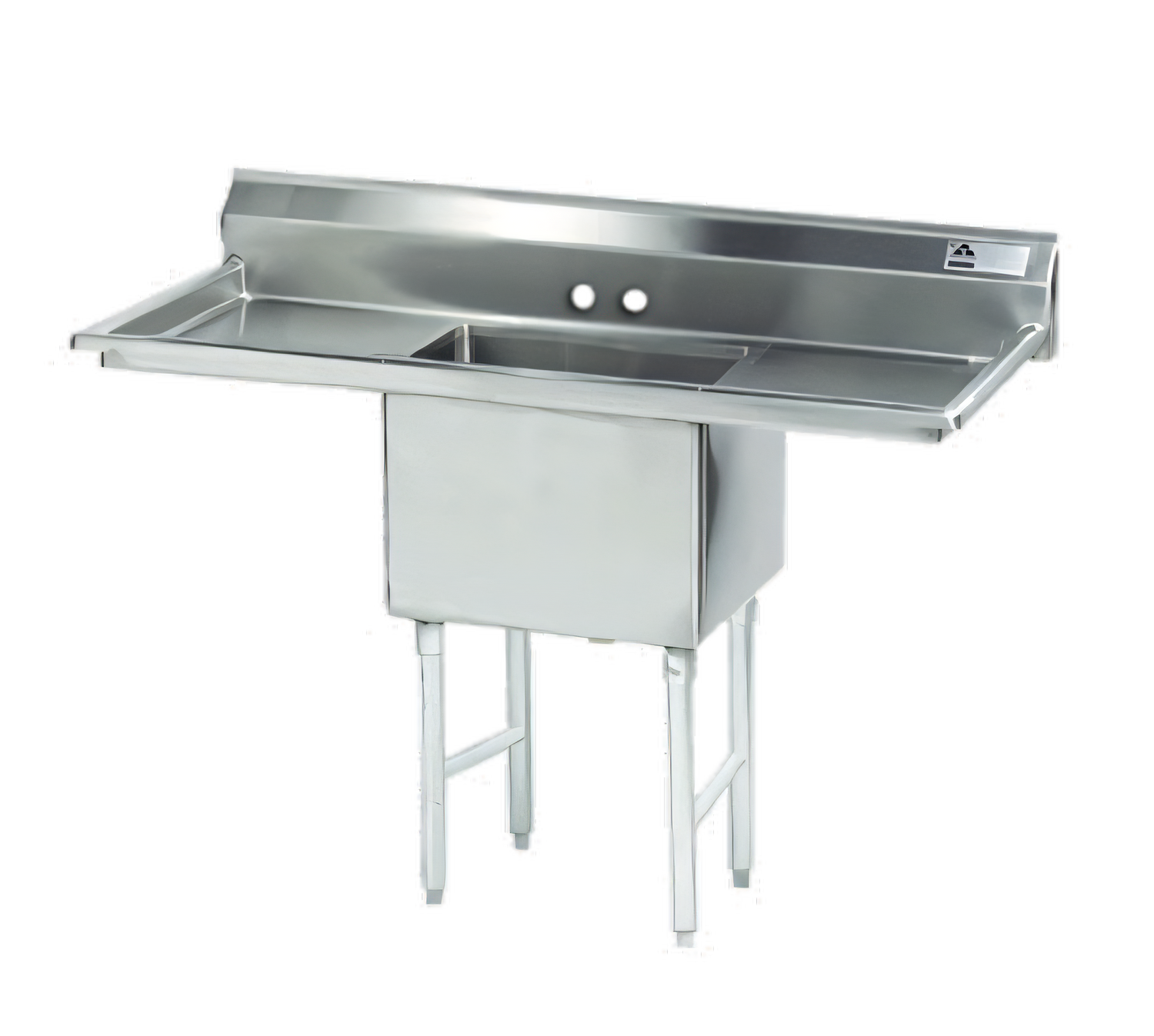

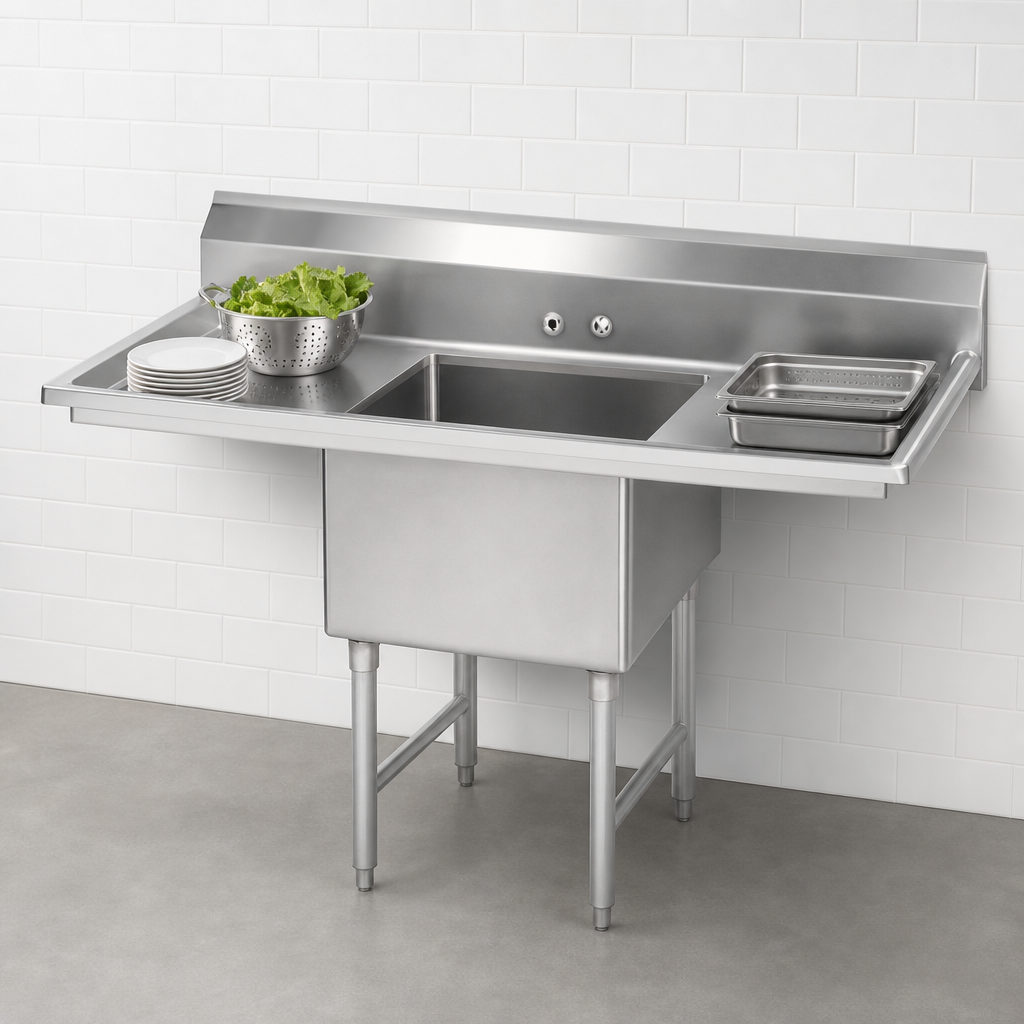

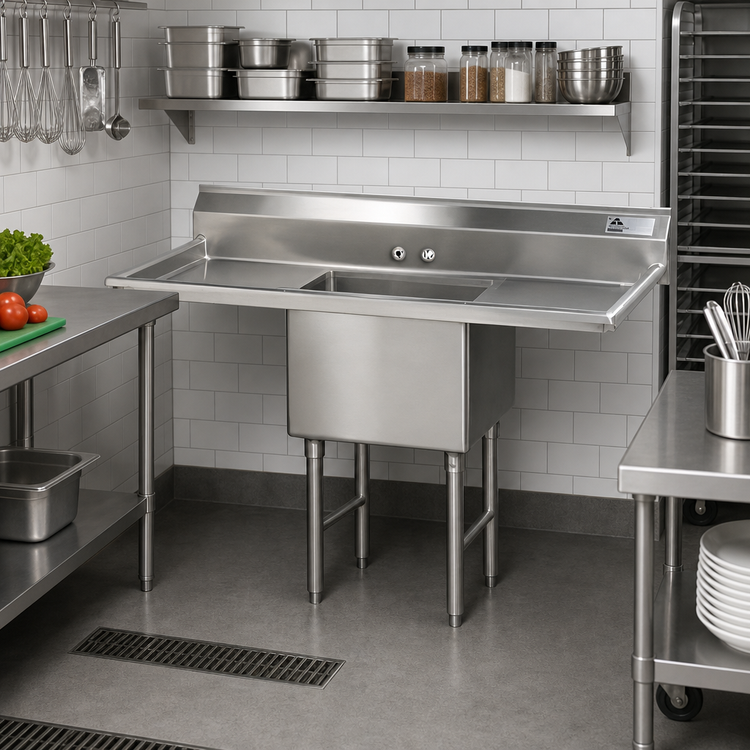

Advance Tabco FC-1-3024-24RL Fabricated Economy Sink

1-Compartment • (2) 24" Drainboards • 16 ga 304 Stainless Steel • NSF

Built for busy commercial kitchens that need a rugged, all-in-one work station, the FC-1-3024-24RL delivers a generous 30" × 24" bowl, full-size drainboards on both sides, and the worry-free strength of TIG-welded 16-gauge 304 stainless steel. From vegetable prep to ware-washing, this sink keeps your workflow moving.

Key Features
  • Heavy-duty 16 ga 304 stainless steel – corrosion-resistant, food-safe, and easy to sanitize.
  • Spacious 30" W × 24" F/B × 14" D bowl handles large stock pots and sheet pans.
  • Two welded 24" drainboards (left & right) with positive drain pitch for faster drying and staging.
  • 8 1/2" backsplash with tile edge simplifies wall installation and protects surrounding surfaces.
  • Rolled rim edge adds strength and provides a comfortable grip when moving racks or pans.
  • 3/4" coved bowl corners meet NSF requirements for effortless cleaning.
  • Pre-punched 8" on-center faucet holes; 1/2" IPS hot & cold supply connections.
  • 1 1/2" IPS stainless steel basket drain (centered) included.
  • 1 5/8" Ø stainless steel legs with adjustable side cross-bracing for rock-solid stability.
  • 1" adjustable stainless steel bullet feet level the sink on uneven floors.
  • NSF certified & fully TIG-welded with satin-blended seams.
Specifications
Model FC-1-3024-24RL
Compartments 1
Bowl Size (W × F/B × D) 30" × 24" × 14"
Drainboards (2) 24" – right & left
Overall Dimensions (L × F/B) 78" × 29 1/2"
Material / Gauge 16 ga 304 stainless steel
Backsplash Height 8 1/2"
Faucet Holes 8" on-center (pre-punched)
Drain Fitting 1 1/2" IPS stainless steel basket drain (included)
Legs / Bracing 1 5/8" Ø S/S legs with adjustable side cross-bracing
Feet 1" adjustable stainless steel bullet feet
Shipping Weight Approx. 225 lb.
Certifications NSF
Important: Faucet, garbage disposal, and side splashes are not included. Compatible accessories such as K-700 removable side splashes are available separately.

Advance Tabco continually improves products; specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

43.0in

Width

78.0in

Depth

29.5in

Shipping Weight

225.0lbs

Drainboards

with left & right-hand drainboards

Base Type

legs with side crossrails

Base Construction

stainless steel

Compartment (front - back)

24"

Compartment Width (side - side)

30"

Sink Depth (rim - drain)

14"

Specifications

Fabricated Sink, 1-compartment, 24" right & left drainboards, bowl size 30" x 24" x 14" deep, 16 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 29-1/2" F/B x 78" L/R, NSF
