Advance Tabco | SKU:
FC-1-2424
Advance Tabco FC-1-2424 Compartment Sinks
$990.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco FC-1-2424 Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco FC-1-2424 Compartment Sinks
$990.00
Unit price
/
Unavailable
Description

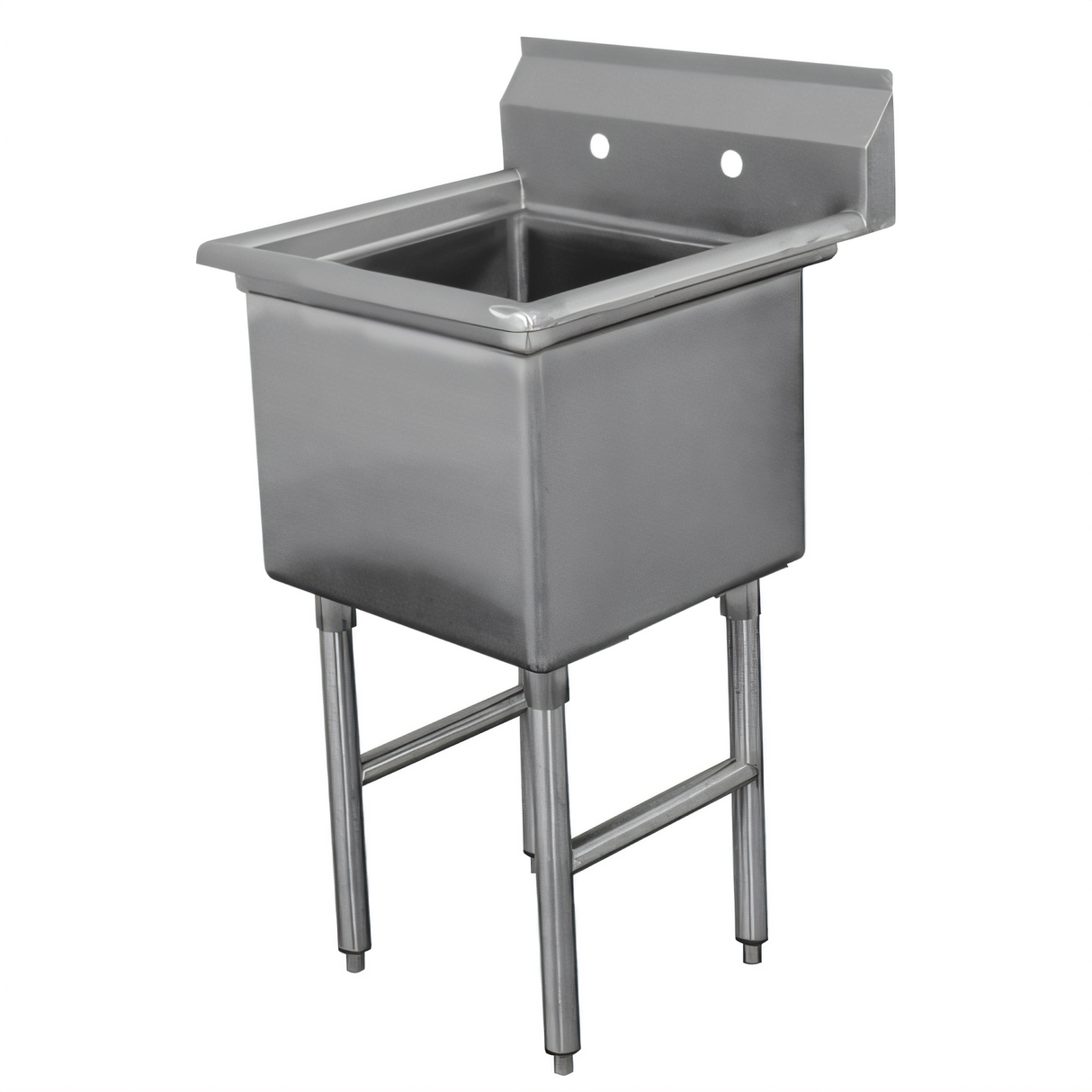

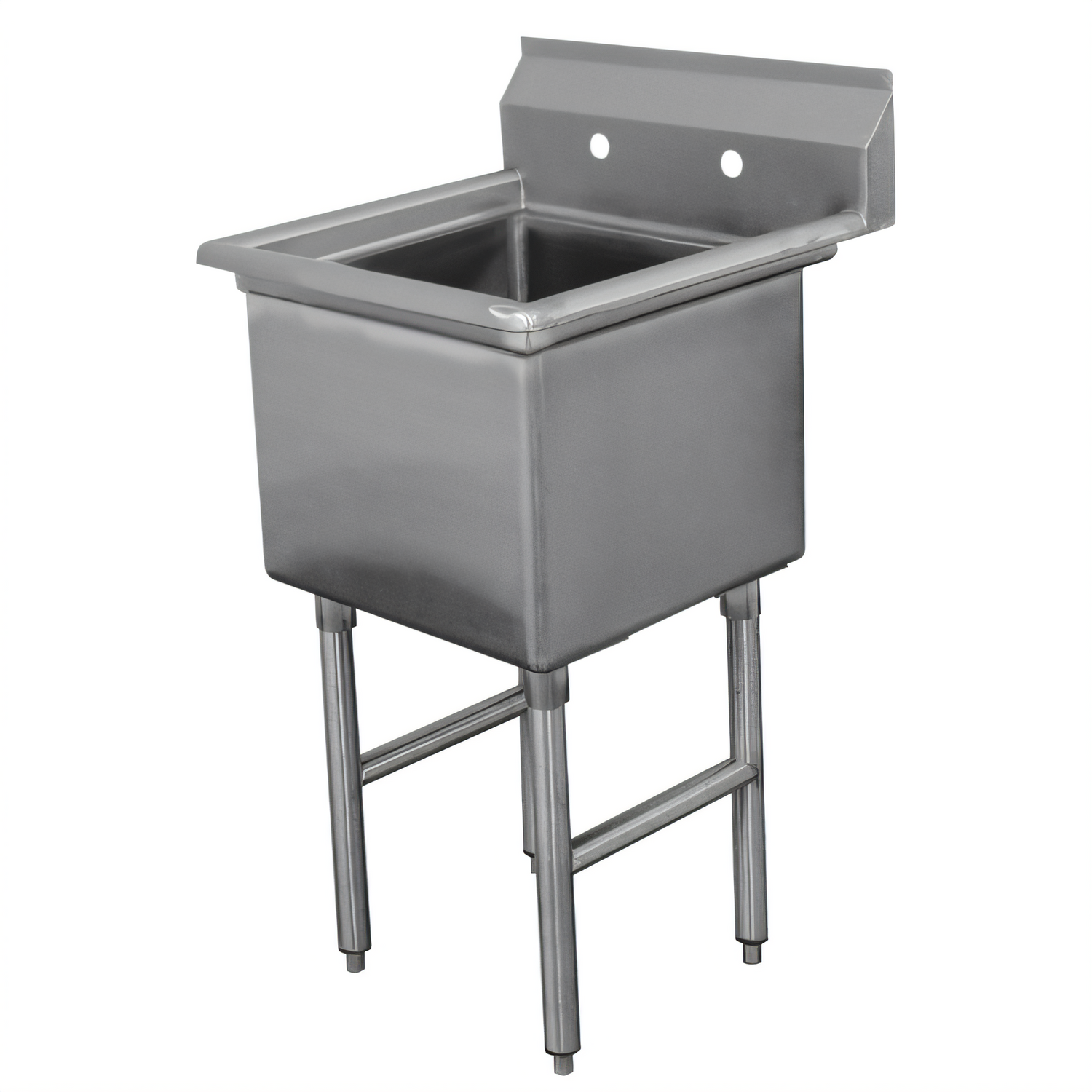

Advance Tabco FC-1-2424 Fabricated 1-Compartment Sink
24" x 24" x 14" Bowl • 16 Ga 304 Stainless Steel • NSF CertifiedGive your dish room, prep station, or utility area a space-saving workhorse with the Advance Tabco FC-1-2424. This single-compartment sink packs a roomy 24" square bowl into a compact 30"-deep footprint, delivering extra capacity without crowding your line.
Built for daily commercial abuse
- 16 gauge type 304 stainless steel top, bowl, and backsplash resist corrosion and heavy impacts.
- Rolled rim edge adds rigidity and eliminates sharp corners for safer use.

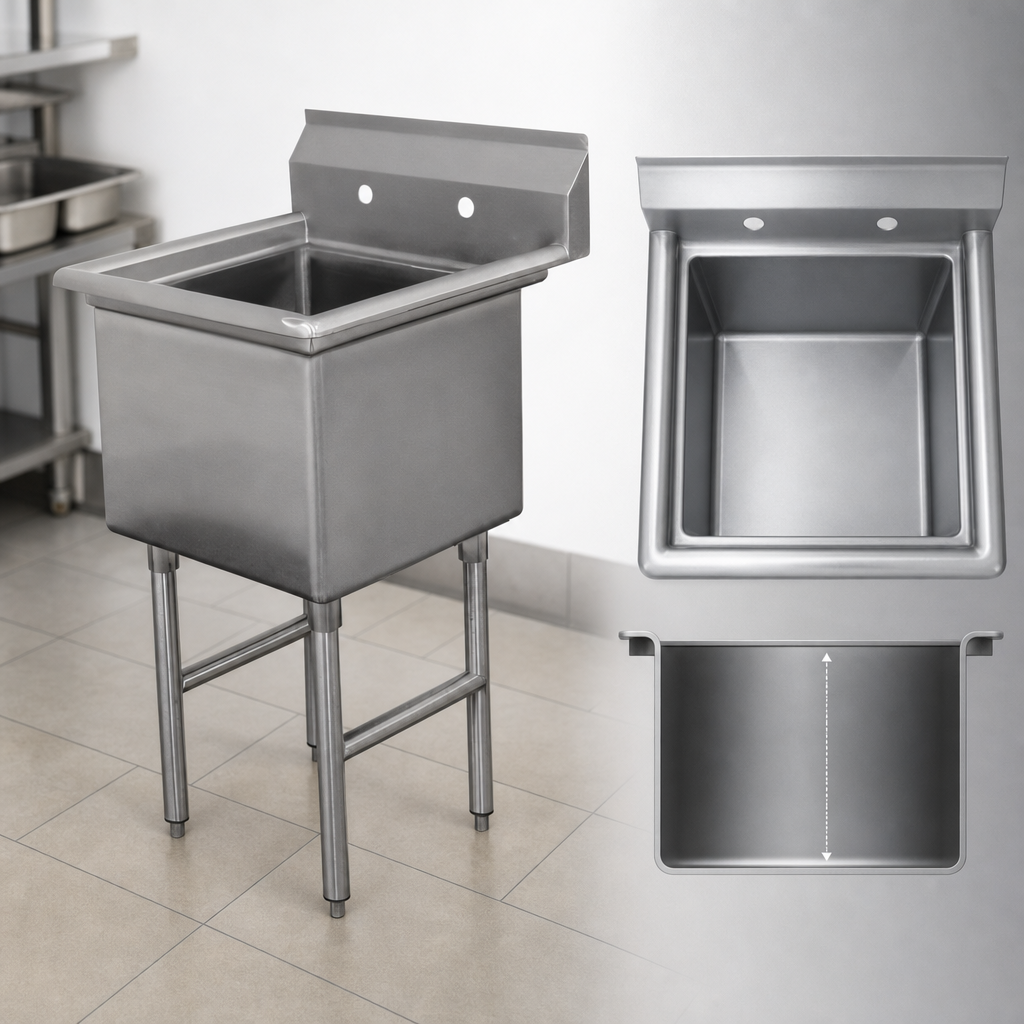

- 14" deep fabricated bowl with 3/4" coved corners meets NSF sanitation standards and makes cleanup fast.
- TIG-welded construction; welds are ground and polished to a matching satin finish.
- Integral 8-1/2" backsplash with tile-edge for easy wall sealing and pre-punched 8" on-center faucet holes.
- 1 5/8" Ø stainless steel legs with adjustable side cross-bracing add rock-solid stability.
- 1" adjustable stainless bullet feet level the sink on uneven floors.
- 1 1/2" IPS basket drain (centered) is included—no need for a separate drain assembly.
Technical Specifications
| Model | FC-1-2424 |
|---|---|
| Compartments | 1 (no drainboards) |
| Bowl Size (W × L × D) | 24" × 24" × 14" |
| Overall Dimensions (F/B × L/R) | 30" × 29" |
| Material Thickness | 16 ga (0.062") |
| Steel Type | 304 stainless |
| Backsplash Height | 8 1/2" with tile edge |
| Faucet Mount | 8" on-center punch (⌀1-1/4") |
| Supply Connection | 1/2" IPS hot & cold (faucet not included) |
| Drain Connection | 1 1/2" IPS basket strainer (included) |
| Leg Diameter | 1 5/8" |
| Feet | 1" adjustable stainless bullet feet |
| NSF Listing | Yes |
| Shipping Weight | ≈ 90 lb |
Perfect for
- Restaurant kitchens needing a dedicated pot-washing or produce-prep sink
- Cafeterias, schools, and healthcare facilities
- Bar or back-bar utility clean-ups
- Food trucks and compact prep environments
Compatible Accessories (sold separately)
- Deck-mount swing and gooseneck faucets (8" OC)
- K-700 removable side splashes (fits left or right)
- Strainer-style overflow drains
Heads-up: Faucet and trap are shown for reference only and are not included with the sink.
Advance Tabco is continually improving its products; specifications are subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Height
43.0in
Width
29.0in
Depth
30.0in
Shipping Weight
68.0lbs
Base Type
legs with side crossrails
Compartment (front - back)
24"
Top Gauge
16 gauge
Splash Height
8-1/2"
Sink Depth (rim - drain)
14"
Overall Length
24" - 35"
Compartment Width (side - side)
24"
Top Stainless Series
300 series
Base Construction
stainless steel
Drainboards
without drainboards
Specifications
Fabricated Sink, 1-compartment, no drainboards, bowl size 24" x 24" x 14" deep, 16 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 30" F/B x 29" L/R, NSF
