Advance Tabco FC-1-2424-18L Compartment Sinks
Description

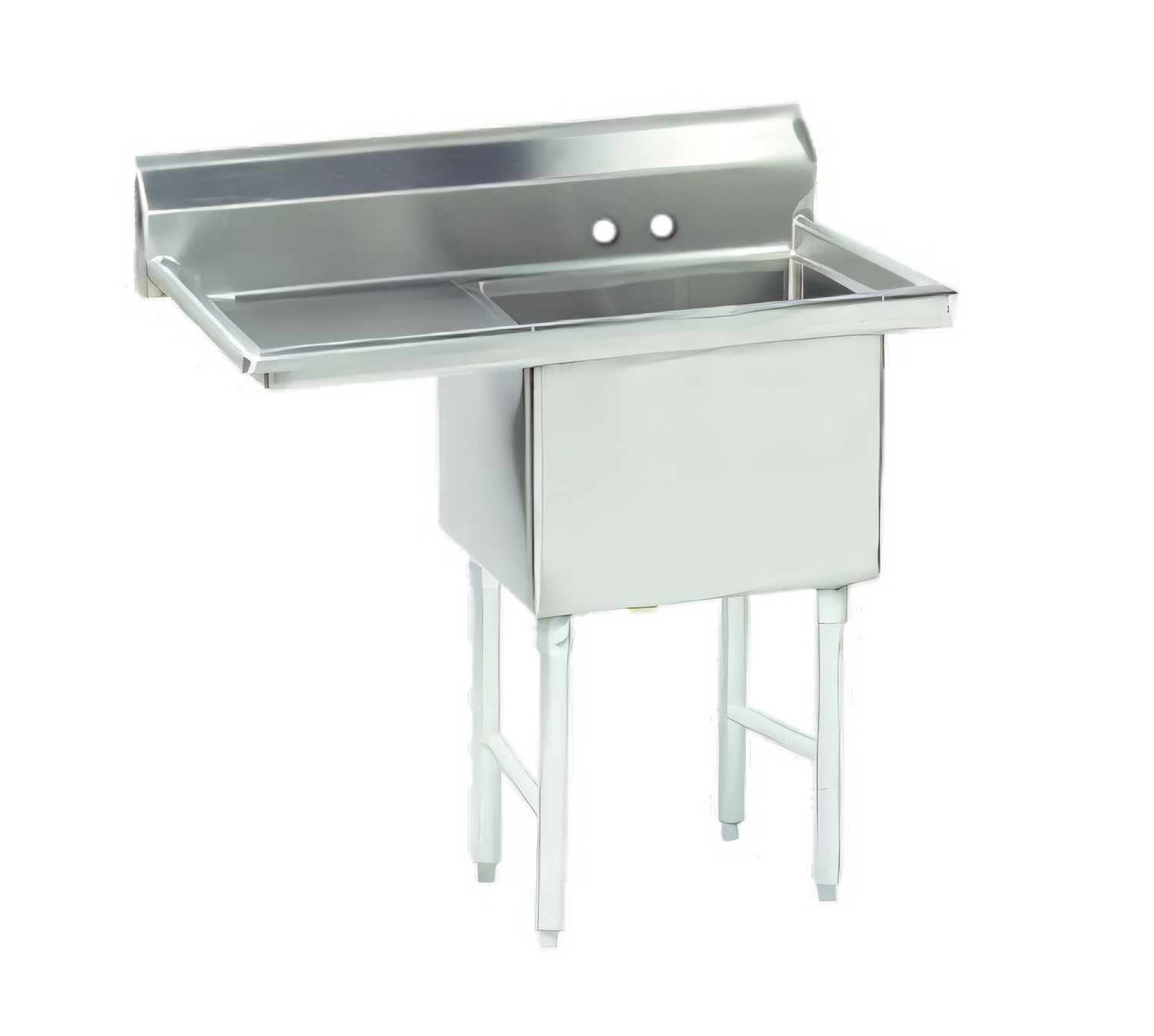

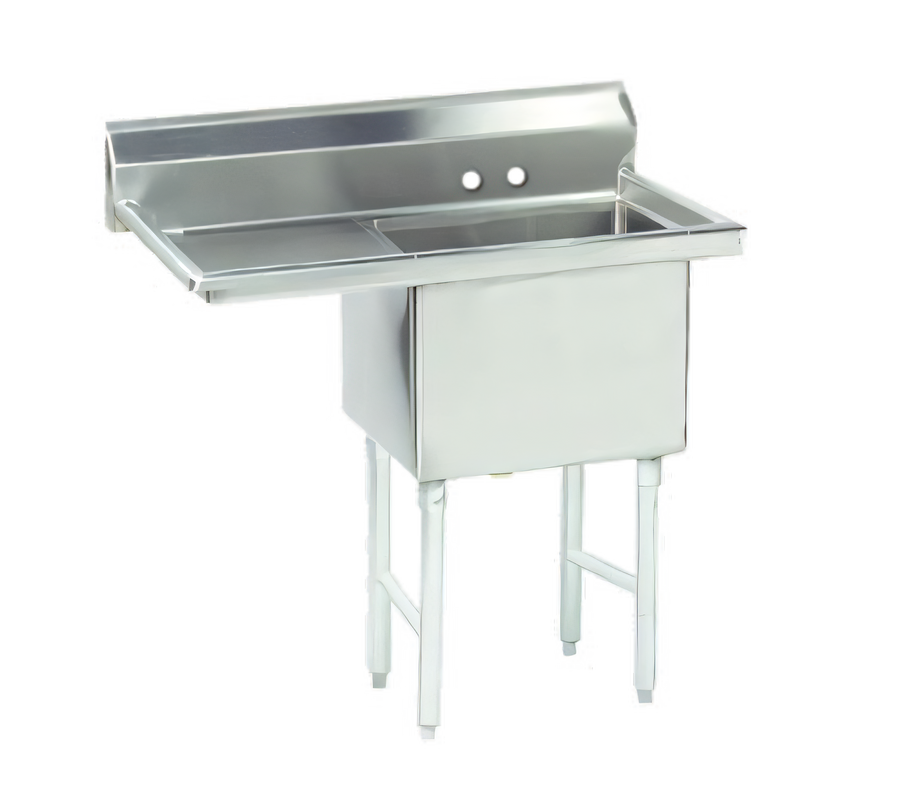

Advance Tabco FC-1-2424-18L Fabricated Sink
1-Compartment | 18" Left Drainboard | 24" × 24" × 14" BowlGive your dishroom the muscle it deserves. Fabricated from extra-thick 16-gauge type 304 stainless steel, this NSF-listed utility sink pairs a spacious 24" square bowl with an 18" left-hand drainboard—perfect for high-volume rinsing, soaking, and air-drying in one streamlined station.
Key Features
- Heavy-duty 16 ga. 304 stainless steel construction resists corrosion and dents.
- 14" deep bowl with 3/4" coved corners satisfies NSF sanitation standards and wipes clean fast.

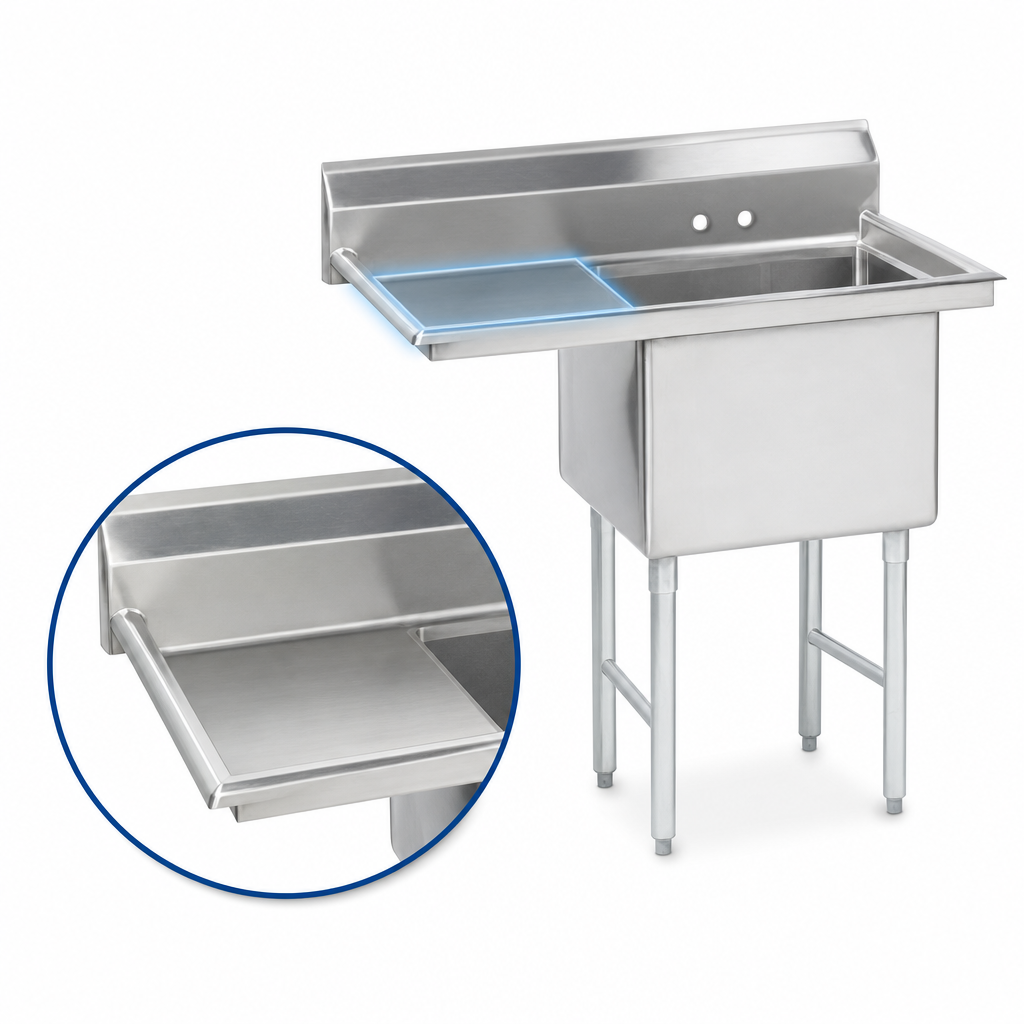

- 18" integral drainboard (left side) provides ample landing space for dirty or clean ware.
- Rolled rim edge adds strength and prevents painful wrist bumps.
- 8-1/2" backsplash with tile edge creates a watertight, grout-ready seal against any wall.
- Pre-punched 8" on-center faucet holes accept most commercial wall-mount faucets (sold separately).
- Center-mounted 1 ½" IPS stainless steel basket drain included.
- 1 5/8" O.D. stainless steel legs with adjustable side cross-bracing for rock-solid stability.
- 1" adjustable stainless steel bullet feet level the sink on uneven floors.
- All TIG-welded seams ground and polished to a smooth satin finish.
- NSF listed for food-service use.
Built to Outperform
- Fabricated bowl seams are fully welded—no drawn-bowl stress points to crack over time.
- 16 ga. steel is 33-40 % thicker than typical economy sinks, extending service life.
- Deep 14" bowl corrals splashes, keeping surrounding work areas drier and safer.
- Left-hand workflow keeps soiled ware on the drainboard and clean ware moving right.
Specifications
| Model | FC-1-2424-18L |
|---|---|
| Compartments | 1 |
| Bowl Size (W × D × H) | 24" × 24" × 14" |
| Drainboard | 18" (Left side) |
| Overall Dimensions | 44 ½" L/R × 29 ½" F/B |
| Backsplash Height | 8 ½" |
| Material / Gauge | 16 ga. type 304 stainless steel |
| Faucet Holes | 2 holes, 8" on-center, 1 ⅛" Ø |
| Drain | 1 ½" IPS S/S basket type (included) |
| Legs & Bracing | 1 5/8" O.D. S/S legs with adjustable side cross-bracing |
| Feet | 1" adjustable stainless steel bullet feet |
| Certifications | NSF |
| Approx. Net Weight | ≈118 lb |
Ideal For
- Restaurant prep and dish areas
- Catering kitchens & commissaries
- Bars and taprooms needing a large utility bowl
- Food-truck or ghost-kitchen clean-up stations
Need a mirror-image model with a right-hand drainboard or additional custom options? Contact Advance Tabco’s Smart Fabrication™ team—we’ll build it to your exact spec.
