Advance Tabco  |  SKU: FC-1-1824-18RL  |  UPC: 747545128157

Advance Tabco FC-1-1824-18RL Compartment Sinks

$1,172.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Leg clearances
Related Searches
1-compartment Sinks Commercial Plumbing Supplies Commercial Sinks Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

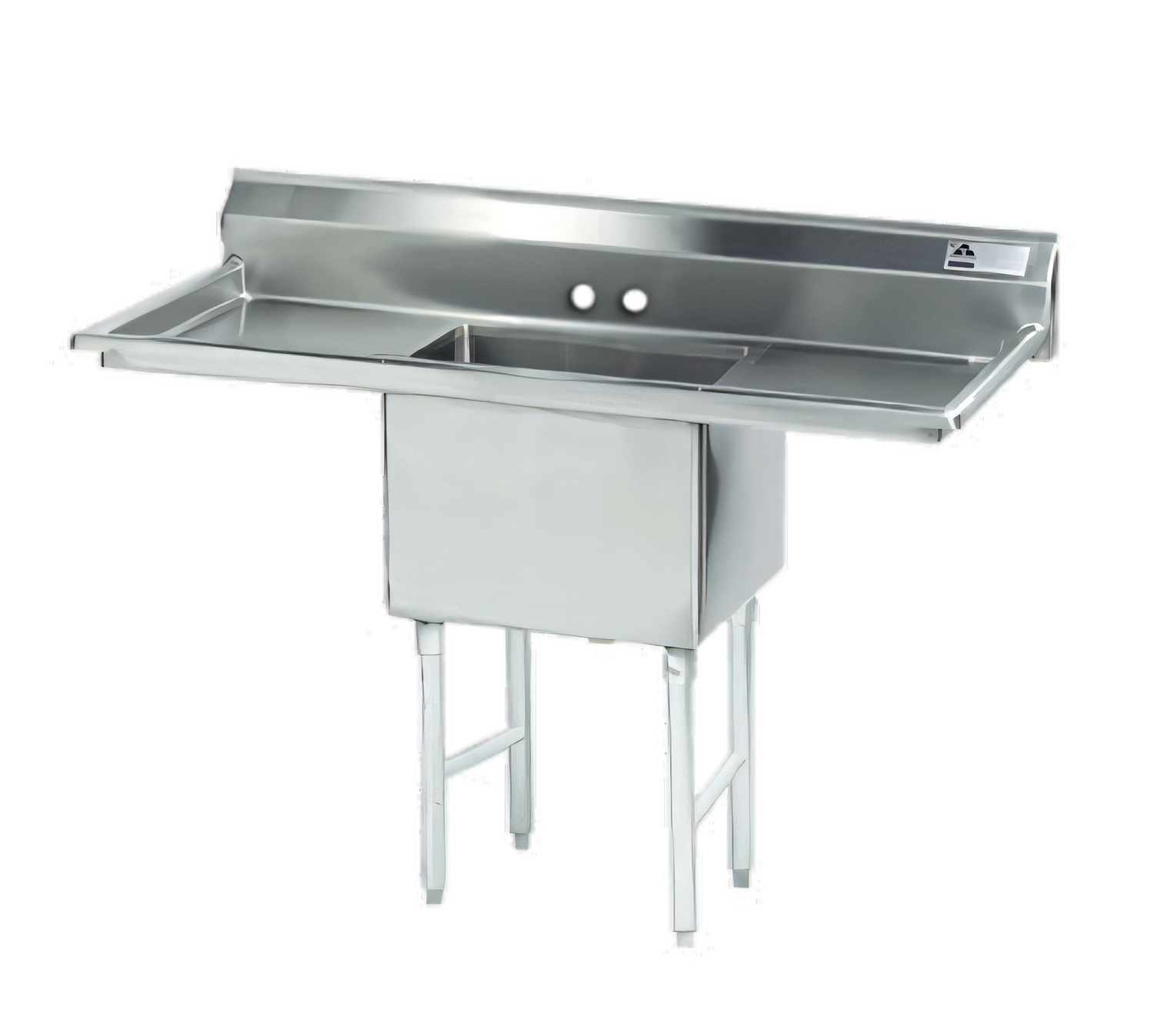

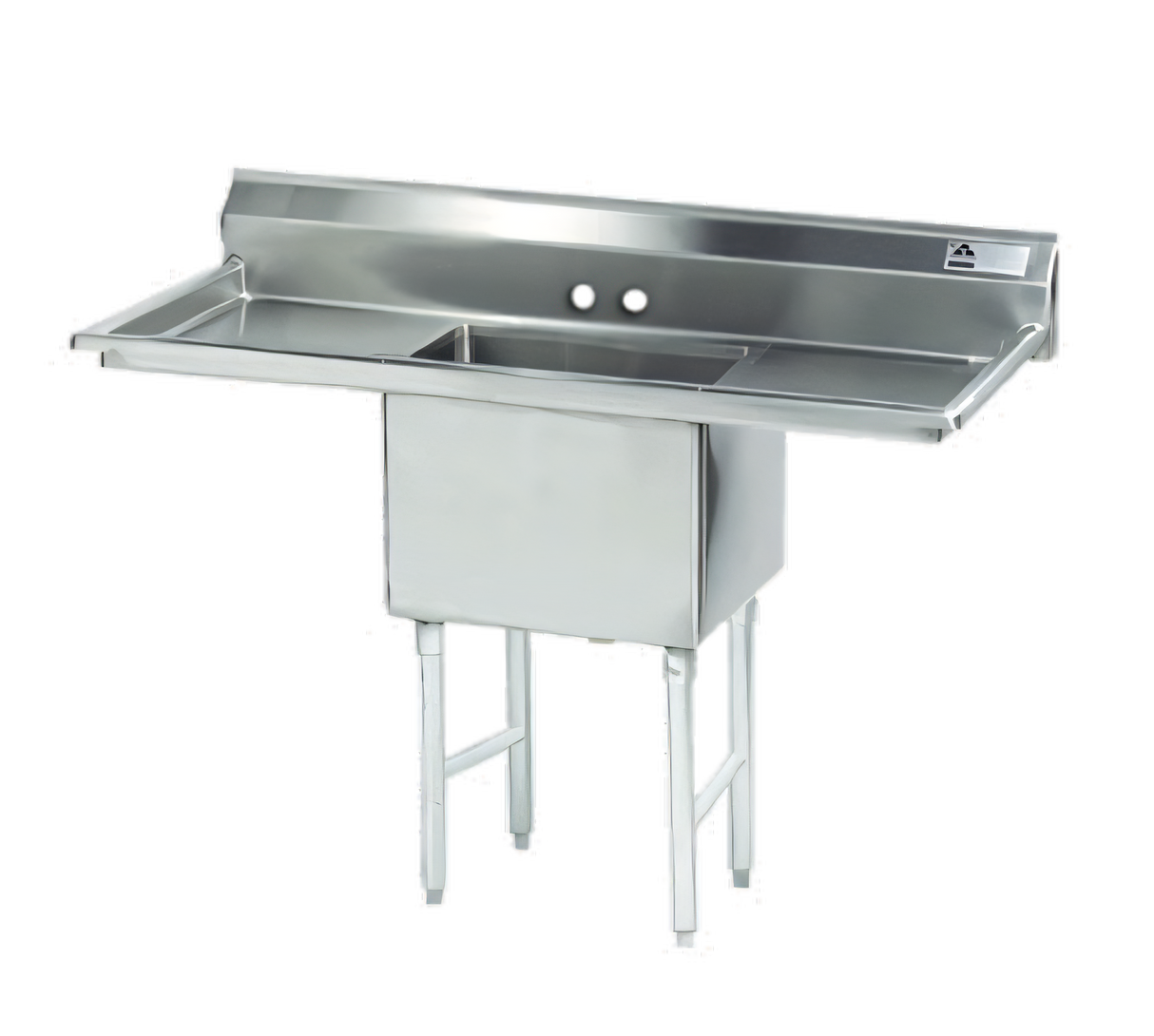

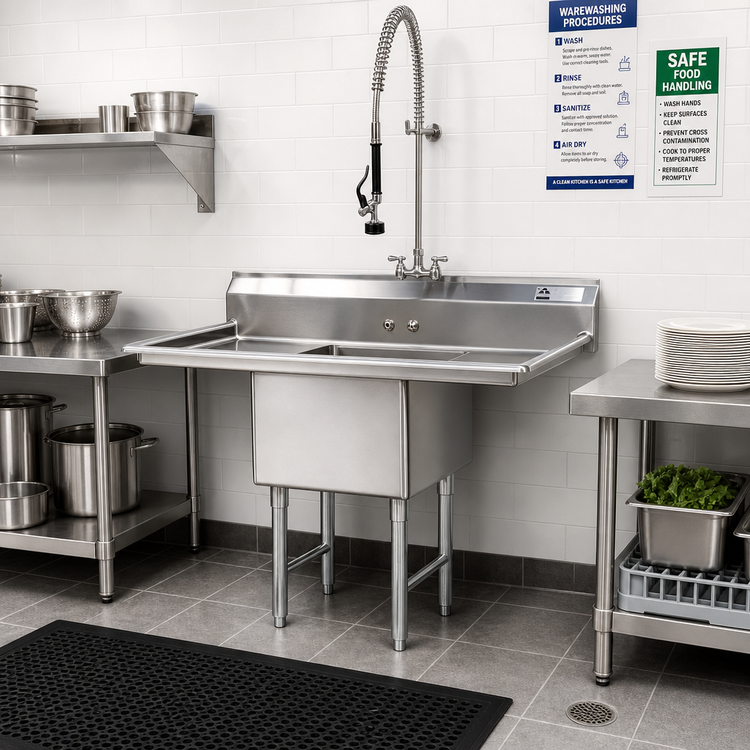

Advance Tabco FC-1-1824-18RL Fabricated Economy Sink

1-Compartment • Dual 18" Drainboards • 16 ga 304 Stainless Steel

Outfit your prep or ware-washing area with a durable, NSF-listed sink that’s built to work as hard as you do. This single-compartment Advance Tabco model features generous 18" drainboards on both sides, a deep 14" bowl, and robust stainless-steel construction that stands up to daily commercial abuse.

Key Benefits

  • Heavy-duty 16 ga 304 SS resists corrosion, dents, and scratches.
  • Spacious 18" × 24" × 14" bowl accommodates large stock pots and sheet pans.

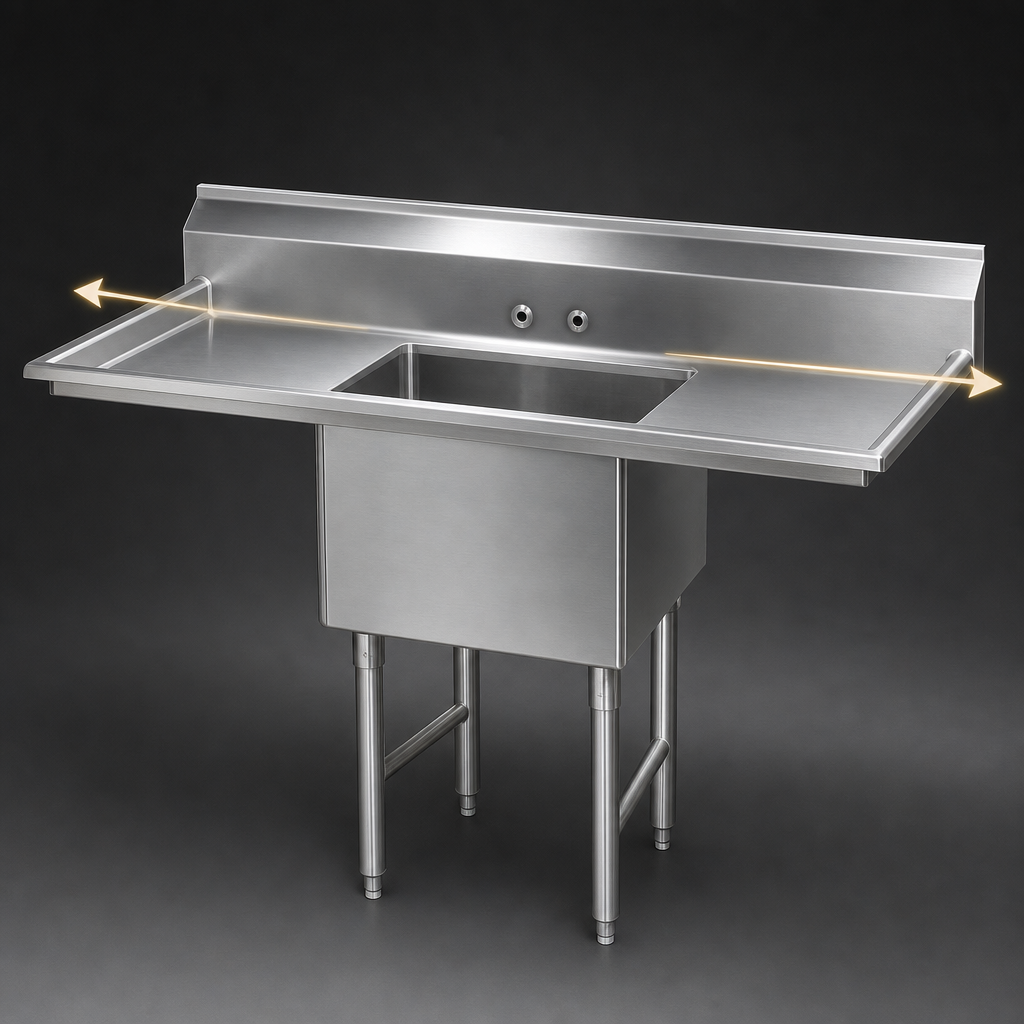

  • Integrated 18" right & left drainboards keep dirty and clean wares organized.
  • Rolled rim edge adds rigidity and protects hands during loading and unloading.
  • 8-1/2" tile-edge backsplash simplifies installation and prevents water intrusion.
  • Pre-punched 8" on-center faucet holes—just add the wall-mount faucet of your choice (sold separately).
  • 3/4" coved corners and TIG-welded seams meet strict NSF sanitation standards.
  • Center-mounted 1-1/2" IPS stainless steel basket drain included.
  • 1-5/8" Ø stainless steel legs with adjustable side cross-bracing for rock-solid stability.
  • 1" adjustable stainless steel bullet feet level the sink on uneven floors.

Specifications

Model FC-1-1824-18RL
Compartments 1
Overall Dimensions 54" L × 29-1/2" F/B × 43" H (to deck)
Drainboard Length 18" (right) & 18" (left)
Bowl Size 18" W × 24" L × 14" D
Material 16 ga type 304 stainless steel
Backsplash Height 8-1/2" with tile edge
Faucet Holes (2) holes, 8" on center, 1-1/8" Ø
Drain Connection 1-1/2" IPS S/S basket drain (included)
Legs / Feet (4) 1-5/8" Ø S/S legs, adjustable side cross-bracing, 1" S/S bullet feet
Shipping Weight Approx. 120 lb
Certifications NSF

Faucet, side splashes, and other accessories are available separately.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

43.0in

Width

54.0in

Depth

29.5in

Shipping Weight

170.0lbs

Base Type

legs with side crossrails

Compartment (front - back)

24"

Top Gauge

16 gauge

Top Stainless Series

300 series

Compartment Width (side - side)

18"

Splash Height

8-1/2"

Overall Length

54" - 62"

Drainboards

with left & right-hand drainboards

Sink Depth (rim - drain)

14"

Base Construction

stainless steel

Specifications

Fabricated Sink, 1-compartment, 18" right & left drainboards, bowl size 18" x 24" x 14" deep, 16 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 29-1/2" F/B x 54" L/R, NSF
