Advance Tabco FC-1-1818-18L Compartment Sinks
Description

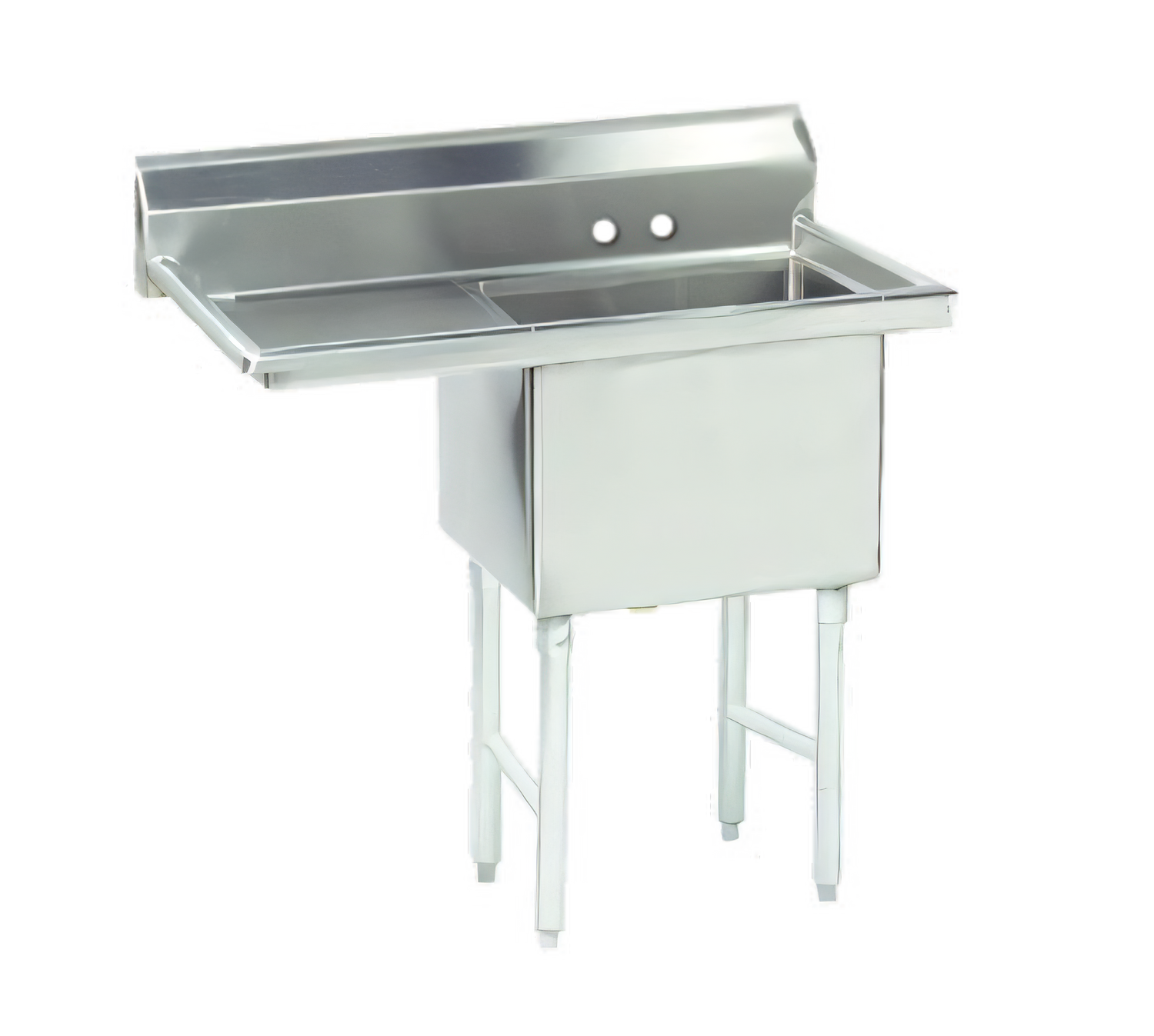

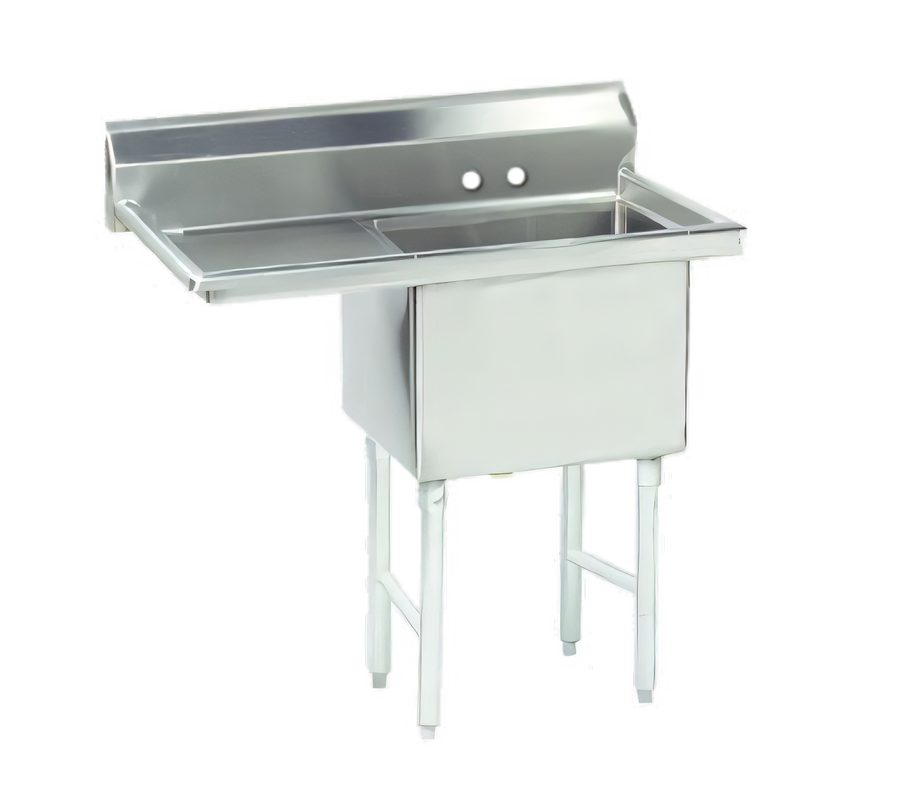

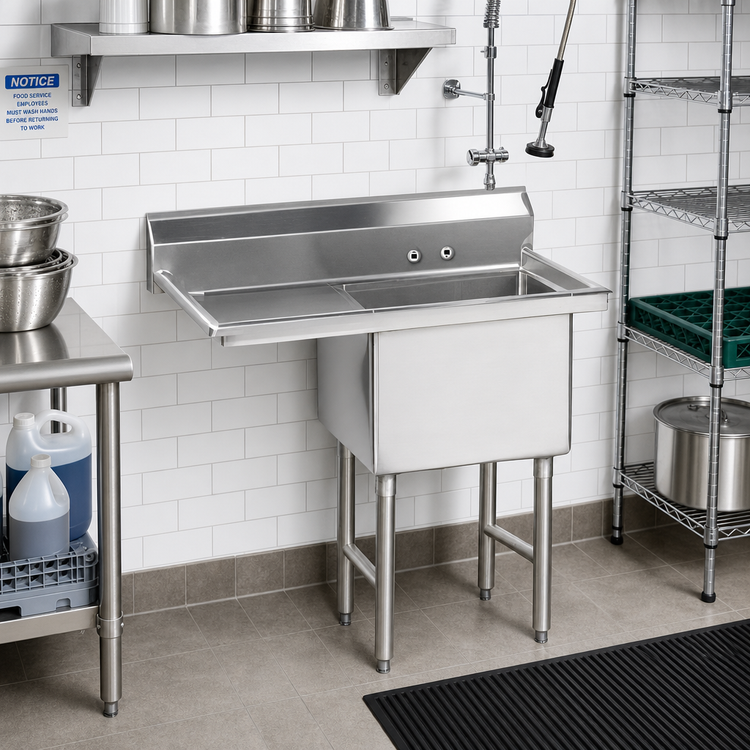

Advance Tabco FC-1-1818-18L Fabricated 1-Compartment Sink with 18" Left Drainboard
Heavy-duty 16 ga 304 stainless steel | NSF listedEngineered for everyday, high-volume use, this Advance Tabco fabricated economy sink combines a spacious 18" × 18" × 14" deep bowl with a full-size 18" left-hand drainboard. All-welded construction, a sanitary tile-edge backsplash and rolled rim edge deliver the durability and cleanability food-service professionals demand.
Built to Perform
- 16 gauge type 304 stainless steel – corrosion-resistant & easy to sanitize
- 14" deep fabricated bowl with ¾" coved corners meets NSF requirements

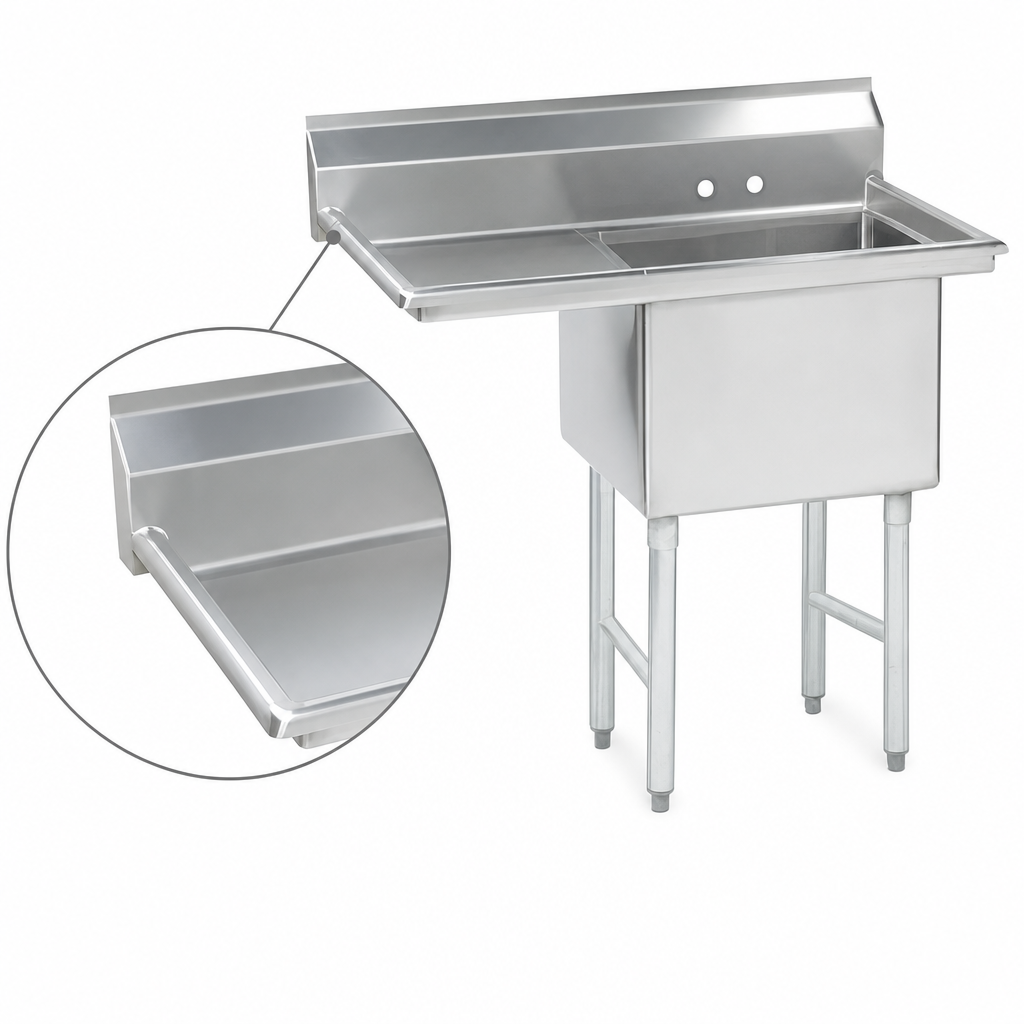

- 18" drainboard (left side) speeds up drying & staging
- Reinforced rolled rim edge adds strength and protects against dents
- 8" on-center faucet holes (½" IPS) pre-punched in backsplash
- 1 ½" IPS stainless steel basket drain supplied & centrally located
- 1 ⅝" Ø stainless steel legs with adjustable side cross-bracing for extra rigidity
- 1" adjustable stainless steel bullet feet for quick leveling on uneven floors
- All TIG-welded seams blended to a satin finish for a professional look
- NSF certified for food-service sanitation
Technical Specifications
| Model | FC-1-1818-18L |
|---|---|
| Compartments | 1 |
| Bowl Size (W × L × D) | 18" × 18" × 14" |
| Drainboard | 18" (left side) |
| Overall Dimensions | 38 ½" L (left to right) × 24" W (front to back) |
| Working Height | 37" to rim / 43" to top of backsplash |
| Backsplash | 8 ½" H with sanitary tile edge |
| Faucet Holes | 8" on-center, 1 1/8" Ø (faucet not included) |
| Drain Connection | 1 ½" IPS stainless basket drain (included) |
| Shipping Weight | ≈ 65 lb |
| Compliance | NSF |
Installation & Utility Notes
- Hot & cold water supply: ½" IPS connections
- Leg clearance (front-to-back): 11" • Leg clearance (right-to-left): 11"
- Adjustable feet provide ±1" leveling range
Advance Tabco continually improves its products; specifications are subject to change without notice.
