Advance Tabco FC-1-1620-18RL Compartment Sinks
Description

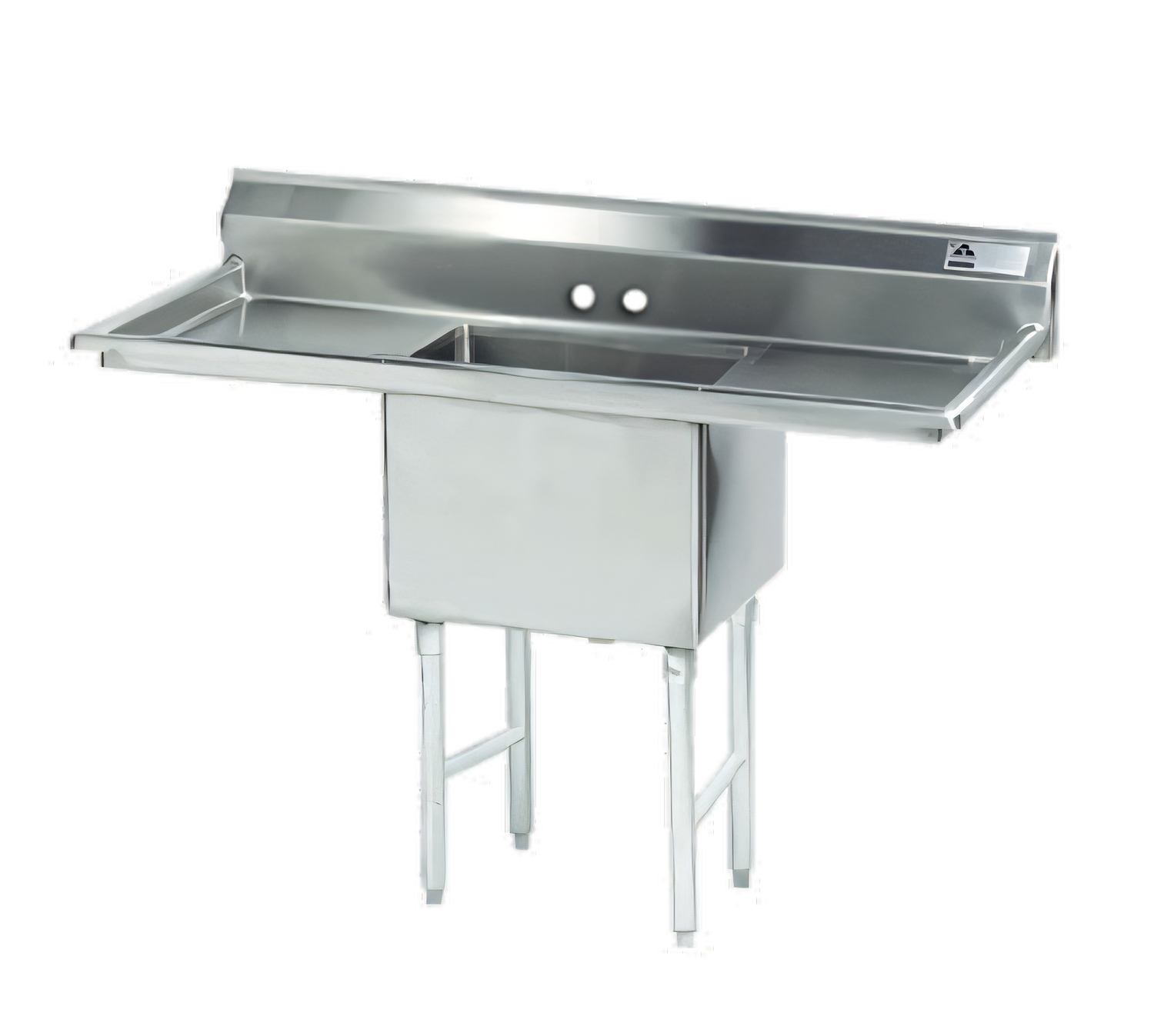

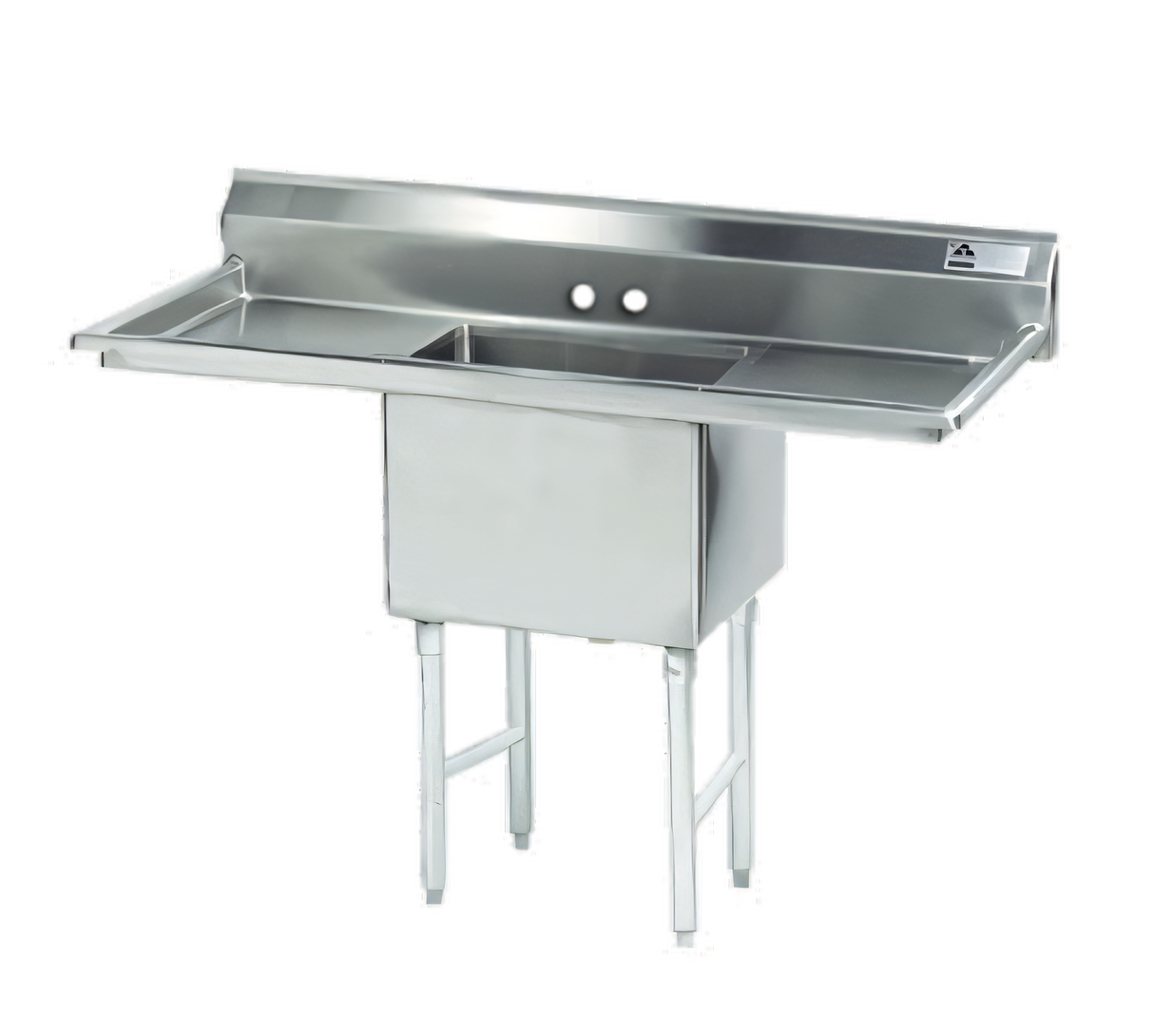

Advance Tabco FC-1-1620-18RL 1-Compartment Fabricated Sink with Dual 18" Drainboards
16 ga. 304 Stainless Steel • 52" L × 26" F/B • NSF ListedEngineered for demanding commercial kitchens, the Advance Tabco FC-1-1620-18RL combines a spacious 16" × 20" bowl with full-size 18" drainboards on both sides. All-welded 16-gauge 304 stainless steel, a tile-edge backsplash, and rolled rim edges deliver lasting durability, easy sanitation, and fast installation.
Key Features

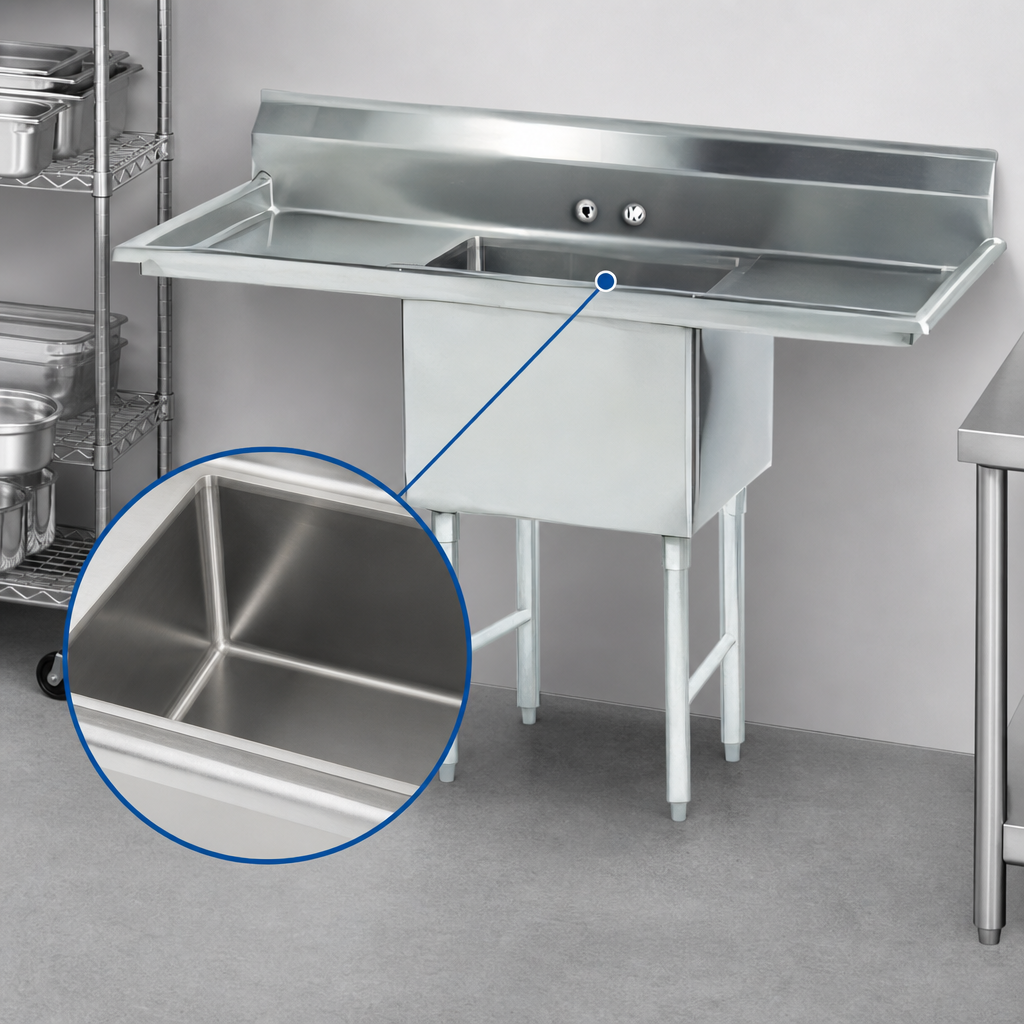

- Single 14"-deep bowl (16" W × 20" L) handles large pots, sheet pans, and prep tasks.
- Right & left 18" drainboards give you separate landing areas for dirty and clean wares.
- Heavy-duty 16-gauge 304 stainless steel resists corrosion and daily wear.
- 8 ½"-high tile-edge backsplash protects walls and accepts backsplash tile or sealant.
- Rolled rim edge increases strength and creates a smooth, comfortable work surface.
- Pre-punched 1 ⅛" faucet holes on 8" centers (faucet sold separately).
- 1 ½" IPS stainless-steel basket drain centered in bowl—no extra kit required.
- 1 ⅝" Ø stainless-steel legs with adjustable side cross-bracing for rock-solid stability.
- 1" adjustable stainless-steel bullet feet level the sink on uneven floors.
- NSF listed and TIG-welded with blended seams for a sanitary, satin finish.
Specifications
| Model | FC-1-1620-18RL |
|---|---|
| Compartments | 1 |
| Bowl Size (W × L × D) | 16" × 20" × 14" |
| Drainboards | 18" Right & Left (2 total) |
| Overall Dimensions (L × F/B) | 52" × 26" |
| Material / Gauge | 304 Stainless Steel / 16 ga. |
| Backsplash Height | 8 ½" (tile-edge) |
| Faucet Holes | (2) 1 ⅛" holes on 8" centers |
| Water Supply | ½" IPS Hot & Cold |
| Drain Connection | 1 ½" IPS Basket Drain (included) |
| Legs / Feet | 1 ⅝" Ø S/S Legs • Adjustable Side Cross-Bracing • 1" S/S Bullet Feet |
| Approx. Weight | 80 lb. |
| Certifications | NSF |
What’s Included
- Advance Tabco FC-1-1620-18RL fabricated sink
- Stainless-steel leg set with side cross-bracing
- 1" adjustable stainless-steel bullet feet
- (1) 1 ½" IPS stainless-steel basket drain
Looking for a different bowl size, drainboard configuration, or a custom layout? Ask us about Advance Tabco’s Smart Fabrication™ program for made-to-order stainless-steel solutions.
