Description

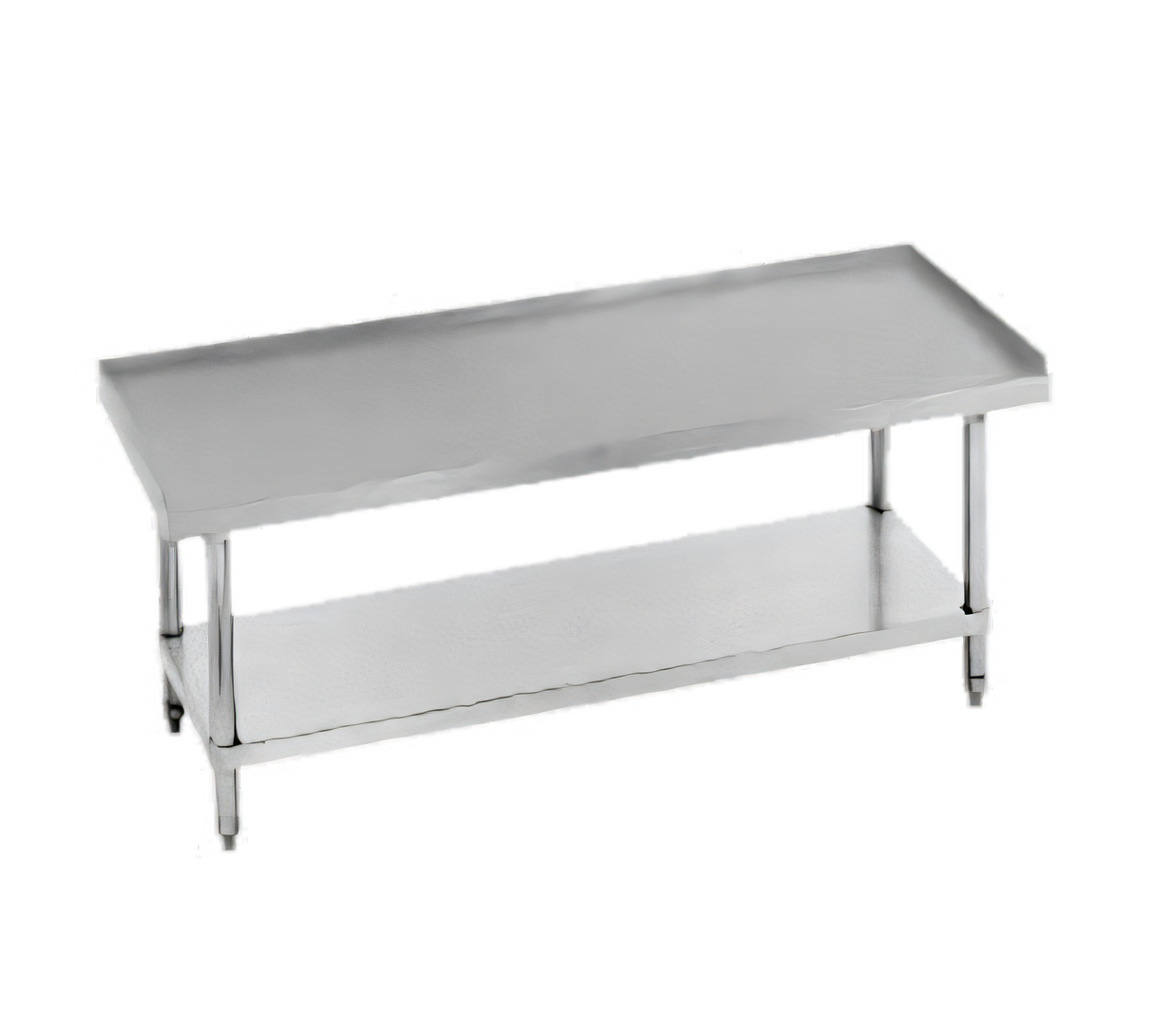

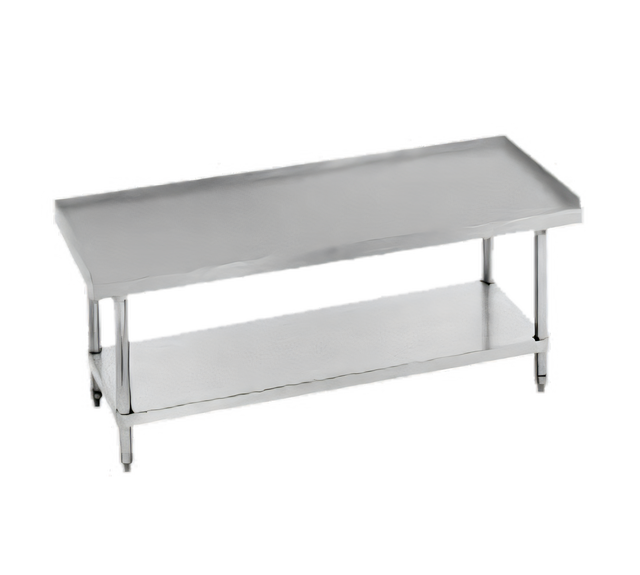

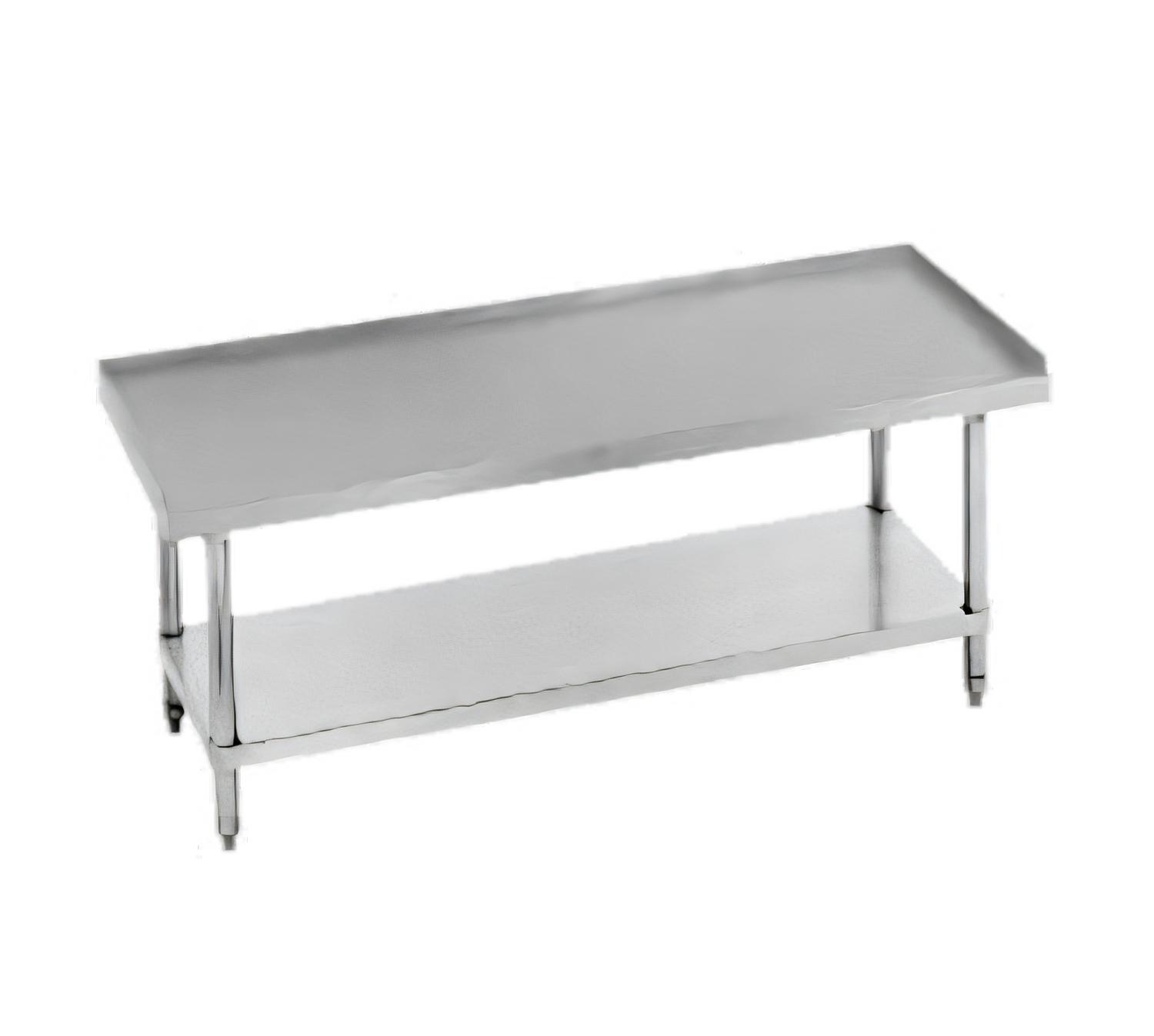

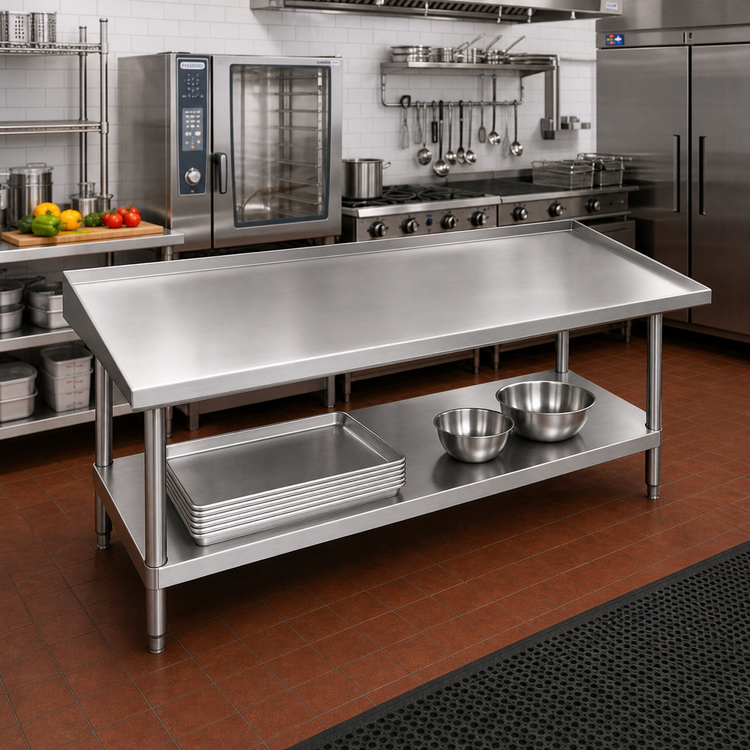

Advance Tabco 60" x 30" Stainless Steel Equipment Stand

Model ES-305 • 24" Working Height • NSF Listed

Built to shoulder the weight of your heaviest countertop equipment, the Advance Tabco ES-305 equipment stand delivers industry-leading strength, sanitation, and long-term durability in one sleek, easy-to-clean package.

Key Features & Benefits

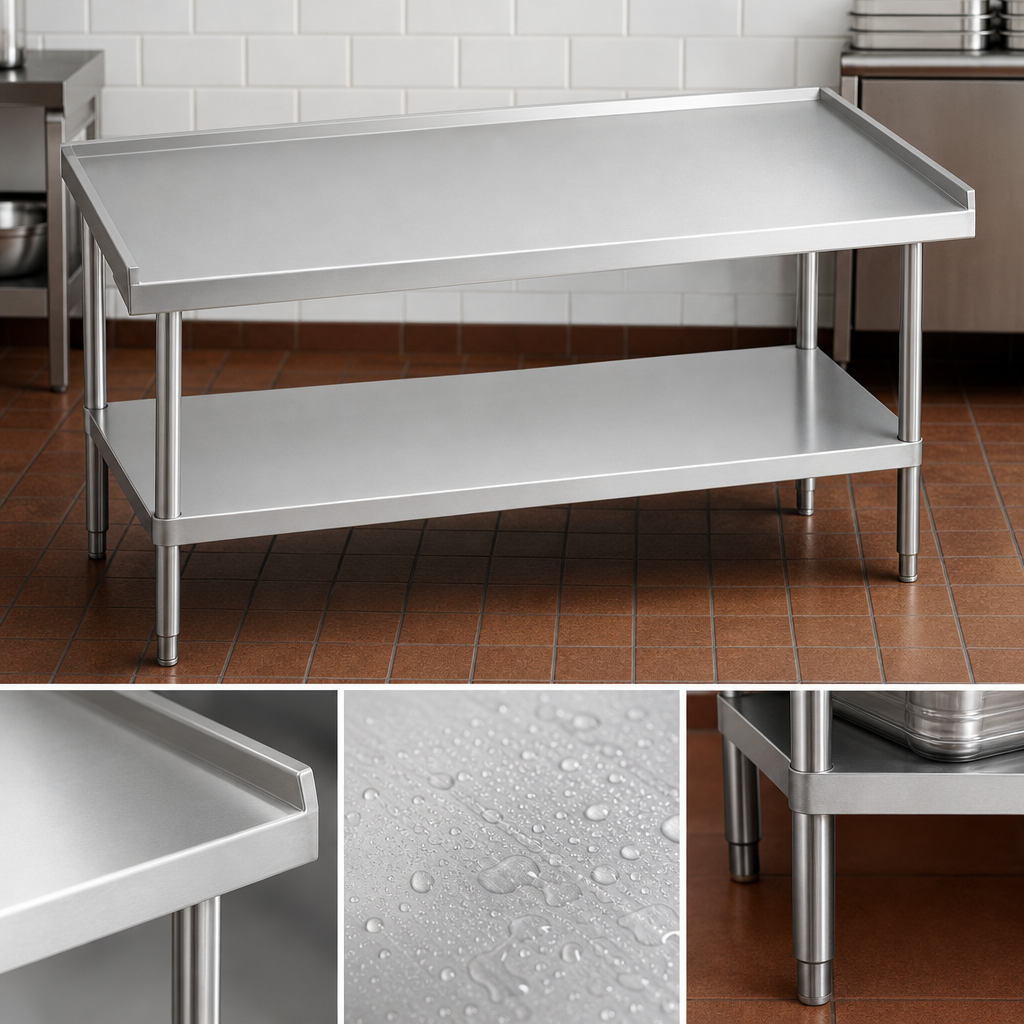

  • Premium 14-gauge Type 304 stainless steel top with satin finish & sound-deadening understructure.
  • 1" up-turn on rear and both sides keeps equipment in place and contains spills.
  • All TIG-welded construction; exposed welds polished to match surrounding surfaces.
  • 18-gauge adjustable stainless steel undershelf secured with a die-cast “leg-to-shelf” clamp— no unsightly nuts or bolts.
  • (4) 1 5/8" O.D. tubular stainless steel legs with welded gussets for added rigidity.
  • Adjustable stainless steel bullet feet level the stand on uneven floors.
  • Low 24" working height places heavy mixers, slicers or ovens at a safe, ergonomic level.
  • Rated for 1,000 lb distributed load (Advance Tabco table-top load standard).
  • NSF listed for open-kitchen, food-zone installation.

Perfect For

  • Heavy-duty mixers & slicers
  • Countertop griddles, charbroilers & ranges
  • Microwave, convection or pizza ovens
  • Steamers, warmers & holding cabinets

Technical Specifications

Overall Dimensions (W × D × H) 60" × 30" × 25"
Working Height 24"
Top Material / Gauge 14 ga. Type 304 stainless steel, satin finish
Edge Detail 1" hemmed turn-up on rear & both sides
Undershelf 18 ga. adjustable stainless steel
Legs 1 5/8" O.D. tubular stainless steel with welded gussets
Feet Adjustable stainless steel bullet feet (1" range)
Distributed Load Capacity 1,000 lb
Certifications NSF

Optional Accessories (sold separately)

  • Heavy-duty 5" locking caster set – make your stand mobile (TA-255, 400 lb capacity per caster)
  • Laminated hardwood cutting board, 60" (TA-925)
  • 60" stainless steel plate shelf (TA-965)
  • 2" thick stainless steel cutting surface
Important: Load rating applies to evenly distributed static loads. When casters are installed, overall capacity is limited by the caster rating.

Looking for a custom modification? Ask us about Advance Tabco’s Smart Fabrication™ program.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

25.0in

Width

60.0in

Depth

30.0in

Shipping Weight

102.0lbs

Width (side - side)

54" - 62" wide

Top Gauge

14 gauge top

Depth (front - back)

25 - 30" deep

Base Type

open base with undershelf

Base Construction

stainless steel base

Height

25 - 30" high

Top Construction

stainless steel top

Specifications

Equipment Stand, 60"W x 30"D x 25"H (overall), 24" working height, 14 gauge 304 stainless steel top with 1"H up-turn on sides & rear, 18 gauge adjustable stainless steel undershelf, stainless steel legs with adjustable stainless steel bullet feet, NSF
