Advance Tabco  |  SKU: ES-246  |  UPC: 747545127228

Advance Tabco ES-246 Equipment Stands & Utility Carts

$1,218.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Product standards and use guide Installation manual
Related Searches
Equipment Stands & Utility Carts Tables & Workstations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

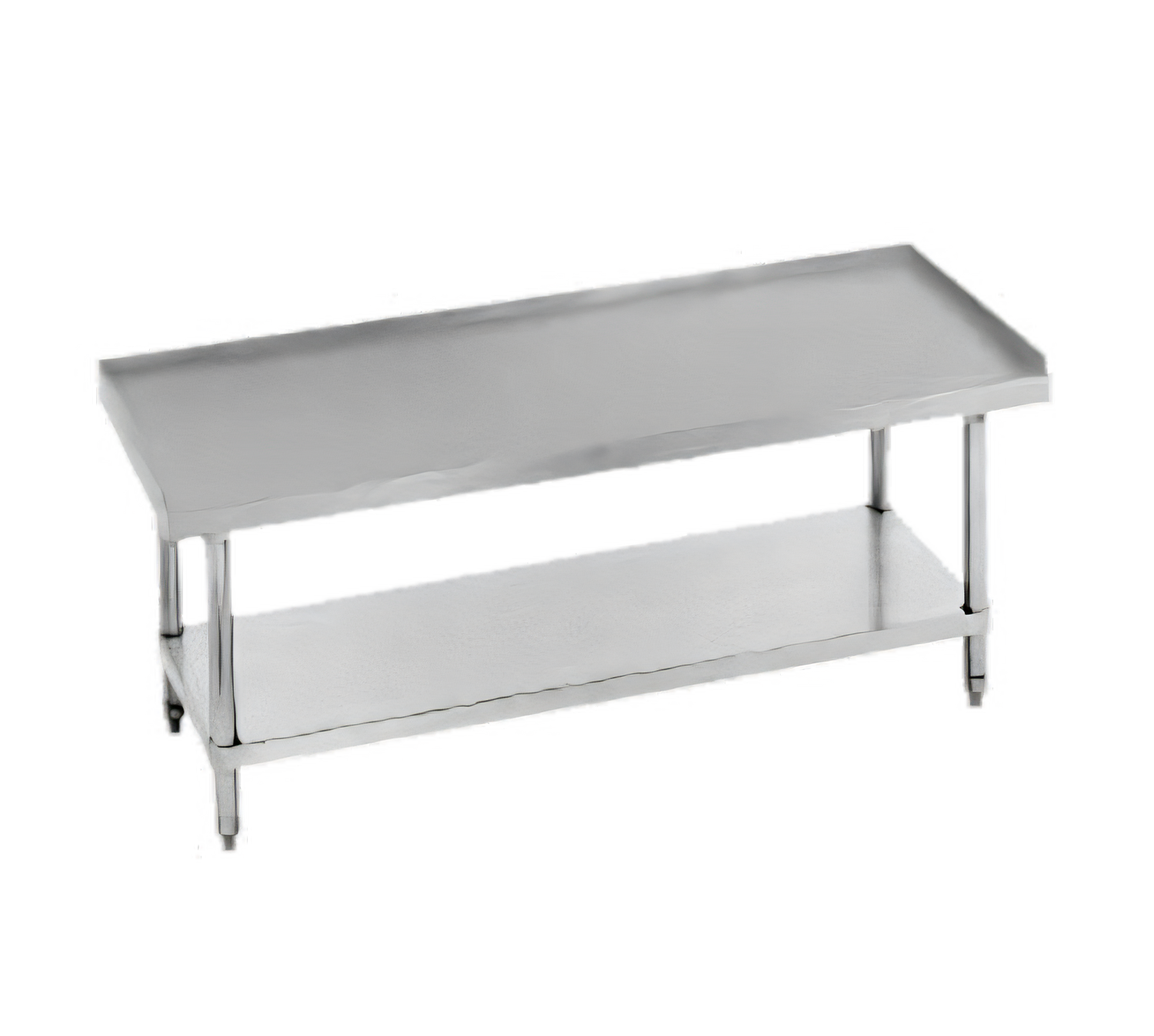

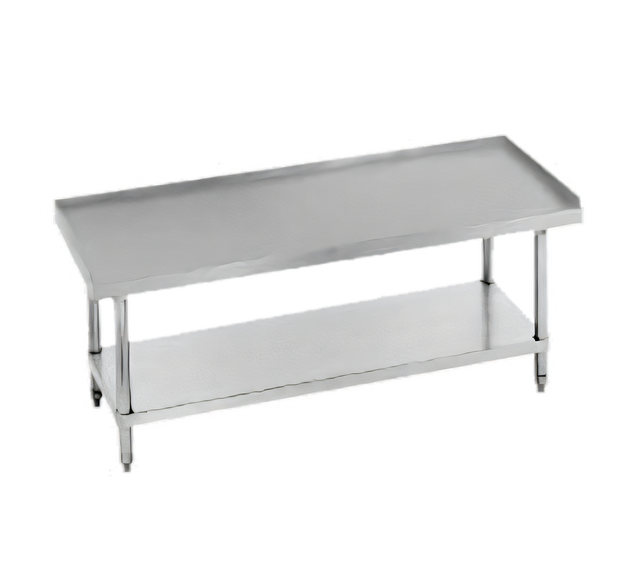

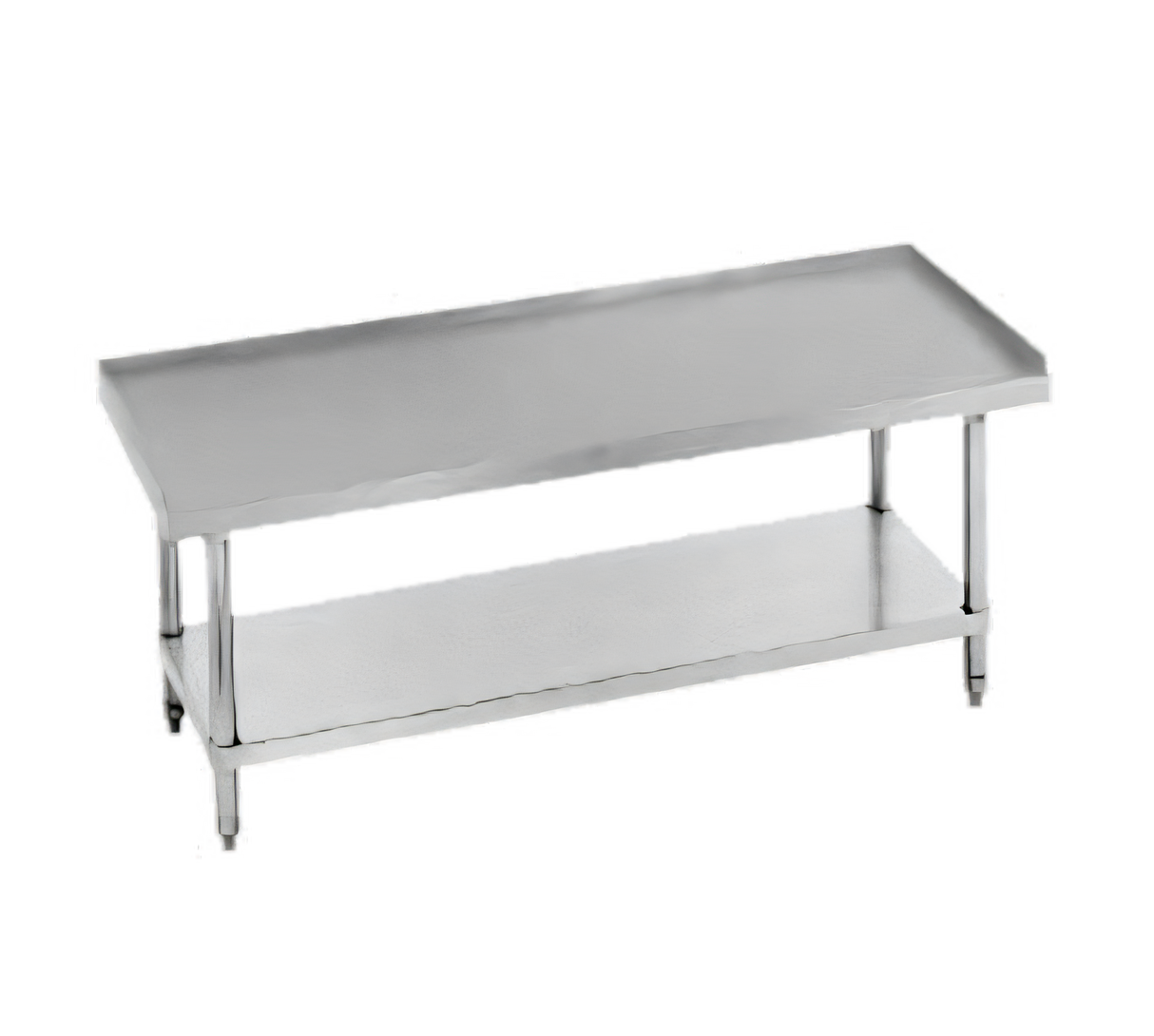

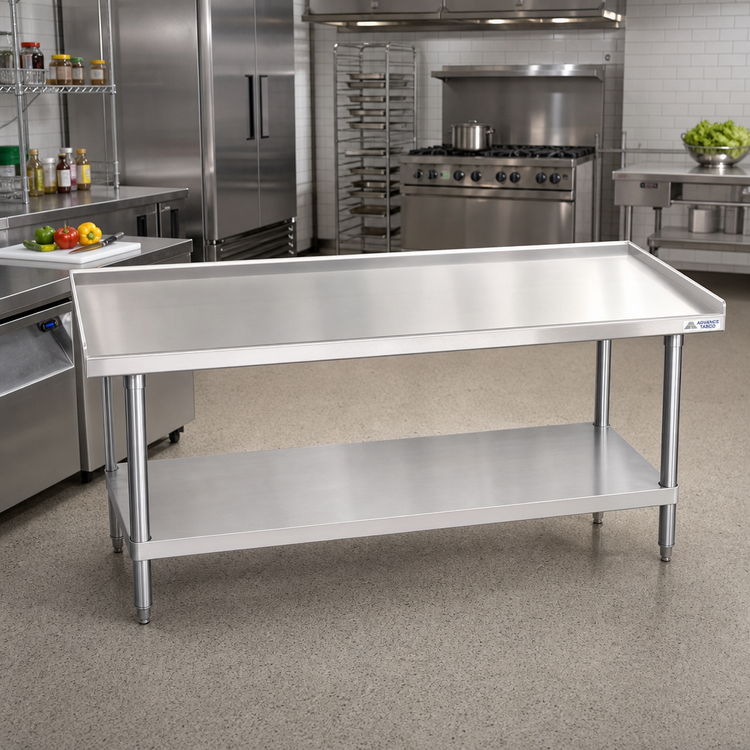

Advance Tabco 72" x 24" Stainless Steel Equipment Stand

14-Gauge 304 Stainless Top • Model ES-246

Give your countertop griddle, charbroiler or mixer the rock-solid foundation it deserves. With a heavy-duty 14-gauge top, adjustable undershelf and NSF certification, this Advance Tabco equipment stand is built to thrive in the toughest commercial kitchens.

Key Features

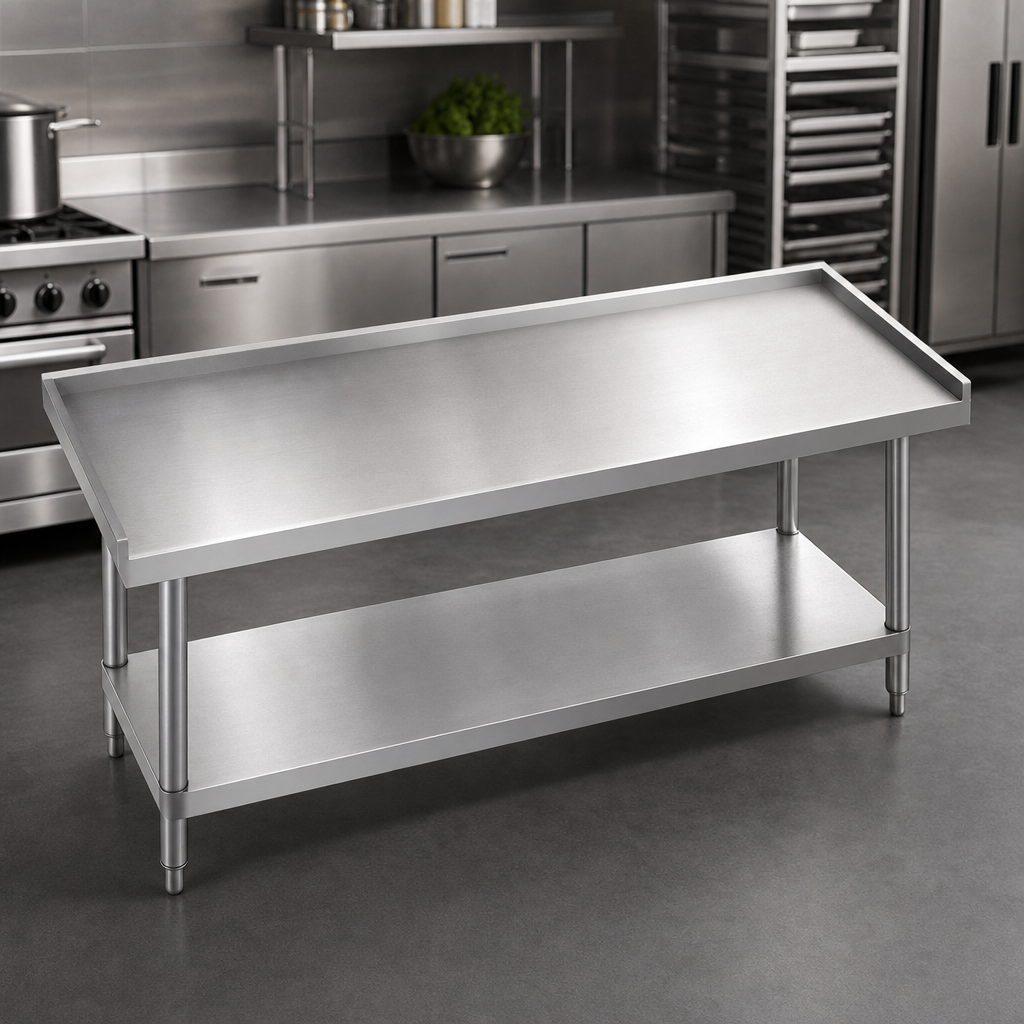

  • 14-gauge type 304 stainless steel top, satin-polished and sound-deadened.
  • 1" up-turn on left, right and rear edges helps contain spills and prevents equipment shift.
  • 18-gauge stainless steel undershelf adjusts in seconds via die-cast aluminum leg clamps—no exposed nuts or bolts.
  • All TIG-welded construction; exposed welds ground and polished to match adjoining surfaces.
  • 1 5⁄8"-diameter stainless steel legs with welded gussets for maximum rigidity.
  • Adjustable stainless steel bullet feet for easy leveling on uneven floors.
  • NSF listed for safe use in any food-service environment.
Ideal Applications
  • Countertop griddles & charbroilers
  • Convection or microwave ovens
  • Mixers, slicers & processors
  • Holding cabinets or warmer drawers
Specifications
Model ES-246 (Stainless Steel Base)
Overall Dimensions 72" W × 24" D × 25" H
Working Height 24"
Top Material 14-gauge 304 stainless steel
Edge Detail 1" hemmed splash on three sides
Understructure Galvanized hat channels, bonded & welded
Undershelf 18-gauge adjustable stainless steel
Legs / Feet 1 5⁄8" Ø stainless legs with adjustable stainless bullet feet
Distributed Load Capacity 1,000 lb
Approx. Shipping Weight 104 lb
Certifications NSF
Popular Accessories (sold separately)
  • 1 1⁄2" laminated hardwood cutting board – TA-926
  • Stainless steel plate shelf – TA-966
  • Heavy-duty caster set with brakes – TA-255 (set of 4) / TA-256 (set of 6)
Need a custom configuration? Ask about Advance Tabco’s Smart Fabrication™ program for made-to-order sizes, drawers, casters and more.

Load ratings are based on evenly distributed weight. Maximum combined load for top and shelf shall not exceed 1,800 lb.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

25.0in

Width

72.0in

Depth

24.0in

Shipping Weight

104.0lbs

Width (side - side)

63" - 72" wide

Height

25 - 30" high

Depth (front - back)

19 - 24" deep

Base Construction

stainless steel base

Top Gauge

14 gauge top

Top Construction

stainless steel top

Base Type

open base with undershelf

Specifications

Equipment Stand, 72"W x 24"D x 25"H (overall), 24" working height, 14 gauge 304 stainless steel top with 1"H up-turn on sides & rear, 18 gauge adjustable stainless steel undershelf, stainless steel legs with adjustable stainless steel bullet feet, NSF
