Advance Tabco

Advance Tabco 24-Inch x 24-Inch Open Base Equipment Stand with 304 Stainless Steel Top and Galvanized Undershelf

SKU: EG-242
GTIN: 747545125606
$781.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers Commercial Work Tables Equipment Stands Equipment Stands & Utility Carts Kitchen Equipment Tables New Arrivals Restaurant Equipment Tables & Workstations

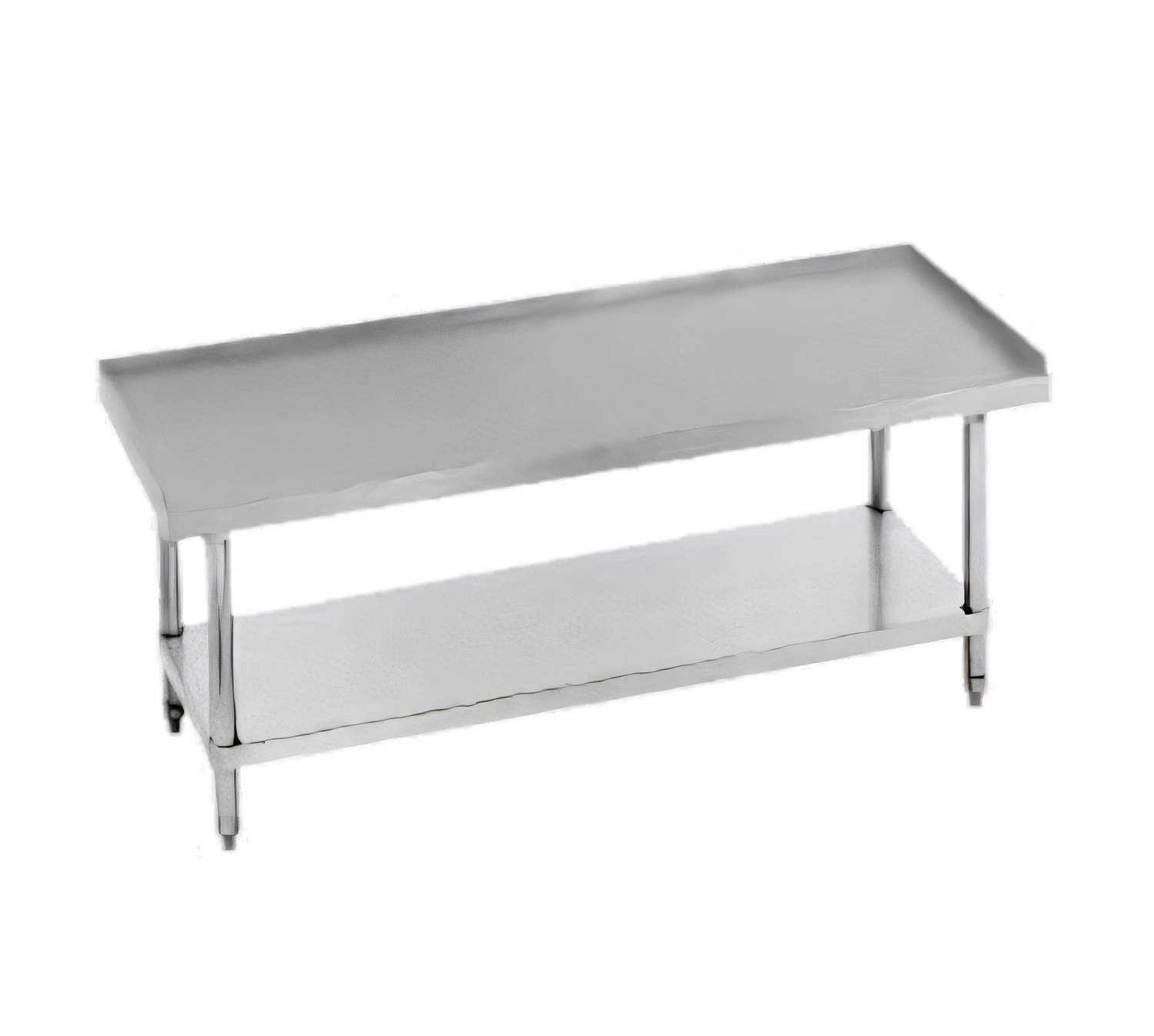

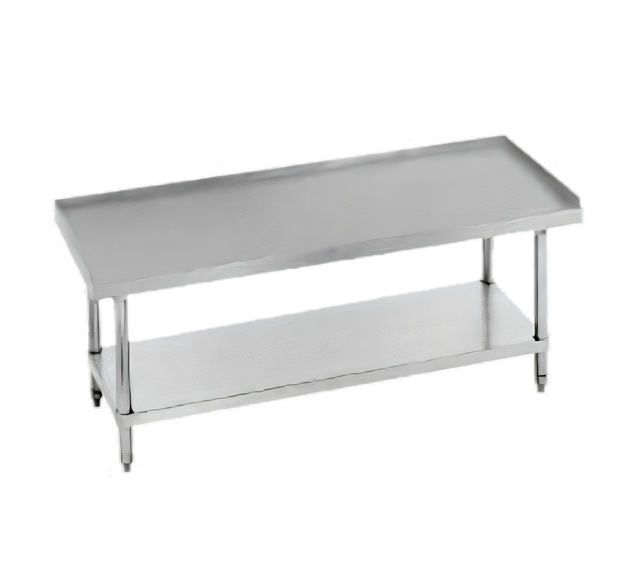

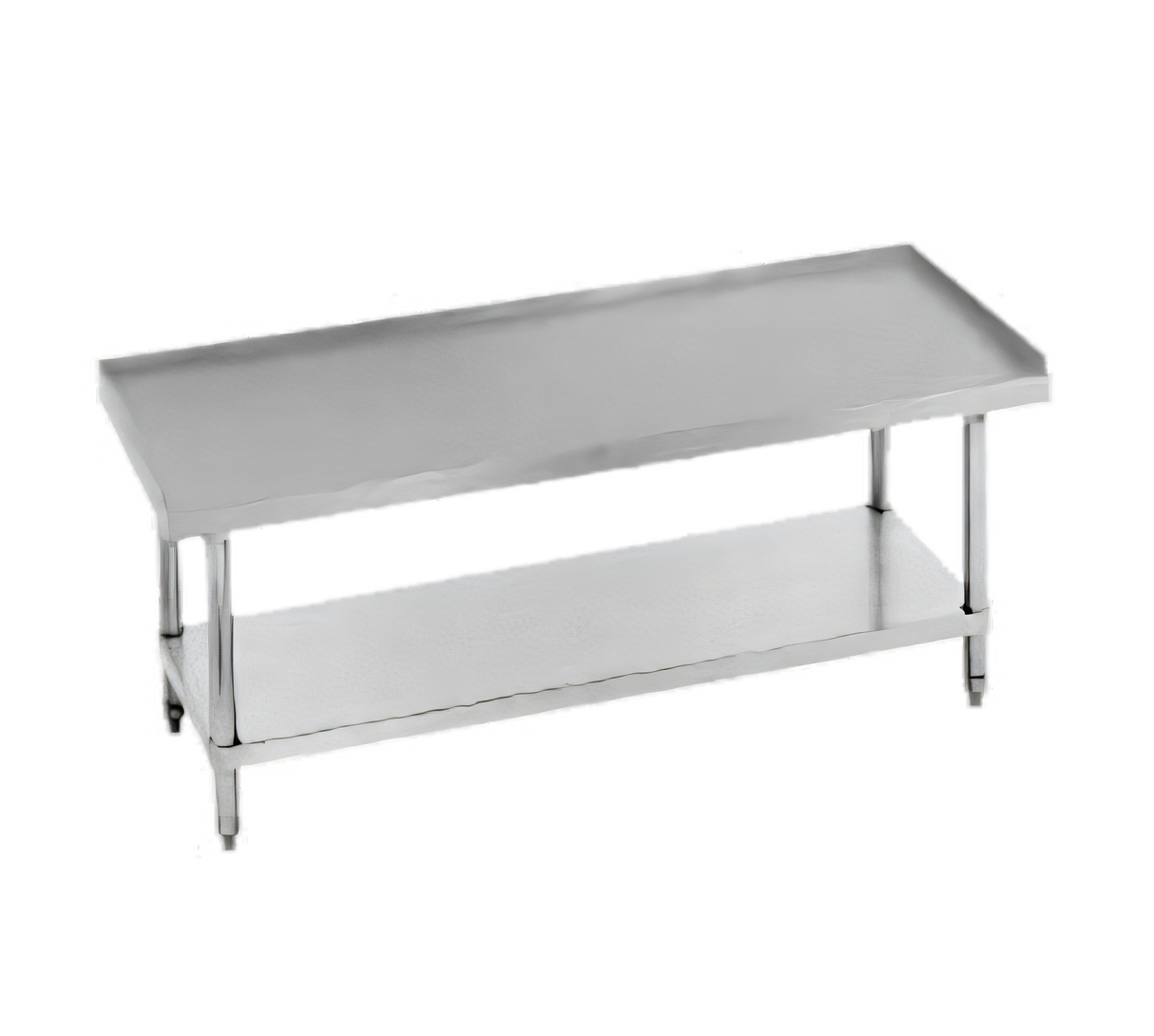

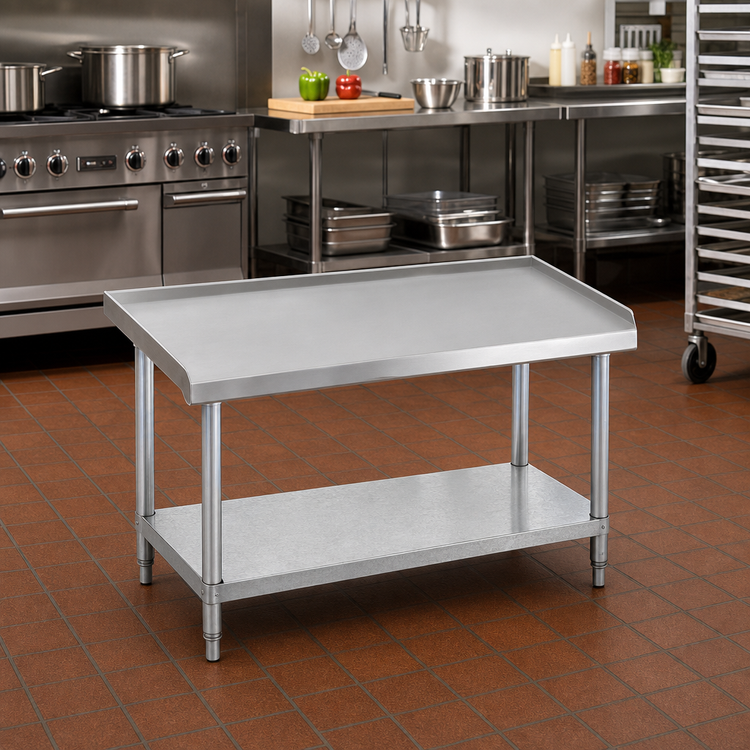

Advance Tabco 24-Inch x 24-Inch Open Base Equipment Stand with 304 Stainless Steel Top and Galvanized Undershelf

24-inch working height; galvanized legs with adjustable plastic bullet feet

A compact, heavy-duty stand that pairs a 304 stainless steel top with a galvanized undershelf and legs for dependable kitchen support.

  • Compact 24-inch by 24-inch footprint with 24-inch working height and 25-inch overall height.
  • 14 gauge 304 stainless steel top with 1-inch up-turn on the sides and rear helps contain messes.
  • Adjustable 18 gauge galvanized undershelf adds practical storage below the work surface.
  • Galvanized tubular legs with adjustable plastic bullet feet help level the stand on uneven floors.
  • TIG-welded construction with a sound-deadened, satin-finish top and die-cast shelf clamps improves durability.
  • Load chart lists 14 gauge equipment stands at 1000 lb distributed load for lengths up to 60 inches.

Overall Dimensions:

24.0"W x 24.0"D x 25.0"H

Product Weight:

45.0 lb

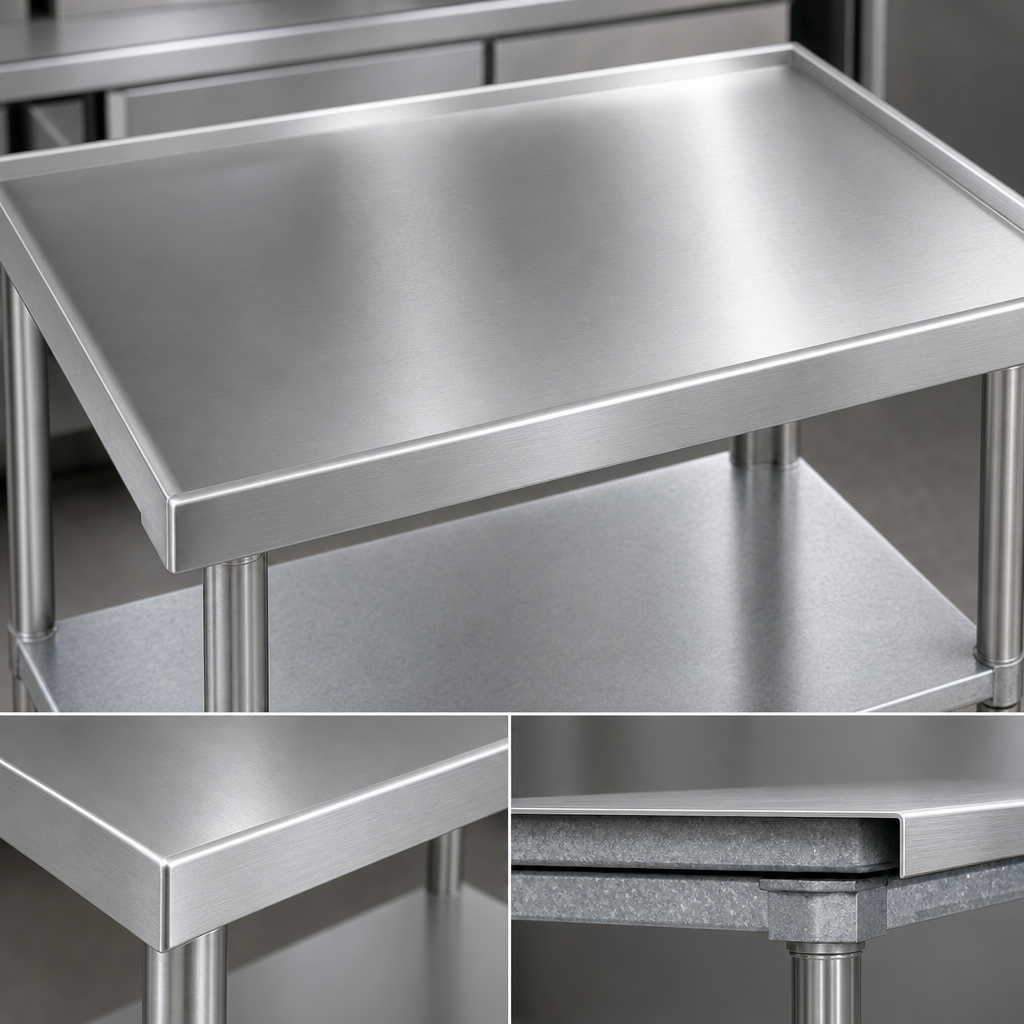

14 Gauge 304 Stainless Steel Top

Heavy-duty top is built from 14 gauge type 304 stainless steel with a galvanized understructure.

1-Inch Hemmed Up-Turn

Top is turned up 1 inch on both sides and the rear to help contain items and spills.

Adjustable Galvanized Undershelf

18 gauge galvanized undershelf adjusts to provide flexible storage below the work surface.

Galvanized Tubular Legs

1 5/8-inch tubular galvanized legs with gussets provide stable support.

Adjustable Plastic Bullet Feet

1-inch adjustable plastic bullet feet help level the stand on uneven floors.

Die-Cast Leg-To-Shelf Clamps

Clamp system secures the undershelf to the legs without visible nuts and bolts.

TIG-Welded, Sound-Deadened Construction

All TIG-welded construction with a mechanically polished satin finish and sound-deadened top supports a cleaner, quieter workspace.

Heavy-Duty Load Rating

The product documentation lists 14 gauge equipment stands at 1000 lb distributed load for lengths up to 60 inches.

Type Equipment Stand
Style Open Base with Undershelf
Installation Type Floor Model
Material 304 Stainless Steel
Base Construction Galvanized Steel
Top Gauge 14 Gauge
Undershelf Gauge 18 Gauge
Capacity 1000 Pounds Distributed Load
Shipping Width 24 Inches
Shipping Depth 24 Inches
Shipping Height 25 Inches
Shipping Weight 45 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Product standards and use guide PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

The stand measures 24 inches wide by 24 inches deep by 25 inches high overall, with a 24-inch working height.
The top is 14 gauge 304 stainless steel with a galvanized understructure, and the base is galvanized steel with galvanized legs.
Yes. The 18 gauge galvanized undershelf is adjustable.
The documentation lists 14 gauge equipment stands at 1000 lb distributed load for lengths up to 60 inches, and the standard undershelf is rated at 300 lbs.
Yes. Optional accessories listed include the TA-922 1 1/2-inch wood cutting board and the TA-962 plate shelf for 24-inch wide units.
