Advance Tabco  |  Special Value Series  |  SKU: DTU-U60-72L-X  |  UPC: 747545122995

Advance Tabco DTU-U60-72L-X Special Value Series Compartment Sinks

$2,036.64
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

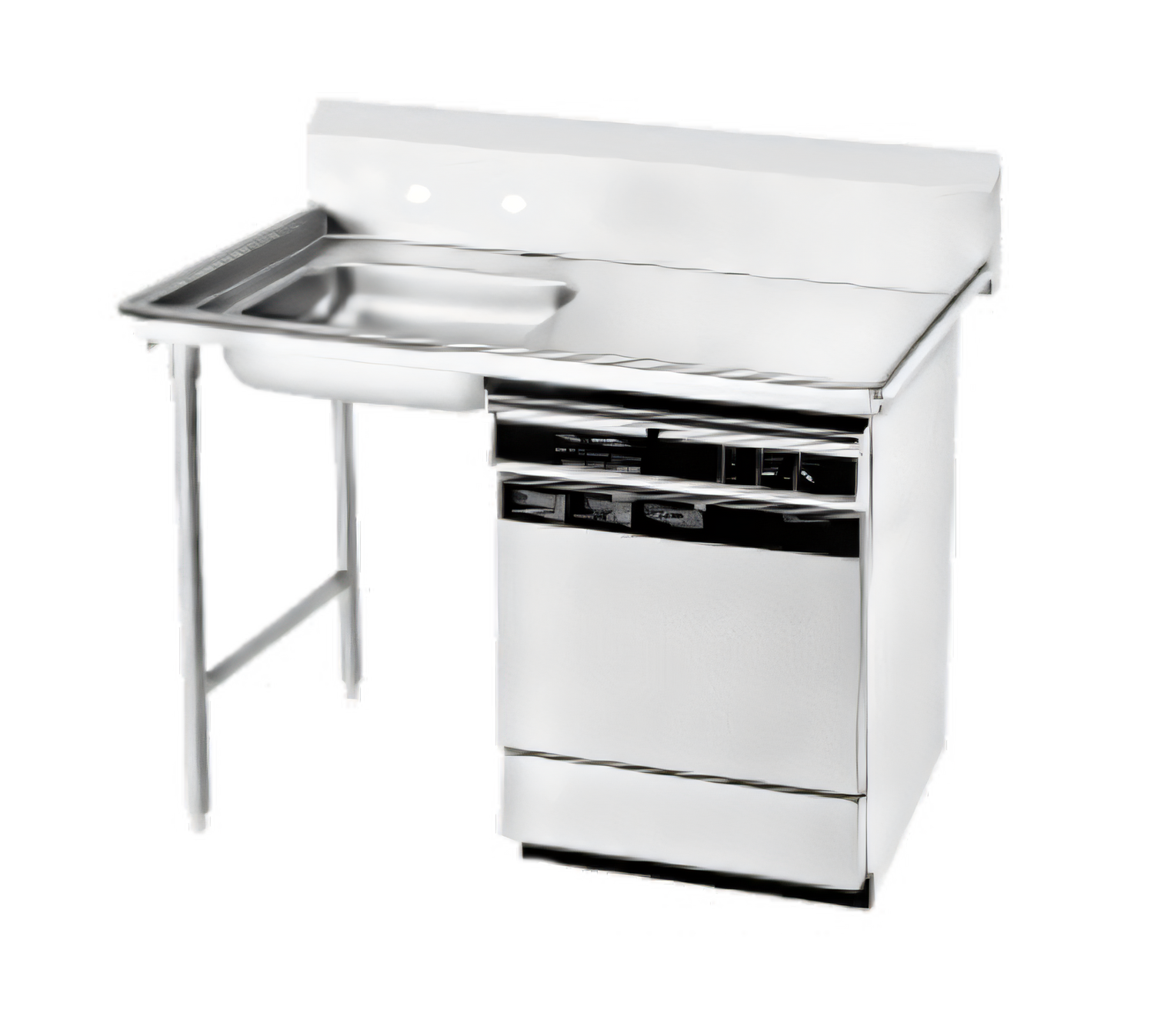

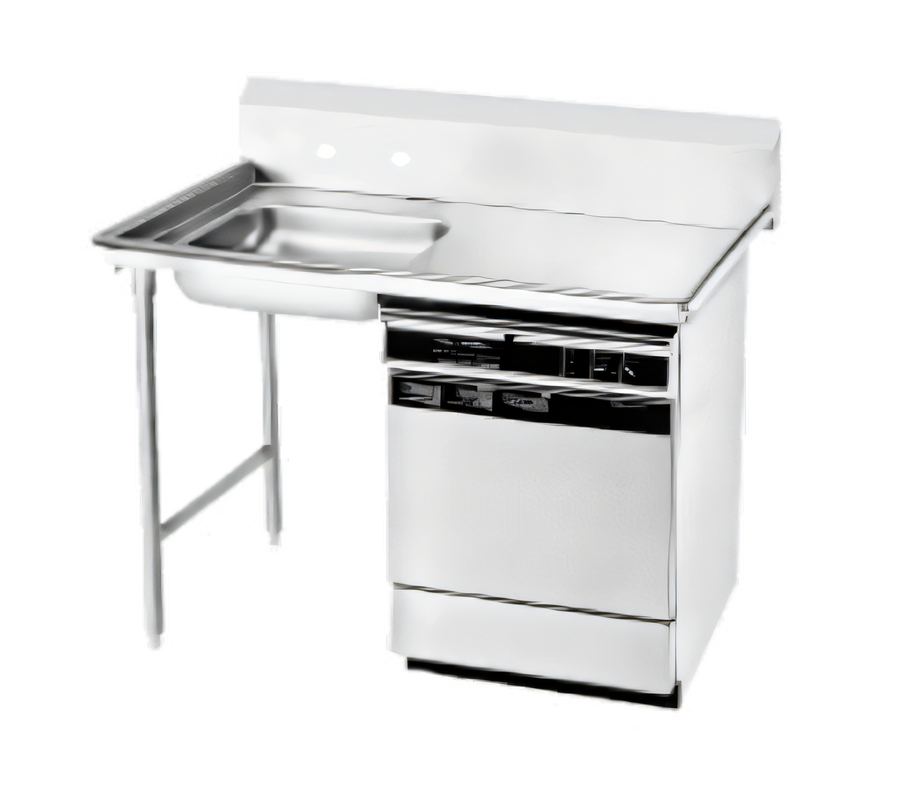

Advance Tabco Special Value Series 72" Undercounter Dishtable – Left Sink

16 ga. 304 Stainless Steel • 20" × 20" × 5" Sink Bowl • NSF Listed

Built for tight footprints yet engineered for full-service durability, this Special Value Series under-counter dishtable delivers Advance Tabco quality at an economical price point. A generous 72" draining surface, integrated left-hand sink, and high backsplash keep ware-washing contained, clean, and compliant.

Why You’ll Love It

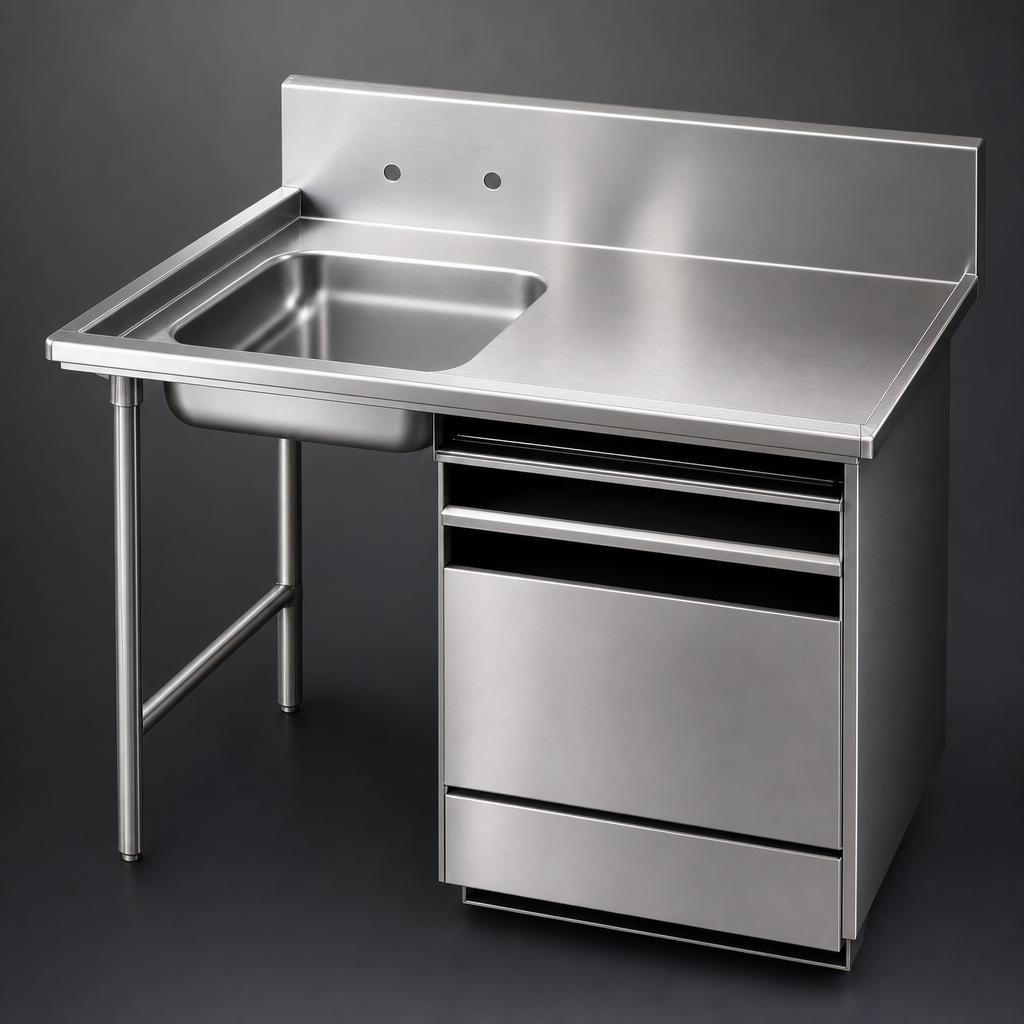

  • 16 ga. type 304 stainless steel top with sanitary rolled rims for maximum corrosion resistance.
  • 20" × 20" × 5" deep sink bowl on the left handles heavy pre-rinse loads.
  • 10-1/2" high backsplash with 2" return contains splashes and meets health codes.
  • TIG-welded construction; welds are blended to a sleek satin finish.
  • Tile edge all around simplifies a flush, gasket-free wall installation.
  • Stainless steel legs (16 ga.) with welded cross-bracing and adjustable bullet feet for rock-solid stability.
  • Pre-punched 8"-on-center faucet holes in backsplash (faucet not included).
  • Waste drain kit included—no extra parts needed to plumb the bowl.
  • NSF certified for food-service sanitation.

Technical Specifications

Model DTU-U60-72L (Left Sink)
Series Special Value
Overall Length 72" / 1829 mm
Overall Depth 30" / 762 mm
Working Height 34" / 864 mm
Overall Height (to top of backsplash) 44-1/2" / 1130 mm
Backsplash Height 10-1/2" / 267 mm
Sink Bowl Dimensions 20" W × 20" F-B × 5" D
Material & Gauge Top & Bowl: 16 ga. 304 SS  •  Legs: 16 ga. 304 SS
Construction All TIG welded; welds ground & polished
Faucet Hole Centers 8"
Weight 115 lb / 52 kg (shipping)
Certifications NSF

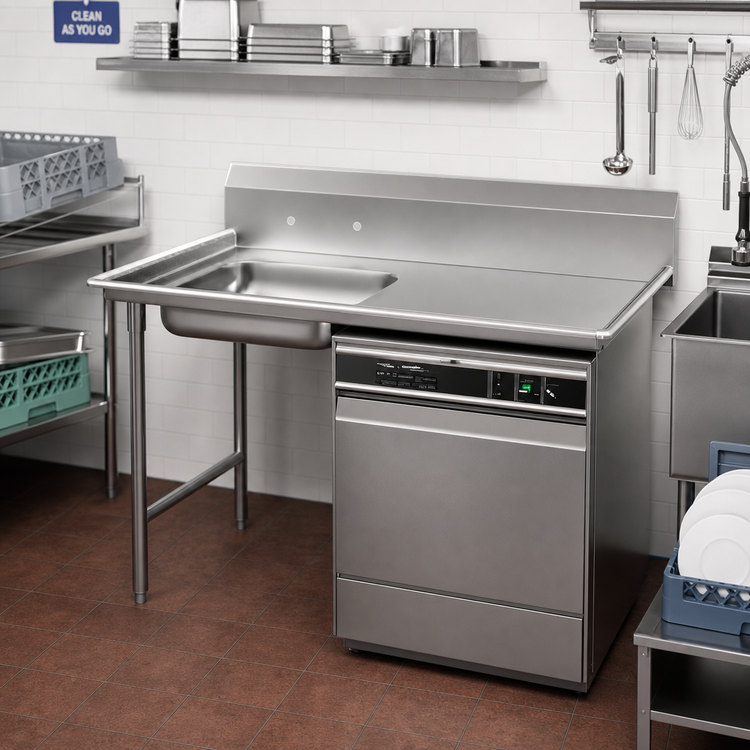

Important: Faucet and dish machine are shown for illustration only and are not included. Verify clearance requirements for your specific under-counter dish machine; Advance Tabco offers SMART FABRICATION™ modifications when required.

Need accessories? A 20" × 20" basket with welded slide-bar (model DTA-100) and other faucets are available separately.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Special Value Series

Certifications

NSF

Height

44.5in

Width

72.0in

Depth

30.0in

Shipping Weight

115.0lbs

Width (side - side) OA

61" - 72"

Splash Height

10"H splash

Sink Location

left of machine

Leg Type

stainless steel legs

Specifications

Special Value Dishtable, undercounter, 72"W x 30"D x 44-1/2"H, 16 gauge 304 stainless steel top with rolled rims, 20" x 20" x 5" deep sink bowl on left, 10-1/2"H backsplash, stainless steel legs with welded cross bracing & stainless steel adjustable bullet feet, NSF
