Advance Tabco  |  SKU: DTU-U60-60R  |  UPC: 747545203236

Advance Tabco DTU-U60-60R Compartment Sinks

$1,994.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Commercial Work Tables Dish Tables Restaurant Equipment Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

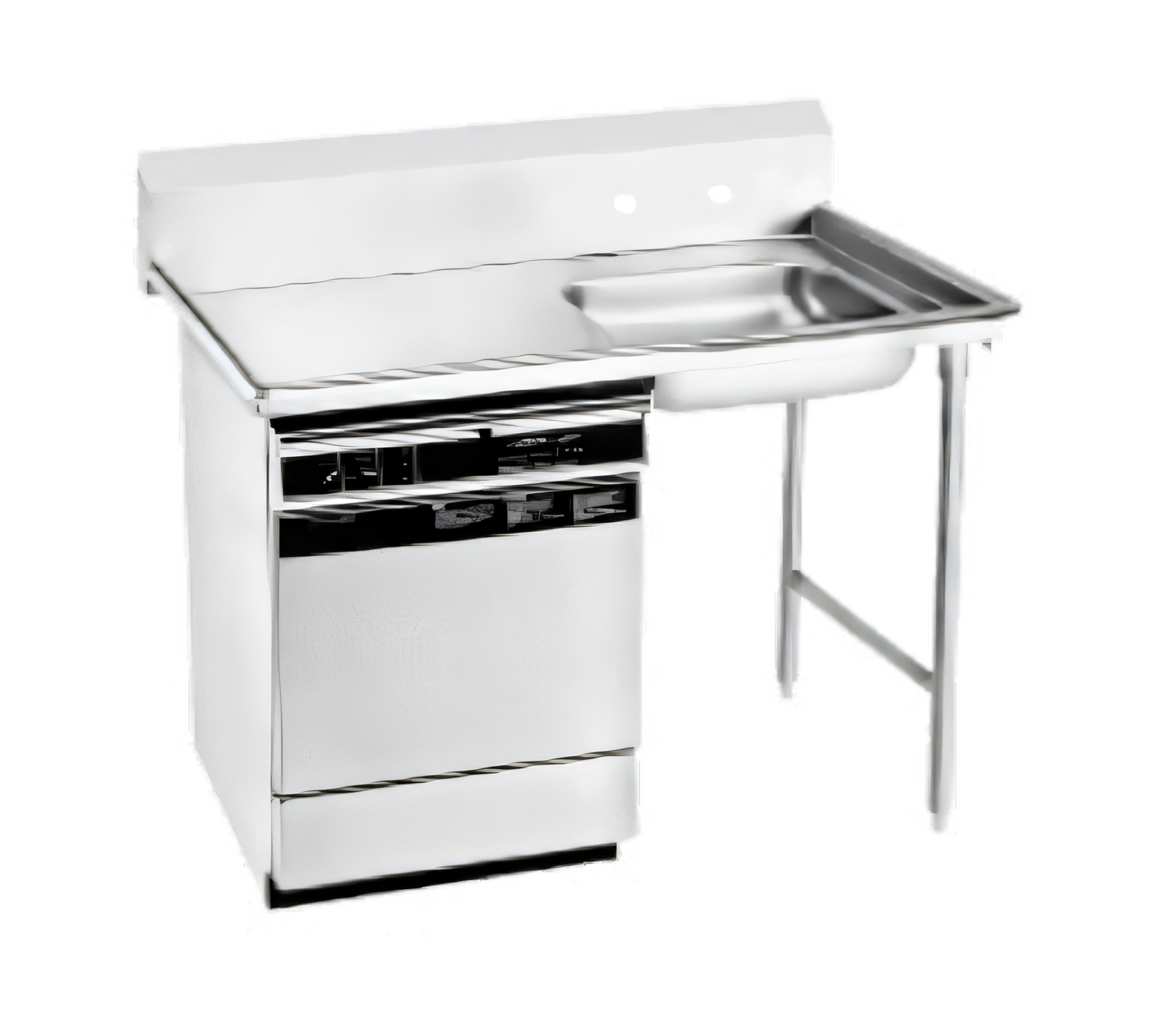

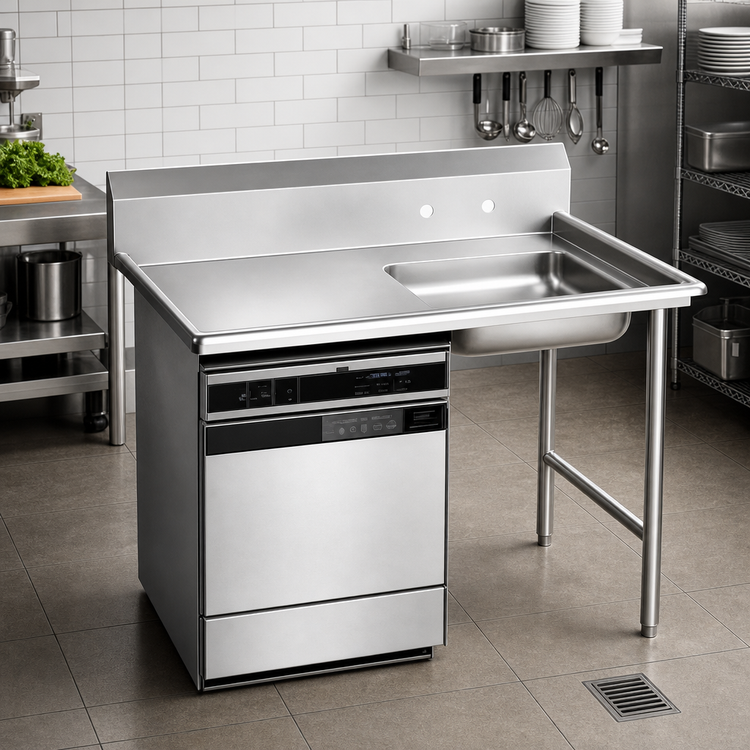

Advance Tabco DTU-U60-60R 60" Undercounter Dishtable

Right-Hand Sink • 304 Stainless Steel • NSF Listed

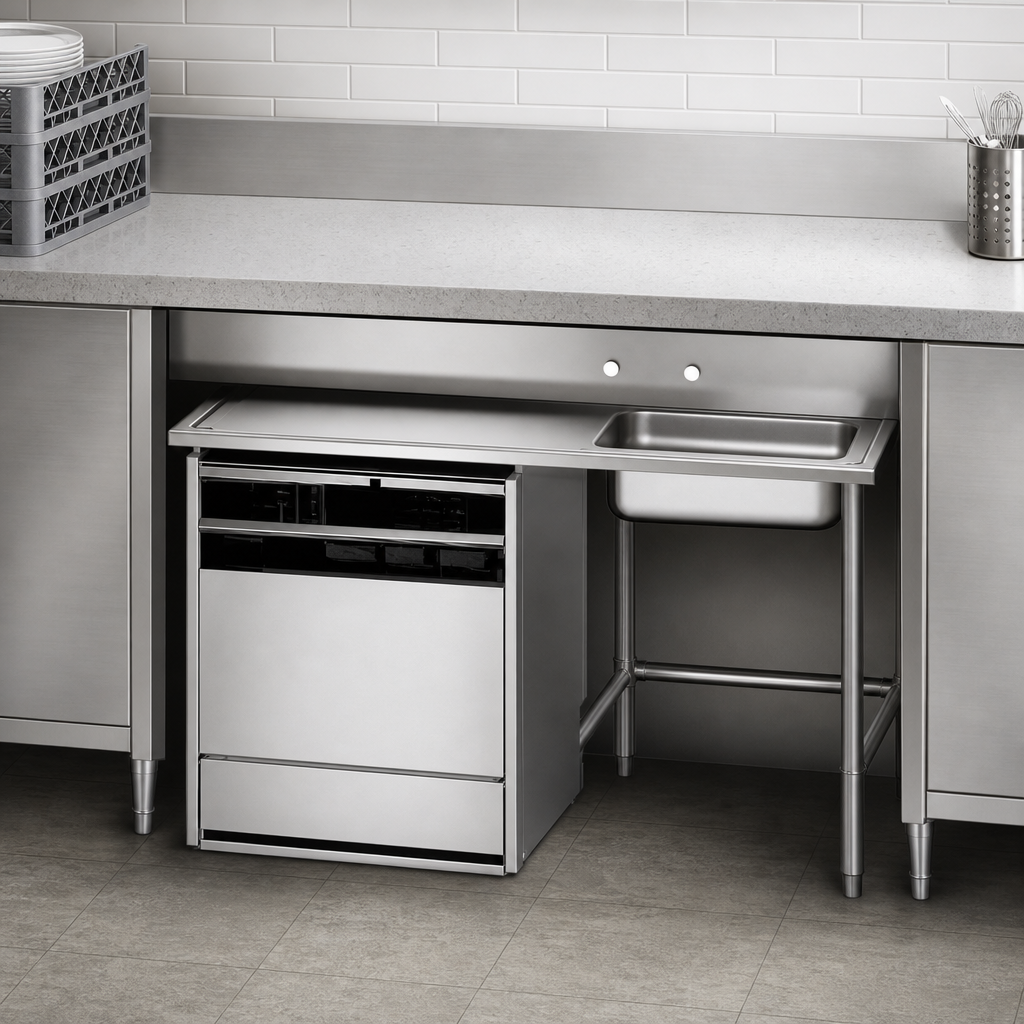

Compact, efficient and built to last, the DTU-U60-60R dishtable slides neatly under most commercial undercounter dishwashers, giving you a dedicated rinsing and landing area without sacrificing valuable floor space. A heavy-duty 16-gauge 304 stainless steel top, fully TIG-welded framework and NSF certification make it the dependable choice for busy kitchens that demand both durability and sanitation.

Key Features

  • Generous 20" x 20" x 5" sink bowl located on the right side for seamless dishwasher integration.
  • 16-gauge type 304 stainless steel top with sanitary rolled rims resists corrosion and everyday abuse.
  • 10-1/2" high backsplash with 2" return keeps water contained and protects surrounding walls.
  • Pre-punched 8" on-center faucet holes in the splash (faucet sold separately).
  • Waste drain supplied for quick, hassle-free installation.
  • Stainless steel legs with welded cross bracing and adjustable bullet feet ensure rock-solid stability.
  • All TIG-welded construction; welds are blended to a smooth, satin finish.
  • NSF certified for safe use in commercial food-service operations.

Specifications

Model DTU-U60-60R
Overall Width 60" (1524 mm)
Overall Depth 30" (762 mm)
Overall Height 44-1/2" (1130 mm) to top of backsplash
34" (864 mm) working height
Sink Bowl Size 20" W x 20" L x 5" D (508 x 508 x 127 mm)
Backsplash Height 10-1/2" (267 mm) with 2" return
Gauge / Material 16-ga. type 304 stainless steel top, bowl, splash & rims
Legs & Bracing 16-ga. 304 stainless legs with welded cross bracing & adjustable bullet feet
Faucet Holes 8" on center (faucet not included)
Shipping Weight 95 lb. (43 kg)
Certifications NSF

Compatible Accessories (Sold Separately)

  • DTA-100 Basket with Welded Slide Bar – 20" x 20"
  • Faucet or prerinse assembly
Note: Undercounter dishwasher, faucet and accessories pictured are not included.

Advance Tabco continually improves its products; specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

44.5in

Width

60.0in

Depth

30.0in

Shipping Weight

95.0lbs

Width (side - side) OA

49" - 60"

Sink Location

right of machine

Splash Height

10"H splash

Leg Type

stainless steel legs

Specifications

Dishtable, undercounter, 60"W x 30"D x 44-1/2"H, 16 gauge 304 stainless steel top with rolled rims, 20" x 20" x 5" deep sink bowl on right, 10-1/2"H backsplash, stainless steel legs with welded cross bracing & stainless steel adjustable bullet feet, NSF
