Advance Tabco  |  SKU: DTS-U30-96L  |  UPC: 747545122919

Advance Tabco DTS-U30-96L Compartment Sinks

$8,247.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Advance Tabco Commercial Work Tables Compartment Sinks Dish Tables Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

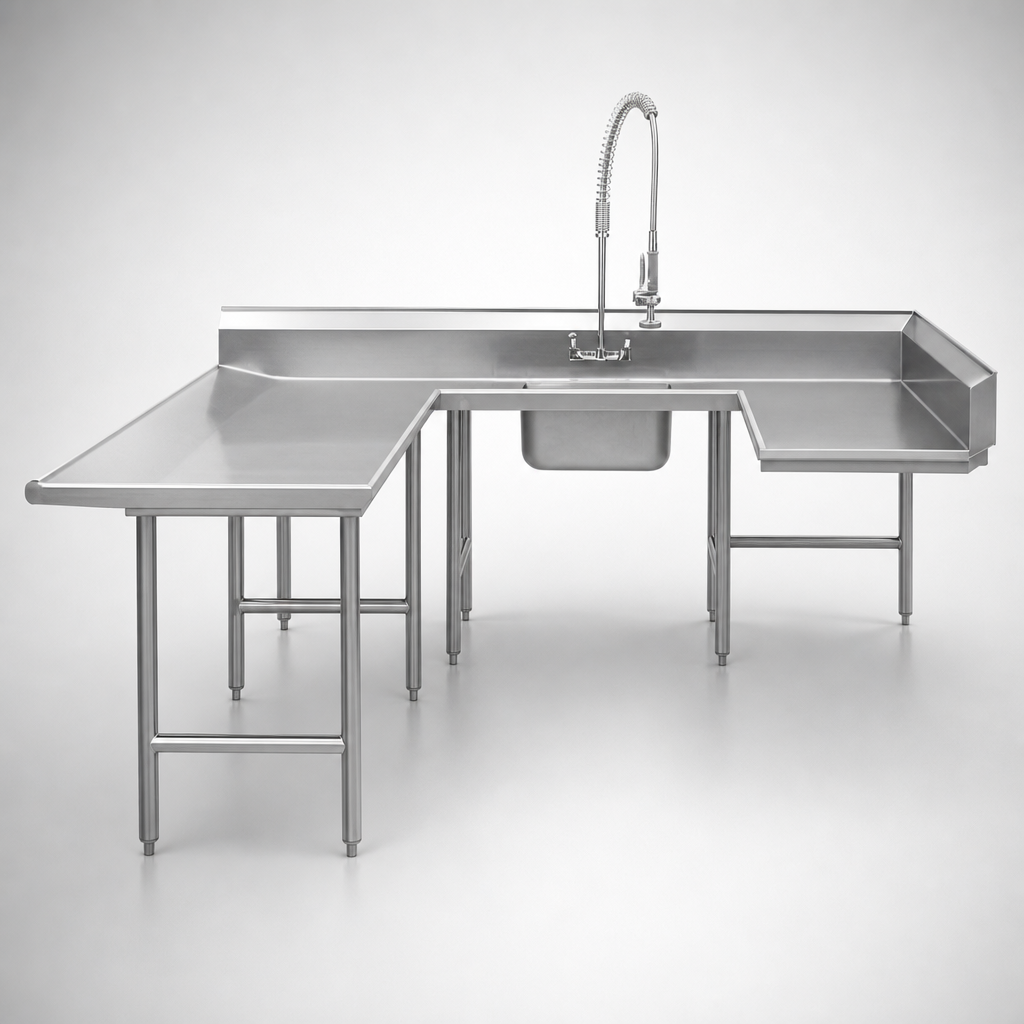

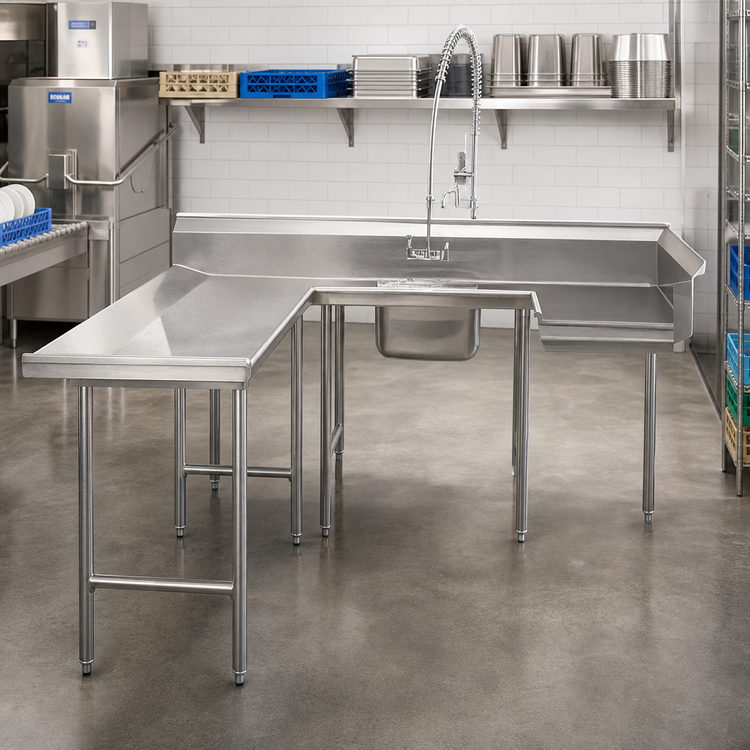

Advance Tabco U-Shaped Soiled Dishtable – Left Side

Approx. 108" W x 59" D x 95" L • Model DTS-U30-108L

Built for demanding ware-washing lines, this heavy-duty U-shaped soil table lets one operator scrape, rinse and rack dishes in a single, ergonomic work zone before sliding them straight into the dish machine. Rugged 14 ga. type 304 stainless steel construction stands up to years of commercial use and is fully NSF listed.

Top Features

  • 14 ga. type 304 stainless steel top with satin-polished TIG welds
  • 10-1/2" high bold backsplash with 2" return & tile edge for a watertight, easy-to-flash-in installation
  • 20" × 20" × 8" pre-rinse sink bowl complete with basket strainer & slide bar*
  • Generous 9-3/8" deep dish-landing shelf keeps full racks at arm’s reach
  • 16 ga. type 304 stainless legs with front-to-back cross-rails for extra rigidity
  • Adjustable stainless bullet feet level the unit on uneven floors
  • Delivered in two sections; K-57 welded field joint (included) ensures a seamless top once installed
  • All welds blended to match adjacent surfaces for a clean, professional look

Specifications

Overall footprint 108" W × 59" D × 37" H (working height)
Inside “L” dimension 95"
Sink bowl size 20" W × 20" D × 8" H
Backsplash 10-1/2" H with 2" return, tile edge
Gauge / material 14 ga. 304 SS top • 16 ga. 304 SS legs & cross-rails
Drain 1-1/2" I.P.S. basket-type waste (included)
Faucet holes 8" on-center (faucet sold separately)
Orientation Mounts to left side of dish machine operator
Shipping weight Approx. 525 lb

What’s in the Box

  • (2) U-shaped dishtable sections
  • K-57 welded field joint kit
  • 20" × 20" × 8" sink bowl with basket
  • Slide bar for prerinse basket*
  • 1-1/2" IPS basket waste drain
  • Stainless adjustable bullet feet
Installation Note: The K-57 field joint must be welded on-site by others. Plumbing, faucet and final connection to the dish machine are not included.

*Slide bar ships only when a K-461 or K-461A disposer adapter is specified.
Always verify compatibility with your specific dish machine model before ordering. Custom lengths, alternate sink positions and other Smart Fabrication™ modifications are available upon request.

Features & Specs

Manufacturer

Advance Tabco

Height

44.5in

Width

108.0in

Depth

96.0in

Shipping Weight

490.0lbs

Shape

u-shaped

Stainless Series

300 series

Splash Height

10"H splash

Width (side - side) OA

97" - 108"

Direction

left to right

Leg Type

stainless steel legs

Stainless Gauge

14 gauge

Specifications

Dishtable, soiled, u-shaped, attaches to left of dish machine operator, 59" x 108" x 95" with landing, 10-1/2"H backsplash, with pre-rinse sink, 16/304 stainless steel legs with crossrails front-to-back, 14/304 stainless steel, stainless steel bullet feet, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified) (NOTE: this dish table supplied in two pieces with a K-57 welded field joint included in the cost - field welding by others)
