Advance Tabco DTS-U30-84L Compartment Sinks
Description

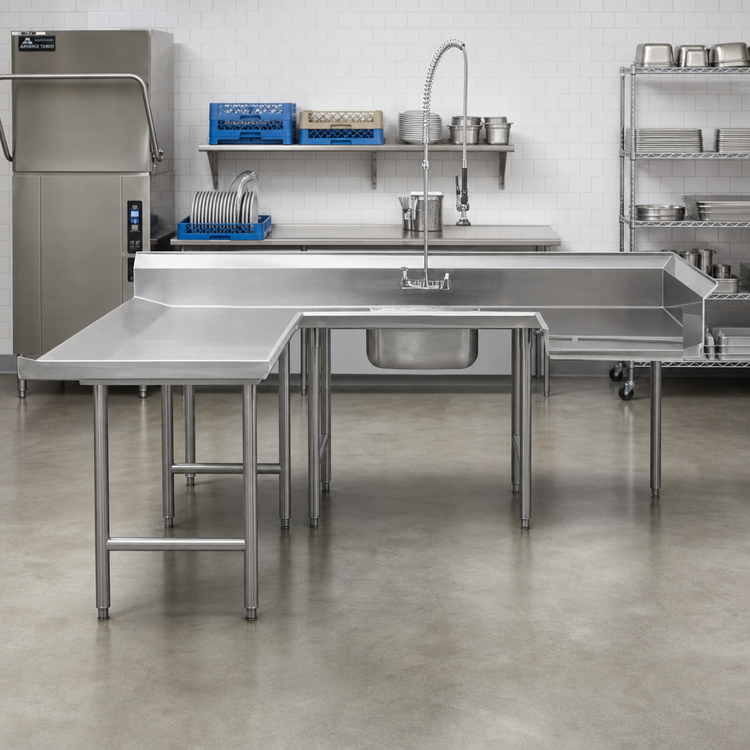

Advance Tabco U-Shaped Soiled Dishtable – 108" (Left Mount)
59" D × 108" W × 83" L overall | 20" × 20" × 8" sink | 10-1/2" backsplashEngineered for busy ware-washing lines, this NSF-listed Advance Tabco U-shaped soiled dishtable streamlines scrapping, pre-rinsing, and racking in one compact, ergonomic station that attaches to the left side of the dish machine.
Key Features
- U-shaped “wrap-around” design keeps the operator in a single, efficient work zone.
- 14-gauge 304 stainless-steel top is fully TIG-welded and satin-finished for maximum durability and easy cleaning.
- 10-1/2" extra-high backsplash with 2" return and tile edge protects walls and simplifies installation.
- Integrated 20" × 20" × 8" pre-rinse sink complete with 1-1/2" IPS basket drain and removable pre-rinse basket with slide bar.*
- Full-size dish-landing shelf offers generous staging space before racks enter the washer.
- Factory-punched 8" on-center faucet holes (faucet sold separately).
- 16-gauge 304 stainless-steel legs with front-to-back crossrails and adjustable stainless bullet feet for rock-solid support.
- Gussets are welded to stainless channels for added rigidity.
- NSF listed and constructed entirely from food-grade 304 stainless steel.
At-a-Glance Specifications

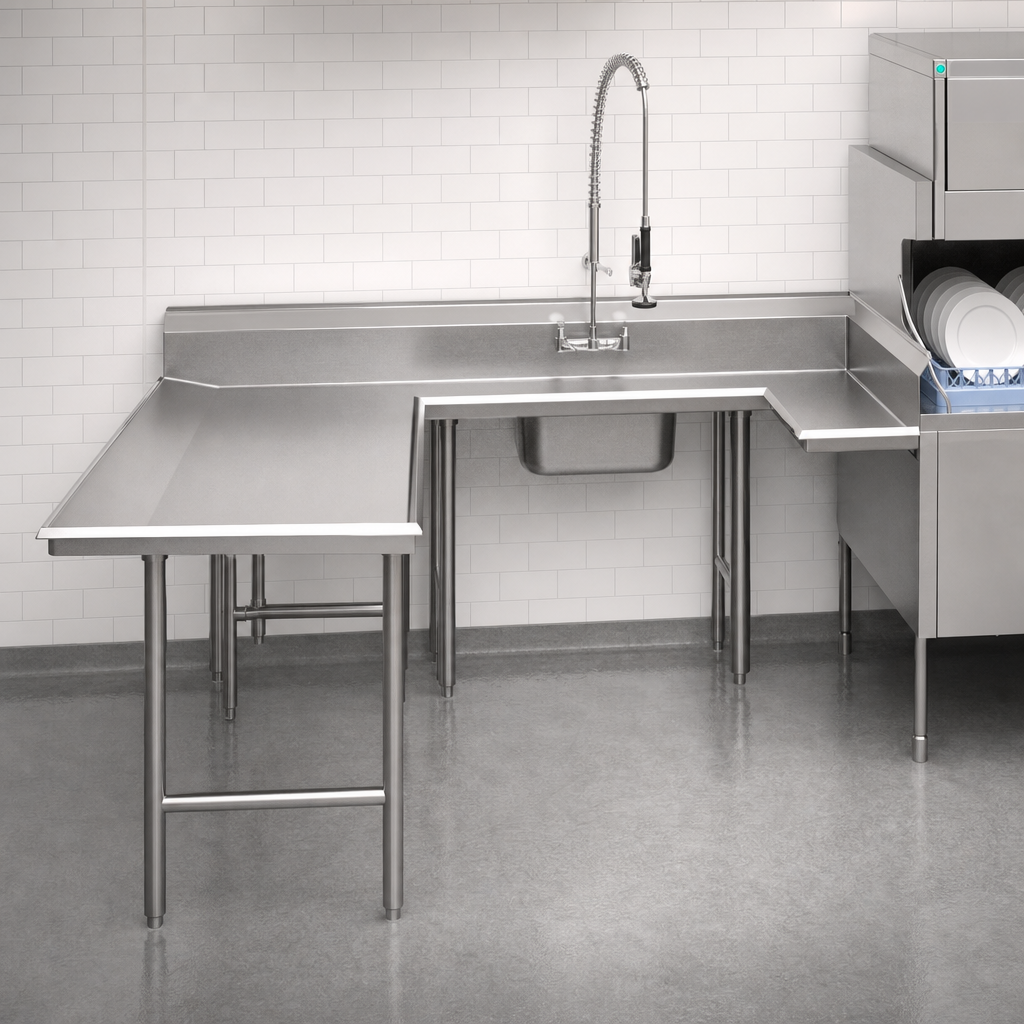

| Orientation | Attaches to left of dish machine operator (left-to-right flow) |
|---|---|
| Overall Dimensions | 59" D × 108" W × 83" L |
| Working Height | 34" standard |
| Backsplash Height | 10-1/2" with 2" return & tile edge |
| Sink Bowl Size | 20" × 20" × 8" deep (304 SS) |
| Top Thickness | 14-gauge 304 stainless steel |
| Legs / Bracing | 16-gauge 304 stainless-steel legs with crossrails |
| Feet | Adjustable stainless steel bullet feet |
| Drain | 1-1/2" IPS basket-type waste |
| Faucet Holes | 8" on center (faucet not included) |
| Shipping Weight | Approx. 525 lb |
| NSF Listed | Yes |
Important: This model is supplied with a field joint that must be welded on-site because the overall length exceeds 90". The slide bar ships only when a K-461 or K-461A disposer adapter is ordered. Always verify dish-machine compatibility before purchasing—refer to the Advance Tabco compatibility chart or call 1-800-645-3166 for assistance.
Need a different length, opposite orientation, or custom modifications? Ask about Advance Tabco Smart Fabrication™ for tailor-made solutions at no extra charge.
