Advance Tabco | SKU:
DTS-U30-144R
Advance Tabco DTS-U30-144R Compartment Sinks
$8,961.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco DTS-U30-144R Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco DTS-U30-144R Compartment Sinks
$8,961.00
Unit price
/
Unavailable
Description

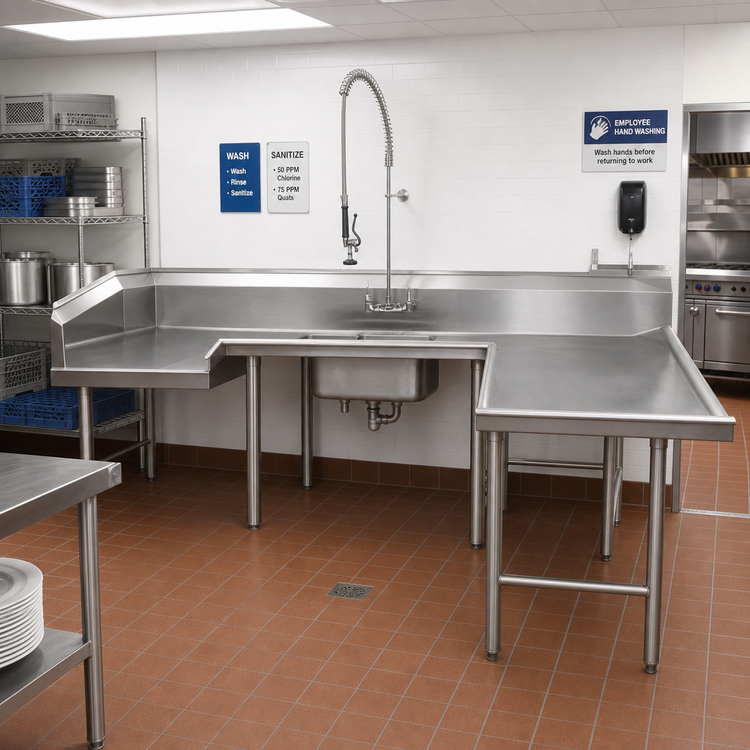

Advance Tabco U-Shaped Soiled Dishtable – Right Side Attachment
59" × 108" × 143" overall | with landing shelf & 10-1/2" backsplashPurpose-built for high-volume kitchens, this heavy-gauge stainless steel dishtable forms a complete scraping, pre-rinse and loading station on the operator’s right side. The space-saving U-shape keeps workflow tight while the extra-tall tile-edge backsplash protects surrounding surfaces and simplifies installation.
Key Features
- Compact U-shaped footprint integrates soil, rinse and landing areas in one station.
- 10-1/2" high bold-look backsplash with 2" return and oversized tile edge for fast, sanitary mounting.
- 20" × 20" × 8" pre-rinse sink bowl with 1-1/2" IPS basket drain, prerinse basket & slide bar.
- 14 ga / 304 stainless steel top & sink TIG-welded and satin-finished for superior durability.
- 16 ga / 304 stainless steel legs with front-to-back crossrails and adjustable stainless bullet feet.
- 9-3/8" landing shelf provides a dedicated staging zone before ware enters the dishmachine.
- Factory-punched 8" O.C. faucet holes (faucet sold separately).
- Ships in two pieces; K-57 field joint supplied at no charge (final welding by installer).
- NSF certified construction meets the strictest food-service sanitation standards.
Materials & Construction
- Top, sink & backsplash: 14 ga type 304 stainless steel.
- Legs & crossrails: 16 ga type 304 stainless steel.
- Feet: Adjustable stainless steel bullet style.
- All seams TIG-welded; welds ground & blended to a uniform satin finish.
What’s Included
- U-shaped soiled dishtable (ships as two sections).
- K-57 welded field joint (loose for on-site welding).
- 20" × 20" × 8" sink bowl with basket drain.
- Prerinse basket with slide bar*.
*Slide bar engages only when disposer adapter K-461 or K-461A is specified.
Dimensions & Specs
| Overall footprint | 59" (entry leg) × 108" (center) × 143" (exit leg) |
|---|---|
| Backsplash height | 10-1/2" |
| Sink bowl size | 20" W × 20" L × 8" D |
| Landing shelf width | Approx. 9-3/8" |
| Working height | 34" (adjustable via bullet feet) |
| Drain connection | 1-1/2" IPS basket type |
| Approx. shipping weight | ≈ 525 lb |
| NSF listing | Yes |
Installation Notes

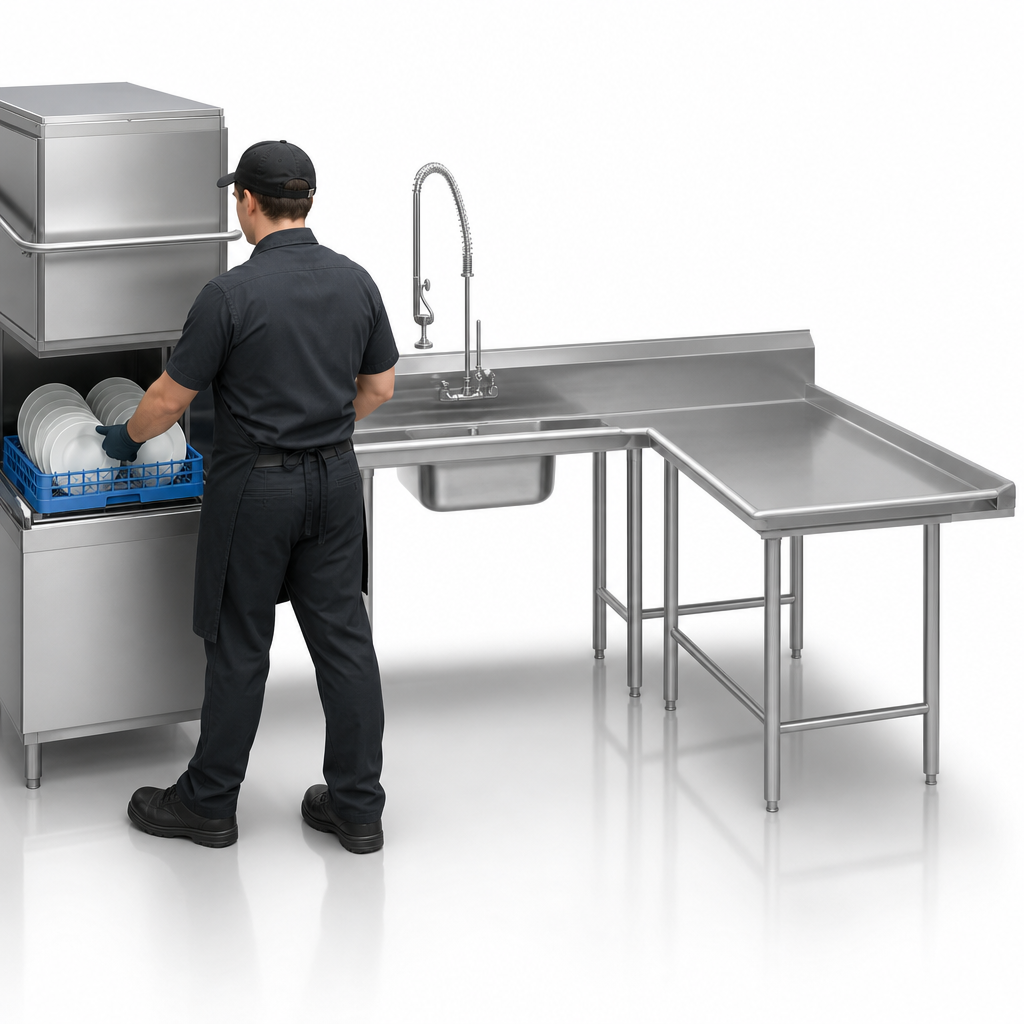

- Mounts to the right side of the dishmachine operator.
- K-57 field joint must be fully welded and finished on site (by others).
- Consult the Advance Tabco Dish Machine Compatibility Chart to verify required clearances or Smart Fabrication™ modifications.
- Faucet, disposer adapter and dishmachine are sold separately.
Need a different size or layout? Extra lengths, edge profiles or sink positions are
available through Advance Tabco Smart Fabrication™. Contact us for a quick quote.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Height
44.5in
Width
108.0in
Depth
144.0in
Shipping Weight
600.0lbs
Direction
right to left
Stainless Series
300 series
Shape
u-shaped
Width (side - side) OA
97" - 108"
Splash Height
10"H splash
Stainless Gauge
14 gauge
Leg Type
stainless steel legs
Specifications
Dishtable, soiled, u-shaped, attaches to right of dish machine operator, 59" x 108" x 143" with landing, 10-1/2"H backsplash, with pre-rinse sink, 16/304 stainless steel legs with crossrails front-to-back, 14/304 stainless steel, stainless steel bullet feet, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified) (NOTE: this dish table supplied in two pieces with a K-57 welded field joint included in the cost - field welding by others)
