Advance Tabco  |  SKU: DTS-U30-132R  |  UPC: 747545122841

Advance Tabco DTS-U30-132R Compartment Sinks

$8,811.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

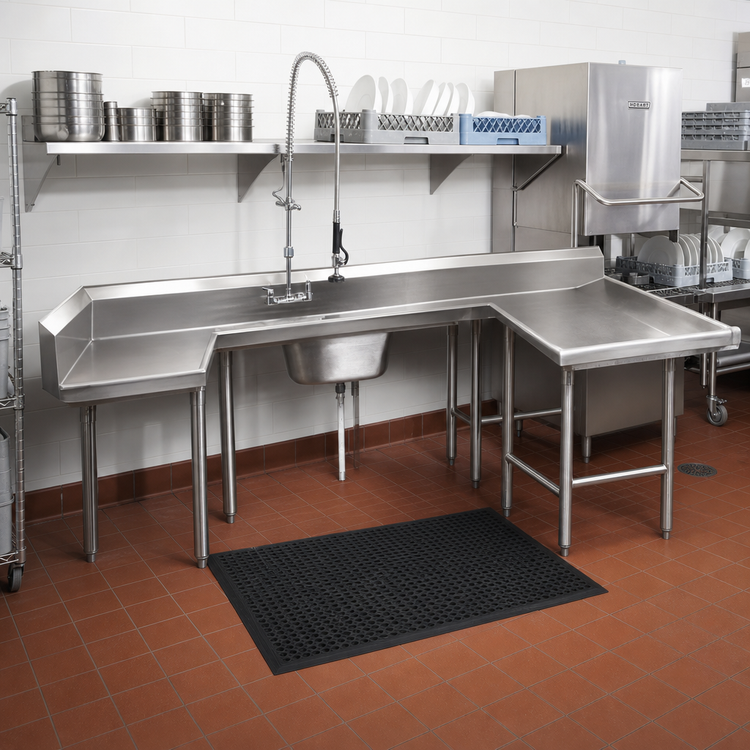

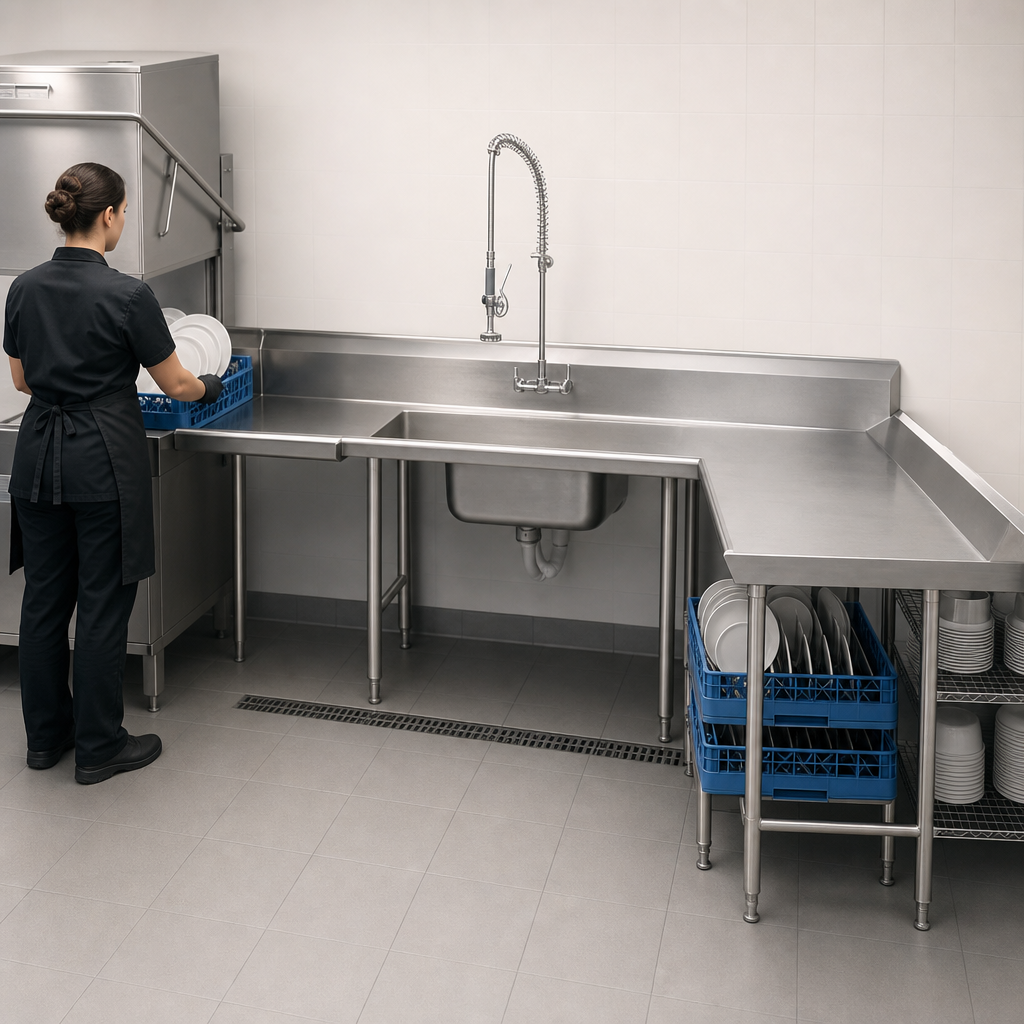

Advance Tabco U-Shaped Soiled Dishtable – Right Side Mount, 59" × 108" × 131"

Model DTS-U30-132R (ships in two sections with K-57 field joint)

Purpose-built for the soil side of your dish room, this NSF-listed U-shaped dishtable streamlines pre-rinse, rack staging and loading while providing the rugged durability Advance Tabco is known for.

Key Features

  • U-shape places the pre-rinse sink directly beside the dishmachine opening and adds a generous dish-landing shelf.
  • 10-1/2 inch extra-large backsplash with 2" return and tile edge delivers a watertight, code-compliant wall seal.
  • 20" × 20" × 8" pre-rinse sink includes 1-1/2" IPS basket drain, prerinse basket and removable slide bar (slide bar ships only when K-461 or K-461A disposer adapter is ordered).
  • 14-gauge type 304 stainless steel top, fully TIG-welded and satin-finished.
  • 16-gauge type 304 stainless steel legs with front-to-back crossrails and adjustable stainless bullet feet.
  • Factory-installed faucet holes punched 8" on centre (faucet sold separately).
  • Ships in two pieces; K-57 welded field joint supplied at no extra charge (final weld by installer).
  • NSF certified and proudly manufactured in the USA.

Specifications

Overall footprint (W × D × L) 59" × 108" × 131"
Backsplash height 10-1/2"
Pre-rinse sink bowl 20" × 20" × 8" deep
Working height 34" nominal
Top material 14-ga 304 stainless steel
Legs & crossrails 16-ga 304 stainless steel
Feet Stainless steel bullet-type, adjustable
Drain connection 1-1/2" IPS basket-type waste
Faucet holes 8" on centre (3-hole)
Shipping configuration Two sections with K-57 field joint

Perfect For

  • High-volume restaurants & cafeterias
  • Hotel, banquet & convention kitchens
  • Institutional foodservice – schools, hospitals, correctional facilities
  • Catering & commissary operations
Installation note: Field welding of the K-57 joint, faucet installation and any disposer adapter (K-461/K-461A) must be performed by a qualified installer. Consult the Advance Tabco Dish Machine Compatibility Chart to verify clearances before ordering.

Custom lengths, alternate sink locations and additional accessories are available through Advance Tabco Smart Fabrication™. Contact us for a quote or lead-time information.

Features & Specs

Manufacturer

Advance Tabco

Height

44.5in

Width

108.0in

Depth

132.0in

Shipping Weight

575.0lbs

Direction

right to left

Stainless Series

300 series

Shape

u-shaped

Width (side - side) OA

97" - 108"

Splash Height

10"H splash

Stainless Gauge

14 gauge

Leg Type

stainless steel legs

Specifications

Dishtable, soiled, u-shaped, attaches to right of dish machine operator, 59" x 108" x 131" with landing, 10-1/2"H backsplash, with pre-rinse sink, 16/304 stainless steel legs with crossrails front-to-back, 14/304 stainless steel, stainless steel bullet feet, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified) (NOTE: this dish table supplied in two pieces with a K-57 welded field joint included in the cost - field welding by others)
