Advance Tabco DTS-U30-132L Compartment Sinks
Description

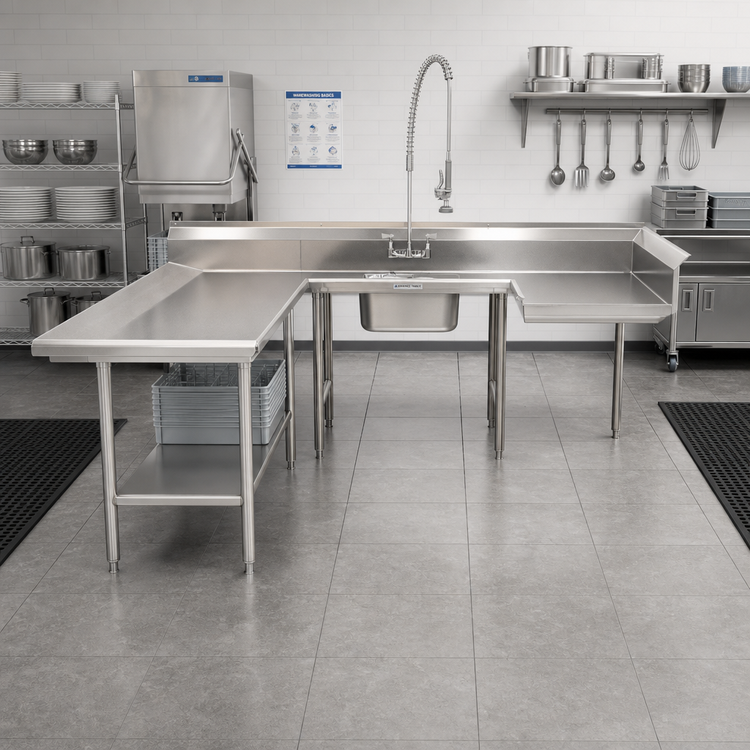

Advance Tabco U-Shaped Soiled Dishtable – 59" × 108" × 131" (Left-Hand)
14 ga. 304 SS top with 10-1/2" tile-edge backsplash • Model DTS-U30-132L | NSF ListedCreate a smooth, sanitary flow of dirty wares straight into your left-side dish machine. This heavy-duty Advance Tabco U-shaped soil table combines a rugged 14-gauge stainless work surface, a generous pre-rinse sink and an extra-large tile-edge backsplash to keep water where it belongs and productivity at its peak.
Key Features

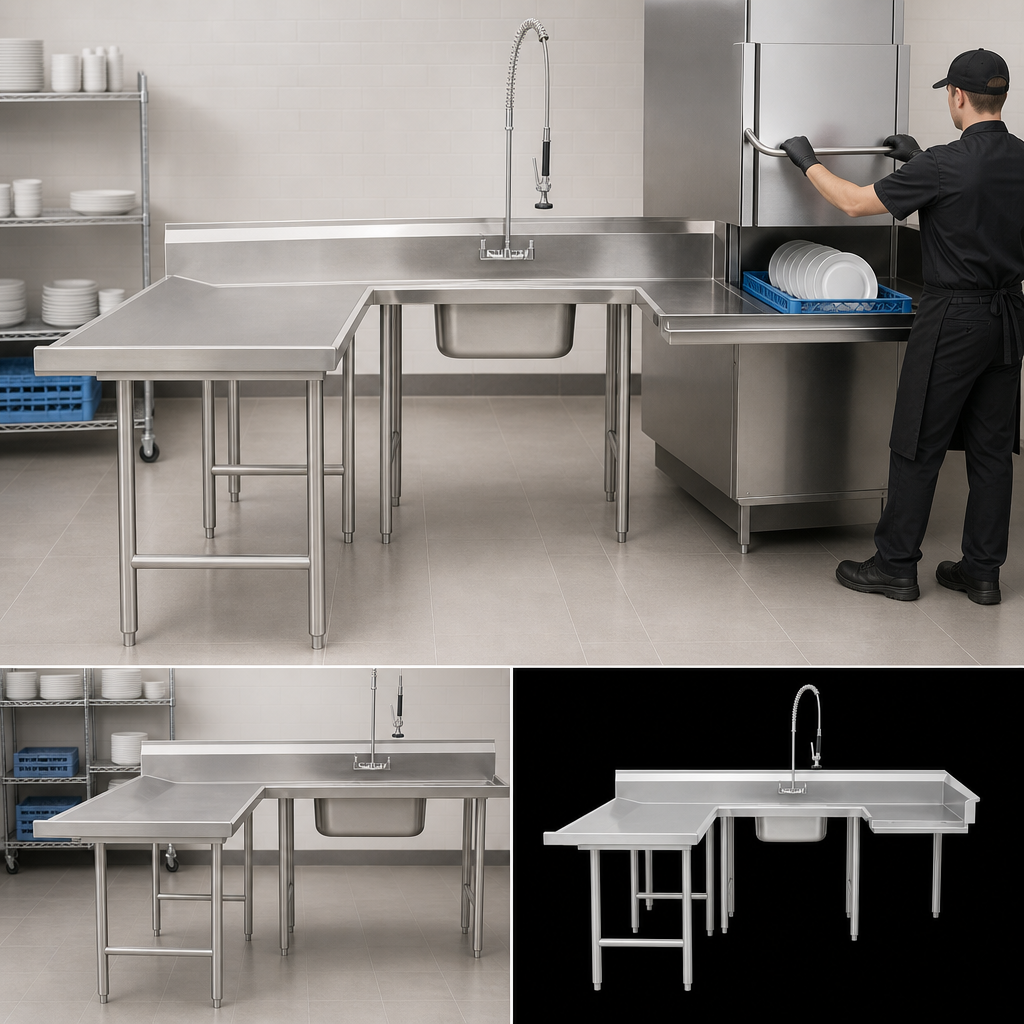

- U-shaped configuration installs on the LEFT of the dish-machine operator for efficient scrap-to-rack workflow.
- Overall footprint: 59" depth × 108" width × 131" length, including integrated dish-landing shelf.
- Bold 10-1/2" high backsplash with 2" return and oversized tile edge for simple, watertight installation.
- 20" × 20" × 8" deep pre-rinse sink welded in; supplied with 1-1/2" I.P.S. basket-type waste drain.
- Comes with pre-rinse basket and slide bar (slide bar activates when optional K-461 or K-461A disposer adapter is ordered).
- All-TIG-welded 14 ga. type 304 stainless top; welds blended to a uniform satin finish.
- 16 ga. type 304 stainless legs with front-to-back crossrails and adjustable stainless bullet feet for rock-solid stability.
- (3) 1-1/8" faucet holes already punched on 8" centers—choose any commercial faucet that meets your needs (sold separately).
Detailed Specifications
| Overall size (D × W × L) | 59" × 108" × 131" |
|---|---|
| Backsplash height | 10-1/2" with 2" return & tile edge |
| Sink bowl | 20" × 20" × 8" deep (304 SS) |
| Drain assembly | 1-1/2" I.P.S. basket-type waste |
| Top material | 14 ga. type 304 stainless steel |
| Legs & bracing | 16 ga. type 304 SS legs with front-to-back crossrails |
| Feet | Adjustable stainless bullet feet |
| Welds | All TIG; blended & polished to match adjacent surfaces |
| Faucet holes | (3) holes on 8" centers (faucet not included) |
| Shipping configuration | Ships in two sections; K-57 field joint included (field welding by others) |
| Approx. shipping weight | 575 lb |
| Certifications | NSF |
Faucet, disposer adapter and other SMART Fabrication™ modifications are sold separately.
