Advance Tabco

120-Inch U-Shaped Soiled Dishtable with Right-Side Dish Machine Attachment, Pre-Rinse Sink, and Landing

SKU: DTS-U30-120R
GTIN: 747545122827
$9,108.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers Commercial Work Tables Compartment Sinks Dish Tables New Arrivals Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

120-Inch U-Shaped Soiled Dishtable with Right-Side Dish Machine Attachment, Pre-Rinse Sink, and Landing

14-Gauge 304 Stainless Steel, 10-1/2" Backsplash, Tile Edge

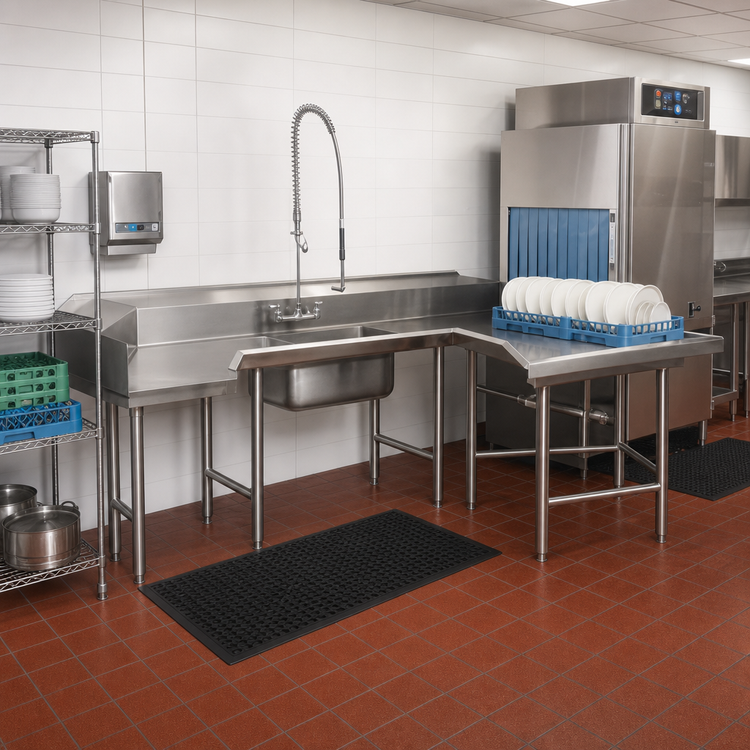

Built for fast-paced dish rooms, this right-side U-shaped dishtable combines a pre-rinse sink, landing area, and rugged stainless construction for efficient soiled ware handling.

  • Right-side U-shaped soiled dishtable designed to attach to the operator's right and support right-to-left workflow.
  • Includes an integrated pre-rinse sink basket, bar slide, and dish landing for efficient sorting and scraping.
  • Built from 14-gauge stainless steel with 304 stainless steel legs, cross bracing, and bullet feet.
  • 10-1/2" backsplash with 2" return and tile edge helps control splash and simplify installation.
  • All TIG welded with blended welds for a durable, satin-finished appearance.
  • Includes a 1-1/2" I.P.S. basket-type waste drain; faucet holes are punched 8" on center.
  • Supplied in two pieces with a K-57 welded field joint; field welding is performed by others.

Overall Dimensions:

108.0"W x 120.0"D x 44.5"H

Product Weight:

550.0 lb
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

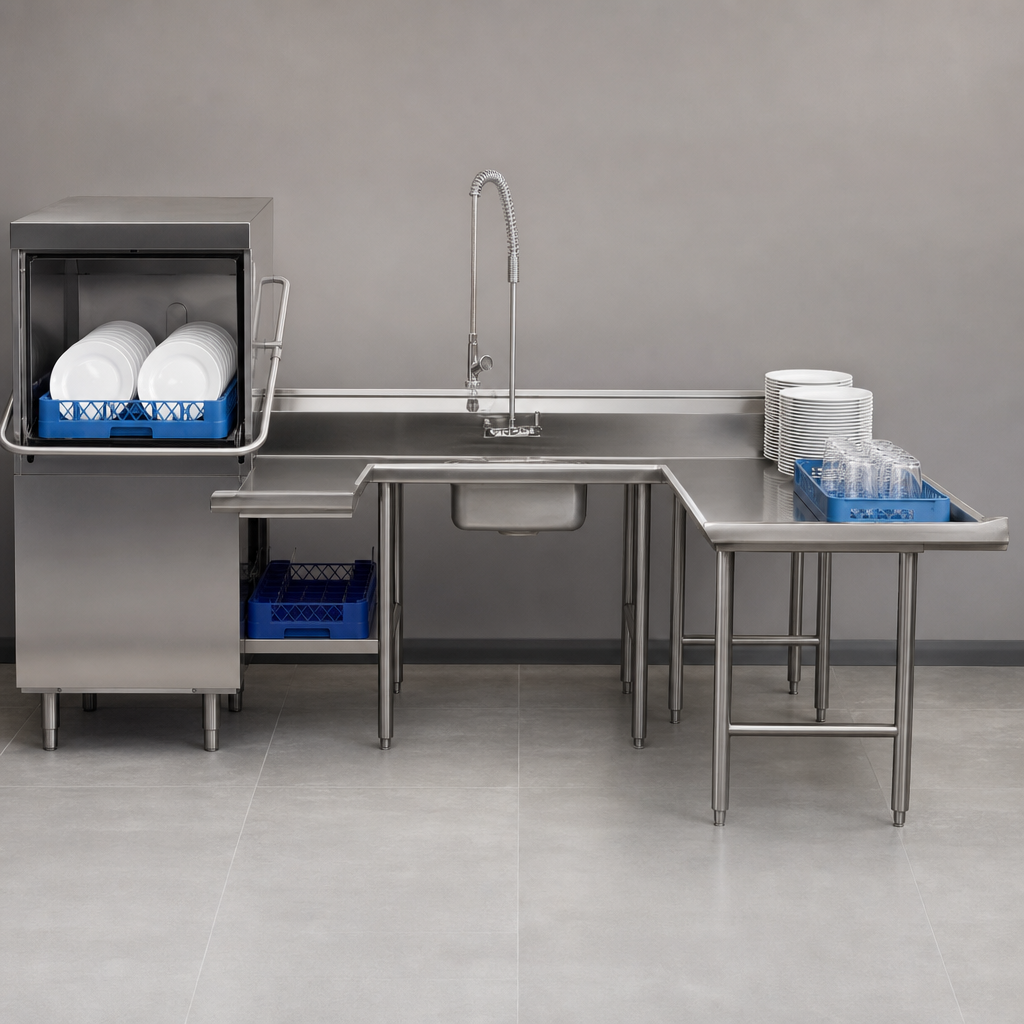

Right-Side Configuration

Designed to attach to the right of the dish machine operator for a right-to-left workflow.

U-Shaped Layout

U-shaped design provides an efficient work path around the dish machine area.

Integrated Pre-Rinse Sink

Includes an 8-inch-deep pre-rinse sink basket with bar slide for scrape and rinse operations.

Dish Landing

Built-in landing area supports staging and transfer of soiled wares.

10-1/2 Inch Backsplash

Extra-large backsplash includes a 2-inch return and tile edge to help contain splash and ease installation.

14-Gauge Stainless Steel Construction

Heavy-duty 14-gauge stainless steel construction is built for demanding dishroom use.

Stainless Steel Support Structure

Features stainless steel legs, cross bracing, channels, and bullet feet for strength and stability.

TIG Welded Finish

All TIG welded with welded areas blended to match adjacent surfaces and finished to a satin look.

Waste Drain Included

Includes a 1-1/2" I.P.S. basket-type waste drain.

Faucet Prep

Faucet holes are punched 8" on center; faucet is not included.

Field Joint Included

Dishtable ships in two pieces and includes a K-57 welded field joint for onsite welding by others.

Type Soiled Dishtable
Style U-Shaped
Installation Type Floor Model
Material 304 Stainless Steel
Finish Satin Finish
Direction Right to Left
Drain Connection Size 1-1/2 Inches I.P.S.
Shipping Width 108 Inches
Shipping Depth 120 Inches
Shipping Height 45 Inches
Shipping Weight 550 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Compatibility chart PDF Download

Frequently Asked Questions

No. Faucet holes are punched 8" on center, but the faucet is not included.
Yes. It includes an 8-inch-deep pre-rinse sink basket with a bar slide.
Yes. Dishtable lengths over 90" require a welded field joint, and this model is supplied in two pieces with a K-57 joint included for field welding by others.
The unit is built from 14-gauge stainless steel and includes stainless steel legs, cross bracing, channels, and bullet feet.
It attaches to the right side of the dish machine operator and is intended for right-to-left workflow.
Yes. It includes a 1-1/2" I.P.S. basket-type waste drain.
