Advance Tabco  |  SKU: DTS-U30-120L  |  UPC: 747545122810

Advance Tabco DTS-U30-120L Compartment Sinks

$8,674.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

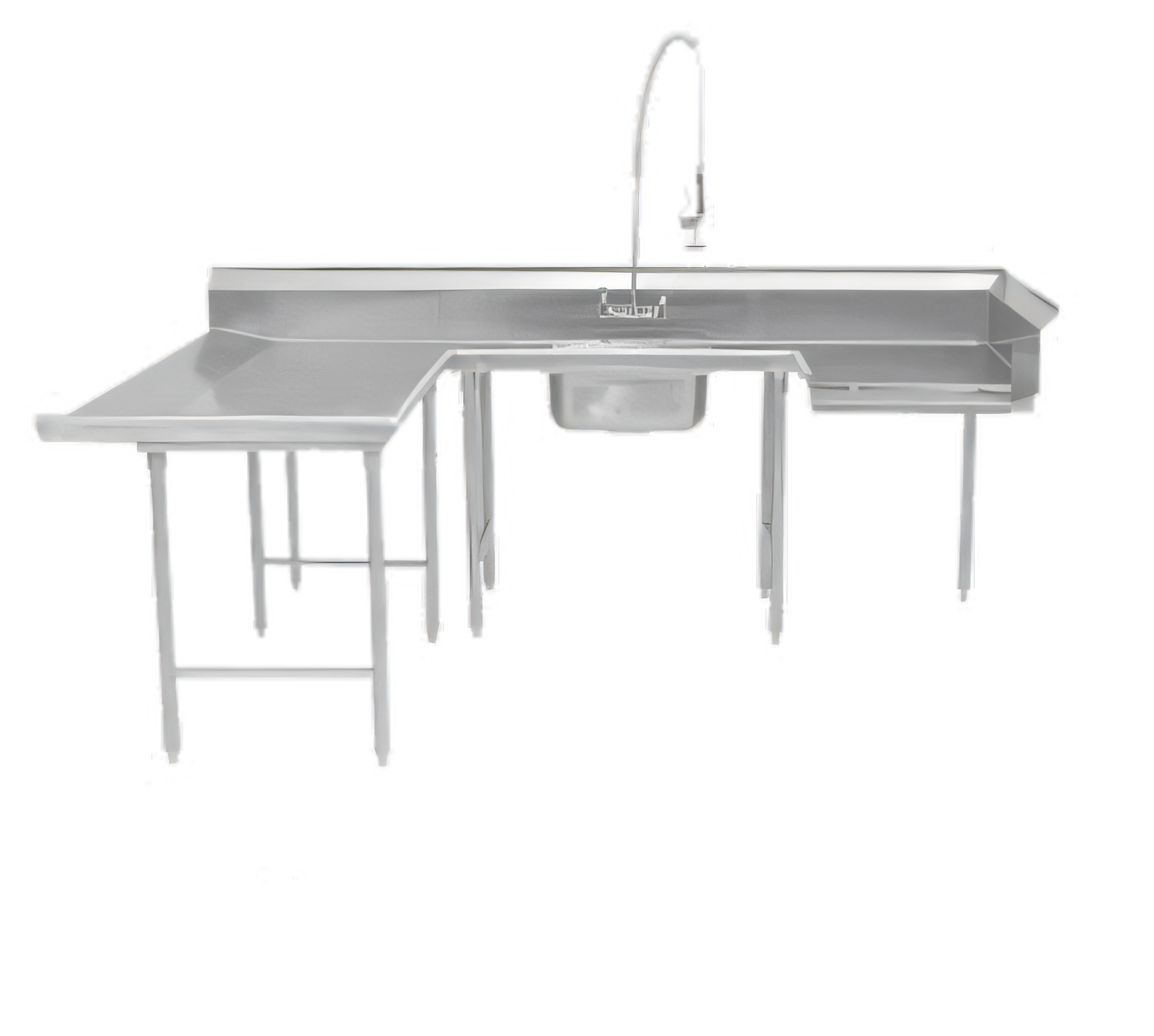

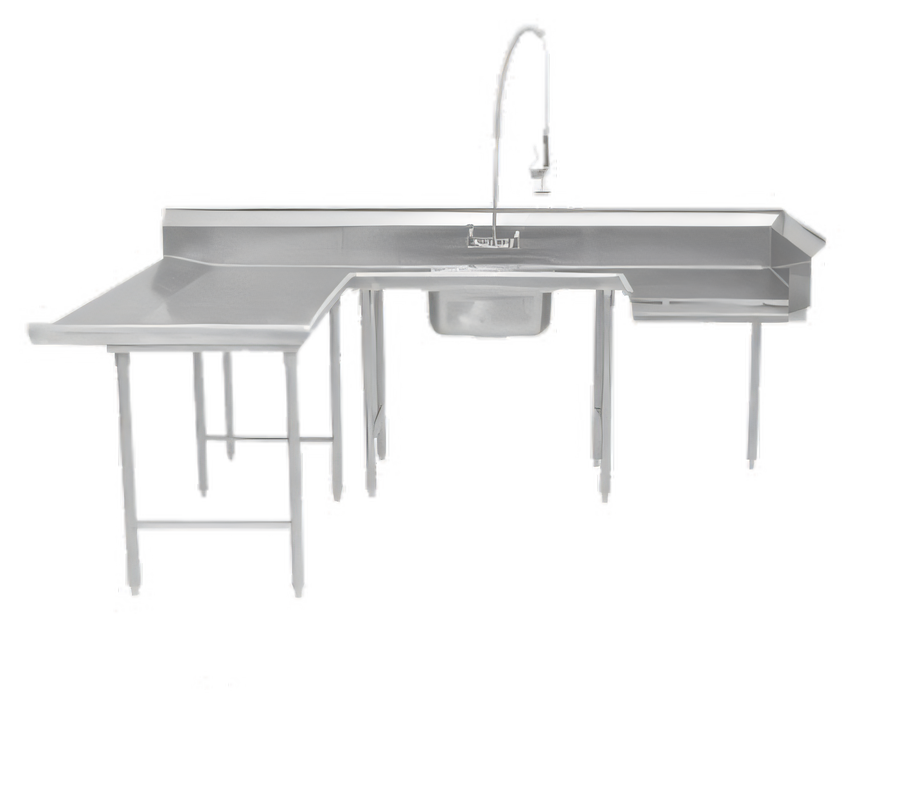

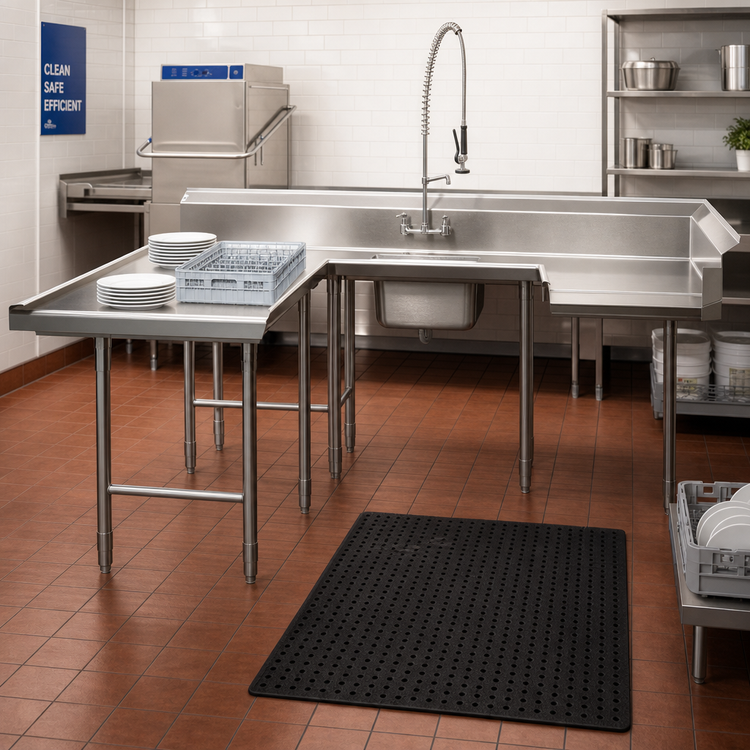

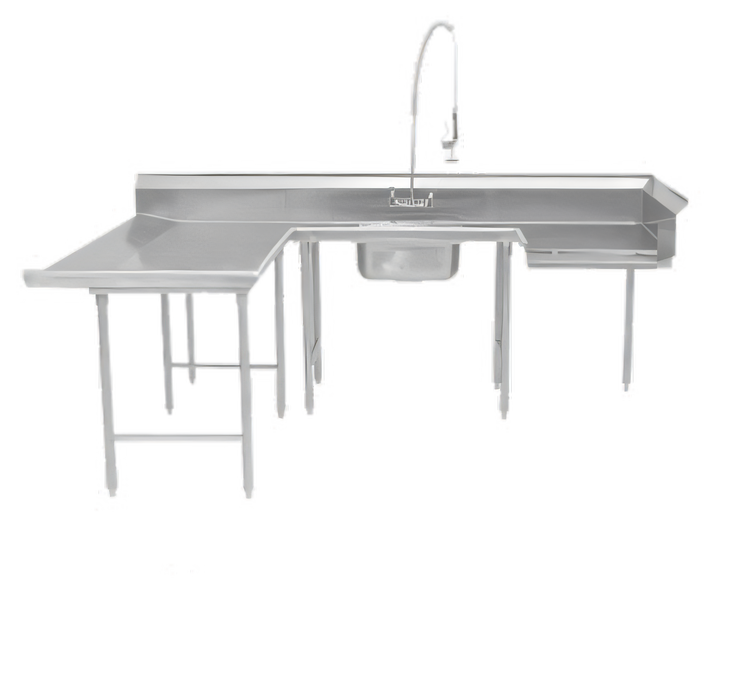

Advance Tabco U-Shaped Soiled Dishtable

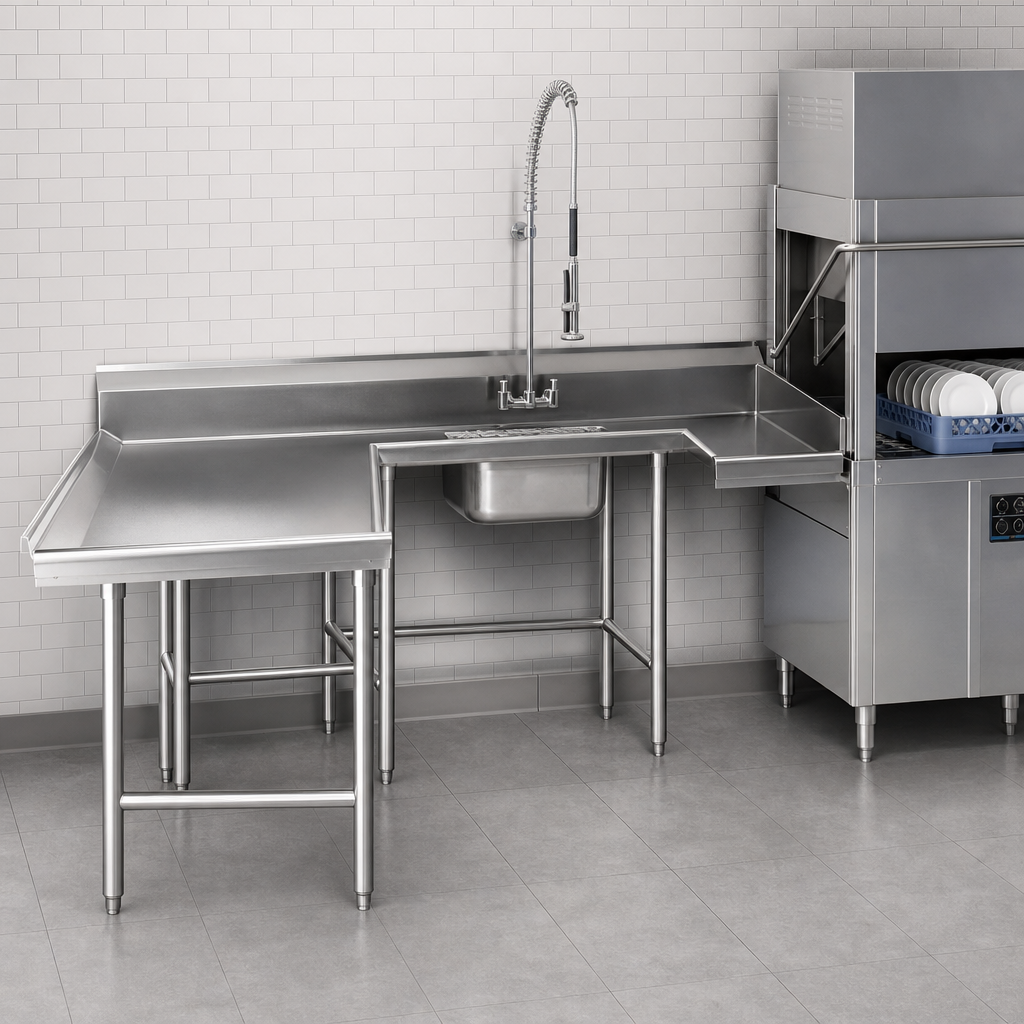

59" x 108" x 119" – attaches to the LEFT of the dish-machine operator

Designed for high-volume kitchens that need a rock-solid soiled landing zone, this Advance Tabco U-shaped dishtable streamlines rack loading, pre-rinsing, and scrap containment in one compact work center.

Why you’ll love it

  • Heavy-duty 14 ga. 304 stainless steel top stands up to constant impact, heat, and chemicals.
  • 10-1/2" extra-high, tile-edge backsplash with 2" return keeps water off the wall and speeds installation.
  • Integrated 20" × 20" × 8" pre-rinse sink with 1-1/2" IPS basket drain, prerinse basket & slide bar for fast scrap removal.
  • Generous dish-landing shelf keeps racks organized before they enter the washer.
  • 1-5/8" O.D. 16 ga. 304 stainless legs with front-to-back crossrails and stainless bullet feet for rock-solid stability.
  • All TIG-welded construction; welds are blended for a smooth, satin finish.
  • Factory-punched 8"-on-center faucet holes in backsplash (faucet sold separately).
  • NSF listed for open food-service use.

At-a-glance specs

Overall footprint 59" (operator side) × 108" (back) × 119" (landing side)
Orientation Left-feed (mounts on operator’s left side of dish machine)
Top material / gauge 14 ga. 304 stainless steel
Backsplash 10-1/2" H backsplash with tile edge & 2" return
Sink bowl 20" × 20" × 8" deep, 304 stainless
Legs & bracing 1-5/8" O.D. 16 ga. 304 SS legs with front-to-back crossrails
Feet Adjustable stainless bullet feet
Drain 1-1/2" IPS basket-type waste (included)
Included accessories Prerinse basket • Slide bar* • K-57 field joint kit
Shipping configuration Ships in two pieces; field welding of K-57 joint by others

*Slide bar is furnished only when a K-461 or K-461A disposer adapter is specified.
Faucet shown in marketing images is sold separately.
Always verify dish-machine compatibility before ordering. Need help? Call Advance Tabco at 1-800-645-3166.

Features & Specs

Manufacturer

Advance Tabco

Height

44.5in

Width

108.0in

Depth

120.0in

Shipping Weight

550.0lbs

Shape

u-shaped

Stainless Series

300 series

Splash Height

10"H splash

Width (side - side) OA

97" - 108"

Direction

left to right

Stainless Gauge

14 gauge

Leg Type

stainless steel legs

Specifications

Dishtable, soiled, u-shaped, attaches to left of dish machine operator, 59" x 108" x 119" with landing, 10-1/2"H backsplash, with pre-rinse sink, 16/304 stainless steel legs with crossrails front-to-back, 14/304 stainless steel, stainless steel bullet feet, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified) (NOTE: this dish table supplied in two pieces with a K-57 welded field joint included in the cost - field welding by others)
