Description

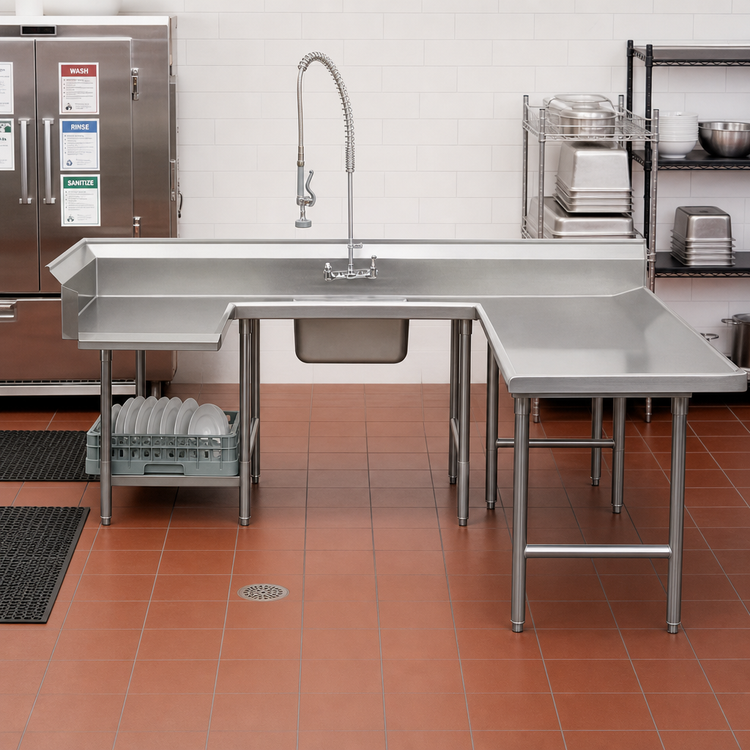

Advance Tabco DTS-U30-108R U-Shaped Soiled Dishtable

Right-hand entry • 59" × 108" × 107" footprint • NSF listed

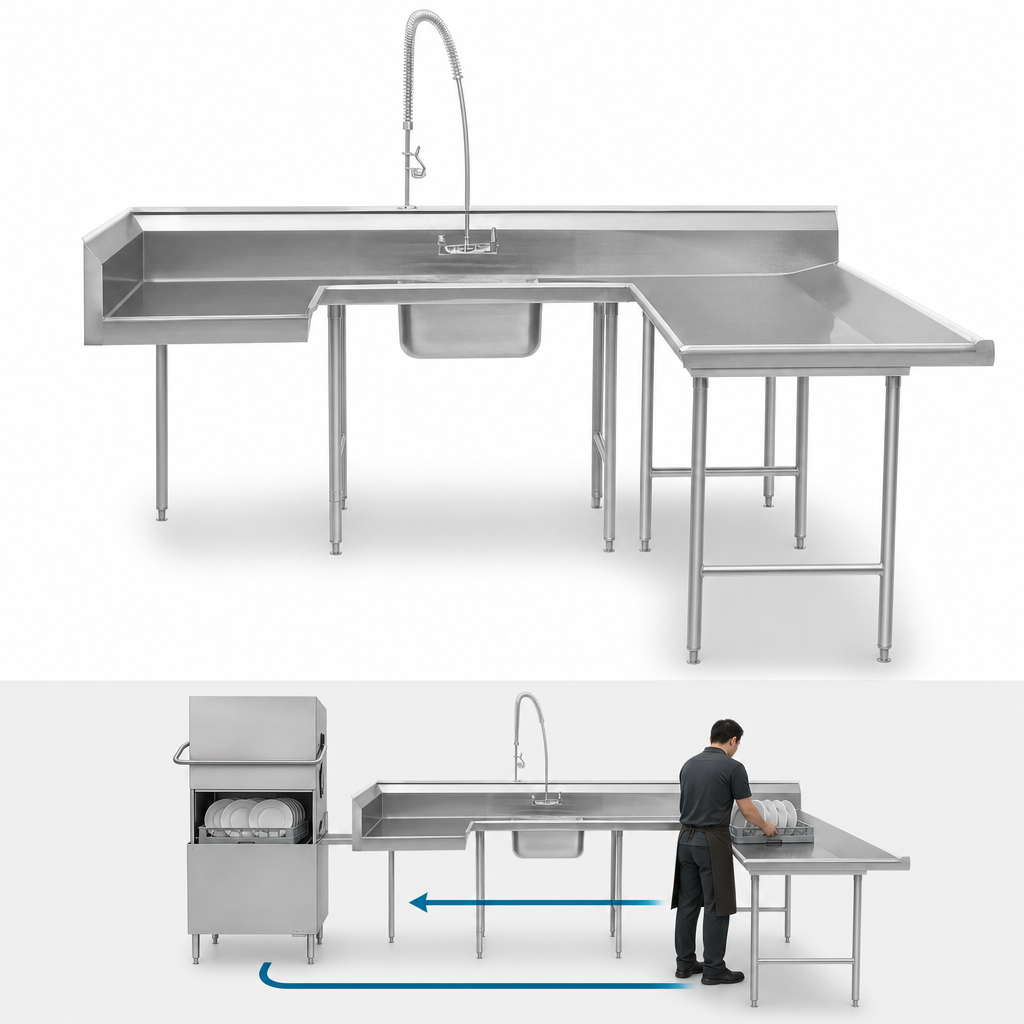

Create a fast, ergonomic soil side for any commercial dishroom with Advance Tabco’s flagship U-shaped dishtable. The DTS-U30-108R lands dirty racks, provides an 8"-deep pre-rinse sink and guides ware directly into a right-hand dish machine— all in one heavy-duty, 14-gauge type 304 stainless steel assembly.

Key features & benefits

  • 10 ½" extra-large backsplash with 2" return and tile-edge finish for a watertight, easy-to-seal wall junction.
  • Integrated 20" × 20" × 8" pre-rinse sink speeds scrap-rinsing and keeps ware flowing toward the machine.
  • Removable prerinse basket keeps scraps out of the drain; slide bar provided when a K-461/K-461A disposer adapter is ordered.
  • Generous 9 ⅜" dish-landing shelf allows multiple racks to stage without bottlenecks.
  • All TIG-welded construction with gusset-reinforced channels; welds are blended to a satin finish for a seamless look.
  • 16-ga. type 304 stainless steel legs & crossrails (front-to-back) capped with adjustable stainless steel bullet feet.
  • Supplied in two factory-built sections with a K-57 field joint—joint is included in price (final welding by installer).

Built to last

  • Top, backsplash & dish-landing: 14-ga. type 304 stainless steel.
  • Legs & bracing: 16-ga. type 304 stainless steel tubing.
  • All legs are furnished with adjustable stainless bullet feet to level the unit on uneven floors.
  • 1 ½" I.P.S. basket-type waste drain included and welded in place.

Included with your table

  • 20" × 20" × 8" pre-rinse sink bowl, punched 8" o.c. for deck-mount faucet (faucet not included).
  • Prerinse basket (slide bar ships only with disposer adapter K-461 or K-461A).
  • K-57 welded field joint hardware (for on-site welding).
  • Comprehensive installation & operation manual.

Specifications

Model DTS-U30-108R
Overall footprint * 59" (left leg depth) × 108" (front landing) × 107" (right leg length)
Work height 34" to top of table / 44 ½" to top of backsplash
Backsplash height 10 ½"
Sink bowl size 20" × 20" × 8" deep
Material & gauge Top/backsplash/dish-landing: 14-ga. 304 SS
Legs & crossrails: 16-ga. 304 SS
Finish Satin #4 polish on all exposed surfaces
Weight (ship) Approx. 525 lb.
Drain connection 1 ½" I.P.S. basket-type waste
NSF listing Yes – NSF certified

* All dimensions are typical ± ½". Refer to the cut sheet for detailed clearance requirements.

Important installation notes
  • Dish machine not included. Always verify clearance with the Advance Tabco Dish-Machine Compatibility Chart before ordering.
  • Unit ships in two sections. Field welding of the K-57 joint is required and must be performed by a qualified installer.
  • Faucet shown in photos is optional; order separately.

Features & Specs

Manufacturer

Advance Tabco

Height

44.5in

Width

108.0in

Depth

108.0in

Shipping Weight

525.0lbs

Direction

right to left

Stainless Series

300 series

Shape

u-shaped

Width (side - side) OA

97" - 108"

Splash Height

10"H splash

Stainless Gauge

14 gauge

Leg Type

stainless steel legs

Specifications

Dishtable, soiled, u-shaped, attaches to right of dish machine operator, 59" x 108" x 107" with landing, 10-1/2"H backsplash, with pre-rinse sink, 16/304 stainless steel legs with crossrails front-to-back, 14/304 stainless steel, stainless steel bullet feet, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified) (NOTE: this dish table supplied in two pieces with a K-57 welded field joint included in the cost - field welding by others)
