Advance Tabco DTS-S70-84R Compartment Sinks
Description

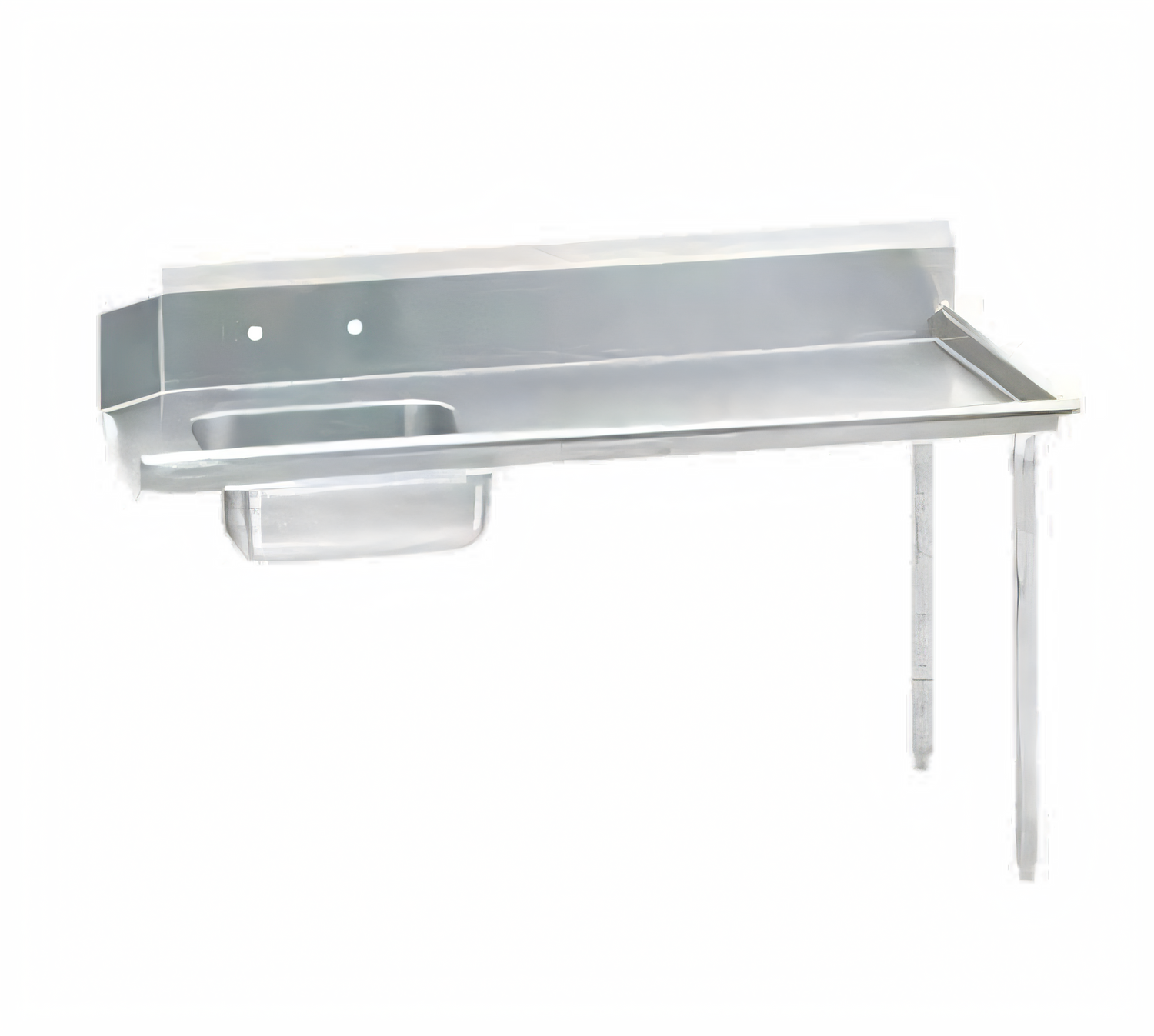

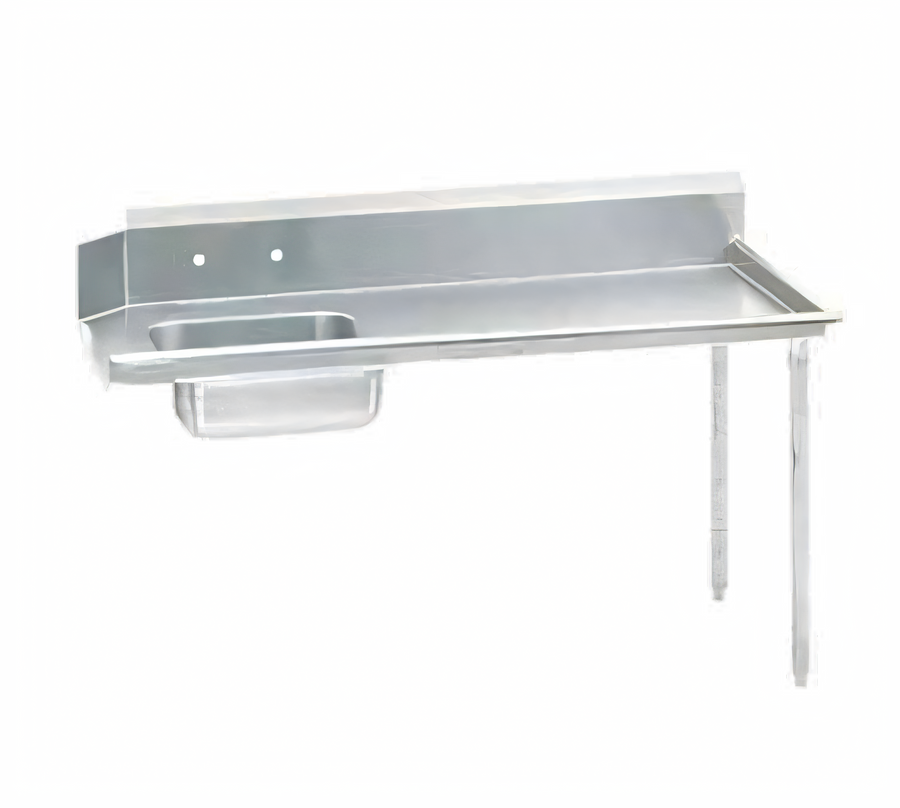

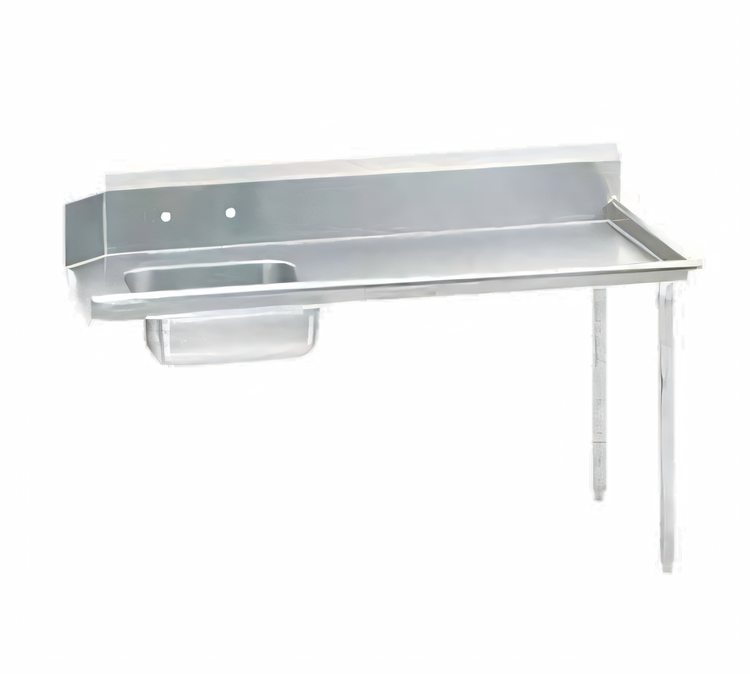

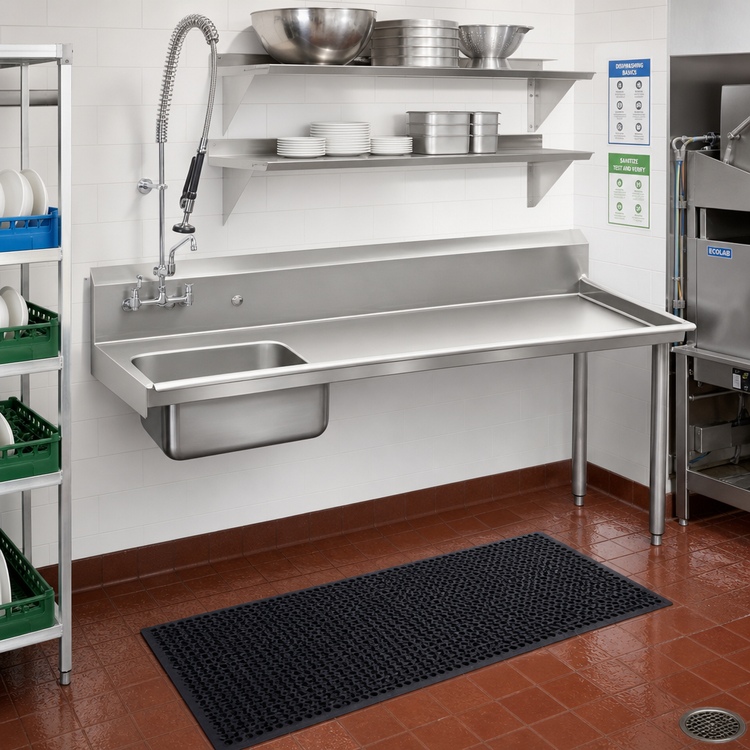

Advance Tabco DTS-S70-84R Straight Soil Dishtable – 83" Right Side
16 ga 304 Stainless Steel Top • 20" × 20" × 5" Pre-Rinse Sink • 10-1/2" BacksplashMaximize throughput and keep your dishroom organized with Advance Tabco’s heavy-duty 83" straight soil dishtable. Designed to attach to the right of your dish machine operator, this unit delivers the rugged durability, splash containment, and ergonomic pre-rinse capability you need for a clean, efficient ware-washing line.
Key Features

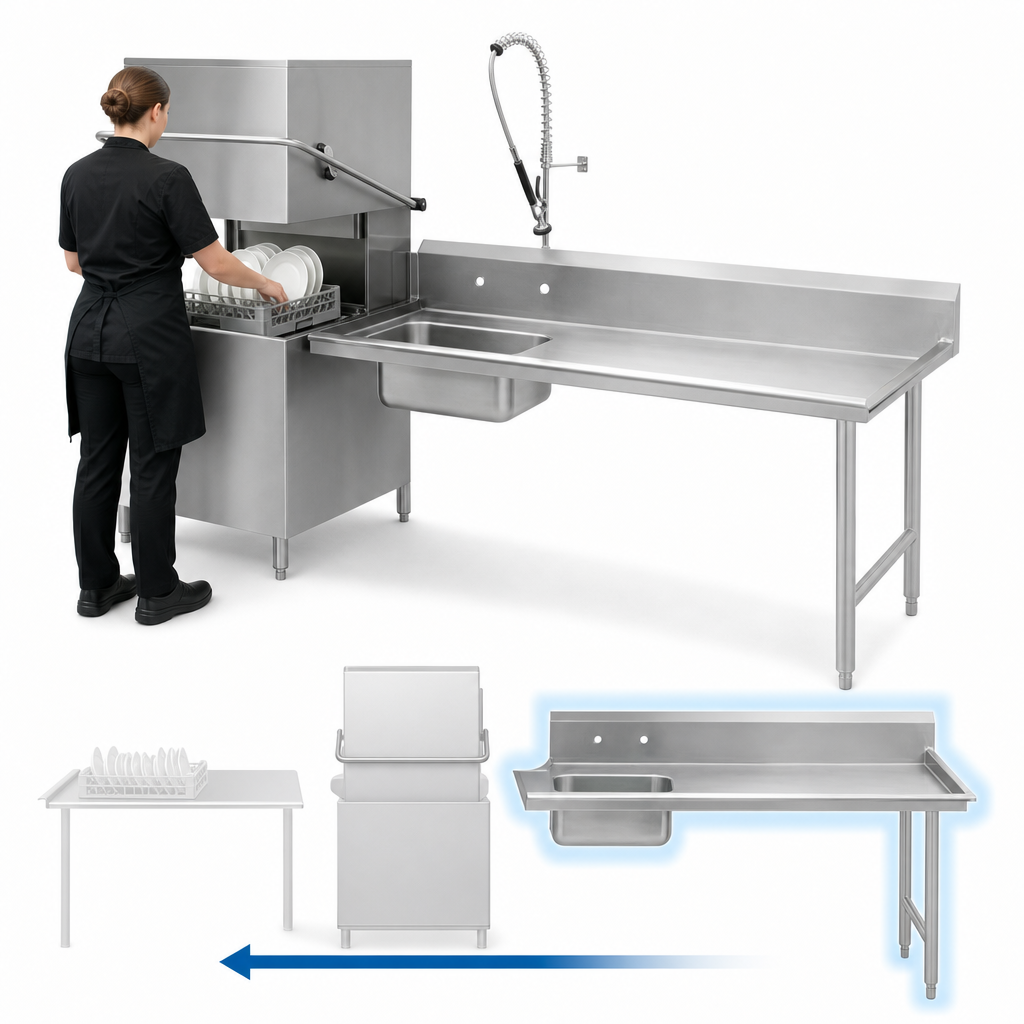

- Right-hand entry configuration mounts directly to the dish machine’s soil side.
- Generous 83" long landing surface accommodates high volumes of soiled wares.
- 16 ga 304 stainless steel top offers superior corrosion resistance and strength.
- Extra-large 10-1/2" backsplash with 2" return and tile edge contains splashes and speeds installation.
- Integrated 20" × 20" × 5" pre-rinse sink expedites scrap removal before loading racks.
- 1-1/2" IPS basket-type drain included; faucet holes punched on 8" centers (faucet sold separately).
- 16 ga 304 stainless steel 1-5/8" Ø legs with welded crossrails and adjustable stainless bullet feet for unbeatable stability.
- All TIG-welded construction; welds are blended to a satin finish for a seamless, easy-to-clean surface.
- NSF listed – built for demanding commercial use.
Specifications
| Model | DTS-S70-84R (Straight Soil, Right) |
|---|---|
| Overall Length | 83" (Nominal 7 ft) |
| Overall Depth | 30" |
| Working Height | 34" to top of work surface |
| Backsplash Height | 10-1/2" with 2" return |
| Sink Bowl Size | 20" × 20" × 5" (D) |
| Top Material / Gauge | 304 Stainless Steel / 16 ga |
| Legs & Cross Bracing | 16 ga 304 Stainless Steel, welded crossrails, 1-5/8" Ø |
| Feet | Stainless steel bullet feet, 1" adjustable |
| Drain | 1-1/2" IPS basket-type (included) |
| Approx. Weight | 125 lb |
| Certifications | NSF |
Installation & Compatibility Tips
- Verify that your dish machine’s soil side is on the right of the operator before ordering.
- Consult Advance Tabco’s dish machine compatibility chart to ensure no SMART FABRICATION™ modifications (e.g., DTA-76 or DTA-78) are required for your specific machine.
- Provide standard 8" center wall-mount pre-rinse faucet (not included).
- Level the table using the adjustable bullet feet for proper drainage.
Need a different size or left-hand configuration? Contact us for additional Advance Tabco dishtable options.
