Advance Tabco  |  SKU: DTS-S70-72L  |  UPC: 747545122698

Advance Tabco DTS-S70-72L Compartment Sinks

$1,985.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

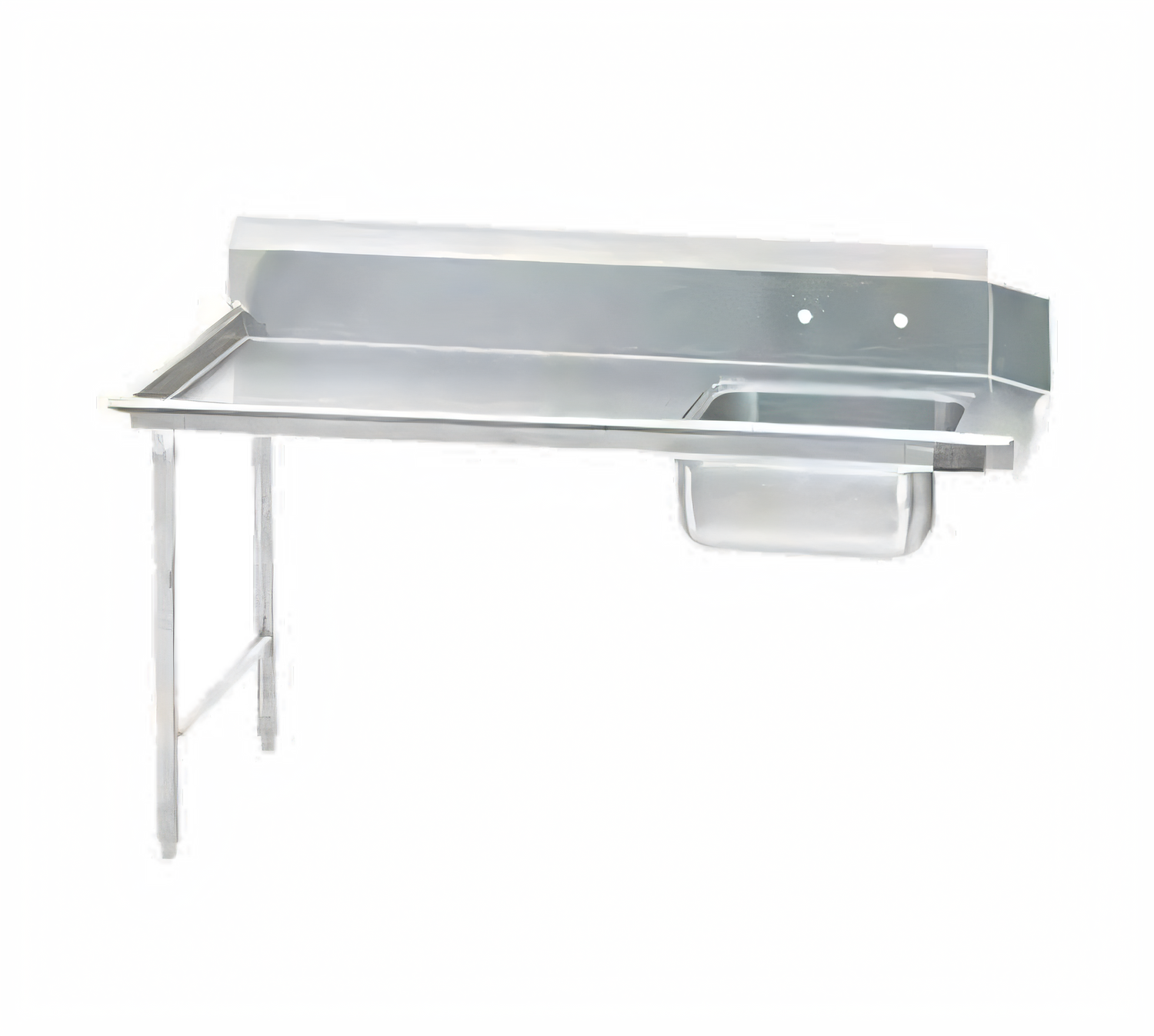

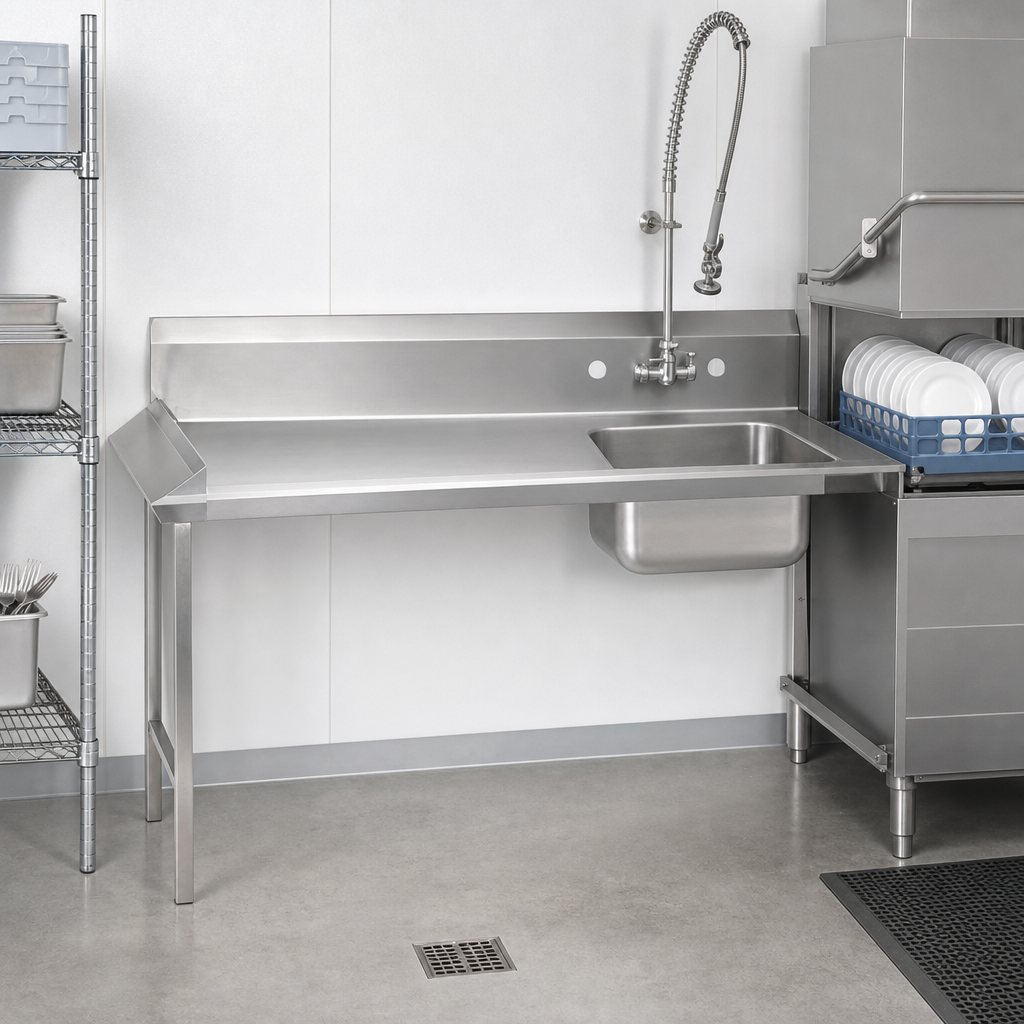

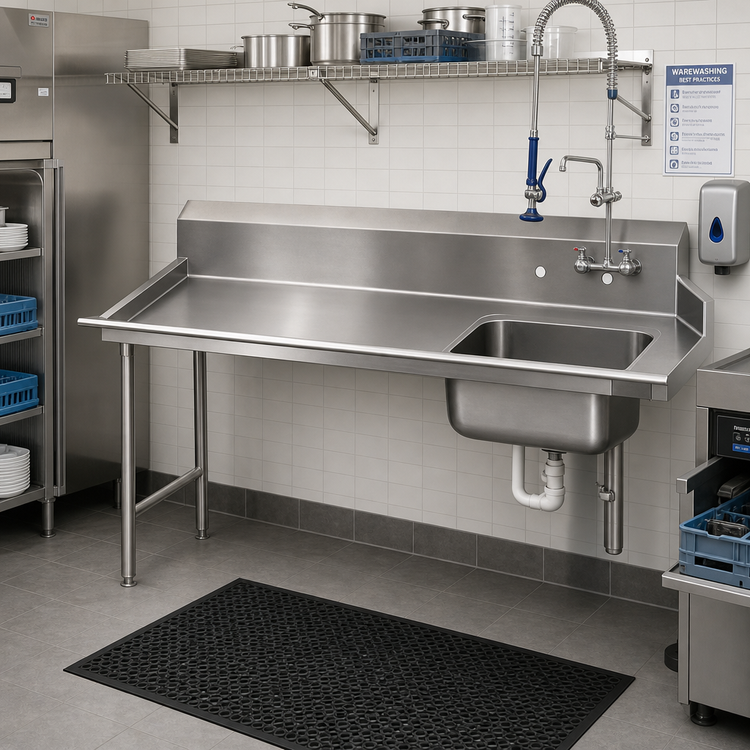

Advance Tabco DTS-S70-72L Straight Soil Dishtable – 71" (Left-Side Entry)

16-Gauge 304 Stainless Steel Top • Integrated 20" × 20" Pre-Rinse Sink • Welded Crossrails

Engineered for demanding commercial kitchens, this straight soil dishtable mounts to the left of your dish-machine operator to create an efficient, left-to-right ware-washing workflow. Heavy-duty 304 stainless steel throughout, a generous 10 ½" backsplash, and an extra-large pre-rinse sink help you contain mess, speed up pre-scrapping, and protect surrounding walls and equipment.

Key Benefits

  • 16 ga. 304 SS work surface resists corrosion, dents, and harsh chemicals.
  • 1 ⅝" dia. stainless steel legs with welded crossrails provide rock-solid stability.
  • 10 ½" one-piece backsplash with 2" tile-edge return for a sanitary, watertight wall junction.
  • 20" × 20" × 5" pre-rinse sink speeds food-soil removal (1 ½" IPS basket drain included).
  • Faucet holes punched on 8" centers—ready for the pre-rinse faucet of your choice (sold separately).
  • Adjustable stainless bullet feet (1" range) level the table on uneven floors.
  • Fully TIG-welded; welds are blended to a satin finish for easy cleaning and a polished, professional look.

At-a-Glance Specifications

Model  DTS-S70-72L
Overall Length  71" (nominal 6 ft)
Front-to-Back Depth  30"
Work Surface Height  34" to rim / 44 ½" to top of backsplash
Backsplash 10 ½" H with 2" return & tile edge
Sink Bowl  20" × 20" × 5" deep (pre-rinse position)
Top Material 16-ga 304 stainless steel, satin finish
Legs / Bracing 16-ga 304 SS, 1 ⅝" dia. • welded crossrails
Feet Adjustable stainless bullet feet, 1" range
Faucet Holes 2 holes on 8" centers (faucet not included)
Drain  1 ½" IPS basket-type (included)
Orientation Soil side — mounts to left of dish machine (operator side)
Need the opposite direction or a different length? Advance Tabco offers the S70 series in right-hand and 3–12 ft configurations.
Check compatibility: Some dish machines require clearance or SMART FABRICATION™ modifications. Verify with the Advance Tabco Dish Machine Compatibility Chart before ordering.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Width

71.0in

Depth

30.0in

Shipping Weight

95.0lbs

Leg Type

stainless steel legs

Direction

left to right

Stainless Series

300 series

Splash Height

10"H splash

Stainless Gauge

16 gauge

Shape

straight

Width (side - side) OA

61" - 72"

Specifications

Straight-Soil Dishtable, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with crossrails, 71"W, 16/304 stainless steel
