Advance Tabco DTS-S70-48R Compartment Sinks
Description

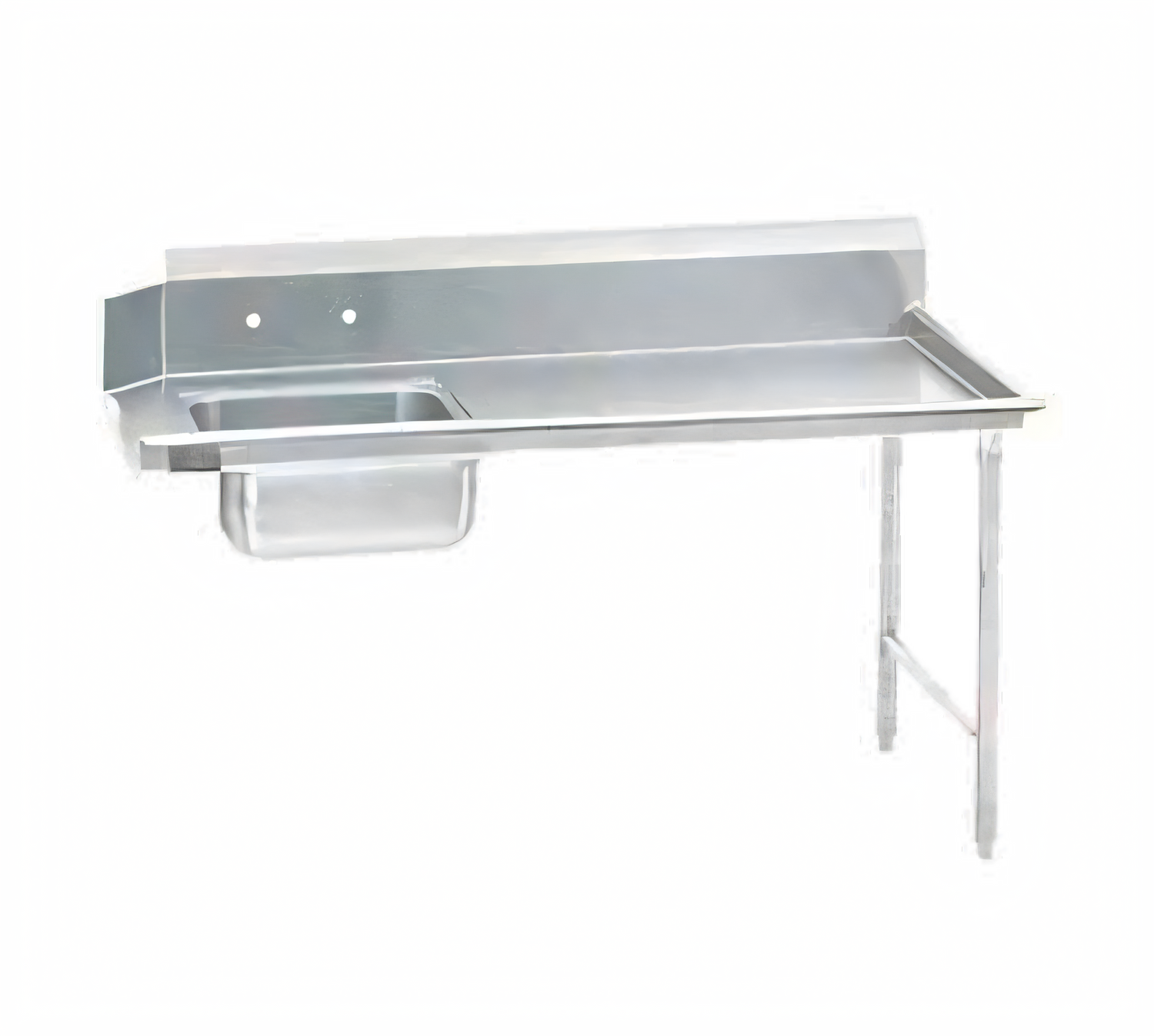

Advance Tabco 47" Straight Soil Dishtable – Right Side
Standard Series • 16 ga 304 Stainless Steel • Model DTS-S70-48RBuilt for busy commercial kitchens, this 47 inch Advance Tabco Standard Series straight soil dishtable mounts to the right-hand side of your dish machine to create a seamless, NSF-approved entry station for dirty wares. Durable 16-gauge 304 stainless steel, an oversized 10-1/2 inch backsplash, and a factory-installed 20 × 20 × 5 inch pre-rinse sink keep mess under control while speeding up your warewashing process.
Key advantages
- 16 ga 304 stainless steel top resists corrosion, harsh chemicals, and high-volume abuse.
- 20 × 20 × 5 inch pre-rinse sink bowl with 1 ½" basket drain—perfect for scrapping before the rack.
- 10-1/2 inch tall backsplash with 2 inch return & tile edge prevents wall damage and speeds installation.
- TIG-welded construction; welds are blended to a satin finish for a clean, professional look.
- Stainless steel legs with welded crossrails and adjustable stainless bullet feet for rock-solid stability.
- 8 inch on-center faucet holes punched in backsplash (faucet sold separately).
- Nominal 47 inch length fits most 44 inch conveyor or under-counter dish machines without custom fabrication.
At-a-glance specifications
| Overall length | 47 in L (nominal 4 ft) |
|---|---|
| Dishmachine orientation | Right side (operator faces machine, table is on the right) |
| Top material / gauge | 304 stainless steel, 16 ga |
| Bowl size × depth | 20 in × 20 in × 5 in |
| Backsplash height | 10 ½ in with 2 in return & tile edge |
| Legs / bracing | 1 ⅝ in Ø 16 ga 304 SS legs with welded crossrails & stainless bullet feet (1 in adj.) |
| Drain | 1 ½ in IPS basket type (included) |
| Faucet mounting | 8 in on-center holes in backsplash (faucet not included) |
| Approx. weight | ≈ 85 lb |
| NSF listed | Yes |
Smart fabrication & compatibility
Advance Tabco’s Smart Fabrication™ program ensures this table lines up with most leading dish machines straight out of the box. If your machine requires extra clearance (e.g., sink 12 – 20 in from opening), optional filler kits such as DTA-76 or backsplash notches (DTA-78) can be factory-applied.
Not sure if modifications are needed? Consult the Advance Tabco Dish Machine Compatibility Chart or contact our team before ordering.
Ideal applications
- Restaurants & cafeterias
- Hotels & banquet facilities
- School, hospital & university kitchens
- Catering and commissary operations
