Advance Tabco DTS-S70-48L Compartment Sinks
Description

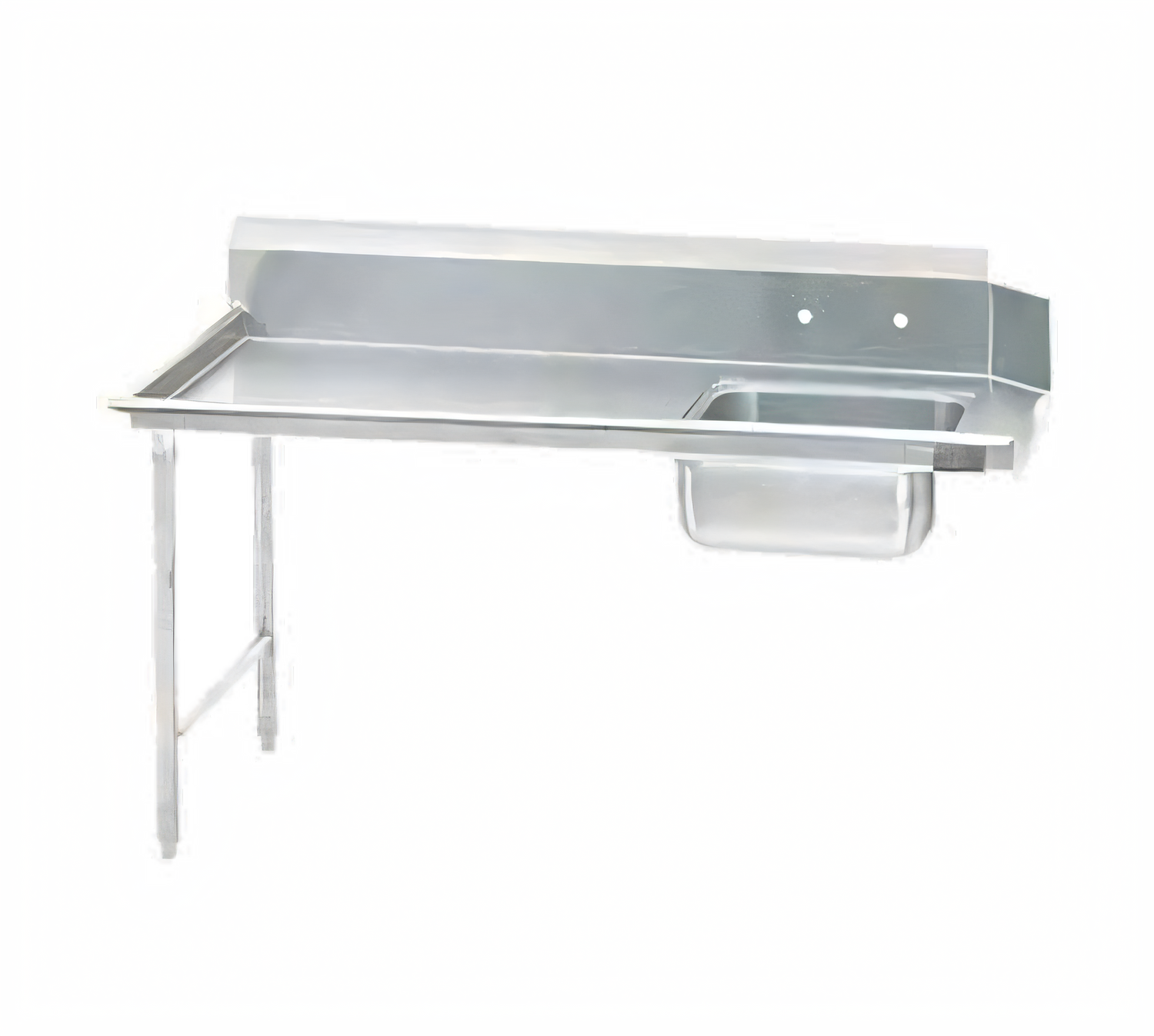

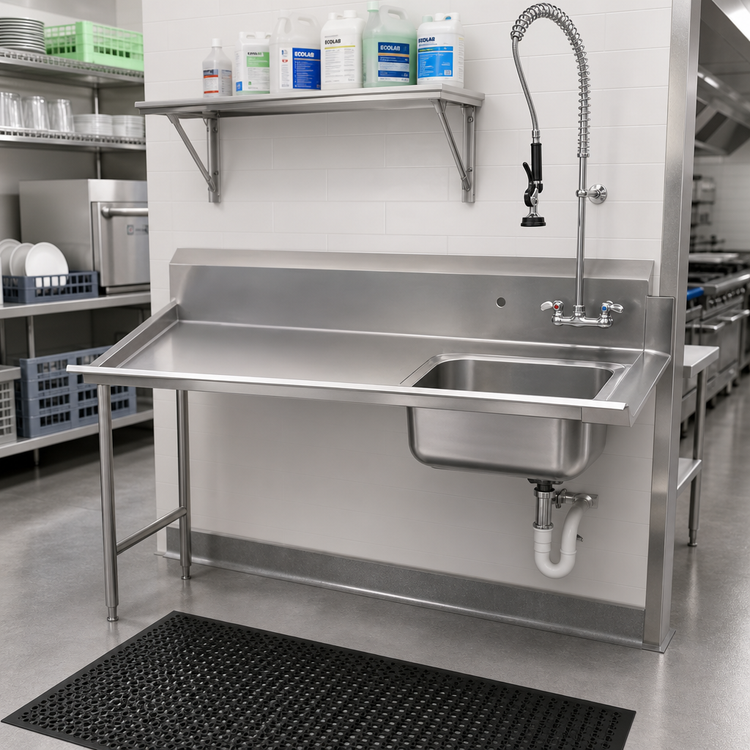

Advance Tabco 47" Straight Soil Dishtable – Left Feed
16 ga 304 SS Top | 20" × 20" × 5" Pre-Rinse Bowl | Model Series DTS-S70-48LOutfit your dish room for maximum efficiency with this rugged, NSF-listed straight soil dishtable. Engineered from premium 304 stainless steel and sized to fit the entry (operator’s left) side of most commercial dish machines, it provides a dedicated landing area for scraping, soaking and pre-rinsing while protecting surrounding walls with an extra-tall backsplash.
Key Features

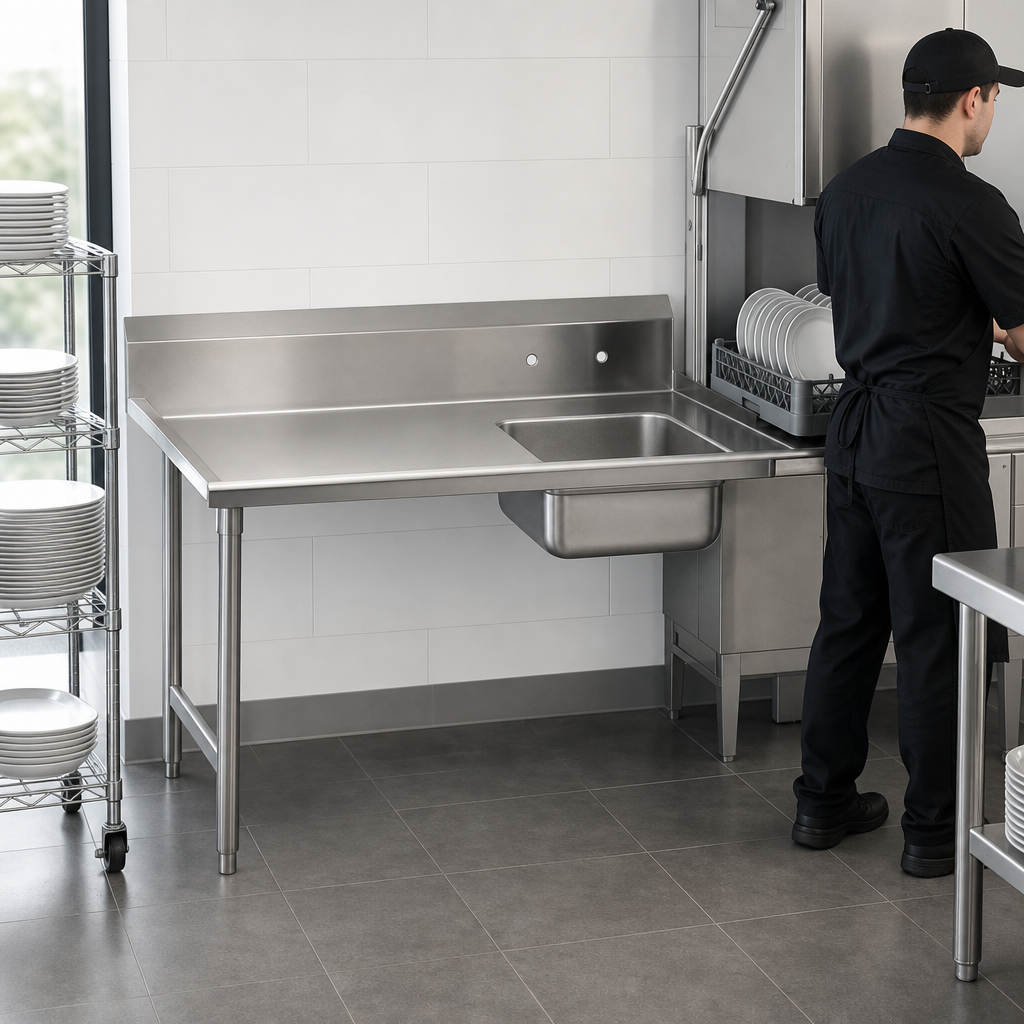

- Left-hand orientation – mounts to the soil (entry) side of the dish machine.
- 16 ga 304 stainless steel top resists corrosion and everyday wear.
- Integrated 20" × 20" × 5" deep pre-rinse sink speeds up pre-wash tasks.
- 10-1/2" backsplash with 2" tile-edge return keeps spray contained and installs flush against existing tile.
- 1-5/8" Ø stainless steel legs with welded crossrails and stainless bullet feet (1" adjustable) for unmatched stability.
- All TIG-welded; welds are blended and finished to a smooth, sanitary satin sheen.
- Faucet holes pre-punched on 8" centers (faucet sold separately) & 1-1/2" IPS basket drain included.
Specifications
| Overall length | 47" (nominal 4 ft) |
|---|---|
| Front-to-back depth | 30" |
| Working height | 34" to tabletop / 44 1/2" to top of backsplash |
| Orientation | Left – attaches to operator’s left side of dish machine |
| Top material | 16 ga 304 stainless steel |
| Legs & bracing | 16 ga 304 stainless steel legs with welded stainless gussets & crossrails |
| Sink bowl size | 20" × 20" × 5" deep |
| Backsplash | 10 1/2" H with 2" return, tile edge |
| Drain | 1 1/2" IPS basket-type (included) |
| Faucet holes | (2) on 8" centers |
| Approx. weight | 85 lb |
| NSF listed | Yes |
Looking for a different length, a right-hand setup, or added accessories? This unit is part of Advance Tabco’s modular dishtable system. Reach out for a custom Smart Fabrication™ quote today.
