Advance Tabco DTS-S70-36L Compartment Sinks
Description

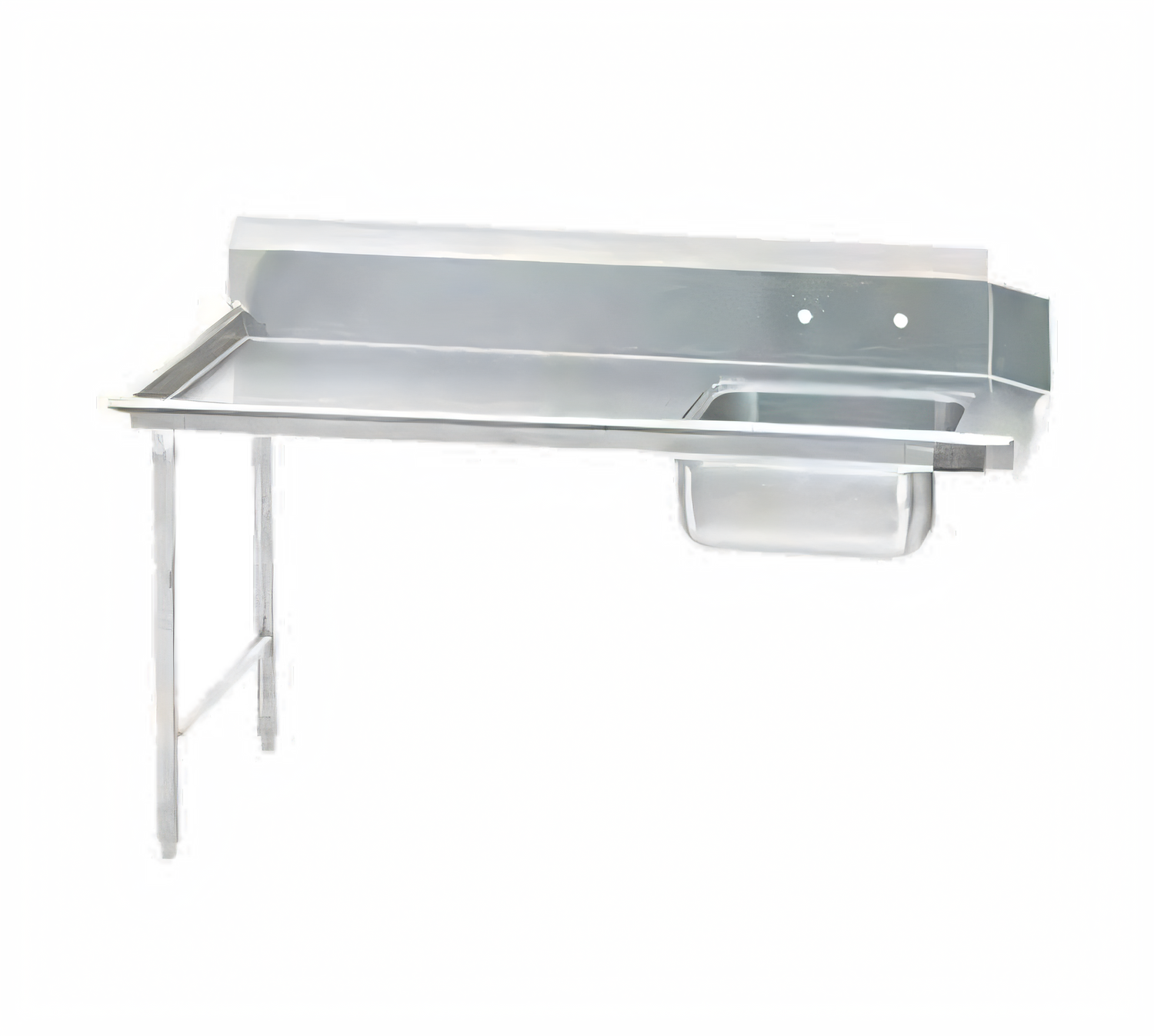

Advance Tabco Straight Soil Dishtable – Left Feed, 35" (Model DTS-S70-36L)
16 ga. 304 stainless steel top & legs • 10-1/2" backsplash • 20" × 20" × 5" pre-rinse sinkPurpose-built for compact dish rooms, this 3 ft. left-hand soil table delivers rock-solid durability and a smooth workflow between the landing area and your high-temperature or chemical dish machine.
Highlights
- Heavy-duty 16 ga. 304 series stainless steel top—stands up to constant loading & scrapping
- Integrated 20" × 20" × 5" pre-rinse sink speeds food-soil removal
- 10-1/2" high bold backsplash with 2" return & tile-edge design for a watertight wall junction
- Stainless steel legs with welded crossrails for maximum rigidity
- All TIG-welded construction; welds ground & blended to a satin finish
- 1" adjustable stainless steel bullet feet—easy leveling on uneven floors
- 1-1/2" IPS basket waste drain included
- Pre-punched 8" O.C. faucet holes (faucet sold separately)
- NSF Listed & fully compatible with most commercial door-type & conveyor dish machines
Built for Heavy-Duty Dish Rooms
From its satin-finished TIG welds to the welded stainless gussets under the top, every detail of this Advance Tabco Spec-Line dishtable is engineered to shrug off years of punishing daily use. The extra-large backsplash contains overspray, while the tile-edge makes installation fast and leak-free.
Specifications
| Orientation | Left of dish machine operator (soil / entry side) |
|---|---|
| Nominal length | 35" (3 ft.) |
| Front-to-back | 30" |
| Working height | 34" to top of work surface (adjustable) |
| Backsplash height | 10-1/2" (overall height 44-1/2") |
| Sink bowl size | 20" W × 20" L × 5" D |
| Top thickness / material | 16 ga. 304 stainless steel |
| Legs | 1-5/8" Ø 16 ga. 304 stainless steel, with welded crossrails |
| Finish | Satin polish on all exposed surfaces |
| Drain | 1-1/2" IPS basket-type (included) |
| Faucet holes | 8" centers, 1-1/8" Ø |
| Net weight | Approx. 70 lb. |
| Certifications | NSF |
What’s Included
- Straight soil dishtable with integrated sink & backsplash
- 1-1/2" IPS basket drain assembly
- Stainless steel legs with welded crossrails & adjustable bullet feet
Pre-rinse faucet, scrap basket, and other accessories are sold separately.
Upgrade your dish room with the trusted performance of Advance Tabco—order today and keep your warewashing operation running smoothly shift after shift.
