Advance Tabco DTS-S70-144R Compartment Sinks
Description

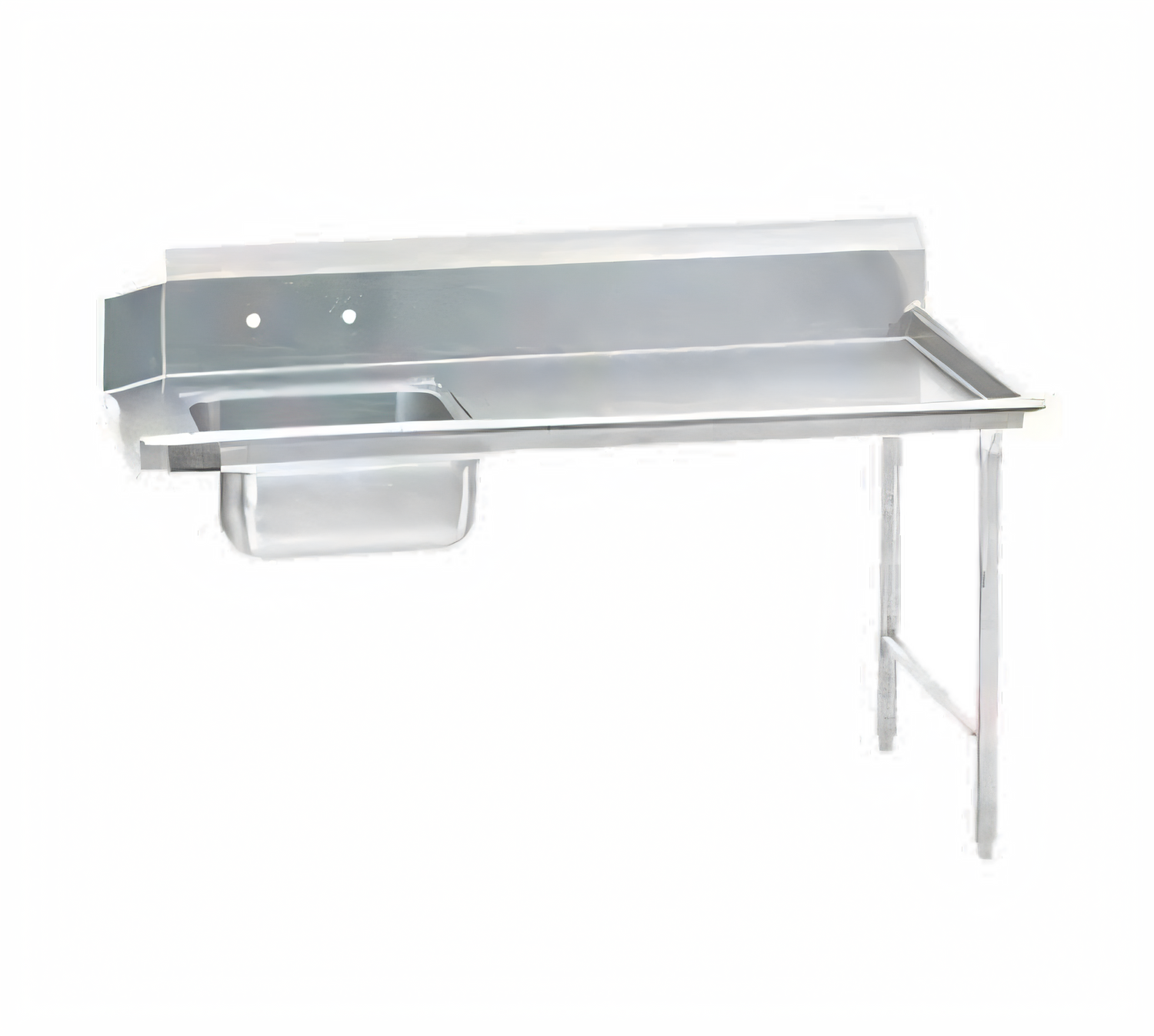

Advance Tabco Straight Soil Dishtable – Right Hand, 12 ft
Model Series DTS-S70 | 143" L × 30" D × 34" H (work surface)Bring high-volume warewashing under control with a rugged, NSF-listed soil table engineered to marry perfectly to the operator’s right side of your dish machine. 100 % TIG-welded 304 stainless steel stands up to the daily rush, while an extra-large 10 ½" backsplash and integrated pre-rinse sink keep mess where it belongs.
Built for Demanding Kitchens
- 16 ga. 304 stainless steel top resists corrosion, dents, and harsh cleaners.
- 20" × 20" × 5" pre-rinse sink bowl welded in place for quick scraping and soaking.
- 10 ½" high bold backsplash with 2" return and tile-edge profile for sanitary, worry-free installation.
- Fully welded 16 ga. 304 stainless steel legs with welded crossrails for rock-solid stability.
- Adjustable stainless steel bullet feet (1" range) level the table on uneven floors.
- Basket-type 1 ½" IPS waste drain included—no extra kit required.
- Backsplash punched on 8" centers to accept your choice of wall-mount faucet (sold separately).
- Satin-finished welds blend seamlessly with surrounding surfaces for a premium look.
At-a-Glance Specifications
| Orientation | Right-Hand (mounts to operator’s right side of dish machine) |
|---|---|
| Overall Length | 143" nominal (12 ft) |
| Depth | 30" |
| Work Height | 34" (to tabletop) / 44 ½" (to top of backsplash) |
| Top Material & Gauge | 16 ga. 304 series stainless steel |
| Legs | 1 5⁄8" Ø, 16 ga. 304 stainless with welded crossrails & stainless bullet feet |
| Sink Bowl Size | 20" W × 20" F-B × 5" D (integral, TIG-welded) |
| Backsplash | 10 ½" H with 2" return; tile edge on sides |
| Drain | 1 ½" IPS basket-type (included) |
| Compliance | NSF certified |
The 304 Stainless Advantage
304 series stainless steel contains ≥ 18 % chromium and 8 % nickel, providing superior resistance to rust, chemicals, and heat—perfect for harsh dish room environments and aggressive sanitizers.

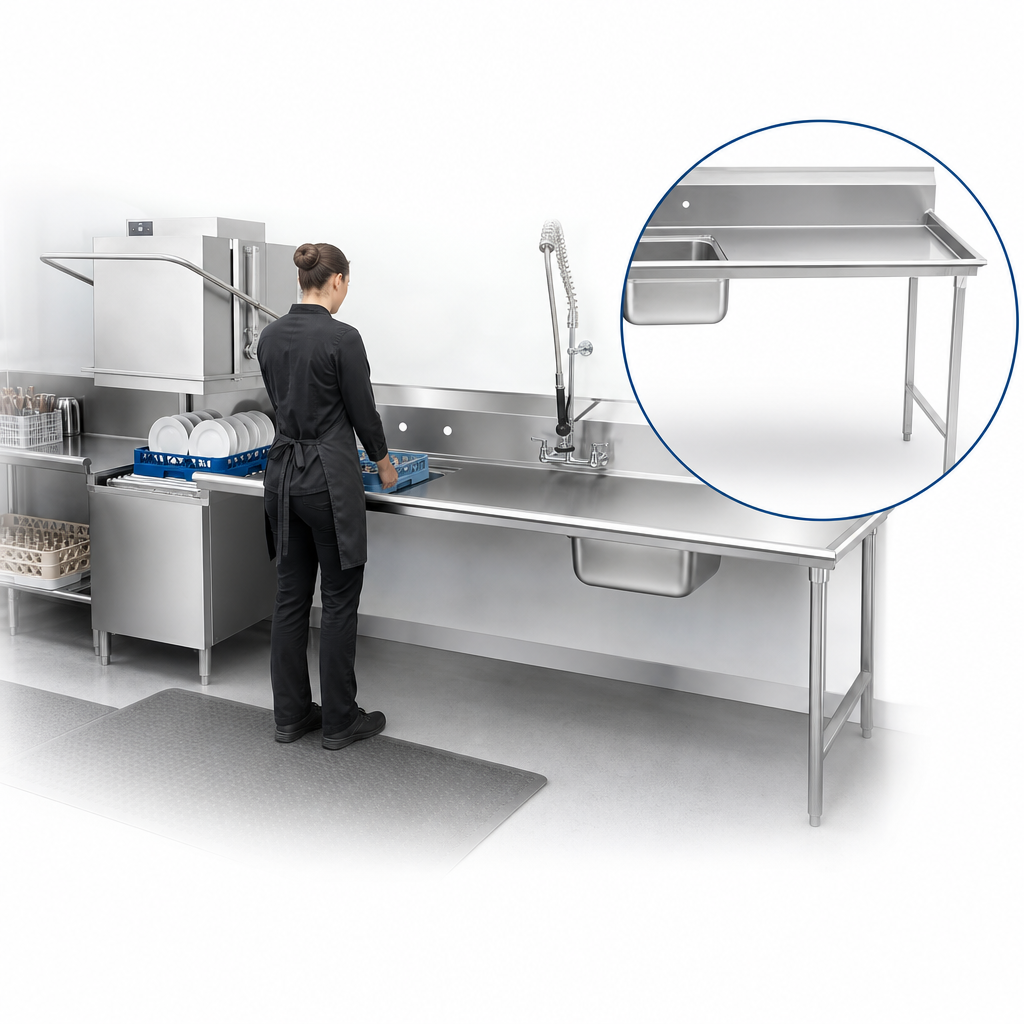

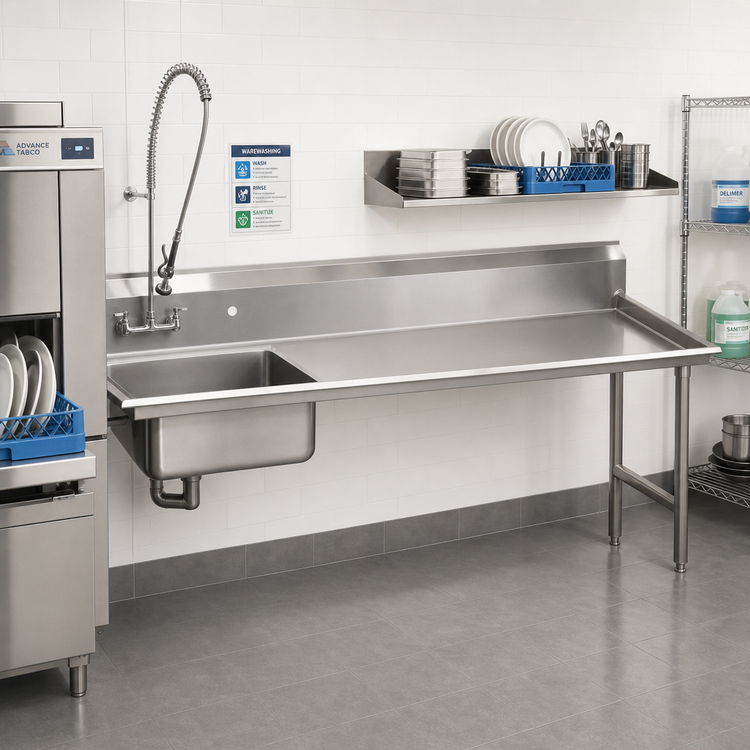

Faucet, pre-rinse sprayer, and dish machine shown in images are sold separately.
