Advance Tabco  |  SKU: DTS-S70-144L  |  UPC: 747545122551

Advance Tabco DTS-S70-144L Compartment Sinks

$2,411.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Advance Tabco Commercial Work Tables Compartment Sinks Dish Tables Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

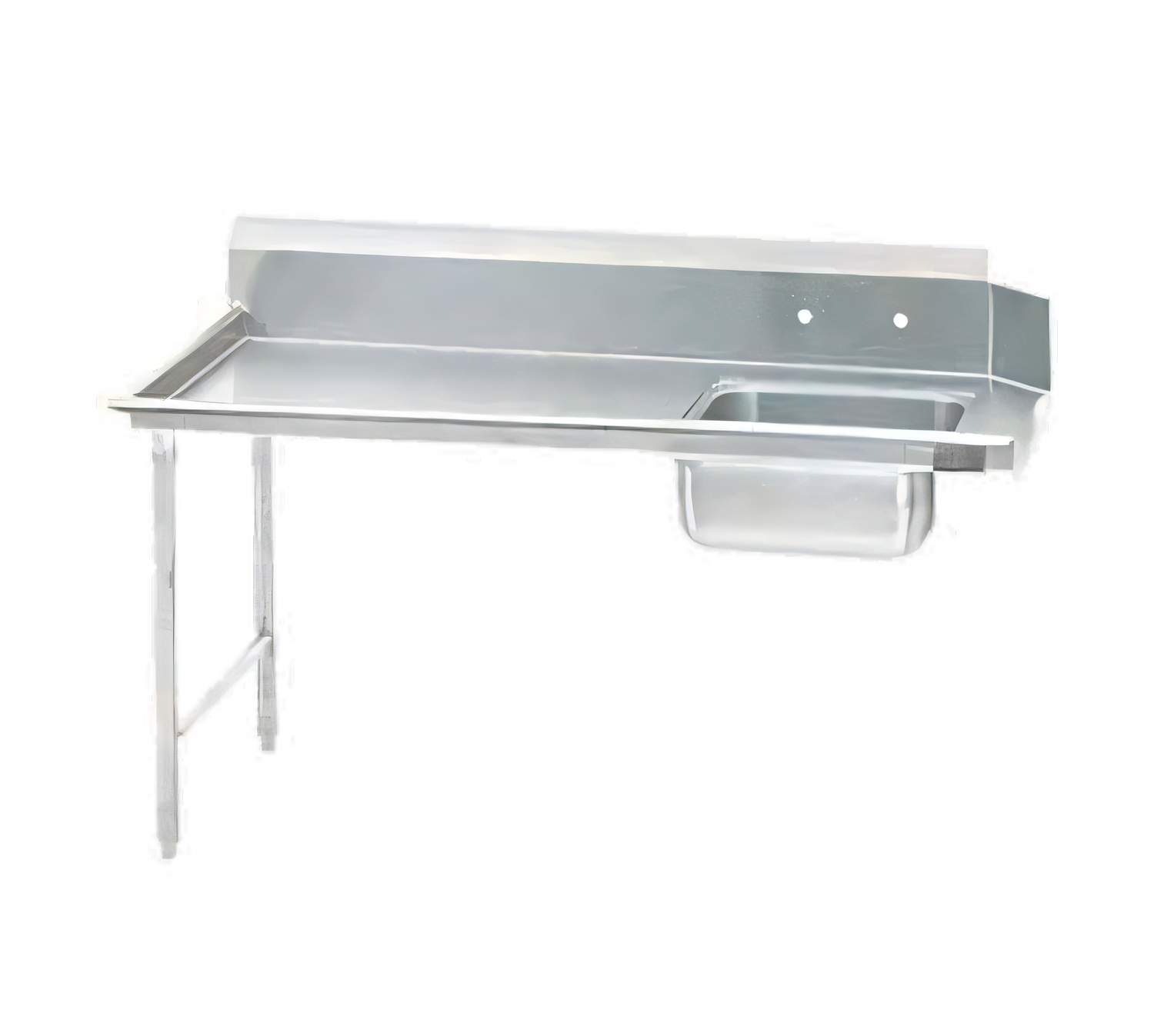

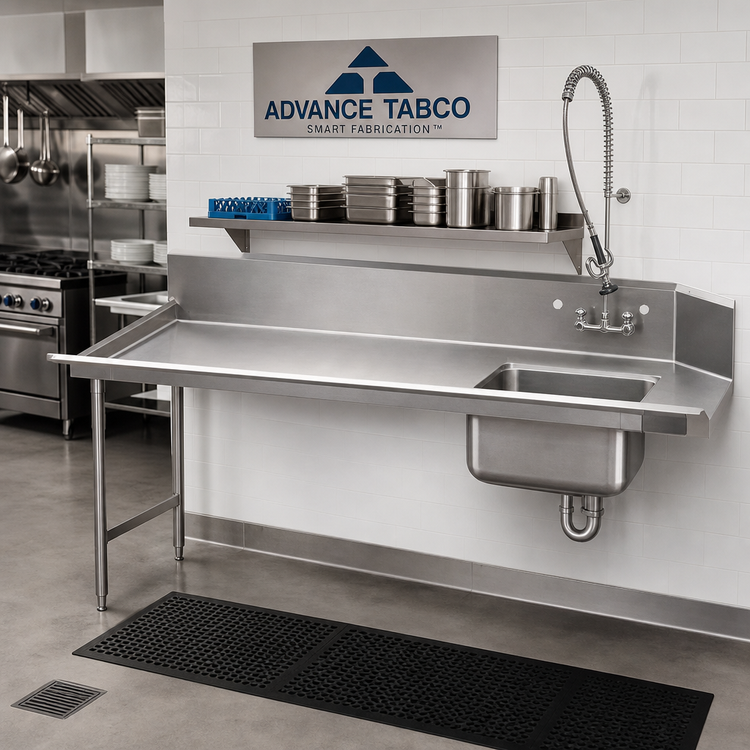

Advance Tabco DTS-S70-144L 143" Straight Soil Dishtable

Left-hand feed • 16-gauge 304 stainless steel top • 20" × 20" pre-rinse sink

Outfit your dishroom with a heavy-duty, NSF-listed soil table that delivers seamless left-to-right workflow and the rugged durability Advance Tabco is known for. Designed to butt directly up to the left side of your dish machine, this 12 ft. (nominal 143") model features an extra-large backsplash, welded cross-bracing and a pre-rinse sink bowl that speeds scraping and sorting.

Why You’ll Love It

  • 16 ga. 304 series stainless steel top with sanitary Smart Fabrication™ tile edge for quick, flush installation.
  • 20" × 20" × 5" deep pre-rinse sink located 20" from the dish machine opening for efficient soil removal.
  • 10-1/2" tall backsplash with 2" return keeps walls dry and directs water back to the sink.
  • 1-5/8" Ø 16 ga. stainless steel legs with welded cross rails and adjustable stainless bullet feet (1" range) for superior stability.
  • All TIG-welded construction; welds are blended and polished to a smooth satin finish.
  • Faucet holes pre-punched on 8" centers; 1-1/2" IPS basket waste drain included.
  • NSF certified & ready for high-volume commercial kitchens.

Specifications

Model DTS-S70-144L
Orientation Left of dish-machine operator (soil → machine flow)
Overall Length 143" (nominal 12 ft.)
Overall Depth 30"
Work Height 34" to top of work surface  |  37" to top of rolled rim
Backsplash 10-1/2" H with 2" return & tile edge
Sink Bowl 20" × 20" × 5" deep (integral)
Top Material 16 ga. 304 stainless steel
Legs / Bracing 16 ga. 304 stainless, welded cross-bracing, stainless bullet feet
Drain 1-1/2" IPS basket type (included)
Faucet Holes 8" centers (faucet not included)
Approx. Shipping Weight 300 lb
Certifications NSF
Important: Dish-machine clearances vary by manufacturer. Consult Advance Tabco’s Dish Machine Compatibility Chart or speak with our specialists before ordering to confirm fit and determine whether any Smart Fabrication™ modifications (e.g., DTA-76, DTA-78) are required for your specific machine.

Included with Your Purchase

  • (1) Straight soil dishtable, fully welded
  • (1) 20" × 20" stainless sink bowl with 1-1/2" IPS basket drain
  • Pre-punched 8" on-center faucet holes
  • Stainless legs, crossrails & adjustable bullet feet

Faucet, pre-rinse spray unit, scrap baskets and other accessories sold separately.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Width

143.0in

Depth

30.0in

Shipping Weight

260.0lbs

Direction

left to right

Leg Type

stainless steel legs

Splash Height

10"H splash

Stainless Series

300 series

Shape

straight

Stainless Gauge

16 gauge

Width (side - side) OA

133" - 144"

Specifications

Straight-Soil Dishtable, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with crossrails, 143"W, 16/304 stainless steel
