Advance Tabco  |  SKU: DTS-S70-120L  |  UPC: 747545122537

Advance Tabco DTS-S70-120L Compartment Sinks

$2,293.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

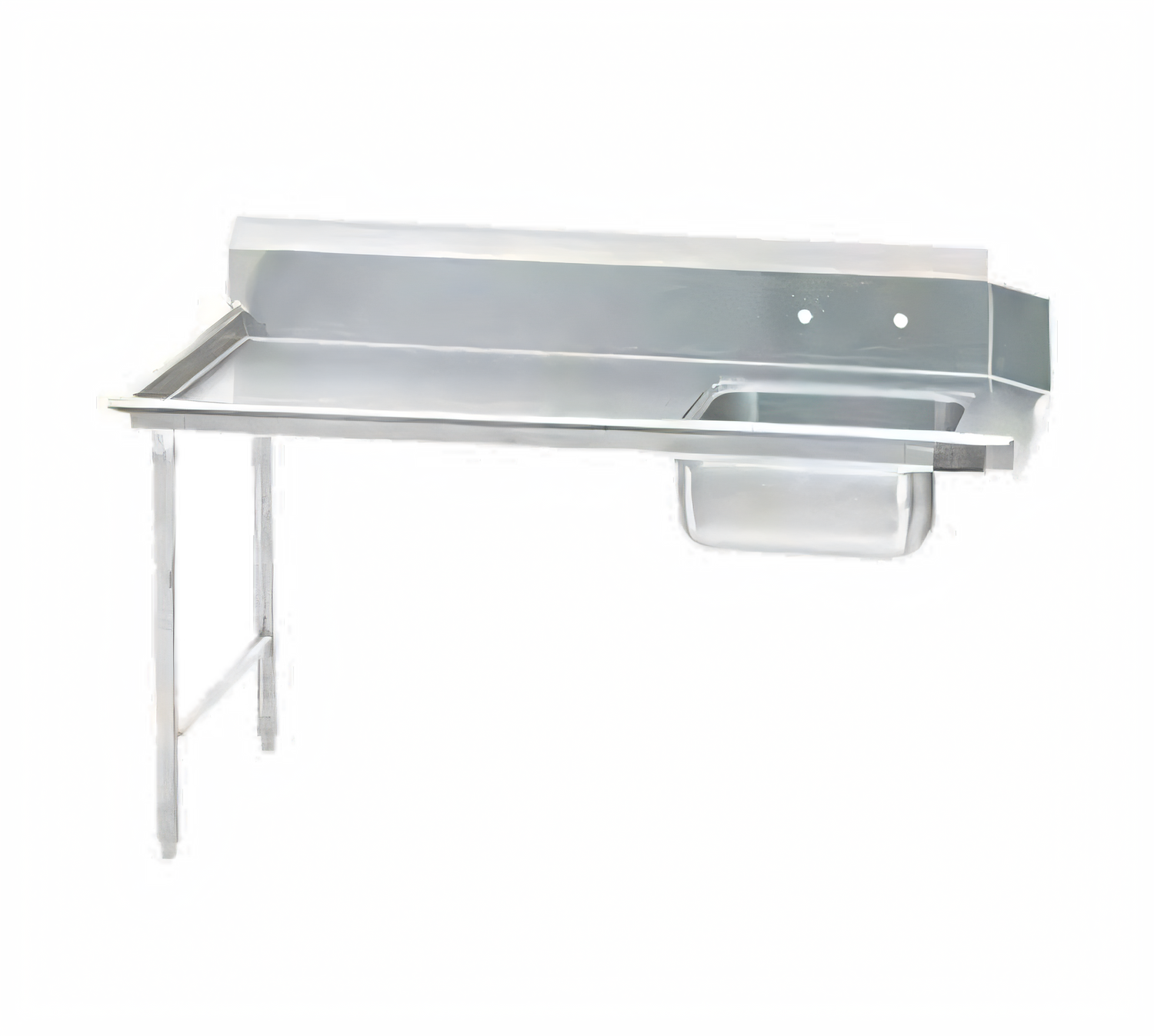

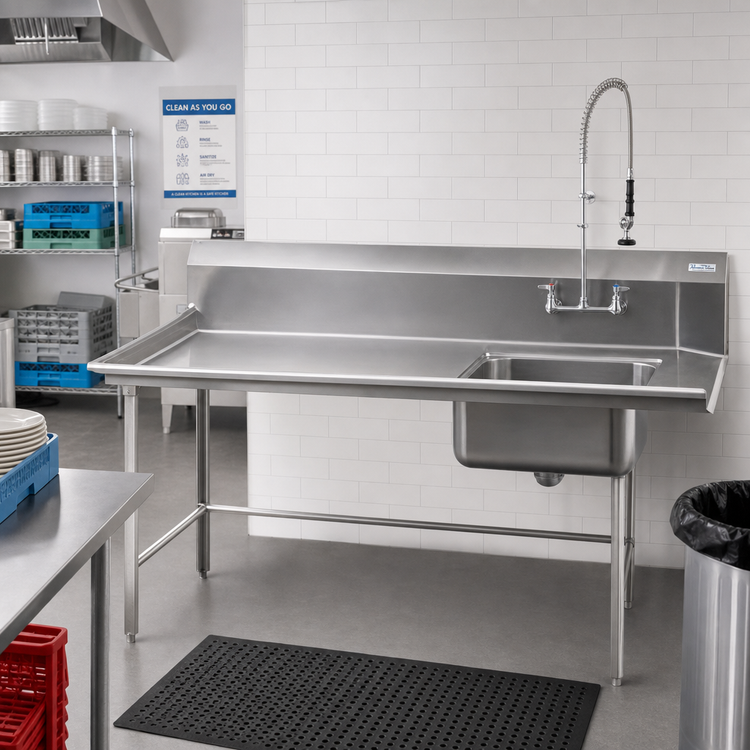

Advance Tabco Straight Soil Dishtable – 119" Left Entry

Standard Series | 16 ga 304 Stainless Steel | Model DTS-S70-120L

Built for high-volume warewashing, this heavy-duty soil table installs on the operator’s left side of most door-type and conveyor dish machines, giving staff a spacious, sanitary staging area for incoming racks, sheet pans and bus boxes.

Key Features
  • Generous 119" straight configuration easily handles peak-hour traffic.
  • 16 ga 304 stainless steel top resists corrosion, chemicals and dents.
  • Extra-large 10 ½" backsplash with 2" return & tile edge for a leak-free, code-compliant install.
  • Integrated 20" × 20" × 5" pre-rinse sink speeds food soil removal; 1 ½" IPS basket drain included.
  • Faucet holes pre-punched on 8" centers—ready for your favorite pre-rinse faucet (not included).
  • 1 ⅝" dia. stainless steel legs with welded crossrails & adjustable stainless bullet feet for rock-solid stability.
  • All TIG-welded construction; blended, satin-finished welds maintain a clean, professional appearance.
  • NSF listed for food-service sanitation and safety.
At-a-Glance Specifications

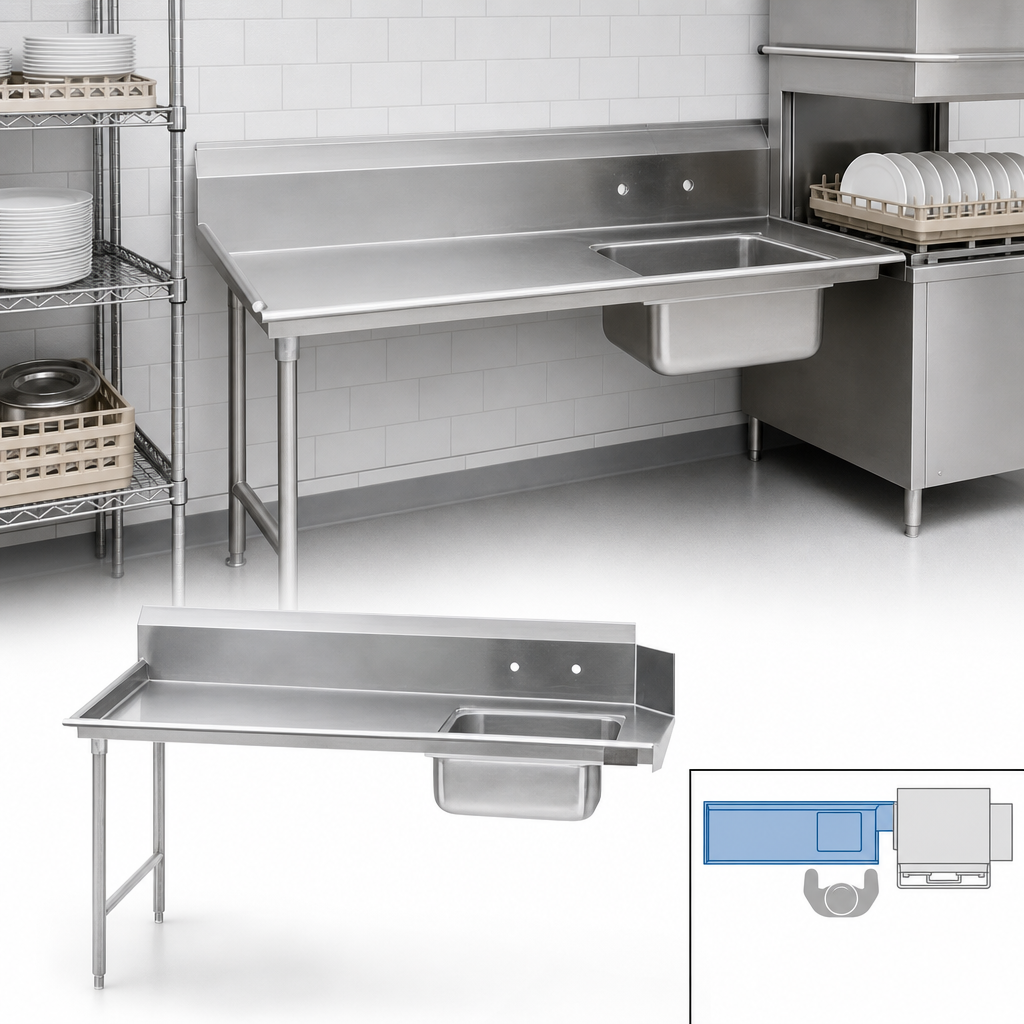

Orientation Soil – attaches to left of dish machine operator
Overall Length 119" (nominal 10 ft)
Overall Depth 30"
Working Height 34"
Height to Top of Backsplash 44 ½"
Backsplash 10 ½" H with 2" return, tile edge design
Sink Bowl 20" W × 20" L × 5" D, 1 ½" IPS basket drain
Top Material 16 ga 304 stainless steel
Legs & Bracing 16 ga 304 SS legs, welded crossrails, 1" adjustable SS bullet feet
Approx. Weight 290 lb
Faucet Holes (2) Ø1 ⅛" holes on 8" OC
Certifications NSF
Installation Notes
  • Compatible with most major dish machine brands—refer to Advance Tabco’s Dish Machine Compatibility Chart for SMART FABRICATION™ requirements.
  • Mounting hardware for attaching to the dish machine to be supplied by installer.
  • Pre-rinse faucet, scrap basket and other accessories sold separately.
Need a different size or orientation? Straight soil tables are available from 35"–143" in left or right configurations, plus heavy-duty Spec-Line and value Super Saver builds. Reach out for a custom quote.

Advance Tabco continually improves products; specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Width

119.0in

Depth

30.0in

Shipping Weight

215.0lbs

Direction

left to right

Width (side - side) OA

109" - 120"

Splash Height

10"H splash

Stainless Series

300 series

Shape

straight

Leg Type

stainless steel legs

Stainless Gauge

16 gauge

Specifications

Straight-Soil Dishtable, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with crossrails, 119"W, 16/304 stainless steel
