Advance Tabco DTS-S70-108R Compartment Sinks
Advance Tabco DTS-S70-108R Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco DTS-S70-108R Compartment Sinks
Description

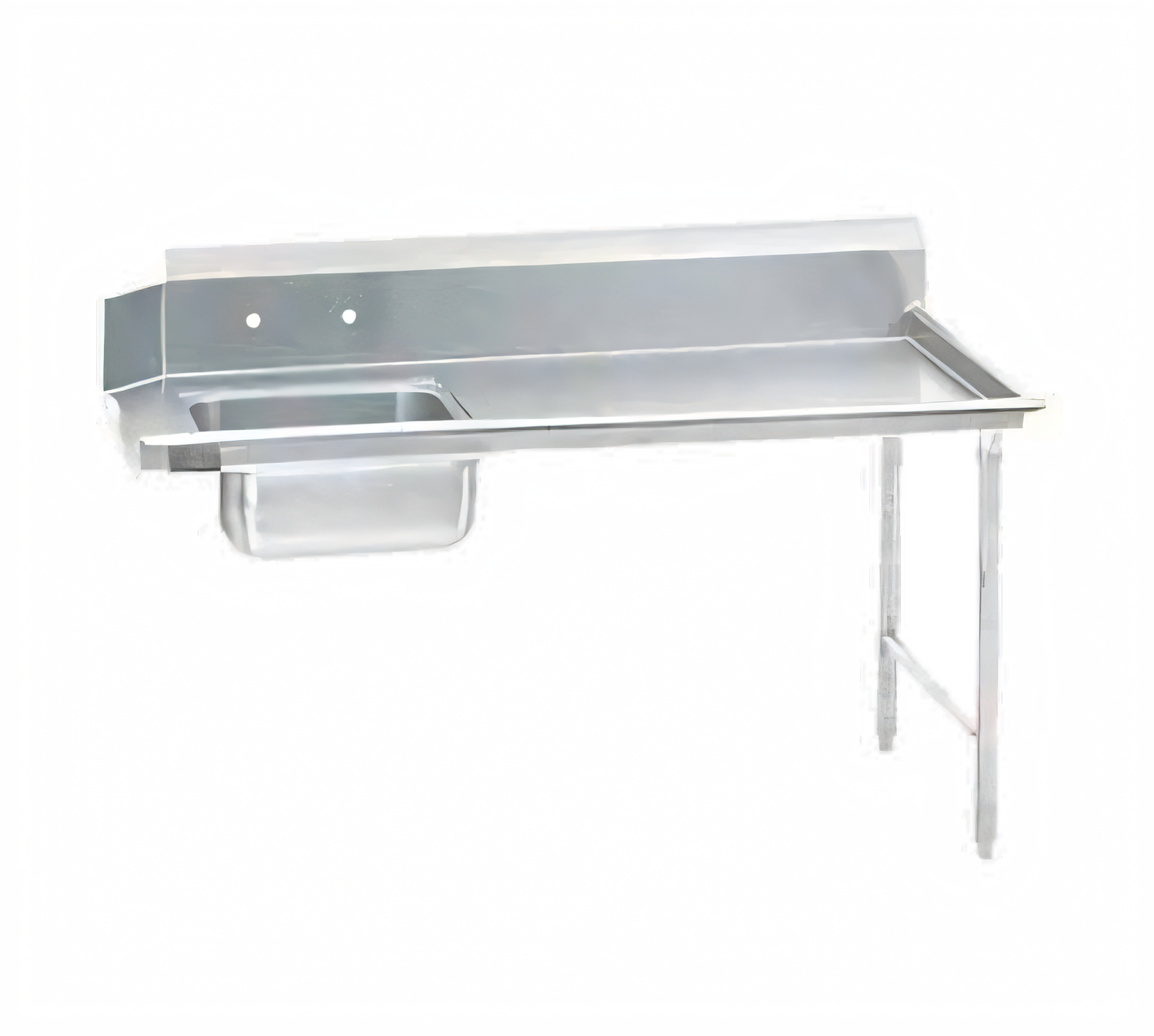

Advance Tabco Straight Soil Dishtable – Right Side, 9 ft.

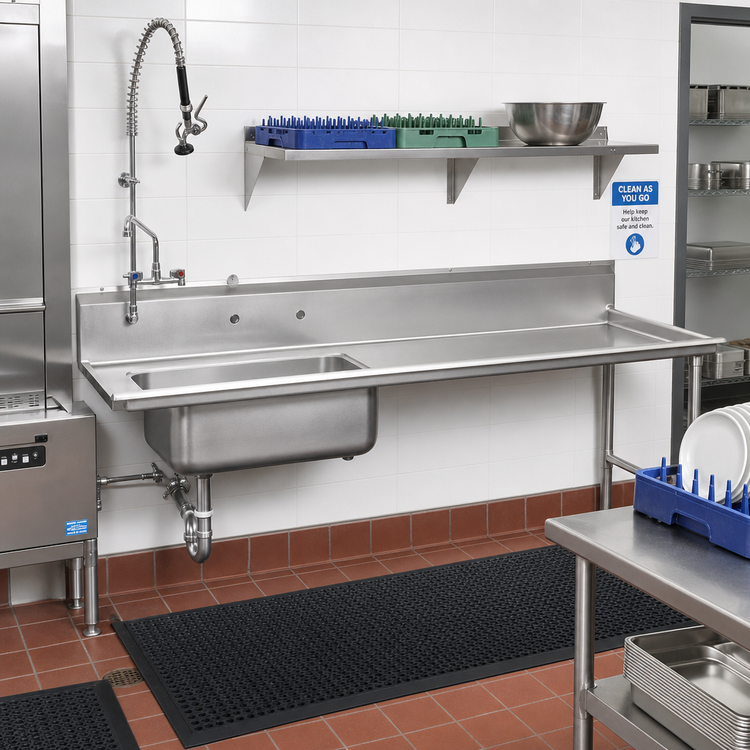

107" W x 30" D | 16 ga 304 Stainless Steel | With Pre-Rinse SinkStreamline your warewashing line with this heavy-duty Advance Tabco straight soil dishtable. Designed to mount directly to the operator’s right side of most conveyor or under-counter dish machines, it provides a rugged pre-scrap and loading station that keeps dirty wares moving efficiently toward the washer.
Built for Busy Kitchens
- 16 ga 304 series stainless steel top offers superior corrosion resistance and effortless clean-up.
- 20" × 20" pre-rinse sink bowl, 5" deep, lets staff quickly remove food soil before racking.
- Extra-large 10-1/2" backsplash with 2" return and tile edge protects walls and simplifies installation.
- Stainless steel 1 5/8"-dia. legs with welded crossrails and adjustable bullet feet deliver rock-solid stability.
- All TIG-welded construction; welds are blended to a smooth, sanitary satin finish.
- Factory-punched 8" on-center faucet holes (faucet sold separately).
- 1-1/2" IPS basket-type waste drain included—no extra kit required.
Technical Specifications
| Model / Series | Standard Soil Dishtable (DTS-S70-108R equivalent) |
|---|---|

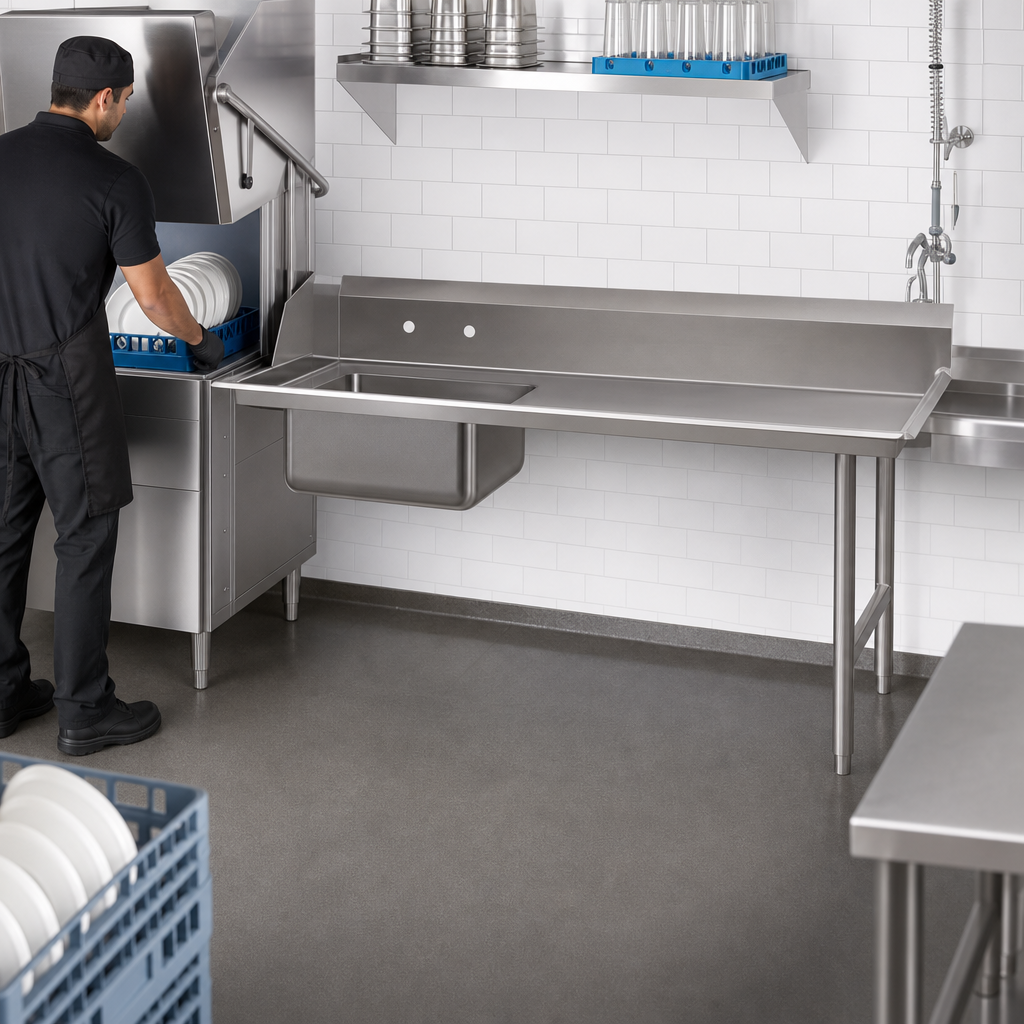

| Orientation | Attaches to right of dish machine operator |
| Overall dimensions | 107" W × 30" D × 34" H (work surface) |
| Backsplash | 10-1/2" H with 2" return & tile edge |
| Sink bowl size | 20" × 20" × 5" D |
| Top material | 16 ga 304 stainless steel |
| Legs / bracing | 304 stainless steel legs with welded crossrails & stainless bullet feet (1" adj.) |
| Drain connection | 1-1/2" IPS basket drain (included) |
| Faucet holes | 3 holes on 8" centers (faucet not included) |
| Approx. shipping weight | 235 lb |
Dish Machine Compatibility
This 9-foot right-side soil table is engineered to fit most 44", 54" and 66" conveyor or under-counter dish machines without modification. Always confirm clearance requirements using the Advance Tabco Dish Machine Compatibility Chart before ordering.
Need a different length, sink depth, or custom cut-outs? Ask about Advance Tabco Smart Fabrication™ for made-to-order solutions.
