Advance Tabco DTS-S70-108L Compartment Sinks
Description

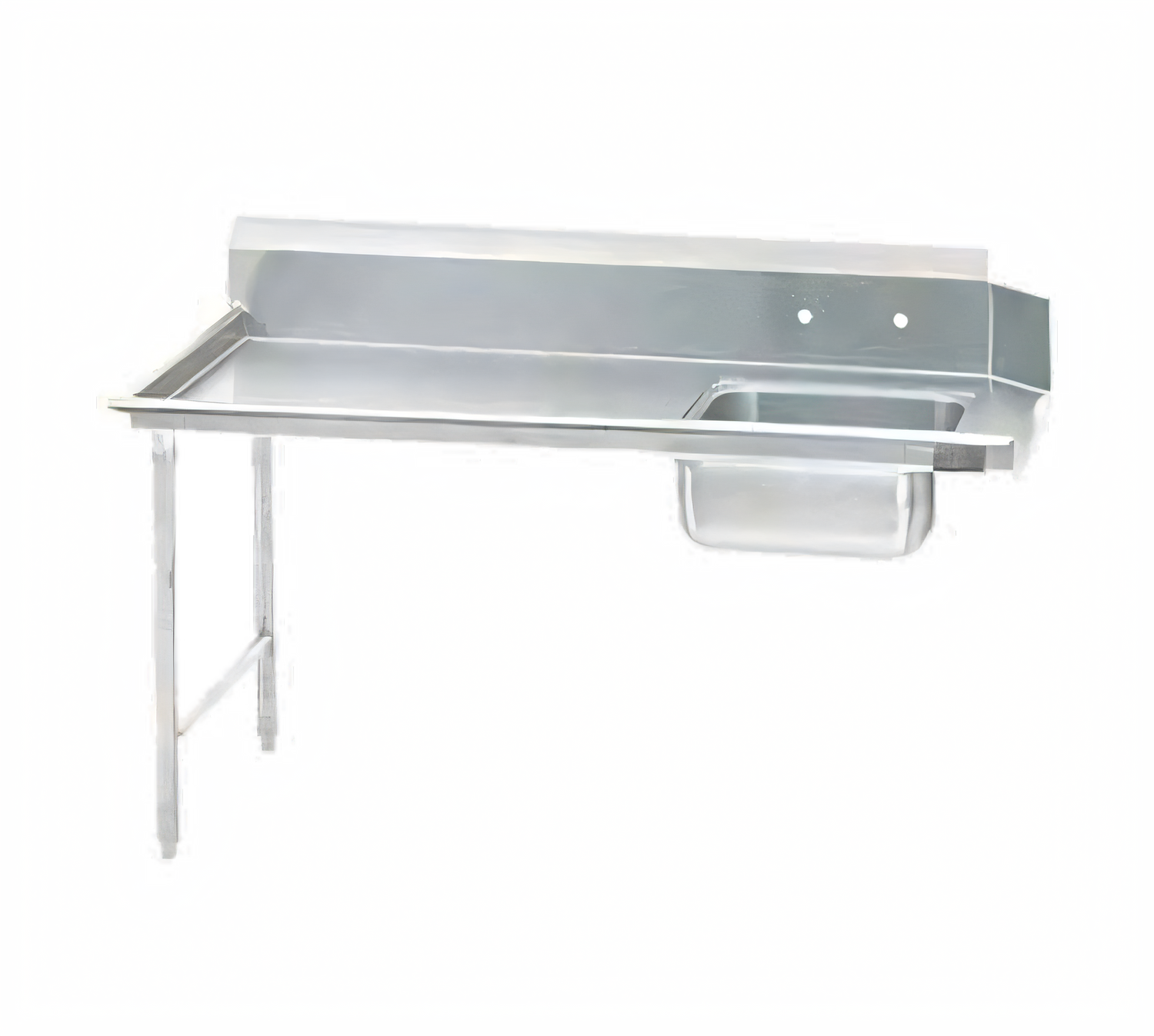

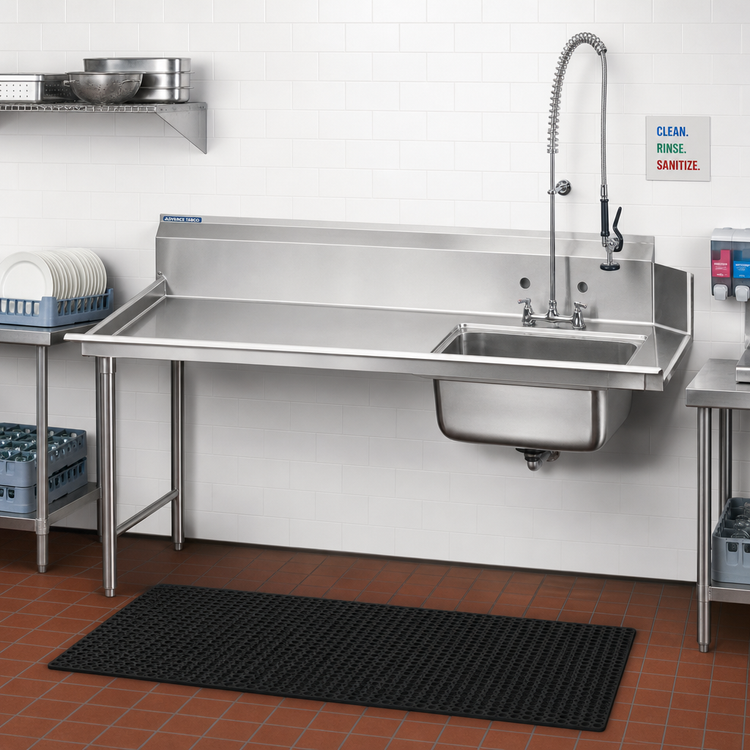

Advance Tabco DTS-S70-108L Straight Soil Dishtable – 107"W (Left Feed)
Heavy-duty 16-Gauge, 304 Stainless Steel – With 20" × 20" × 5" Pre-Rinse Sink BowlBuilt for high-volume warewashing lines, this Advance Tabco Straight Soil Dishtable mounts on the left side of the dish machine operator, giving staff a spacious, organized drop-off and pre-rinse zone. The 107" long unit features an extra-tall 10-1/2" backsplash, integral pre-rinse sink, and rock-solid stainless crossrails that stand up to years of commercial abuse.
Key Benefits
- 16 ga. 304 stainless steel top resists corrosion and pitting.
- 20" × 20" × 5" pre-rinse sink speeds scrap removal before loading racks.
- 10-1/2" backsplash with 2" tile-edge return contains splashes and simplifies wall sealing.
- All TIG-welded construction with satin-blended seams for a hygienic, easy-clean finish.
- 1-5/8" Ø 304 stainless legs with welded cross bracing & adjustable stainless bullet feet for rock-solid stability.
- 1-1/2" IPS basket drain included; faucet holes pre-punched on 8" centers.
- NSF listed and ready for straight-through or corner dish machine layouts (see compatibility chart).
At-a-Glance Specifications
| Model | DTS-S70-108L |
|---|---|
| Overall length | 107" (nominal 9 ft.) |
| Front-to-back | 30" |
| Working height | 34" to top of work surface (adjustable) |
| Backsplash height | 10-1/2" with 2" return |
| Sink bowl size | 20" × 20" × 5" D |
| Material | 16 ga. 304 SS top & legs; stainless gussets & bullet feet |

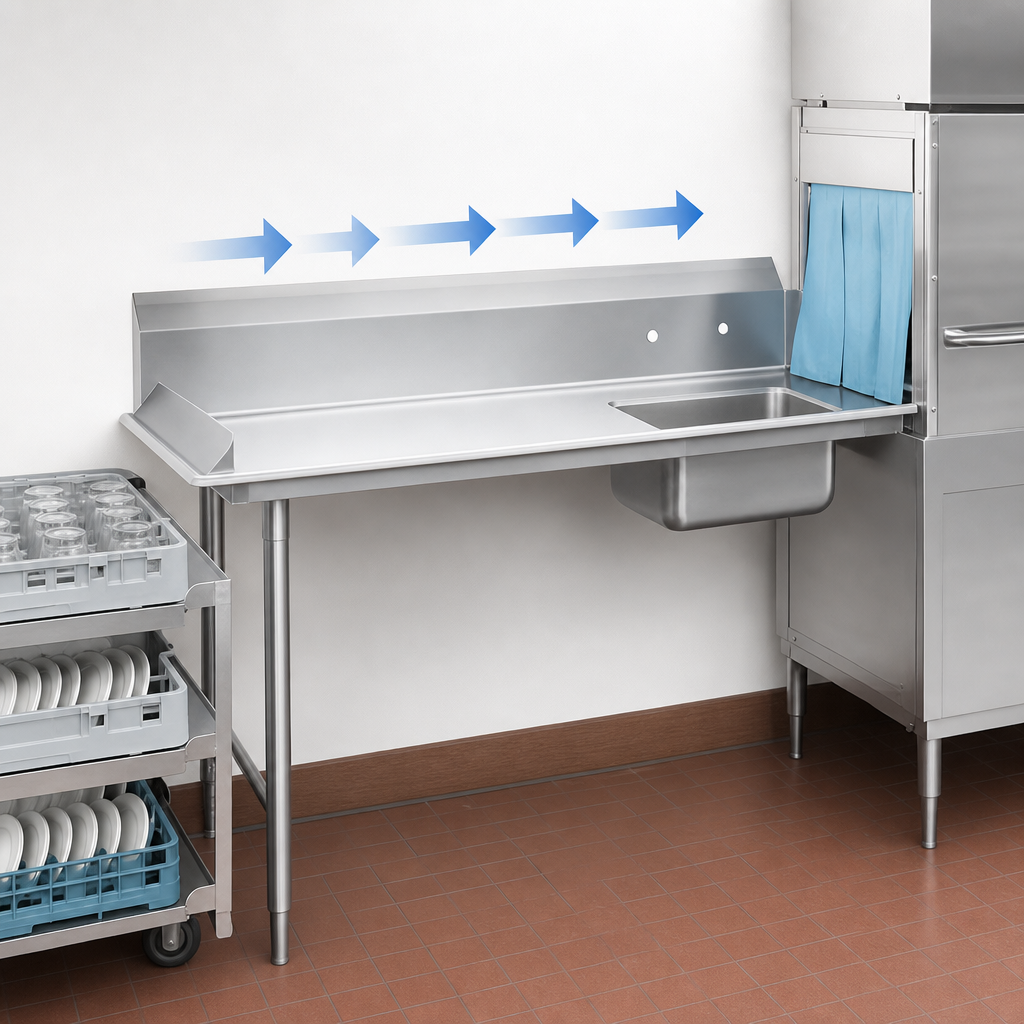

| Orientation | Left of operator (soil/entry side) |
| Drain | 1-1/2" IPS basket-type (included) |
| Faucet holes | (2) holes on 8" centers – faucet sold separately |
| Weight | ≈ 235 lb. |
Need to verify clearance for your specific dish machine? Consult the Advance Tabco Dish Machine Compatibility Chart or contact our team for a quick fit-check.
