Advance Tabco DTS-S30-96R Compartment Sinks
$2,265.00
Unit price
/
Unavailable
Description

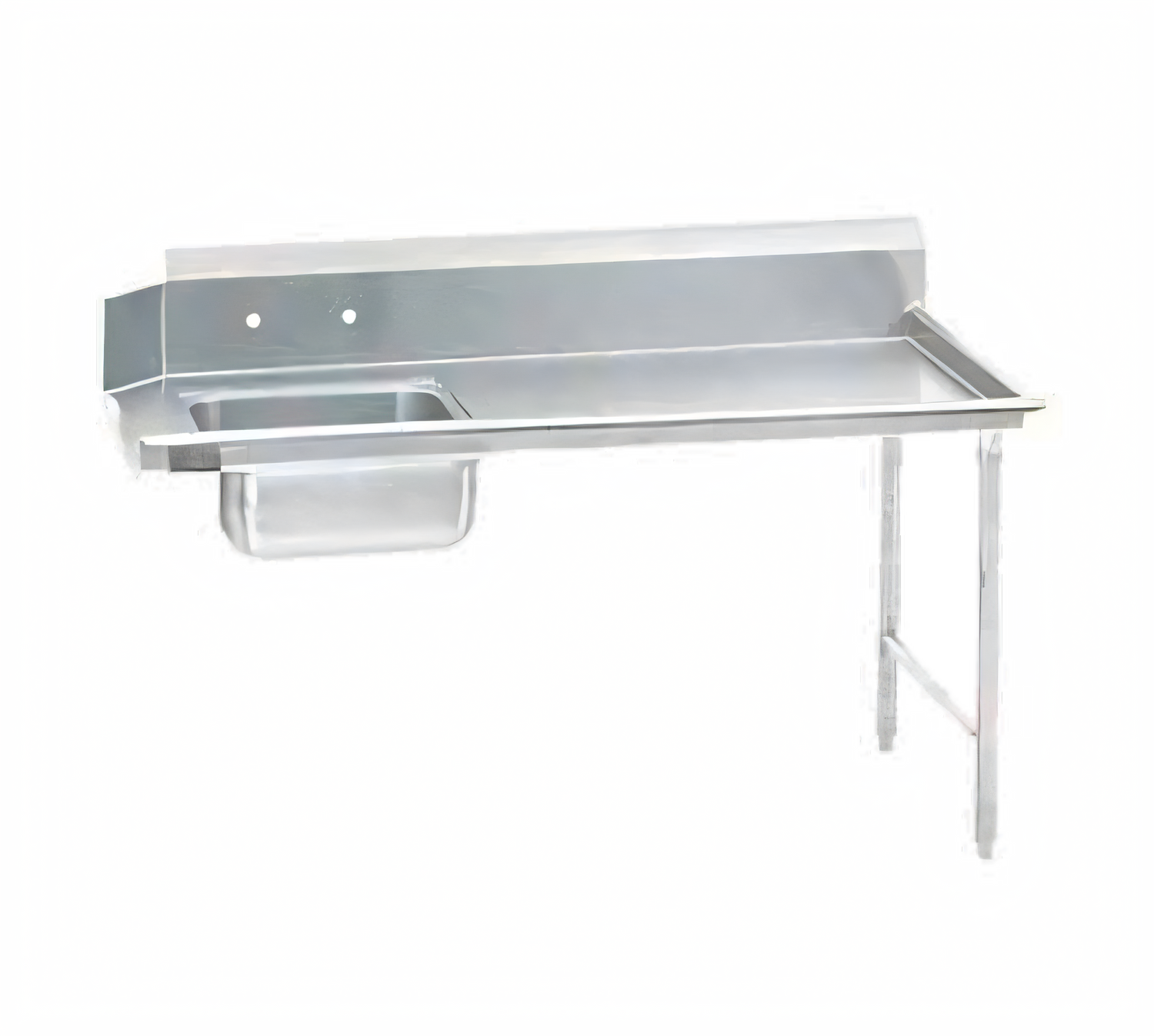

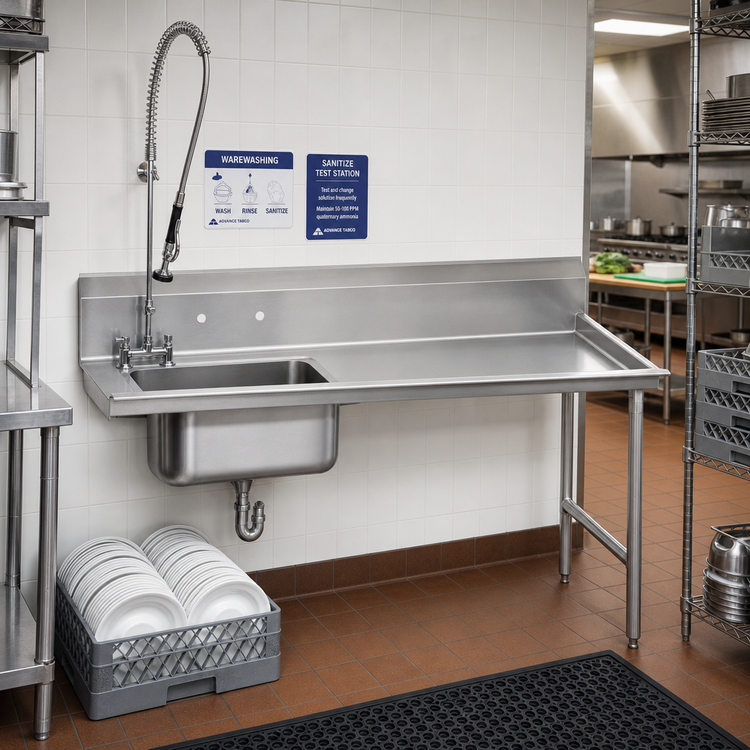

Straight Soil Dishtable – Right Side, 95" (Spec-Line)

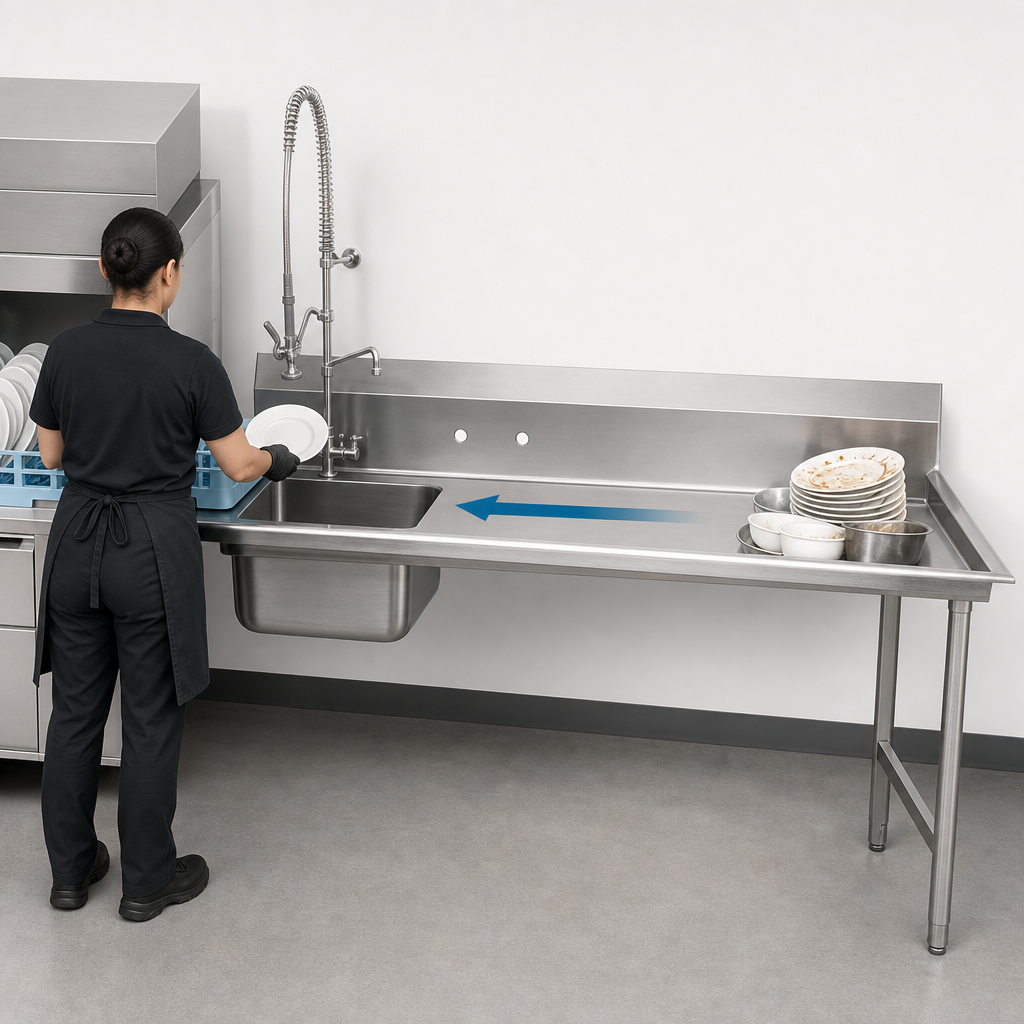

Advance Tabco Model DTS-S30-96REngineered for the toughest commercial kitchens, this 8-ft straight soil dishtable installs to the right of your dish machine operator, creating a dedicated zone for scraping, soaking and pre-rinsing ware before it enters the washer.
Why You’ll Love It
- Spec-Line quality: heavy-duty 14-gauge, 304 stainless steel top stands up to years of abuse.
- 10-1/2" backsplash with 2" return and tile-edge for a snug, sanitary wall install.
- Integrated 20" × 20" × 8" pre-rinse sink—perfect depth for soaking full racks.
- 1-1/2" IPS basket drain plus pre-rinse basket with slide bar included (slide bar engages when K-461 or K-461A disposer adapter is specified).
- Rugged 16-ga 304 stainless steel legs with welded front-to-back crossrails and adjustable stainless bullet feet.
- Faucet holes pre-punched on 8" centers—just add your preferred pre-rinse faucet (sold separately).
- NSF approved, fully TIG-welded construction with blended seams for a sleek satin finish.
Quick Specs
| Overall length | 95" (8 ft nominal) |
|---|---|
| Front-to-back depth | 30" |
| Working height | 34" |
| Backsplash height | 10-1/2" |
| Sink bowl | 20" W × 20" L × 8" D |
| Top material | 14-ga 304 stainless steel |
| Legs & bracing | 16-ga 304 stainless steel, welded crossrails |
| Drain connection | 1-1/2" IPS basket type (included) |
| Faucet holes | (2) on 8" centers |
| Approx. weight | 135 lb |
Perfect For
- Door-type or conveyor dish machines needing a right-hand soil station
- High-volume restaurants, hotels, schools & healthcare kitchens
- Operators who demand long-term, low-maintenance stainless performance
Compatibility Check: Dish machines vary. Review Advance Tabco’s Dish Machine Compatibility Chart or contact our team before ordering to ensure proper clearance and fit.
Faucet, disposer adapters and dish machine are shown for reference only and are sold separately.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Height
44.0in
Width
95.0in
Depth
30.0in
Shipping Weight
130.0lbs
Direction
right to left
Stainless Series
300 series
Shape
straight
Width (side - side) OA
85" - 96"
Splash Height
10"H splash
Stainless Gauge
14 gauge
Leg Type
stainless steel legs
Specifications
Straight-Soil Dishtable, attaches to right of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs with crossrails front to back, 95"W, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
