Advance Tabco  |  SKU: DTS-S30-96L

Advance Tabco DTS-S30-96L Compartment Sinks

$2,597.00
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

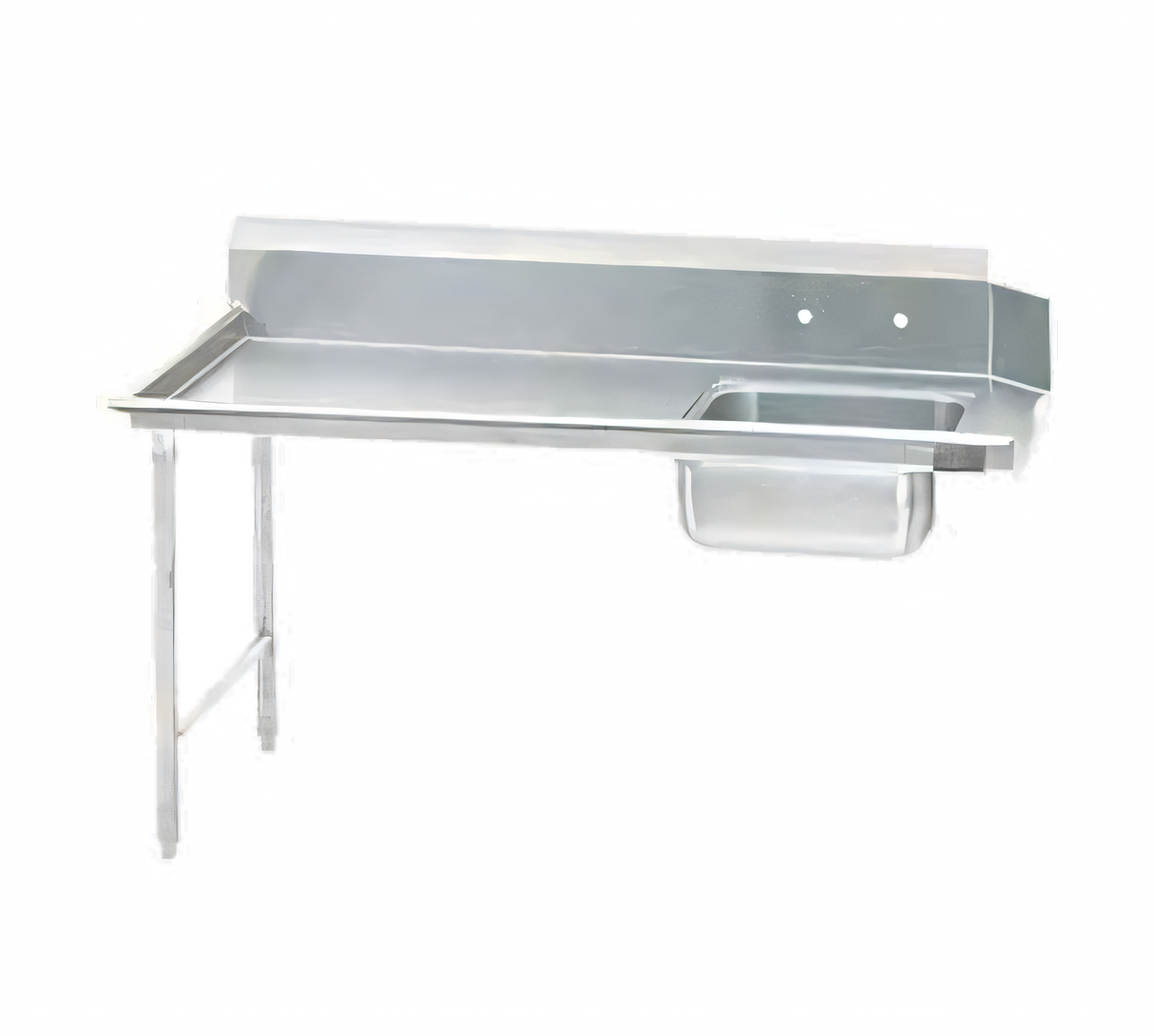

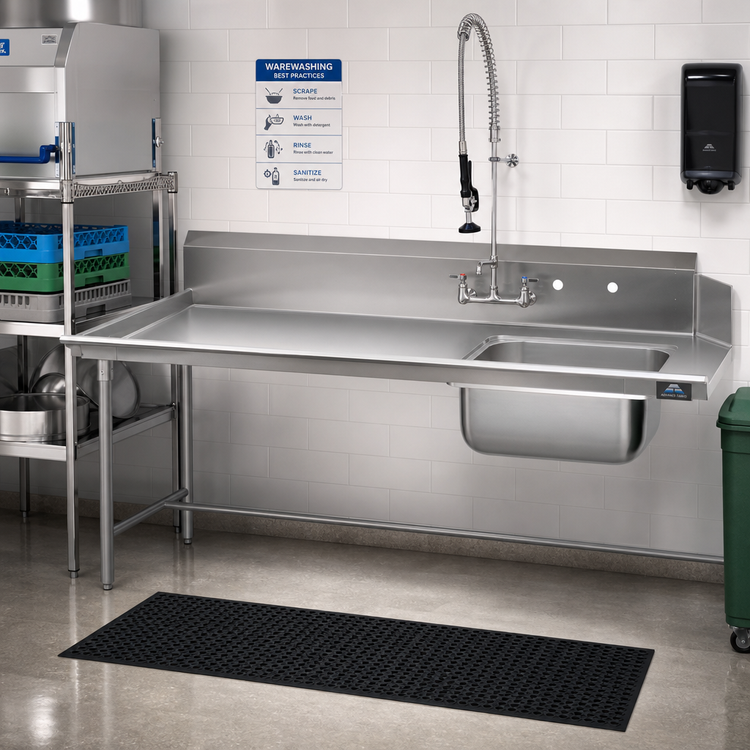

Advance Tabco Spec-Line Straight Soil Dishtable – 95" Left Feed

Model: Spec-Line DTS-S30-96L (8 ft Nominal)

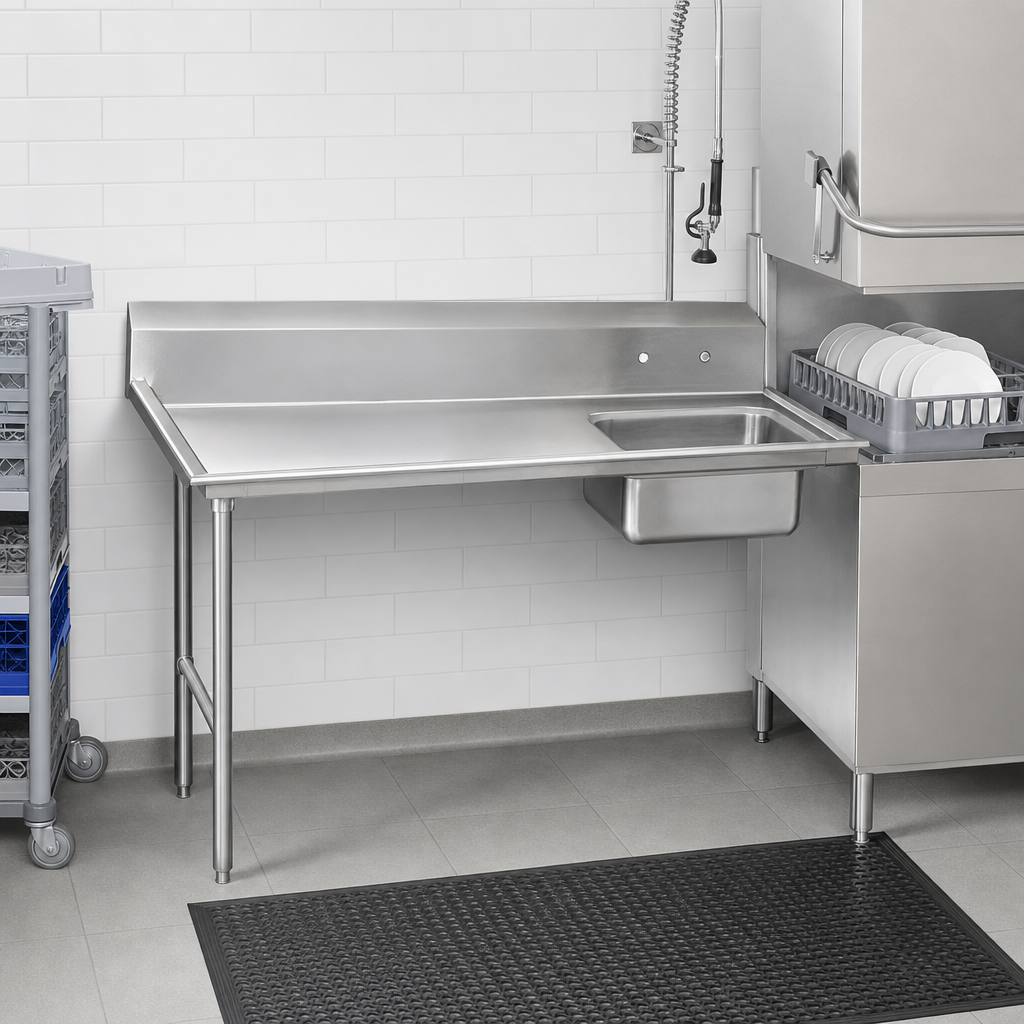

Designed to mount on the left side of the dish-machine operator, this heavy-duty soil dishtable speeds up scraping, rinsing, and rack loading while protecting surrounding walls with an oversized 10-½" backsplash. 100 % 304 stainless construction, an integral pre-rinse sink, and welded cross-bracing make it the go-to choice for high-volume kitchens that refuse to compromise on durability or hygiene.

Key Advantages

  • 14 ga 304 stainless steel top – extra-thick for maximum strength
  • 20" × 20" × 8" pre-rinse sink welded in place for leak-free sanitation
  • Included stainless steel pre-rinse basket; slide bar ships only when disposer adapter K-461 or K-461A is specified
  • Oversized 10-½" backsplash with 2" tile edge simplifies wall sealing and keeps moisture off surrounding surfaces
  • 1-⅝" Ø 16 ga 304 stainless steel legs with welded front-to-back cross rails for rock-solid stability
  • Stainless steel adjustable bullet feet for quick, level installation
  • All TIG-welded; welds are ground & polished to a sanitary satin finish
  • 1-½" IPS basket drain furnished standard

Typical Applications

  • Full-service restaurants and cafeterias
  • Hotels & resorts
  • Hospitals, schools & institutions
  • Any high-volume warewashing line requiring a left-hand soil table

Dimensions & Specifications

Overall length 95" (nominal 8 ft)
Overall depth 30"
Work height 34" to tabletop (37" to backsplash top)
Backsplash 10-½" H with 2" return & tile edge
Sink bowl size 20" × 20" × 8" deep, 304 SS
Top material / gauge 14 ga 304 stainless steel
Leg material / gauge 1-⅝" Ø, 16 ga 304 stainless steel
Cross bracing Welded, front-to-back
Drain 1-½" IPS basket type (included)
Shipping weight Approx. 135 lb

What’s Included

  • Straight soil dishtable (left-feed) with welded sink bowl
  • Stainless steel prerinse basket
  • 1-½" IPS basket drain assembly

Faucet, disposer adapter, and prerinse spray are sold separately.

Important: Always confirm required clearances for your specific dish machine. Refer to Advance Tabco’s Dish Machine Compatibility Chart or consult your equipment dealer before ordering.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Width

95.0in

Depth

30.0in

Shipping Weight

130.0lbs

Direction

left to right

Stainless Series

300 series

Splash Height

10"H splash

Width (side - side) OA

85" - 96"

Shape

straight

Stainless Gauge

14 gauge

Leg Type

stainless steel legs

Specifications

Straight-Soil Dishtable, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs with crossrails front to back, 95"W, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
