Advance Tabco DTS-S30-84R Compartment Sinks
Description

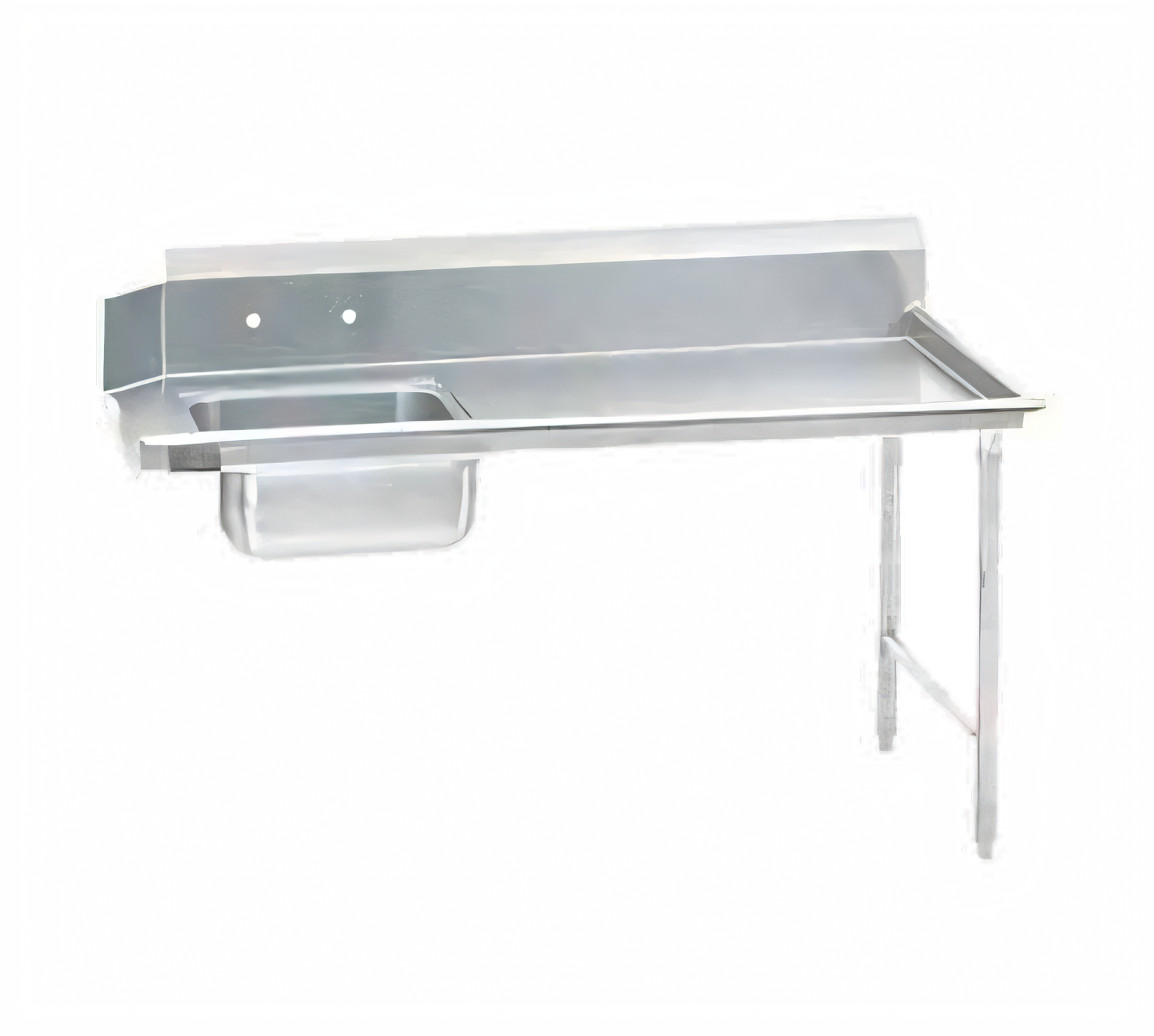

Advance Tabco 83" Spec-Line Straight Soil Dishtable – Right Side
Model DTS-S30-84R | 14 ga 304 Stainless Steel TopPurpose-built for high-volume dishrooms, this heavy-duty straight soil table mounts to the operator’s right-hand side of any compatible dish machine, delivering a seamless pre-scrap, pre-rinse, and rack-loading station.
Key Features
- Ultra-rugged 14 ga 304 stainless steel work surface resists dents, corrosion, and chemicals.
- 20" × 20" × 8" deep pre-rinse sink bowl easily accommodates standard 20 × 20 racks.
- 10-1/2" high backsplash with 2" return and tile-edge design keeps walls dry and speeds installation.
- Factory-punched 8" on-center faucet holes—simply add the pre-rinse faucet of your choice (sold separately).
- Stainless steel prerinse basket included; slide bar ships when K-461 or K-461A disposer adapter is ordered.
- 1-1/2" IPS basket drain furnished loose for field installation.
- 1-5/8" Ø 16 ga 304 stainless legs with welded front-to-back crossrails and adjustable stainless bullet feet for rock-solid stability.
- All TIG-welded construction with blended welds for a uniform satin finish.
- NSF listed for easy code approval.
At-a-Glance Specs
| Overall width | 83" (7 ft nominal) |
|---|---|
| Front-to-back depth | 30" |
| Working height | 34" to table top |
| Backsplash height | 10-1/2" (overall height 44-1/2") |
| Sink bowl size | 20" W × 20" L × 8" D |
| Drain connection | 1-1/2" IPS basket drain (included) |
| Faucet holes | 8" centers (faucet not included) |
| Top material | 14 ga 304 stainless steel |
| Legs & crossrails | 16 ga 304 stainless steel, welded |

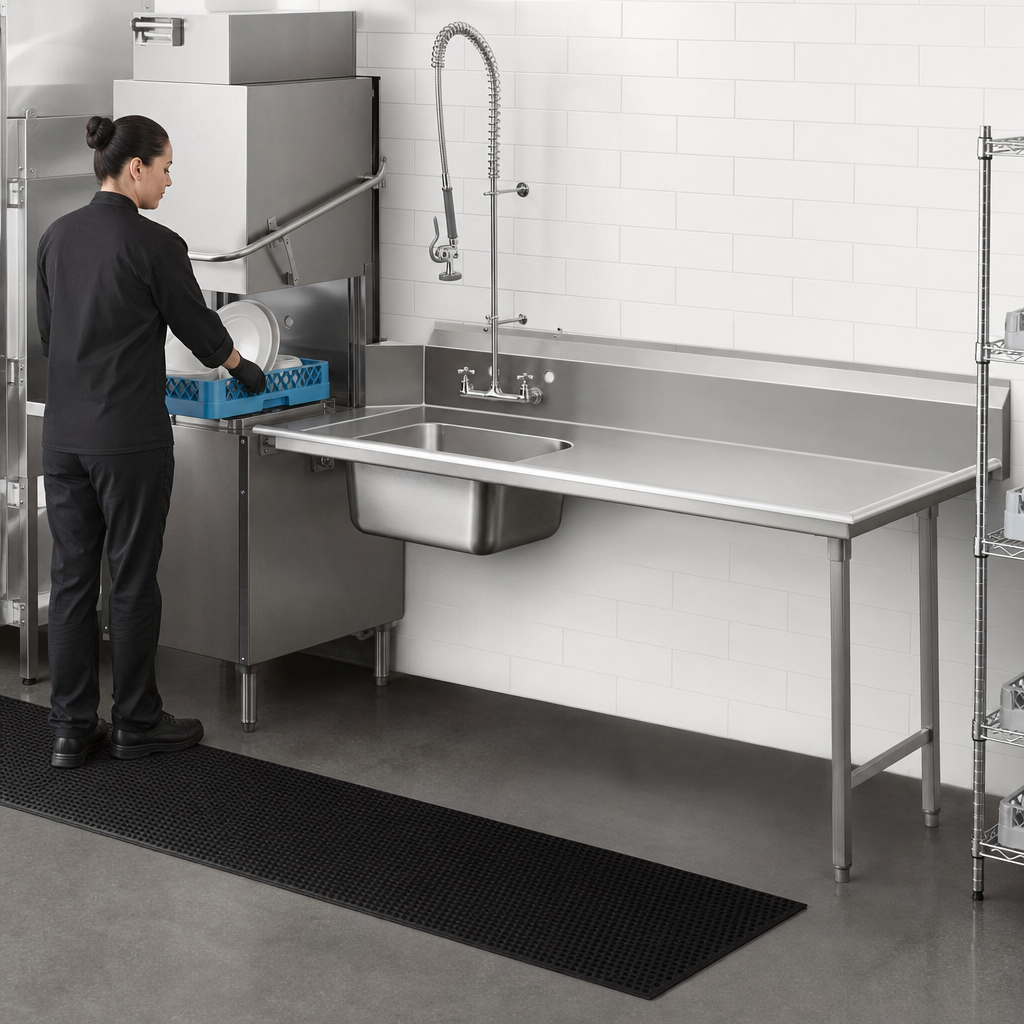

| Orientation | Right-hand (mounts to operator’s right side) |
| Included accessories | Prerinse basket, stainless bullet feet, slide bar* |
*Slide bar ships only when table is ordered with disposer adapter K-461 or K-461A.
Why Upgrade to Spec-Line?
- 14 ga top is 30 % thicker than economy 16 ga tables for superior longevity.
- 8" deep sink bowl—60 % deeper than Standard & Super Saver models—reduces splash-out.
- Stainless gussets and fully welded cross bracing eliminate rust-prone bolt or galvanized joints.
Built in the USA and backed by decades of food-service expertise, this Advance Tabco Spec-Line dishtable keeps your dishroom efficient, sanitary, and ready for the busiest rush.
