Advance Tabco DTS-S30-84L Compartment Sinks
Advance Tabco DTS-S30-84L Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco DTS-S30-84L Compartment Sinks
Description

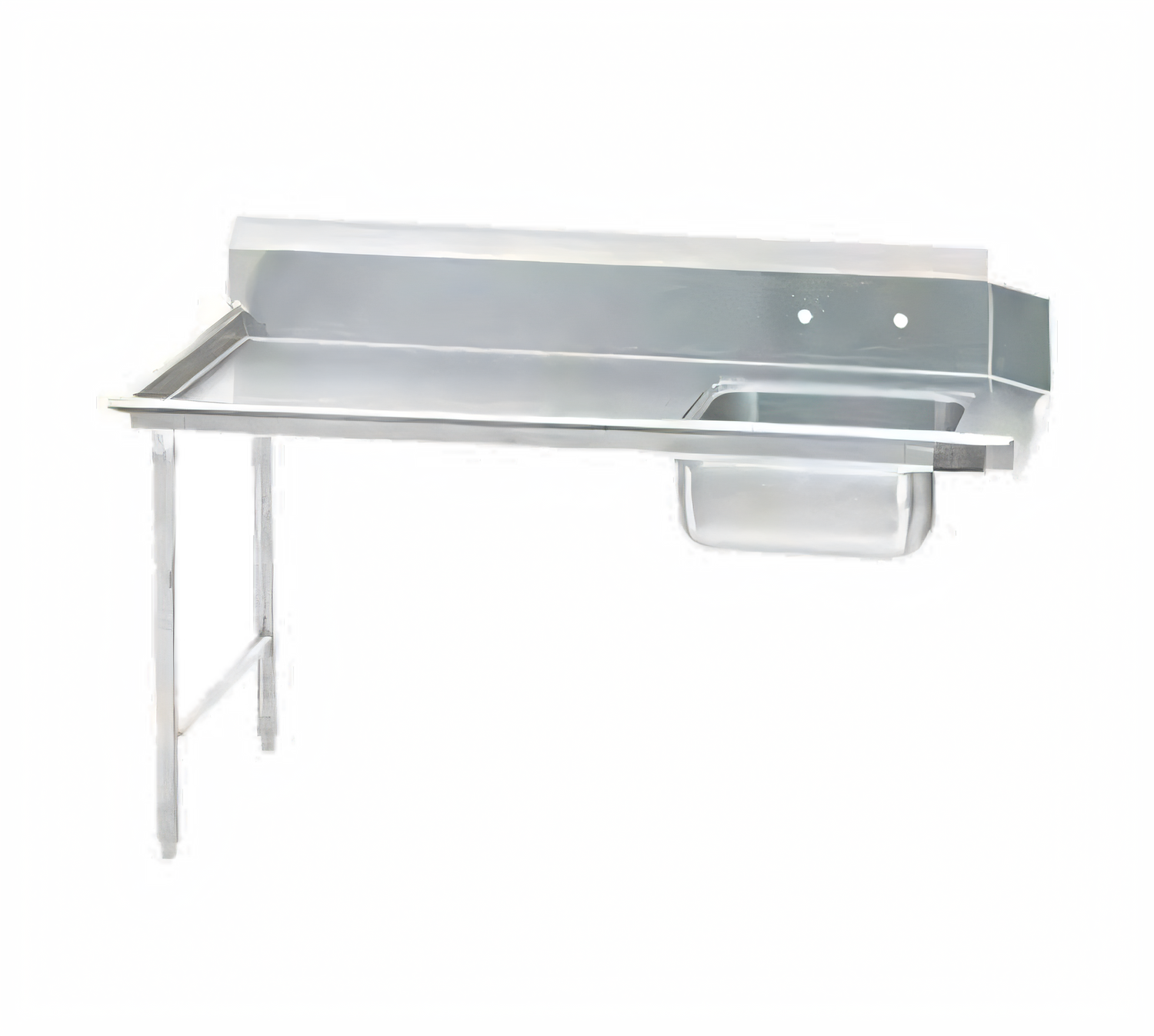

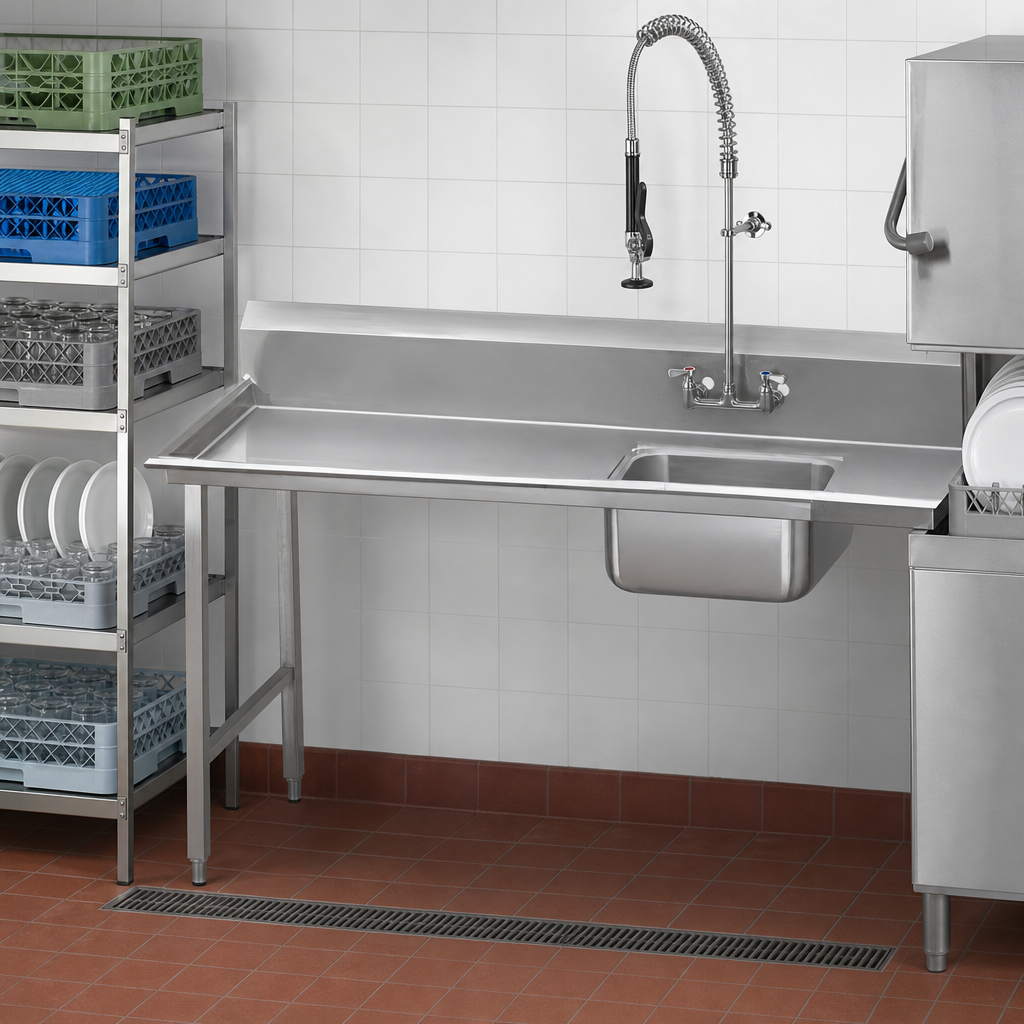

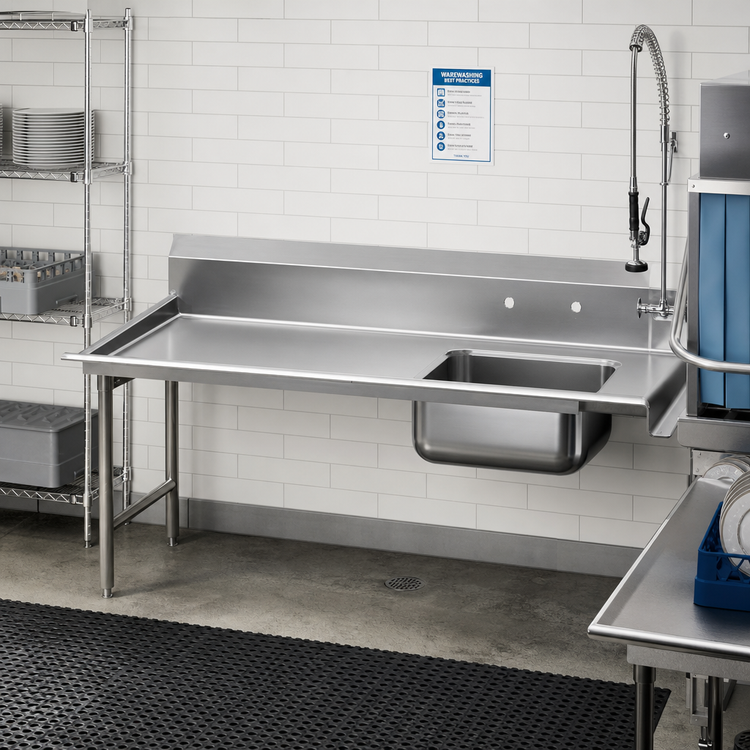

SPEC-LINE Straight Soil Dishtable – 83" (LH)
Advance Tabco DTS-S30-84L • Attaches to the left of the dish-machine operatorEngineered for heavy-duty commercial kitchens, this SPEC-LINE straight soil dishtable streamlines your scrape, rinse and load zone with rugged 14 gauge 304 stainless steel construction, an oversize 10 ½" backsplash and an 8"-deep pre-rinse sink. All TIG-welded and supplied ready to drop in, it delivers NSF-listed hygiene and decades of corrosion-free service.
Key Features
- 83" W x 30" D straight soil section (nominal 7 ft model).
- Attaches on the left hand side of a straight-through or corner dish machine.
- Heavy 14 ga 304 SS top with sanitary tile-edge for simple wall sealing.
- 10 ½" high backsplash with 2" return keeps moisture off surrounding walls.
- 8"-deep pre-rinse sink – 20" × 20" bowl, 1 ½" IPS basket drain included.
- Pre-rinse basket included; slide bar ships when a K-461 / K-461A disposer adapter is specified.
- (1) faucet hole set on 8" centers – compatible with most deck-mount pre-rinse faucets (sold separately).
- 1 ⅝" Ø 16 ga 304 SS legs with welded front-to-back crossrails and stainless bullet feet (1" adjustable).
- All TIG welds ground & polished to a satin finish for easy clean-up and professional appearance.
- NSF listed – meets or exceeds all sanitation standards.
Specifications
| Model | DTS-S30-84L |
|---|---|
| Overall Length | 83" (nominal 84") |
| Depth | 30" |
| Working Height | 34" (44 ½" to top of backsplash) |
| Backsplash | 10 ½" H with 2" tile-edge return |
| Sink Bowl | 20" W × 20" L × 8" D |
| Drain | 1 ½" IPS basket-type (included) |
| Top Material | 14 ga 304 stainless steel |
| Legs / Bracing | 16 ga 304 SS, welded crossrails front-to-back |
| Feet | Stainless steel bullet feet, 1" height-adjustable |
| Approx. Shipping Weight | 125 lb |
What’s Included
- Straight soil table with integral pre-rinse sink (left hand orientation).
- Pre-rinse basket.
- 1 ½" IPS basket drain.
- Factory-punched 8" OC faucet holes.
- Comprehensive installation & operation manual.
Faucet, disposer adapter, dish machine and clean table are sold separately. Always verify dish-machine compatibility using the Advance Tabco Dish Machine Compatibility Chart or consult our Smart Fabrication™ team before ordering.
