Advance Tabco  |  SKU: DTS-S30-60R  |  UPC: 747545122162

Advance Tabco DTS-S30-60R Compartment Sinks

$1,882.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Advance Tabco Commercial Work Tables Compartment Sinks Dish Tables Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

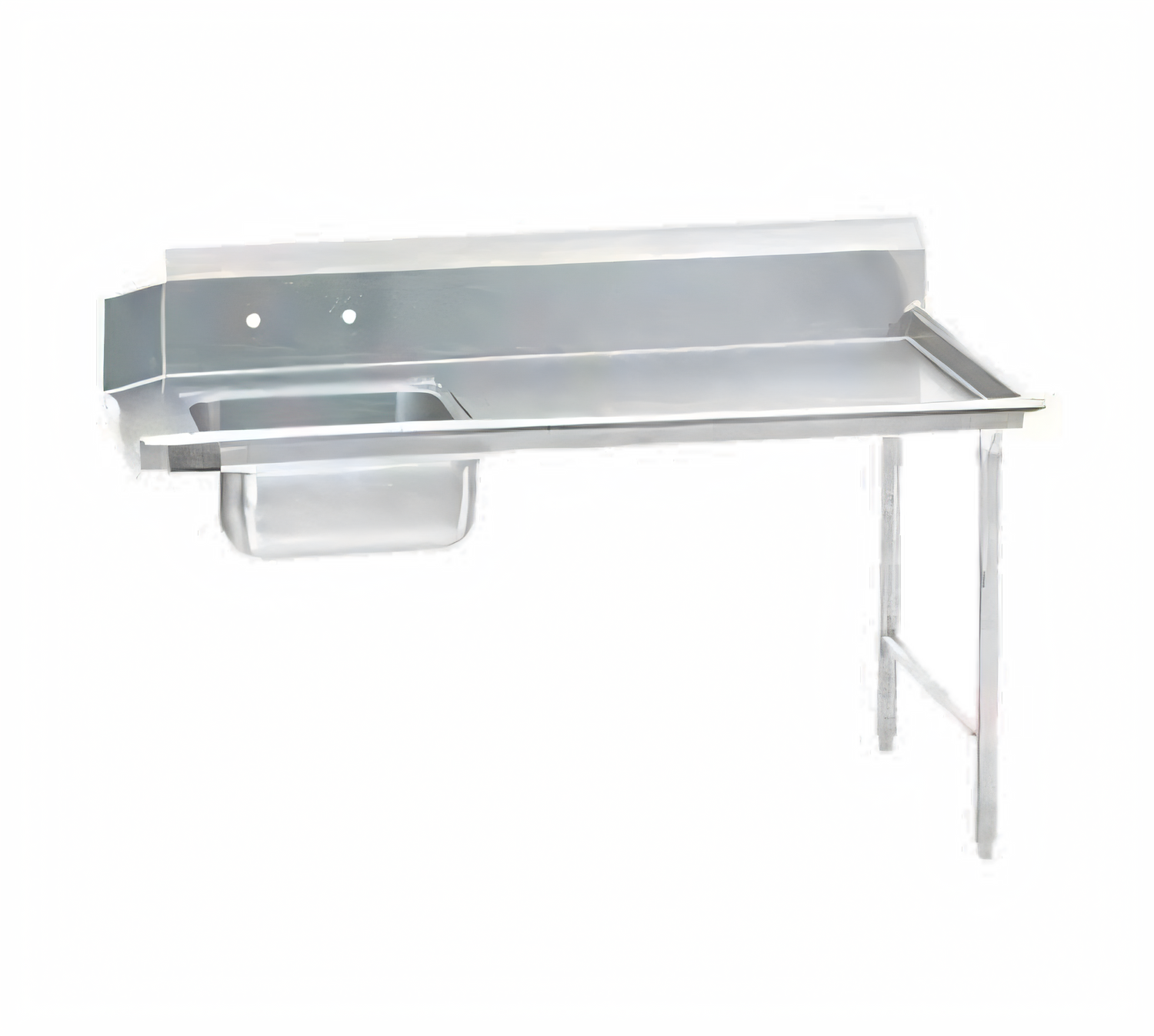

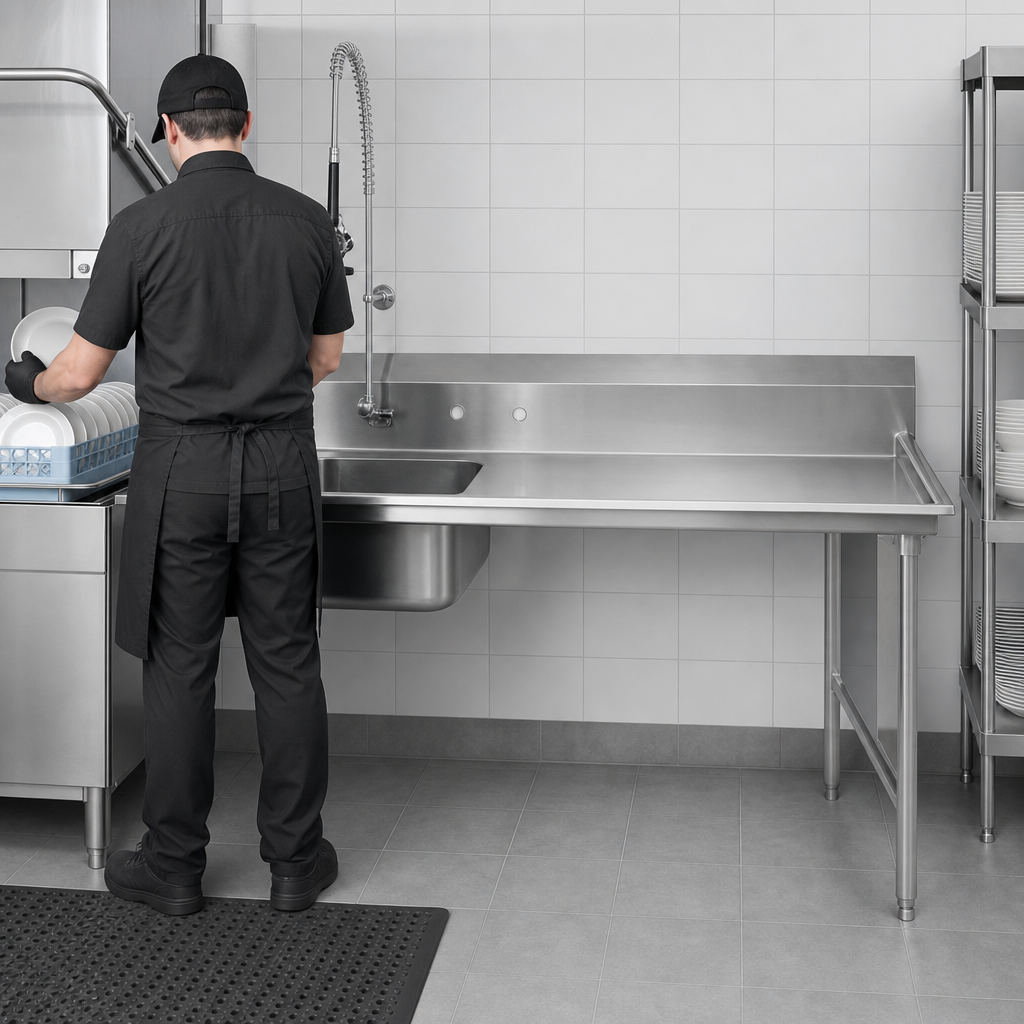

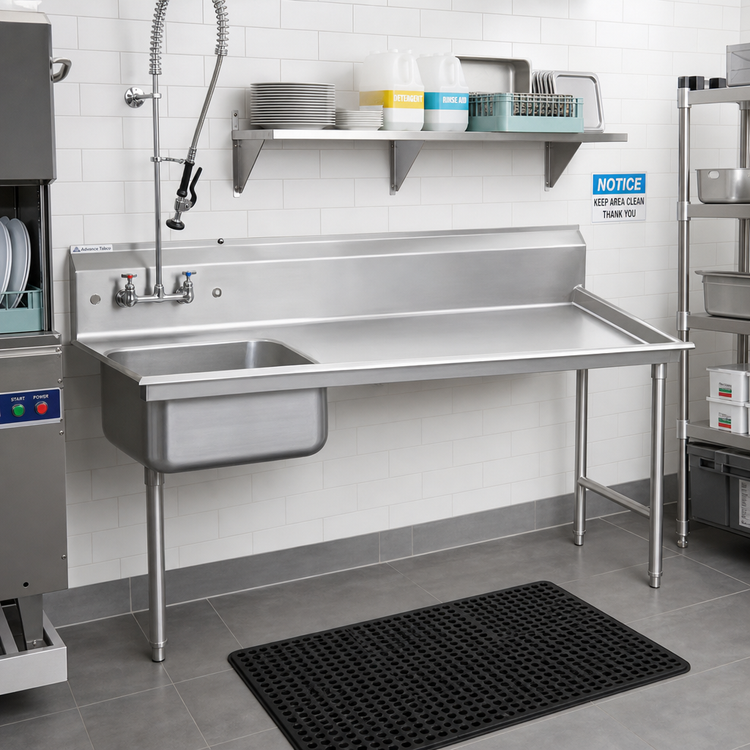

Straight Soil Dishtable with Pre-Rinse Sink – 59" Right Side

Advance Tabco SPEC-LINE • Model DTS-S30-60R

Built from heavy-duty 14-gauge 304 stainless steel, the DTS-S30-60R adds a rugged, easy-to-clean soil section and pre-rinse sink to the right of your dish machine operator. From its extra-large backsplash to fully welded leg cross-rails, every detail is engineered for years of high-volume service.

Key Features

  • 59 in. long straight soil table – ideal for 44" & 66" conveyor dish machines.
  • 14 ga 304 SS top with satin finish resists dents, heat and harsh cleaners.
  • 16 ga 304 SS legs with welded front-to-back crossrails for superior rigidity.
  • 10-1/2 in. backsplash with 2" return & tile edge for a watertight wall seal.
  • Integrated 20 × 20 × 8 in. pre-rinse sink speeds scrap removal.
  • Stainless steel pre-rinse basket included; slide bar ships when disposer adapter K-461 or K-461A is selected.
  • 1-1/2" IPS basket waste drain furnished and installed.
  • Pre-punched 8" on-center faucet holes (faucet sold separately).
  • All TIG-welded construction; welds ground & polished to match adjacent surfaces.
  • Adjustable stainless steel bullet feet level the unit on uneven floors.

Specifications

Model DTS-S30-60R
Orientation Right-hand (mounts on operator’s right)
Overall Length 59 in. (nominal 5 ft.)
Depth 30 in.
Work Height 34 in.
Backsplash Height 10-1/2 in. with 2" return
Sink Bowl Size 20 × 20 × 8 in. (L × W × D)
Top Material 14 ga 304 stainless steel
Legs / Crossrails 16 ga 304 stainless steel, welded
Feet Stainless steel bullet feet, 1" adjustable
Drain 1-1/2" IPS basket type (included)
Approx. Shipping Weight 100 lb.

Looking for additional accessories or custom lengths? Contact us for a SMART FABRICATION™ quote.

Important: Check your dish machine’s clearance requirements before ordering; some models require additional sink spacing or special modifications. Faucet, disposer and other accessories are sold separately unless noted.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Width

59.0in

Depth

30.0in

Shipping Weight

95.0lbs

Stainless Series

300 series

Shape

straight

Stainless Gauge

14 gauge

Direction

right to left

Leg Type

stainless steel legs

Width (side - side) OA

49" - 60"

Splash Height

10"H splash

Specifications

Straight-Soil Dishtable, attaches to right of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs with crossrails front to back, 59"W, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
