Advance Tabco DTS-S30-36R Compartment Sinks
Description

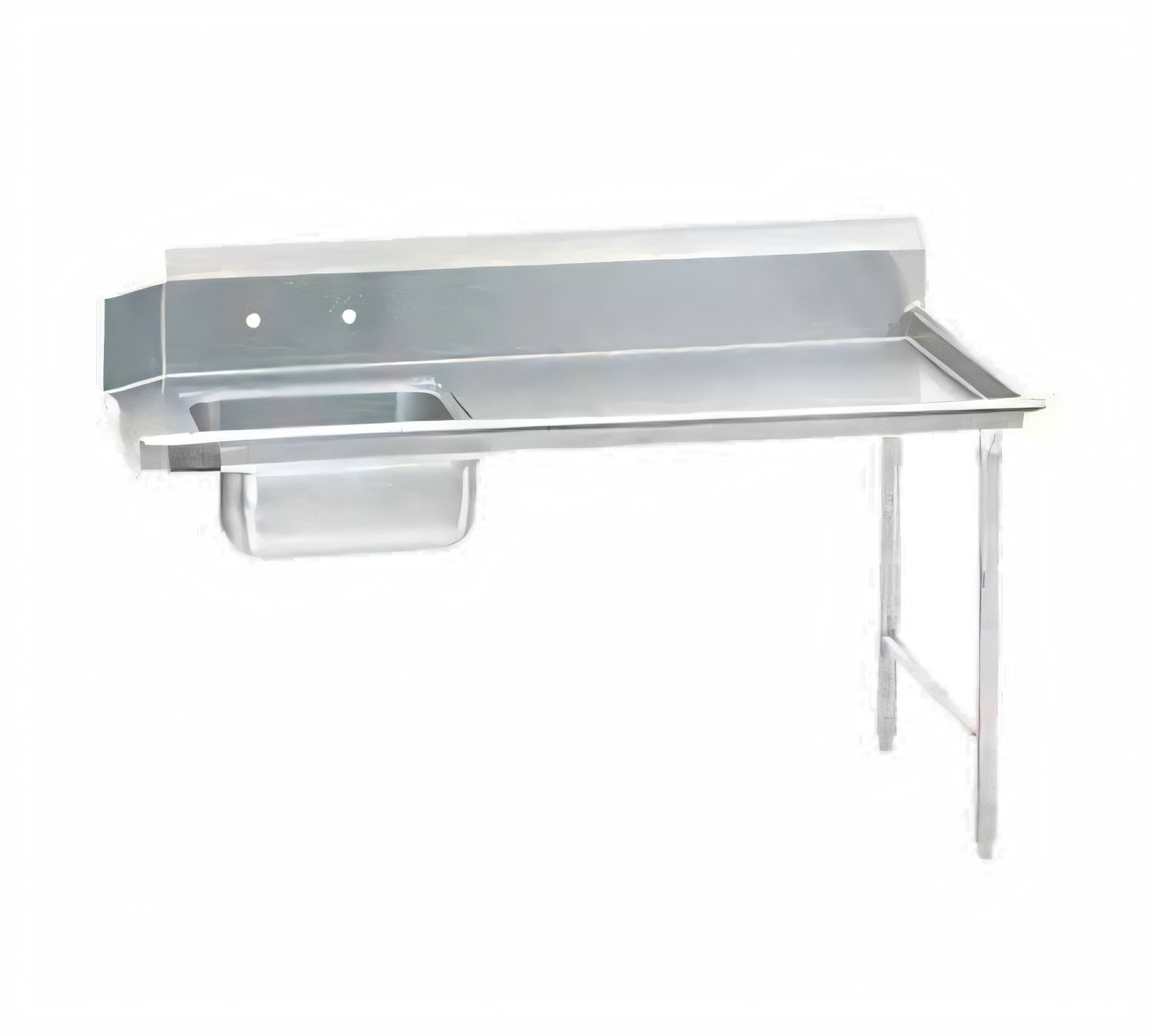

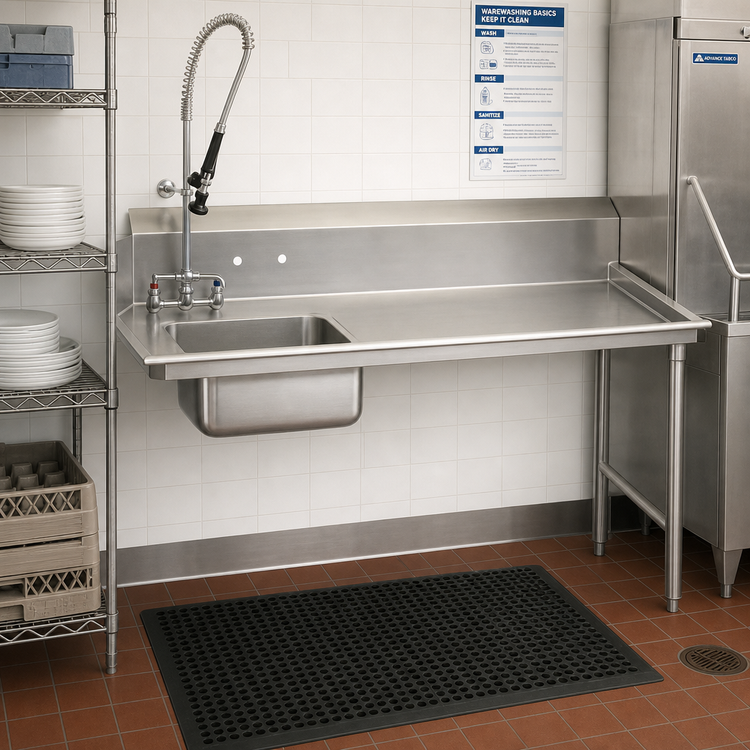

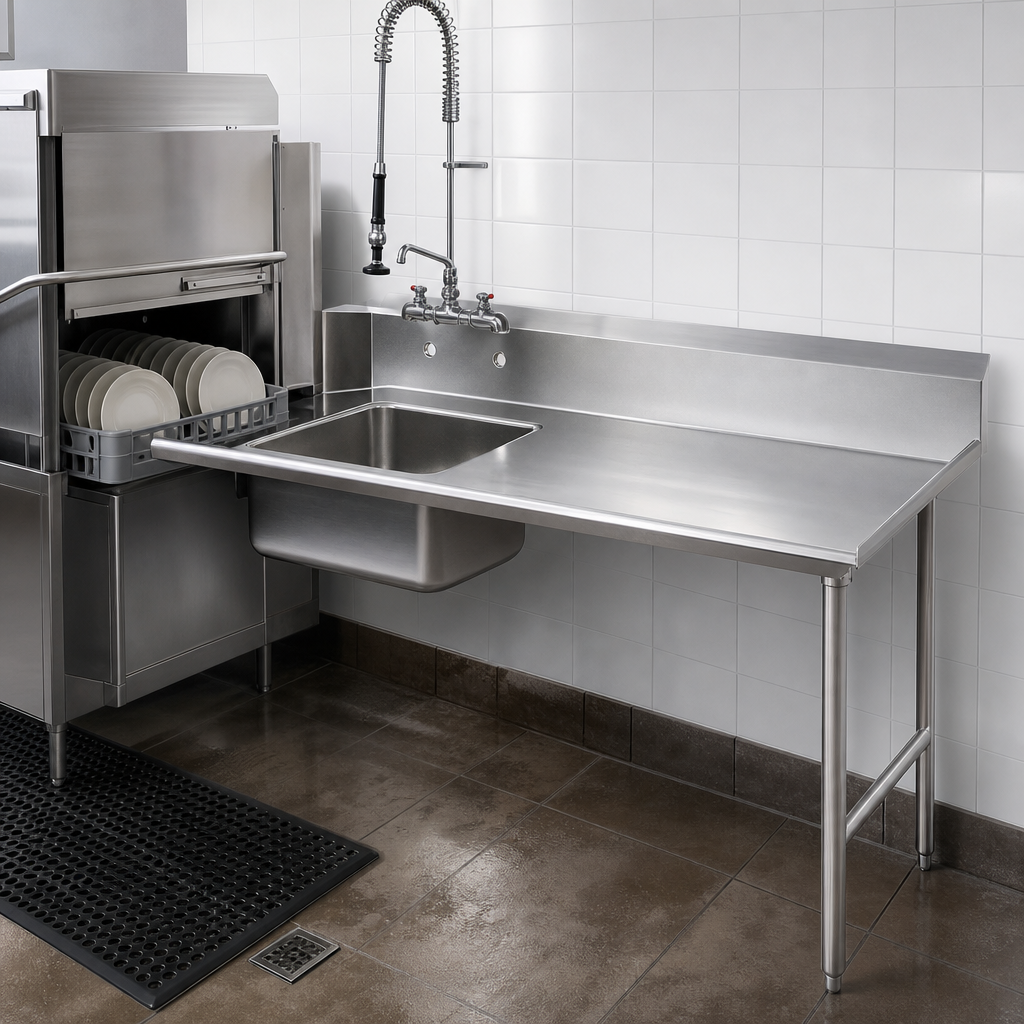

SPEC-LINE 35" Straight Soil Dishtable – Right Side Mount
Advance Tabco Model DTS-S30-36RBuilt for the busiest dish rooms, this heavy-duty SPEC-LINE dishtable bolts directly to the operator’s right-hand side of a commercial dish machine, creating a seamless scraping and pre-rinse station. A 14 ga 304 stainless top, extra-tall 10 ½" backsplash and an integrated 20" × 20" × 8" sink bowl tackle the mess so your warewasher runs at peak efficiency.
Key Features & Benefits
- 14 ga 304 SS top – withstands heavy sheet-pan slams and bus tub drops without denting.
- 20" × 20" × 8" pre-rinse sink welded in place for leak-free performance.
- Oversized 10 ½" backsplash with 2" return & tile-edge design simplifies wall installation and keeps water contained.
- Factory-punched 8" o.c. faucet holes; add your choice of pre-rinse faucet (sold separately).
- Includes basket drain & strainer (1 ½" IPS) plus a stainless pre-rinse scrap basket to speed up food-soil removal.
- Slide bar ships with table when a K-461 or K-461A disposer adapter is ordered, giving you disposer-ready convenience.
- 1 ⅝" Ø 304 SS legs with welded front-to-back crossrails and adjustable stainless bullet feet for rock-solid support.
- All TIG-welded construction; welds are ground & polished to a satin finish that meets NSF sanitation standards.
Premium SPEC-LINE Construction
- 14 ga 304 SS work surface
- 16 ga 304 SS legs, gussets & cross-bracing
- Welded gussets to a heavy stainless support channel
- 1" adjustable stainless bullet feet level the table on uneven floors
Technical Specifications
| Orientation | Right-hand (mounts to operator’s right of dish machine) |
|---|---|
| Overall Length | 35" (nominal 3 ft section) |
| Overall Depth | 30" |
| Work Height | 34" to tabletop (adjustable) |
| Backsplash Height | 10 ½" with 2" return |
| Sink Bowl Size | 20" W × 20" D × 8" H |
| Drain | 1 ½" IPS basket-type (included) |
| Faucet Holes | Punched on 8" centers (faucet not included) |
| Included Accessories | Prerinse scrap basket, basket drain, slide bar* *Slide bar provided only when disposer adapter K-461 or K-461A is specified. |
| Approx. Shipping Weight | 70 lb |
What’s Included
- SPEC-LINE DTS-S30-36R soil dishtable
- Pre-installed 20" × 20" × 8" sink bowl
- 1 ½" basket drain & strainer
- Stainless pre-rinse scrap basket
- Slide bar (with K-461 / K-461A disposer adapter)
- Adjustable stainless bullet feet
Need a longer run, corner configuration, or disposer prep? Contact us for Smart Fabrication™ custom options straight from Advance Tabco.
