Advance Tabco  |  SKU: DTS-S30-36L

Advance Tabco DTS-S30-36L Compartment Sinks

$1,559.00
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

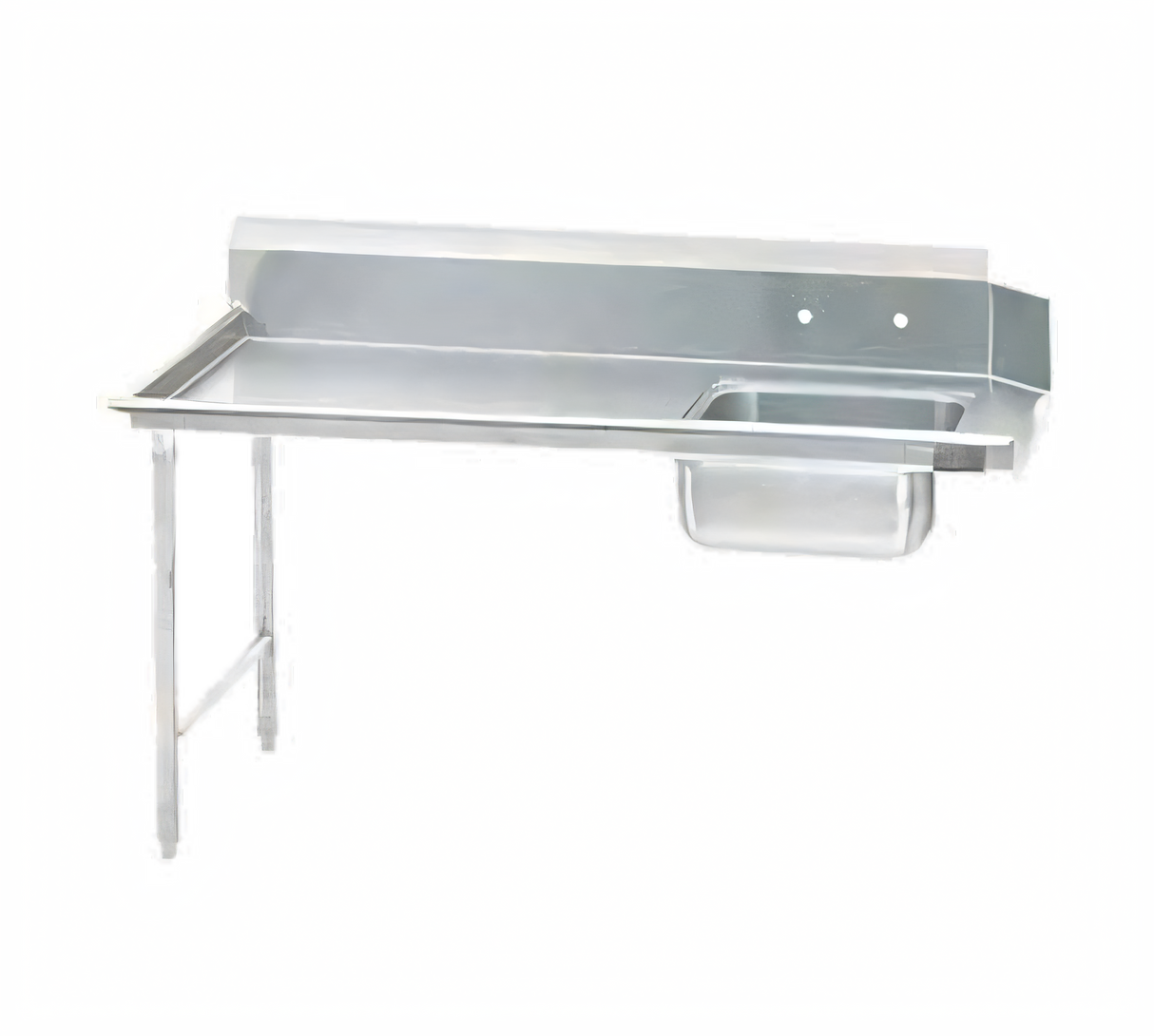

Advance Tabco Spec-Line Straight Soil Dishtable – 35" (Left Side)

Model DTS-S30-36L | 14 ga 304 Stainless Steel Top

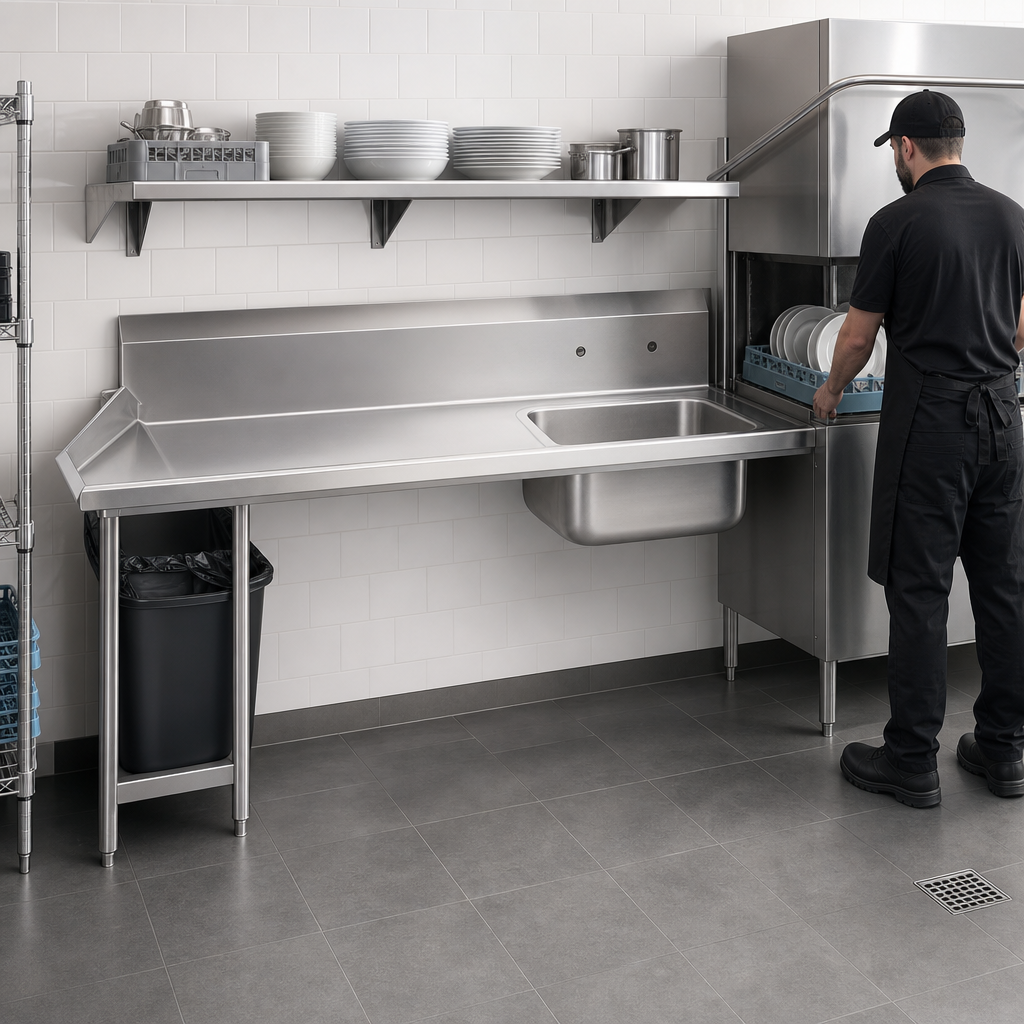

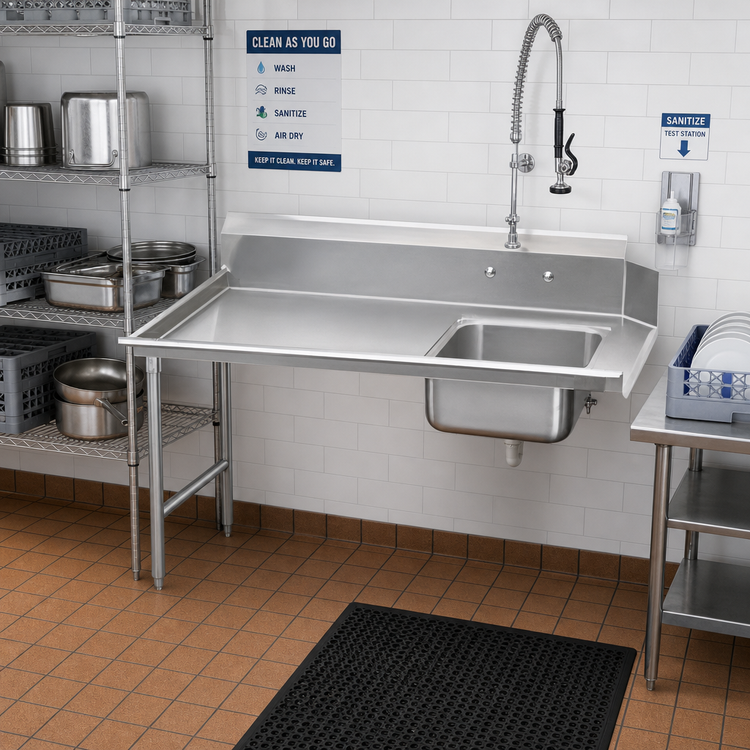

Engineered for heavy-duty warewashing lines, this 35 inch straight soil dishtable mounts on the left side of the dish-machine operator to create a smooth, NSF-approved “dirty” landing zone complete with an 8 inch-deep pre-rinse sink bowl and included scrap basket.

Key Benefits

  • Spec-Line construction – rugged 14 ga 304 stainless steel top resists dents, rust and harsh chemicals.
  • Extra-large 10-1/2" backsplash with 2" tile-edge return keeps walls protected and simplifies installation.
  • Integrated 20" × 20" × 8" pre-rinse sink speeds scrap removal & rack rinsing.
  • Pre-rinse basket included for efficient debris capture; slide bar ships only when K-461 or K-461A disposer adapter is ordered.
  • 1-5/8" Ø 16 ga 304 stainless steel legs with welded crossrails front-to-back for maximum stability.
  • Adjustable stainless steel bullet feet level the table on uneven floors.
  • 1-1/2" IPS basket-type waste drain supplied and installed.
  • 8"-on-center faucet holes punched in backsplash (faucet sold separately).
  • NSF listed & fully TIG welded with satin-smooth, easy-clean surfaces.

Technical Specifications

Orientation Left (attaches to operator’s left side of dish machine)
Overall Length 35" nominal
Work Height 34" (to top) / 37" (to top of backsplash)
Backsplash 10-1/2" H with 2" tile-edge return
Top Material / Gauge 304 stainless steel, 14 ga
Sink Bowl Size 20" × 20" × 8" deep
Legs / Bracing 1-5/8" Ø 304 stainless, 16 ga  |  welded crossrails front-to-back
Drain 1-1/2" IPS basket-type
Included Accessories Pre-rinse scrap basket; slide bar (with K-461/K-461A only)
Compliance NSF, Made in USA
Dish-Machine Compatibility: Always verify required clearances before ordering. Consult Advance Tabco’s compatibility chart or contact customer service for SMART FABRICATION™ modifications.

Faucet, disposer adapter and dish machine shown in images are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Width

35.0in

Depth

30.0in

Shipping Weight

65.0lbs

Direction

left to right

Stainless Series

300 series

Splash Height

10"H splash

Width (side - side) OA

31" - 36"

Shape

straight

Stainless Gauge

14 gauge

Leg Type

stainless steel legs

Specifications

Straight-Soil Dishtable, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs with crossrails front to back, 35"W, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
