Advance Tabco  |  SKU: DTS-S30-144R  |  UPC: 747545122100

Advance Tabco DTS-S30-144R Compartment Sinks

$2,734.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

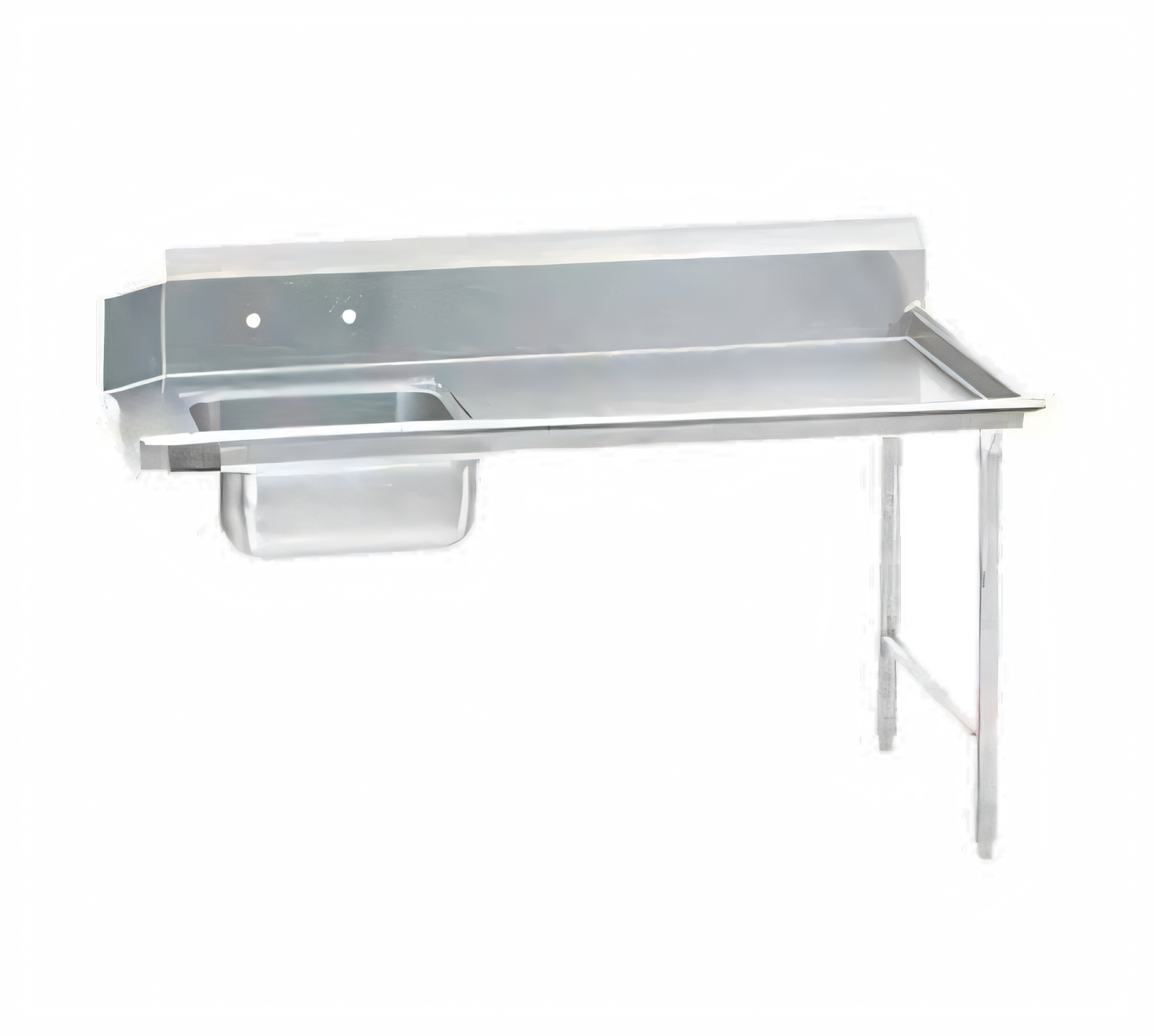

Spec-Line Straight Soil Dishtable – Right Side, 12 ft.

Advance Tabco Model DTS-S30-144R | 143 in L × 30 in D

Engineered for demanding ware-washing lines, this 12 ft. Spec-Line right-hand soil dishtable delivers rugged durability, fast installation, and a smoother workflow from rack scrapping to pre-rinse.

Why You’ll Love It

  • Heavy-duty 14 ga. 304 stainless steel top with satin finish stands up to constant abuse.
  • Extra-large 10-1/2 in backsplash with 2 in return & tile edge for a watertight, food-safe wall seal.
  • Integrated 20 in × 20 in × 8 in pre-rinse sink punched on 8 in centers (faucet sold separately).
  • Includes stainless pre-rinse basket — slide bar provided when K-461 or K-461A disposer adapters are ordered.
  • All TIG-welded construction with 16 ga. 304 stainless legs, welded front-to-back crossrails, and 1 in adjustable bullet feet.
  • 1-1/2 in IPS basket waste drain supplied and installed.

At-a-Glance Specs

Overall length 143 in (nominal 12 ft.)
Front-to-back depth 30 in
Working height 34 in
Overall height 44-1/2 in (to top of backsplash)
Sink bowl size 20 in W × 20 in L × 8 in D
Top material / gauge 304 stainless steel, 14 ga.
Legs / bracing 304 stainless, 1-5/8 in Ø, welded crossrails

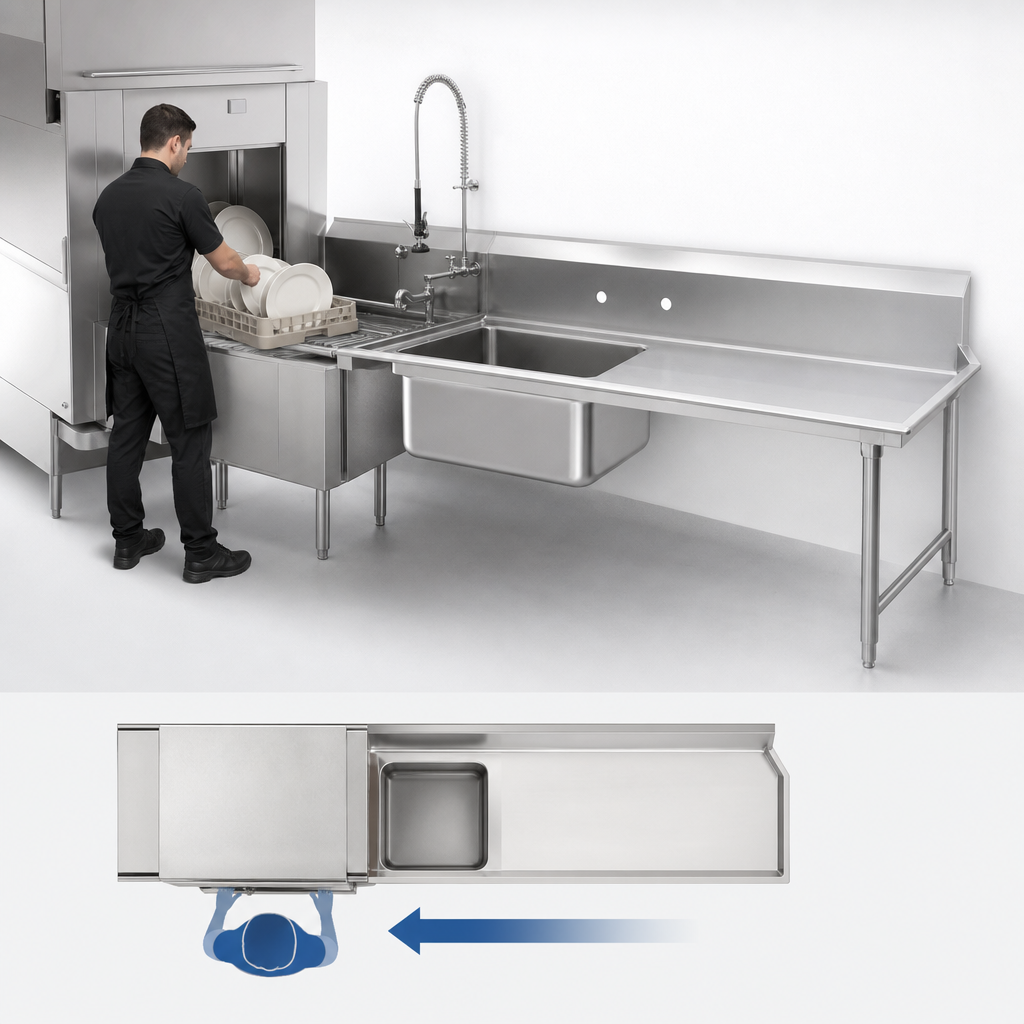

Orientation Right – mounts to operator’s right side of dish machine
Included items Pre-rinse basket, 1-1/2 in IPS drain assembly, faucet holes (8 in o.c.)

Installation & Compatibility

  • Tile-edge backsplash speeds caulk-in and aligns flush with wall tile.
  • Consult Advance Tabco’s dish machine compatibility chart to verify required clearances or Smart Fabrication™ mods.
  • Faucet, disposer adapters, and scrap chutes are optional add-ons.

Need a left-hand or custom length? Advance Tabco can build it — contact us for a Smart Fabrication™ quote.

Heads-up: The slide bar ships only when a K-461 or K-461A disposer adapter is specified at time of order.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Width

143.0in

Depth

30.0in

Shipping Weight

280.0lbs

Direction

right to left

Width (side - side) OA

133" - 144"

Shape

straight

Stainless Gauge

14 gauge

Splash Height

10"H splash

Stainless Series

300 series

Leg Type

stainless steel legs

Specifications

Straight-Soil Dishtable, attaches to right of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs with crossrails front to back, 143"W, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
