Advance Tabco  |  SKU: DTS-S30-144L  |  UPC: 747545122094

Advance Tabco DTS-S30-144L Compartment Sinks

$2,734.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

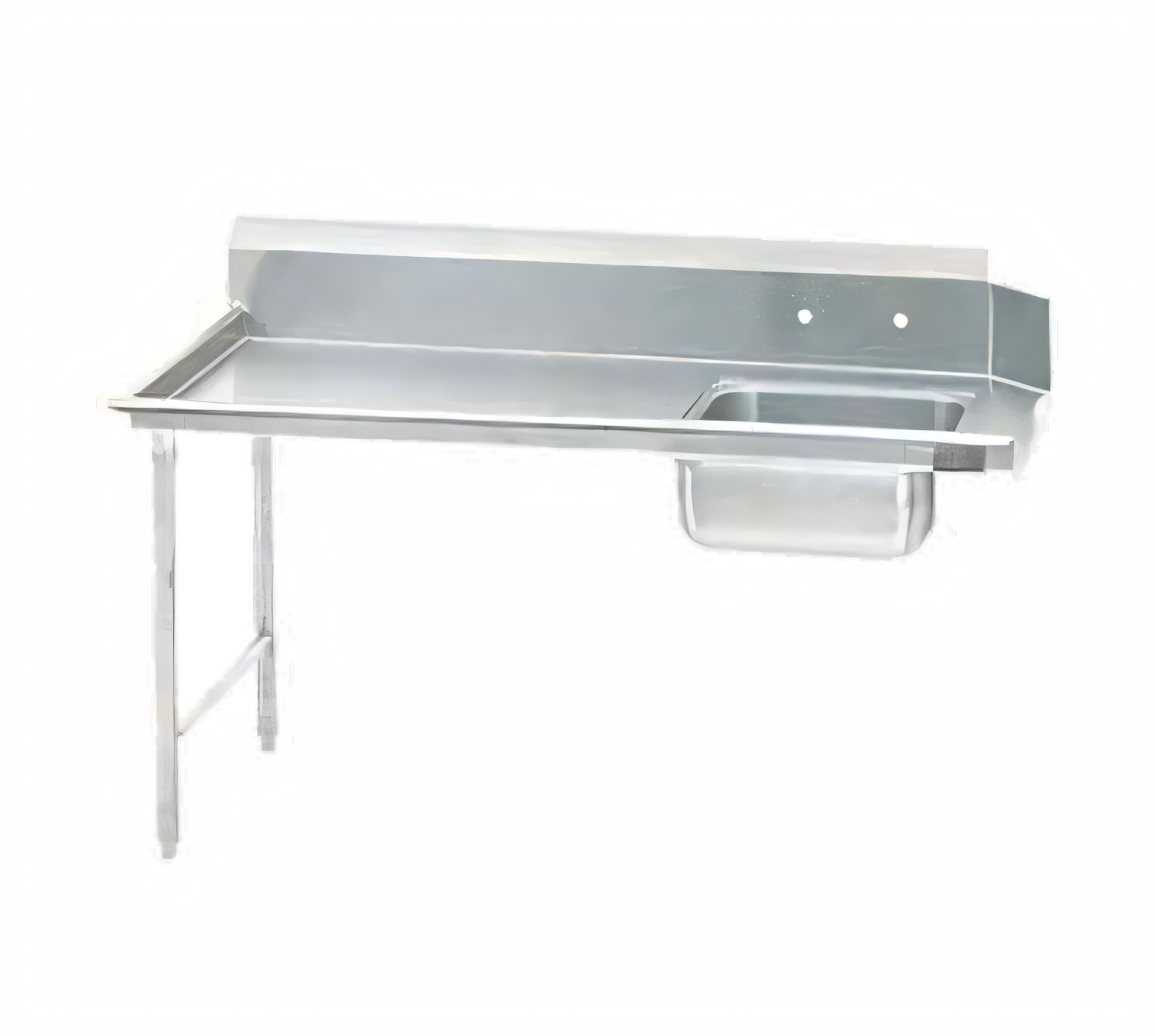

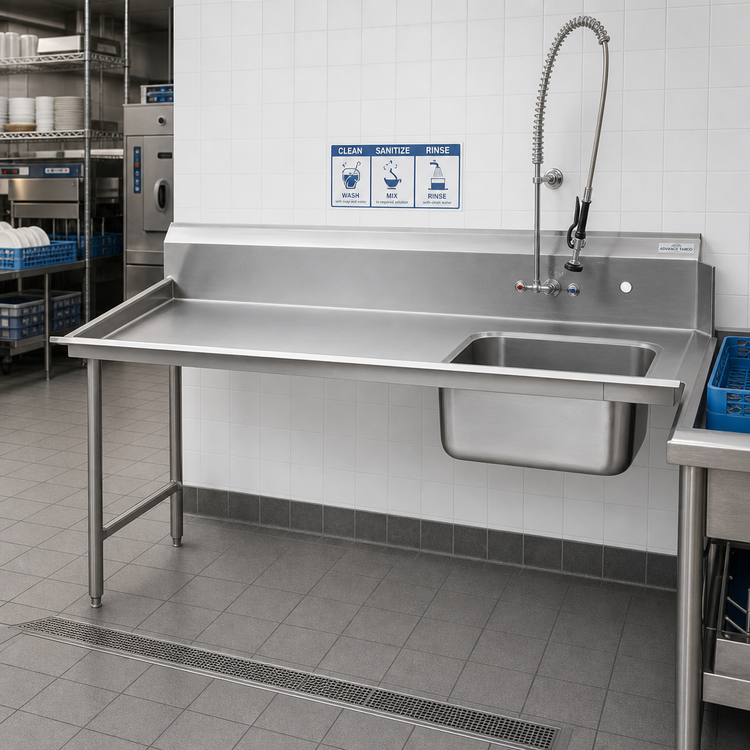

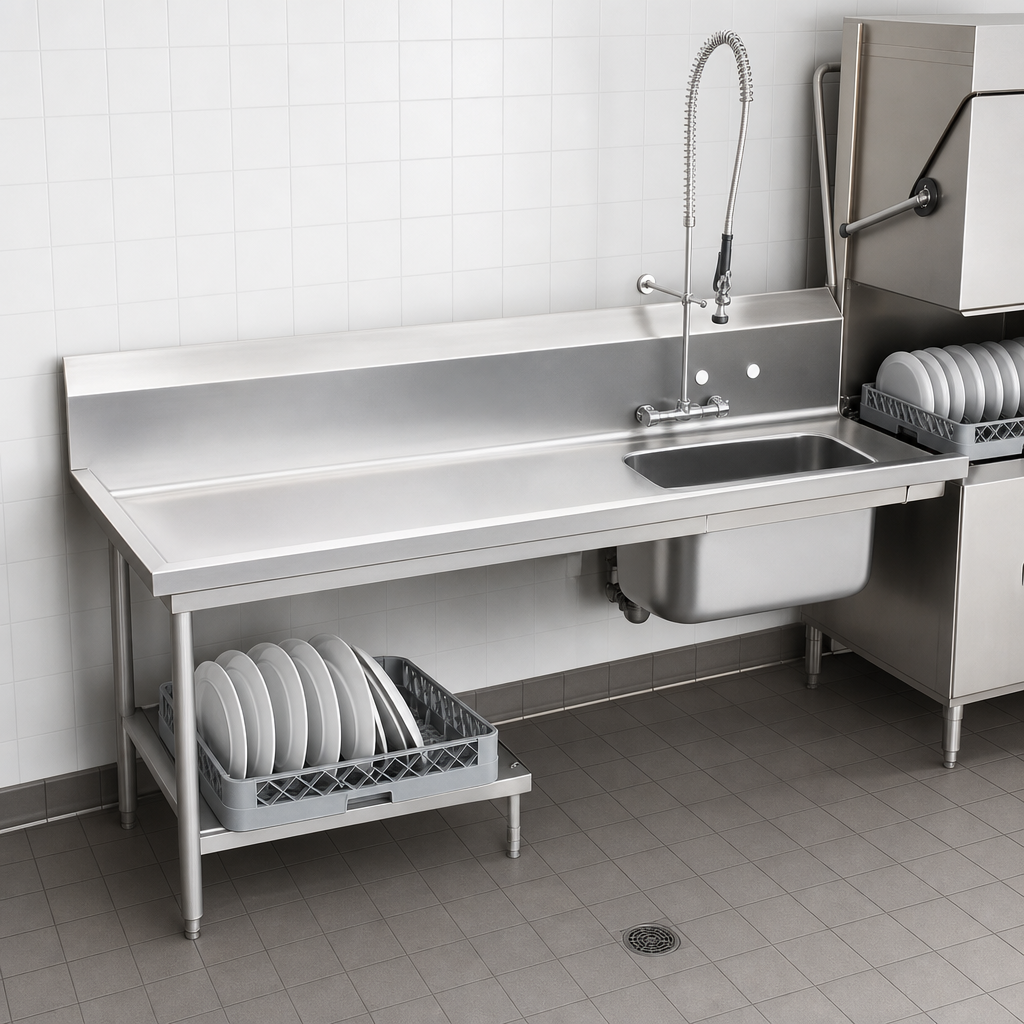

Advance Tabco Straight Soil Dishtable – 143″ L, Left-Feed

14 ga 304 SS Spec-Line with Integrated Pre-Rinse Sink

Built for the demands of high-volume kitchens, this heavy-duty Advance Tabco soil dishtable mounts to the operator’s left side of a commercial dish machine, streamlining the scrap, rinse & rack process while protecting surrounding surfaces with an extra-tall backsplash.

Why You’ll Love It

  • 14 ga 304 stainless steel top delivers superior strength and corrosion resistance.
  • 10-1/2″ high backsplash with 2″ return & tile edge contains splashes and simplifies wall installation.
  • 20″ × 20″ × 8″ pre-rinse sink bowl for efficient scraping and soaking.
  • Stainless prerinse basket included; slide bar ships when K-461 or K-461A disposer adapter is ordered.
  • 1-1/2″ IPS basket-type waste drain included for quick hook-up.
  • Faucet holes pre-punched on 8″ centers (faucet not included).
  • 1-5/8″ Ø 16 ga 304 stainless steel legs with welded front-to-back crossrails & adjustable bullet feet.
  • All TIG-welded seams blended to a satin finish for a clean, NSF-listed work surface.

At-a-Glance Specs

Overall length 143″ (12 ft nominal)
Overall depth 30″
Working height 34″
Backsplash height 10-1/2″ with 2″ return
Sink bowl 20″ W × 20″ D × 8″ H
Drain 1-1/2″ IPS basket type (included)
Top material 14 ga 304 stainless steel
Legs & bracing 16 ga 304 SS legs with welded stainless crossrails
Feet Adjustable stainless steel bullet feet
Orientation Left-feed soil table (mounts to operator’s left side of dish machine)
Included accessories Prerinse basket, waste drain, slide bar*
NSF listed Yes
Important: Dish machine clearances vary. Review the Dish Machine Compatibility Chart or contact our team before ordering to confirm this table will fit your specific machine.

*Slide bar ships only when disposer adapter K-461 or K-461A is specified. Images may show optional faucets and disposal systems sold separately.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Width

143.0in

Depth

30.0in

Shipping Weight

280.0lbs

Direction

left to right

Width (side - side) OA

133" - 144"

Splash Height

10"H splash

Stainless Gauge

14 gauge

Shape

straight

Stainless Series

300 series

Leg Type

stainless steel legs

Specifications

Straight-Soil Dishtable, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs with crossrails front to back, 143"W, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
