Advance Tabco  |  SKU: DTS-S30-120L  |  UPC: 747545122070

Advance Tabco DTS-S30-120L Compartment Sinks

$2,451.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Advance Tabco Commercial Work Tables Compartment Sinks Dish Tables Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

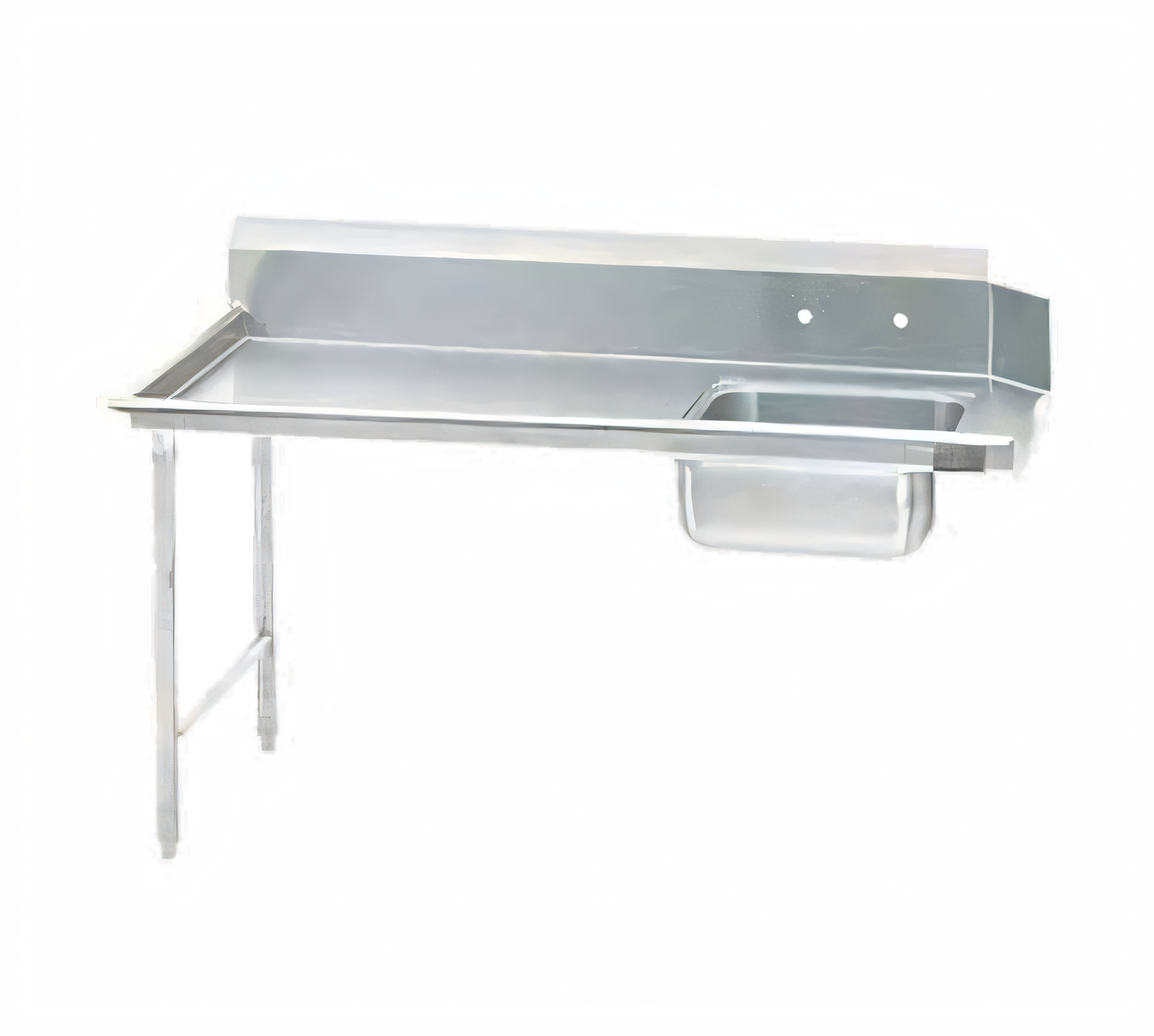

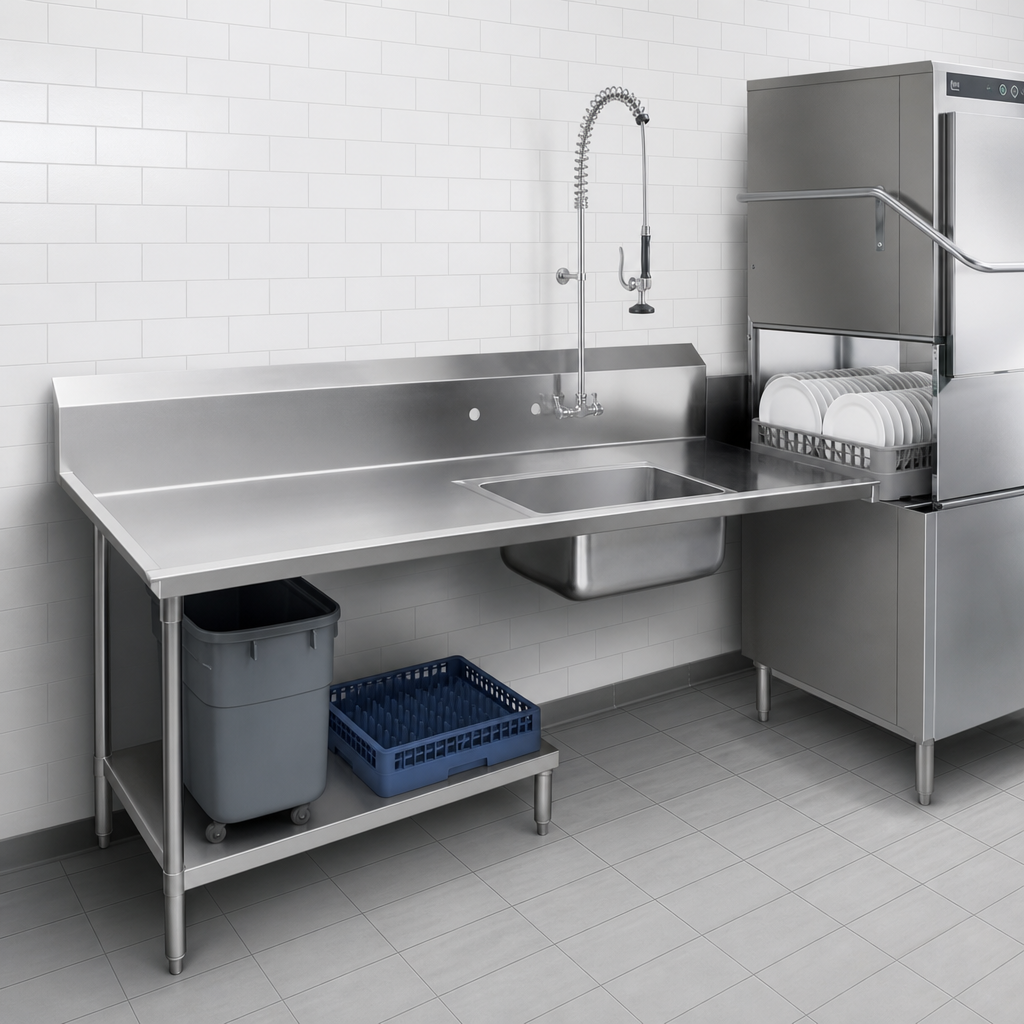

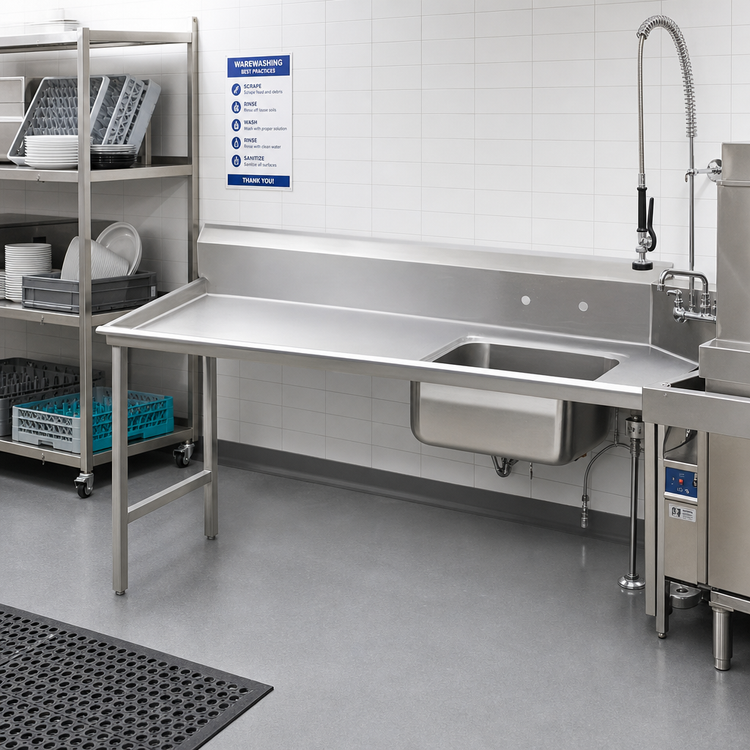

Advance Tabco Spec-Line Straight Soil Dishtable – Left Feed

Model DTS-S30-120L • 119" L x 30" D • 14 ga 304 Stainless Steel Top

Give your dishroom the rugged performance it deserves with this 10-foot, heavy-duty soil dishtable from Advance Tabco’s Spec-Line series. Designed to mount on the left side of the dish-machine operator, it combines a 14-gauge 304 stainless work surface, extra-large 10 ½" backsplash, and an 8"-deep pre-rinse sink to keep the soiled ware line moving fast and hygienically.

Key Features

  • 14-gauge 304 stainless steel top with tile-edge for easy installation & a professional finish
  • 119" straight configuration attaches directly to the left side of most commercial dish machines
  • Extra-large 10 ½" backsplash with 2" return contains splashes and protects walls
  • 20" × 20" × 8" pre-rinse sink bowl speeds up scraping & rack loading
  • (2) faucet holes on 8" centers punched in backsplash – faucet sold separately
  • Factory-installed 1 ½" IPS basket-type waste drain
  • 16-gauge 304 stainless steel 1 ⅝" Ø legs with welded front-to-back crossrails for rock-solid stability
  • Adjustable stainless steel bullet feet (1" range) level the table on uneven floors
  • Includes stainless steel pre-rinse basket; slide bar ships only when disposer adapter K-461 or K-461A is ordered
  • All TIG-welded construction, satin-blended welds, and NSF listed

What’s in the Box

  • Advance Tabco DTS-S30-120L Spec-Line soil dishtable
  • Pre-rinse sink bowl (welded in place) with 1 ½" IPS basket drain
  • Stainless steel pre-rinse basket
  • Adjustable stainless bullet feet (installed on legs)
  • Owner/installation manual

Specifications

Overall length 119" (10 ft)
Depth (front-to-back) 30"
Work height 34" (to top of work surface)
Backsplash height 10 ½" with 2" return
Sink bowl size 20" W × 20" L × 8" D
Material – top 14 ga / 304 series stainless steel
Material – legs & crossrails 16 ga / 304 series stainless steel, 1 ⅝" Ø
Feet Stainless steel bullet, 1" adjustable
Drain connection 1 ½" IPS basket-type (included)
Faucet mounting (2) 1 ⅛" holes on 8" centers in backsplash
Orientation Left feed (mounts to operator’s left)
NSF listing Yes

Need to confirm fit with your dish machine? See Advance Tabco’s Dish Machine Compatibility Chart or contact us for a quick check before ordering.

Heads-up: The stainless slide bar ships only when disposer adapter K-461 or K-461A is specified on the same order. If you plan to install a disposer later, be sure to add the adapter now.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Width

119.0in

Depth

30.0in

Shipping Weight

230.0lbs

Direction

left to right

Stainless Series

300 series

Splash Height

10"H splash

Width (side - side) OA

109" - 120"

Shape

straight

Leg Type

stainless steel legs

Stainless Gauge

14 gauge

Specifications

Straight-Soil Dishtable, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs with crossrails front to back, 119"W, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
