Advance Tabco  |  SKU: DTS-S30-108R  |  UPC: 747545122063

Advance Tabco DTS-S30-108R Compartment Sinks

$2,342.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Advance Tabco Commercial Work Tables Compartment Sinks Dish Tables Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

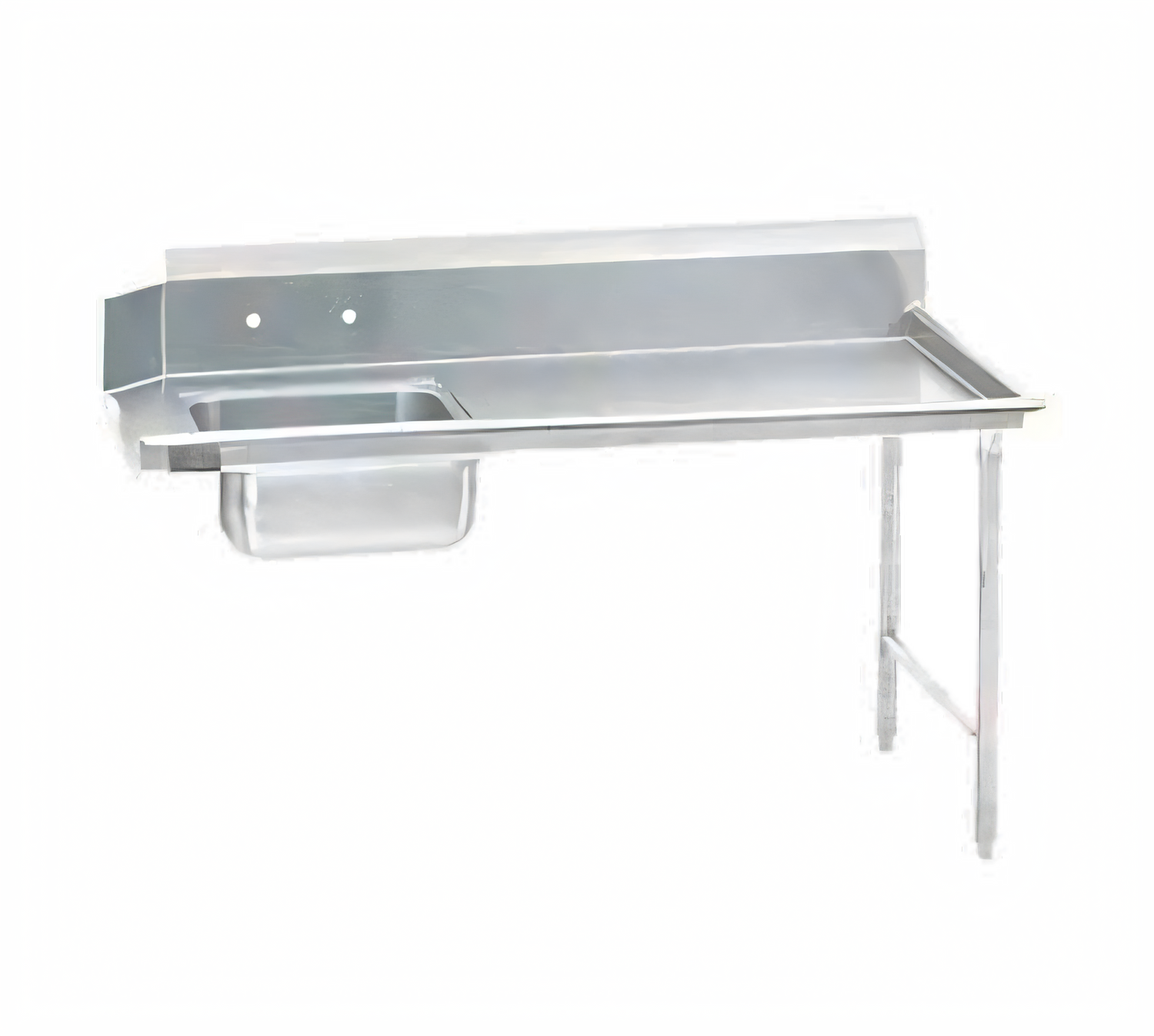

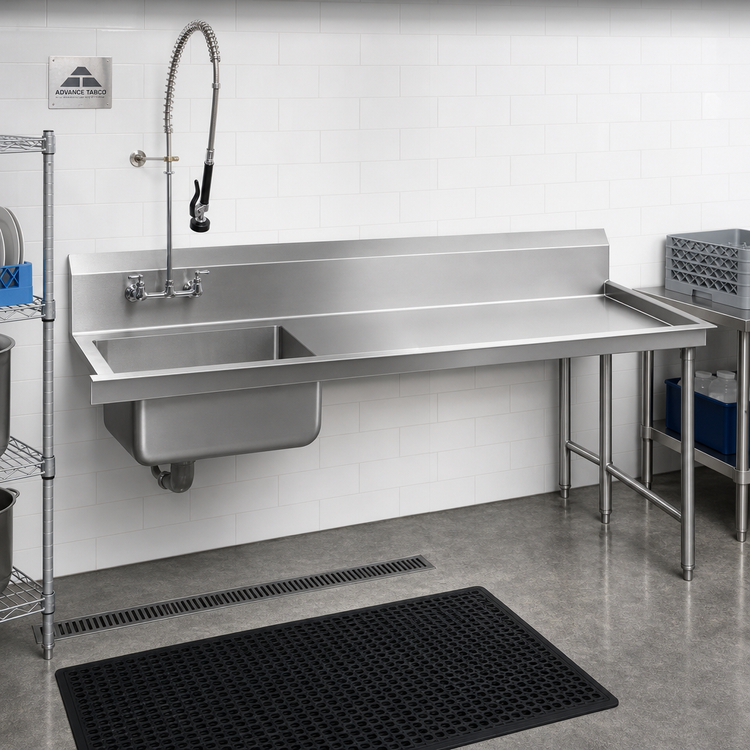

Advance Tabco DTS-S30-108R Spec-Line Straight Soil Dishtable – 107" Right

14 ga 304 Stainless Top • Integrated 20" × 20" × 8" Pre-Rinse Sink • Includes Basket

Built for high-volume warewashing, this 9-ft Spec-Line straight soil dishtable mounts to the operator’s right side of a compatible dish machine. Heavy-duty 14 gauge 304 stainless steel, an extra-large backsplash, and welded leg cross-rails deliver the strength and sanitation today’s kitchens demand.

Key Features
  • 14 ga, 304 series stainless steel work surface resists corrosion and dents.
  • 10-1/2" backsplash with 2" return and tile edge keeps walls dry and speeds installation.
  • 20" × 20" × 8" deep pre-rinse sink accelerates soil removal.
  • Stainless steel prerinse basket included (slide bar ships when K-461 or K-461A disposer adapter is chosen).
  • 1-5/8" O.D. 16 ga 304 stainless steel legs with welded front-to-back crossrails & adjustable bullet feet.
  • Factory-punched 8" on-center faucet holes—just add your preferred pre-rinse faucet (sold separately).
  • All TIG-welded; welds are blended and polished to a uniform satin finish.
  • NSF listed for open food-service environments.
Dimensions & Capacities
Overall length 107" (nominal 9 ft)
Front-to-back 30"
Work height 34" to tabletop  •  37" to top of rolled rim
Backsplash 10-1/2" H with 2" return
Sink bowl 20" W × 20" L × 8" D
Drain connection 1-1/2" IPS basket type (included)

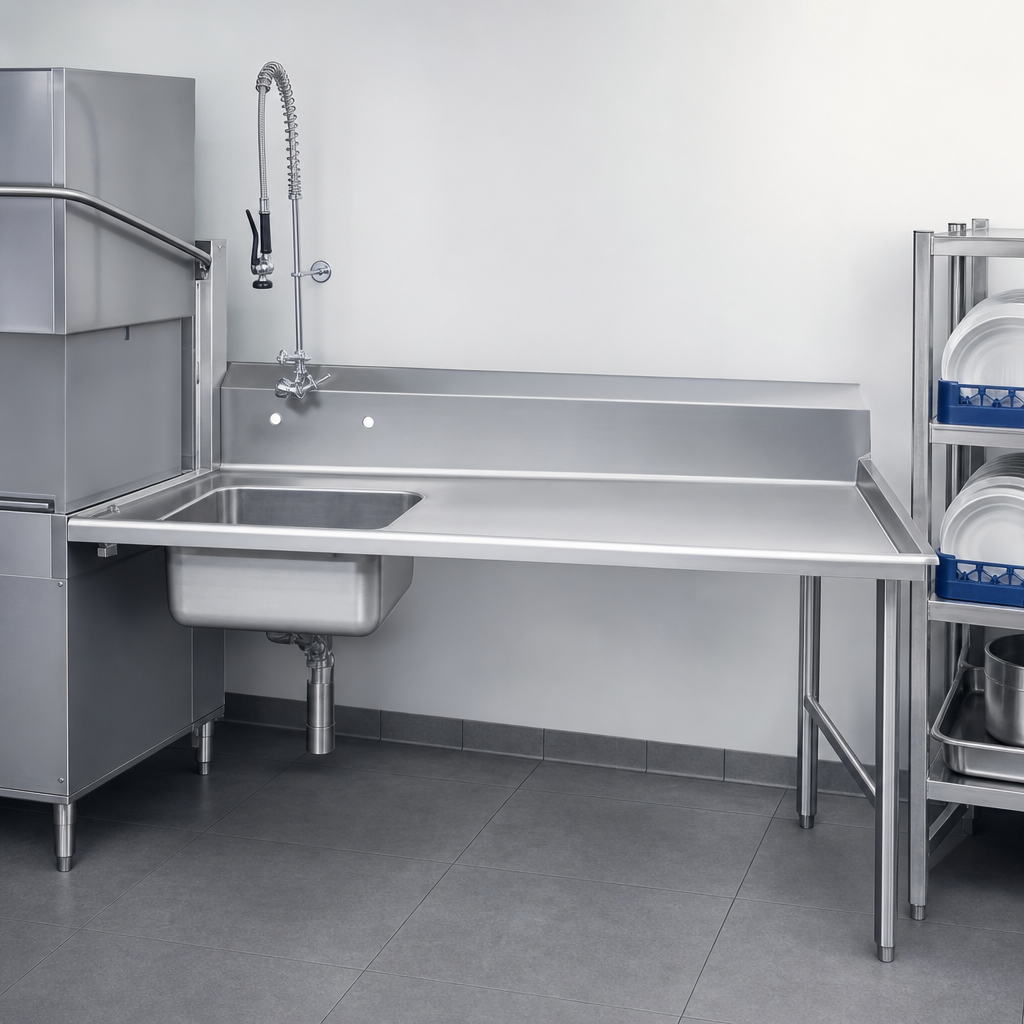

Orientation Right – attaches to operator’s right side of dish machine
Approx. shipping weight 235 lb
What’s Included
  • Spec-Line straight soil dishtable with integrated sink
  • Stainless steel prerinse basket
  • 1-1/2" IPS basket drain assembly
  • Adjustable stainless bullet feet
Popular Options & Accessories
  • K-461 or K-461A disposer adapter (adds slide bar)
  • Deck-mount pre-rinse faucet assemblies
  • Wall shelves, undershelves, and additional scrap baskets
Dish Machine Compatibility

Spec-Line dishtables fit most leading brands. Confirm clearances with the factory Dish Machine Compatibility Chart prior to ordering.

Installation Note: Faucet is not supplied. Use an 8" on-center pre-rinse faucet rated for an 8" deep sink bowl. Some dish machine models require a minimum clearance between the sink and machine; consult the compatibility chart above.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Width

107.0in

Depth

30.0in

Shipping Weight

215.0lbs

Direction

right to left

Stainless Series

300 series

Shape

straight

Width (side - side) OA

97" - 108"

Splash Height

10"H splash

Stainless Gauge

14 gauge

Leg Type

stainless steel legs

Specifications

Straight-Soil Dishtable, attaches to right of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs with crossrails front to back, 107"W, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
