Advance Tabco  |  SKU: DTS-S30-108L

Advance Tabco DTS-S30-108L Compartment Sinks

$3,083.00
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

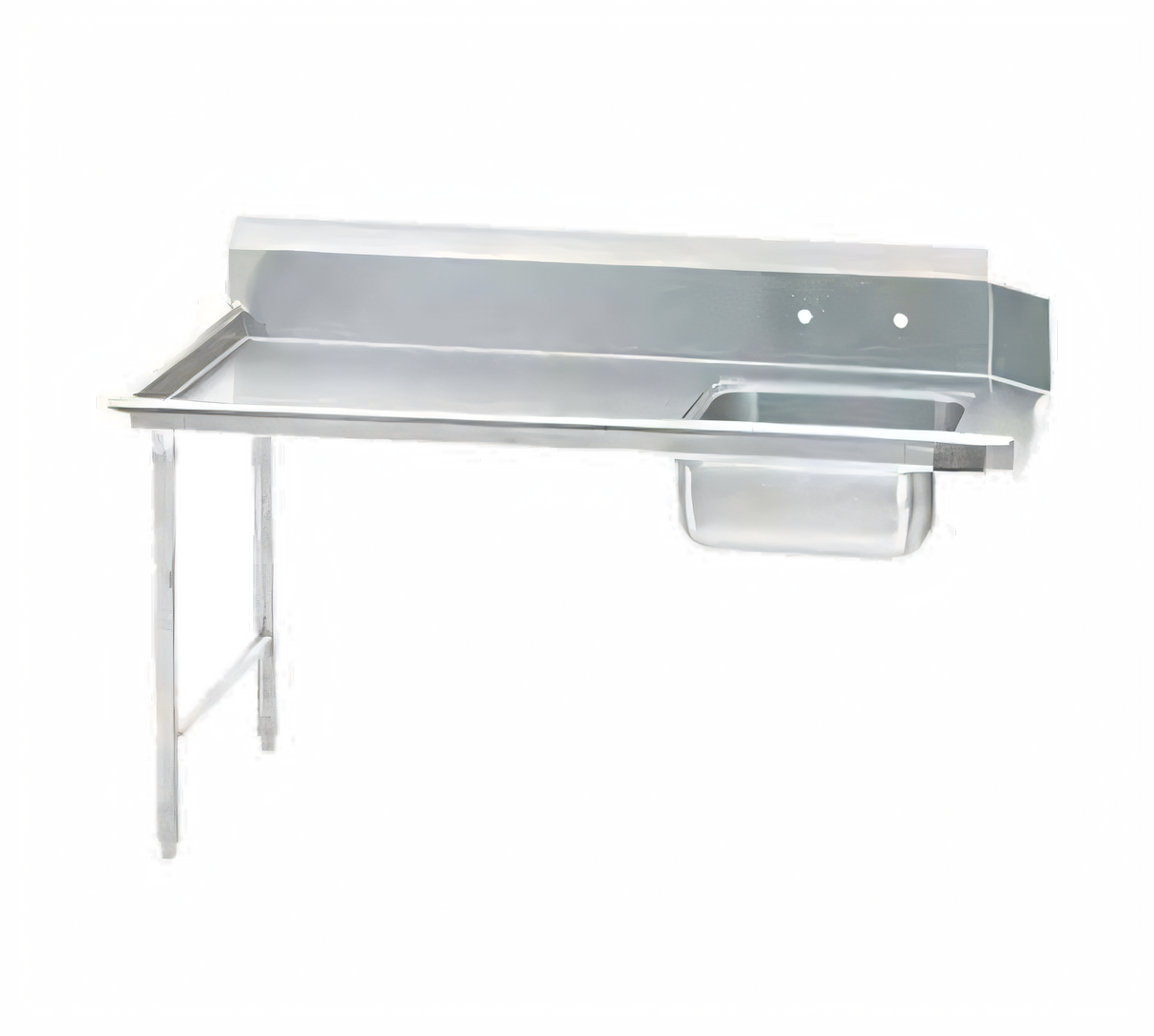

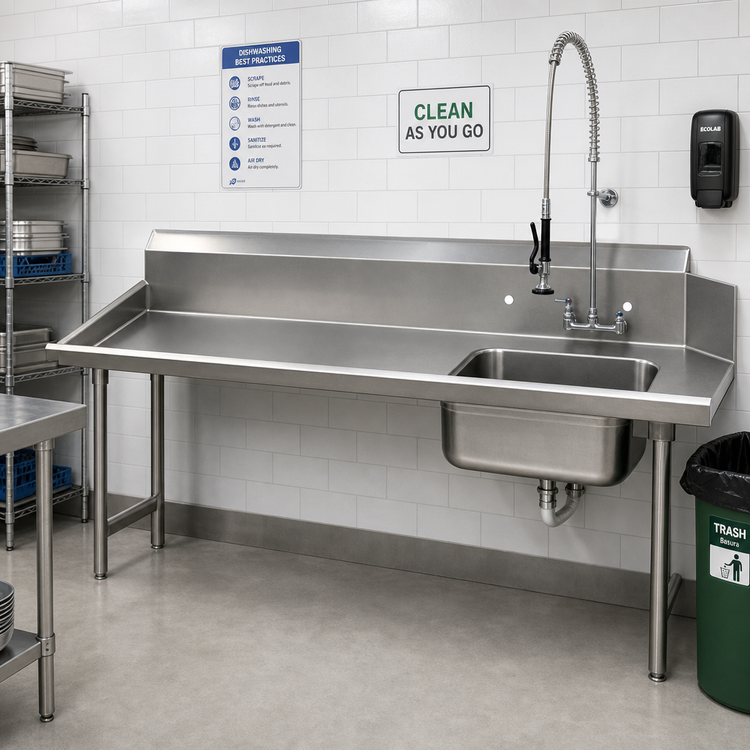

Advance Tabco 107" Spec-Line Straight Soil Dishtable – Left Side

Model DTS-S30-108L • 14 Ga. / 304 Series Stainless Steel Top

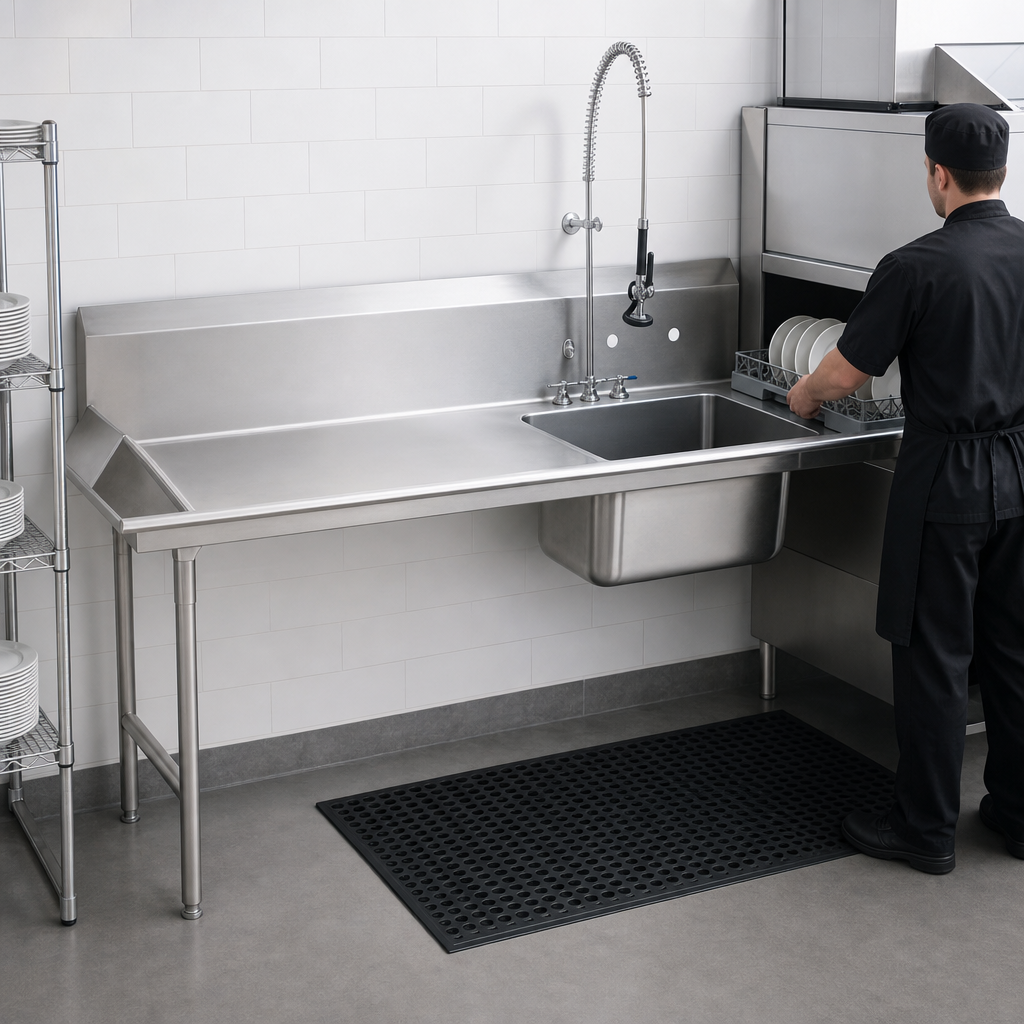

Built for heavy-volume warewashing operations, this Spec-Line straight soil dishtable mounts to the left of the dish machine (operator side) and delivers the rugged durability, ergonomic workflow and sanitary performance you expect from Advance Tabco.

Key Features & Benefits

  • Heavy-duty 14-gauge, type 304 stainless steel top with satin finish.
  • Extra-large 10 1⁄2" backsplash with 2" return and tile edge for a quick, watertight wall seal.
  • Integrated pre-rinse sink:
    • 20" × 20" bowl, 8" deep (Spec-Line).
    • Faucet holes punched on 8" centers (faucet not included).
    • 1 1⁄2" IPS basket waste drain supplied.
    • Stainless steel prerinse basket included for efficient scrap collection.
  • 1 5⁄8"-diameter 16-gauge stainless steel legs with welded crossrails (front-to-back) for unbeatable stability.
  • Adjustable stainless steel bullet feet (1" travel) level the table on uneven floors.
  • All TIG-welded construction; welds are blended to match adjacent surfaces for seamless sanitation.
  • NSF listed for food-service sanitation.

Specifications

Overall length 107" (nominal 9 ft)
Front-to-back width 30"
Work height 34" (to tabletop)
Backsplash height 10 1⁄2" with 2" return
Sink bowl size 20" × 20" × 8" deep
Top material / gauge 14 ga. 304 stainless steel
Leg material / gauge 16 ga. 304 stainless steel, 1 5⁄8" Ø
Cross-bracing Fully welded, stainless steel
Drain 1 1⁄2" IPS basket type (included)
Mounting orientation Left of dish machine (operator facing)
Shipping weight Approx. 235 lb

Dish Machine Compatibility

This dishtable is engineered for straight-through conveyor and door-type machines. Some brands or corner installations may require Advance Tabco Smart Fabrication™ modifications (DTA-76, DTA-78, K-508A, etc.). Always verify clearance requirements using the current Dish Machine Compatibility Chart or consult our team before ordering.

Important: The included slide bar ships only when a K-461 or K-461A disposer adapter is specified. Faucet and disposer are sold separately.

Why Choose Advance Tabco?

  • Made in the USA with strict quality control.
  • Backed by industry-leading customer support: 1-800-645-3166.
  • Part of a complete ecosystem of clean & soil dishtables, shelves and accessories to build your ideal warewashing line.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Width

107.0in

Depth

30.0in

Shipping Weight

215.0lbs

Direction

left to right

Stainless Gauge

14 gauge

Splash Height

10"H splash

Stainless Series

300 series

Shape

straight

Width (side - side) OA

97" - 108"

Leg Type

stainless steel legs

Specifications

Straight-Soil Dishtable, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs with crossrails front to back, 107"W, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
