Advance Tabco DTS-K70-96R Korner Compartment Sinks
Description

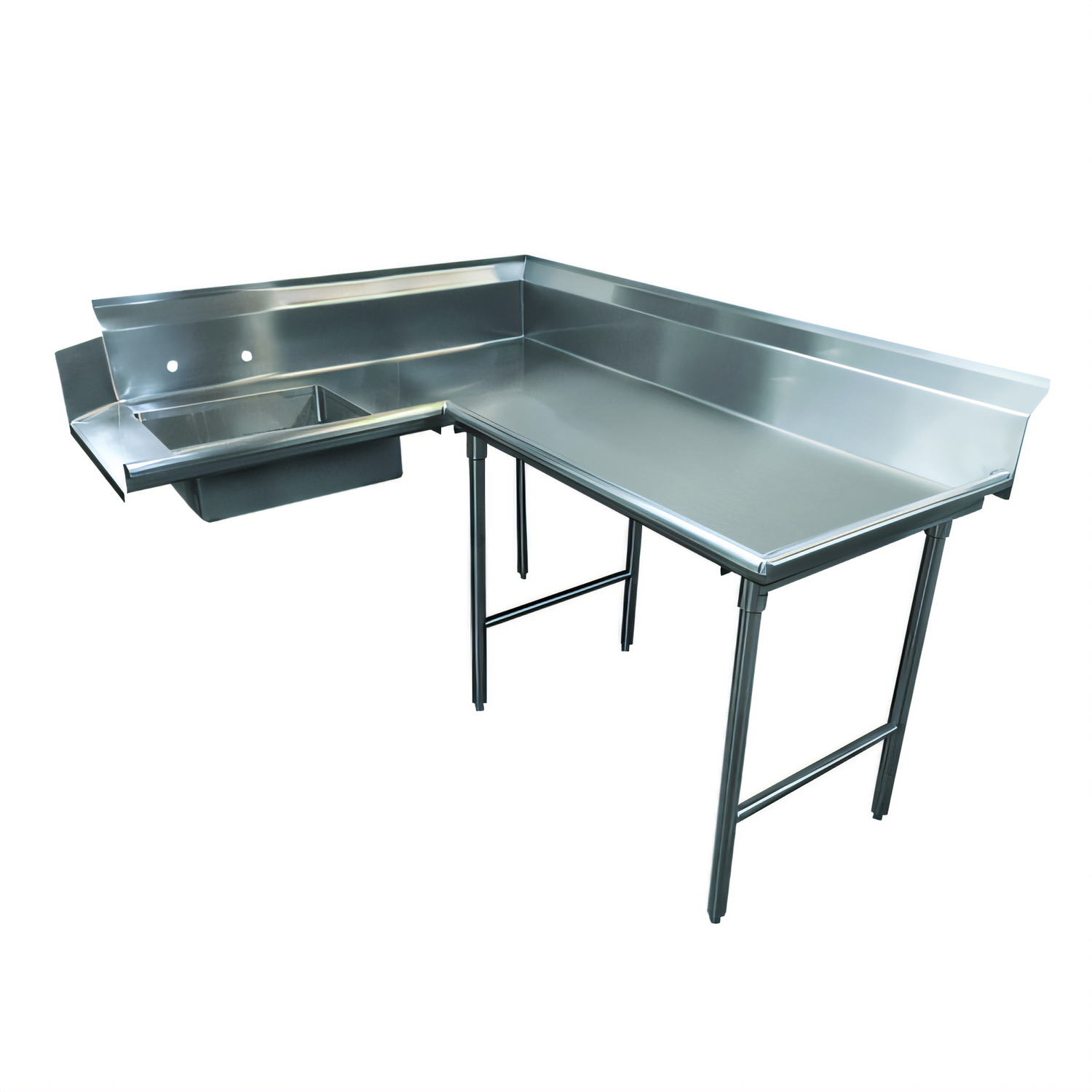

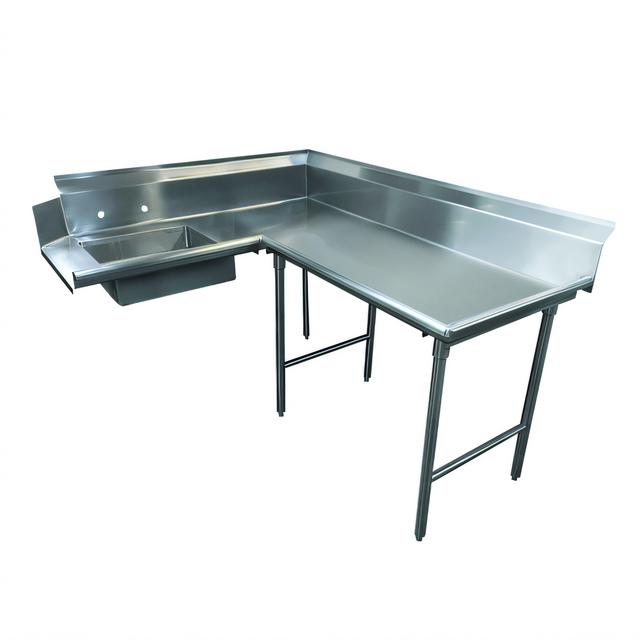

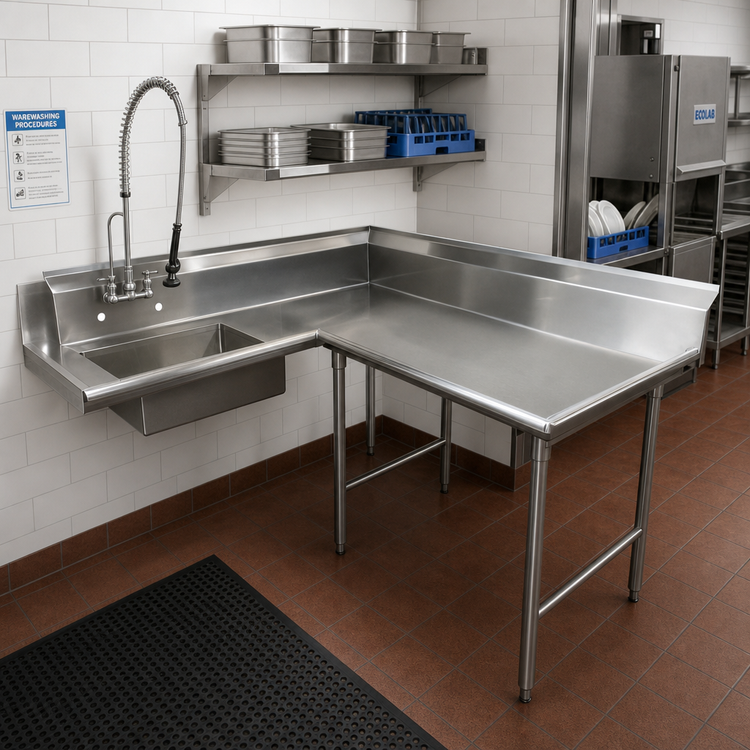

Advance Tabco Korner Soil Dishtable – 95" Right-Side, 304 Stainless Steel
Model DTS-K70-96R | Standard Series | L-shaped soil section for right-hand dish machine attachmentMaximize corner space and speed up ware-washing prep with Advance Tabco’s Korner Soil Dishtable. This 95" L-shaped section lands dirty ware, provides a dedicated pre-rinse sink, and protects walls with an extra-high backsplash—all in rugged 16 ga type 304 stainless steel.
Key benefits

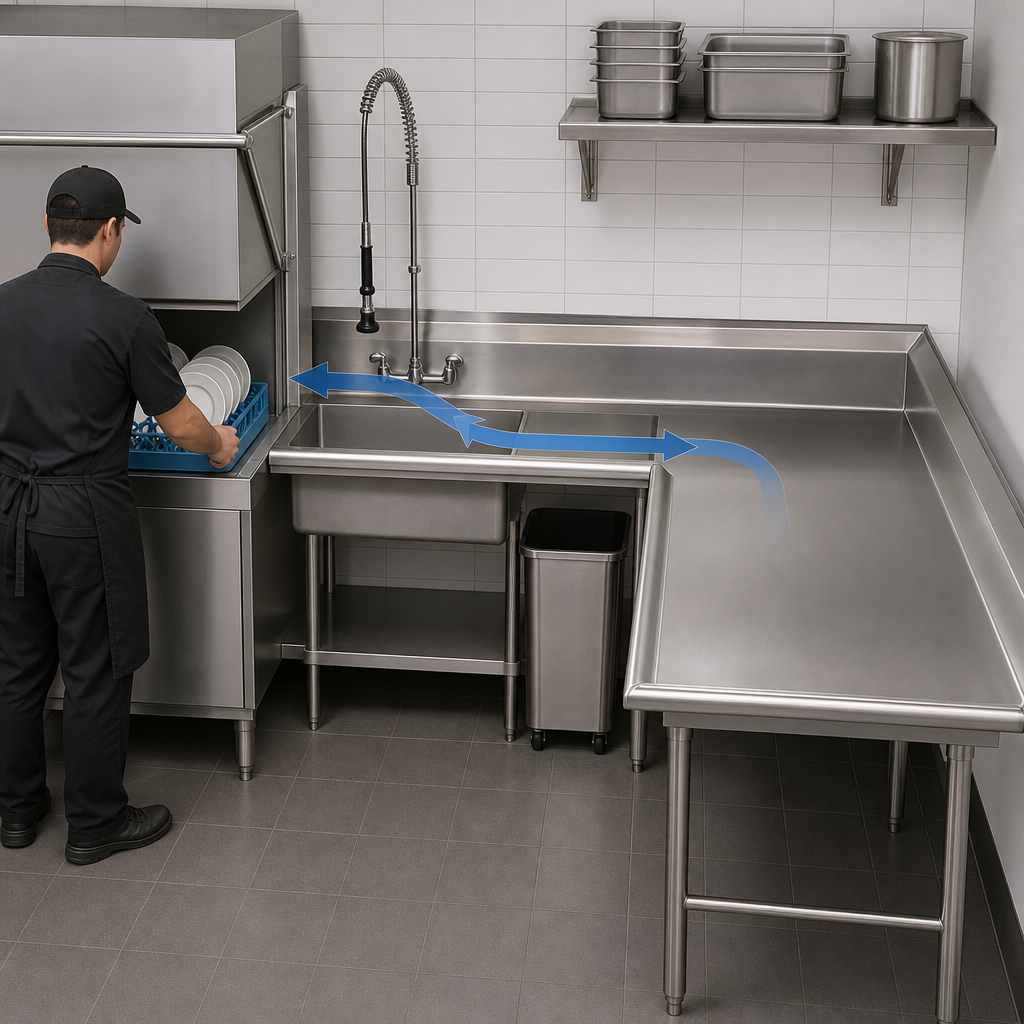

- Space-saving L-shape installs to the operator’s right side of most conveyor and door-type dish machines.
- One-piece 16 ga 304 SS top with 2" tile-edge return for quick, sanitary wall mounting.
- 10-1/2" extra-large backsplash reduces overspray and shields surrounding surfaces.
- Integrated 20" × 20" × 5" pre-rinse sink speeds scraping and rinsing.
- 1-5/8"-diameter 16 ga stainless legs with welded crossrails and 1" adjustable stainless bullet feet for rock-solid support.
- Factory-punched 8" on-center faucet holes—simply add your preferred pre-rinse faucet (sold separately).
- 1-1/2" IPS basket waste drain included.
- NSF certified—meets the latest sanitation standards.
Engineered for demanding kitchens
- All TIG-welded construction; welds are blended to a smooth, easy-to-clean satin finish.
- Stainless gussets welded to a full-length support channel—no hidden crevices for food soil.
- Tile-edge design pairs perfectly with coved tile walls for a watertight, professional installation.
Dimensions & specifications
| Overall length (L-run) | 95 in / 241 cm |
|---|---|
| Depth (each leg of “L”) | 30 in / 76 cm |
| Working height | 34 in / 864 mm |
| Overall height | 44-1/2 in / 1130 mm (to top of backsplash) |
| Backsplash | 10-1/2 in H with 2" return & tile edge |
| Sink bowl | 20" W × 20" L × 5" D, 304 SS |
| Top gauge / material | 16 ga type 304 stainless steel |
| Legs & bracing | 16 ga 304 SS legs, welded crossrails |
| Feet | 1" adj. stainless bullet feet |
| Faucet holes | (2) punched 8" on center (faucet not included) |
| Drain | 1-1/2" IPS basket type (included) |
| Orientation | Right-hand (mounts on operator’s right side of dish machine) |
| Approx. shipping weight | 240 lb / 109 kg |
Perfect for
- Restaurants, cafés & coffee shops
- Institutional & school kitchens
- Hotels, resorts & banquet halls
- Catering & commissary facilities
Need a different length, left-hand orientation, or accessories such as overshelves, scrap baskets or speed racks? Ask us about Advance Tabco SMART FABRICATION™ options.
