Advance Tabco  |  Korner  |  SKU: DTS-K70-72R  |  UPC: 747545121967

Advance Tabco DTS-K70-72R Korner Compartment Sinks

$4,103.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

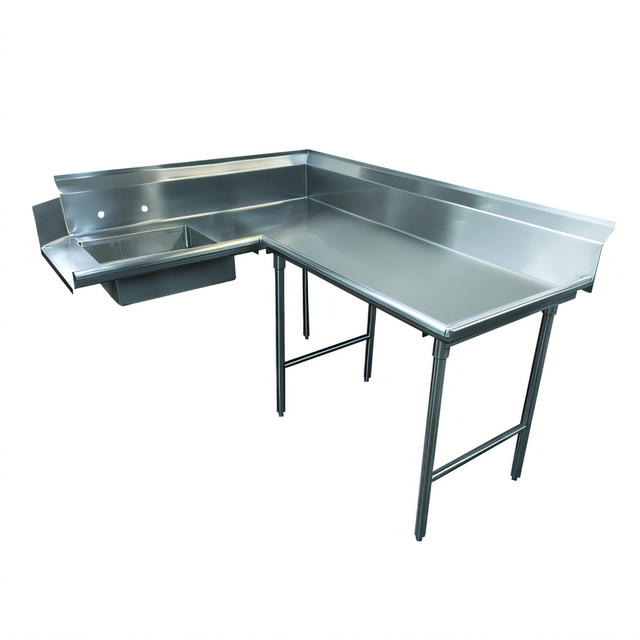

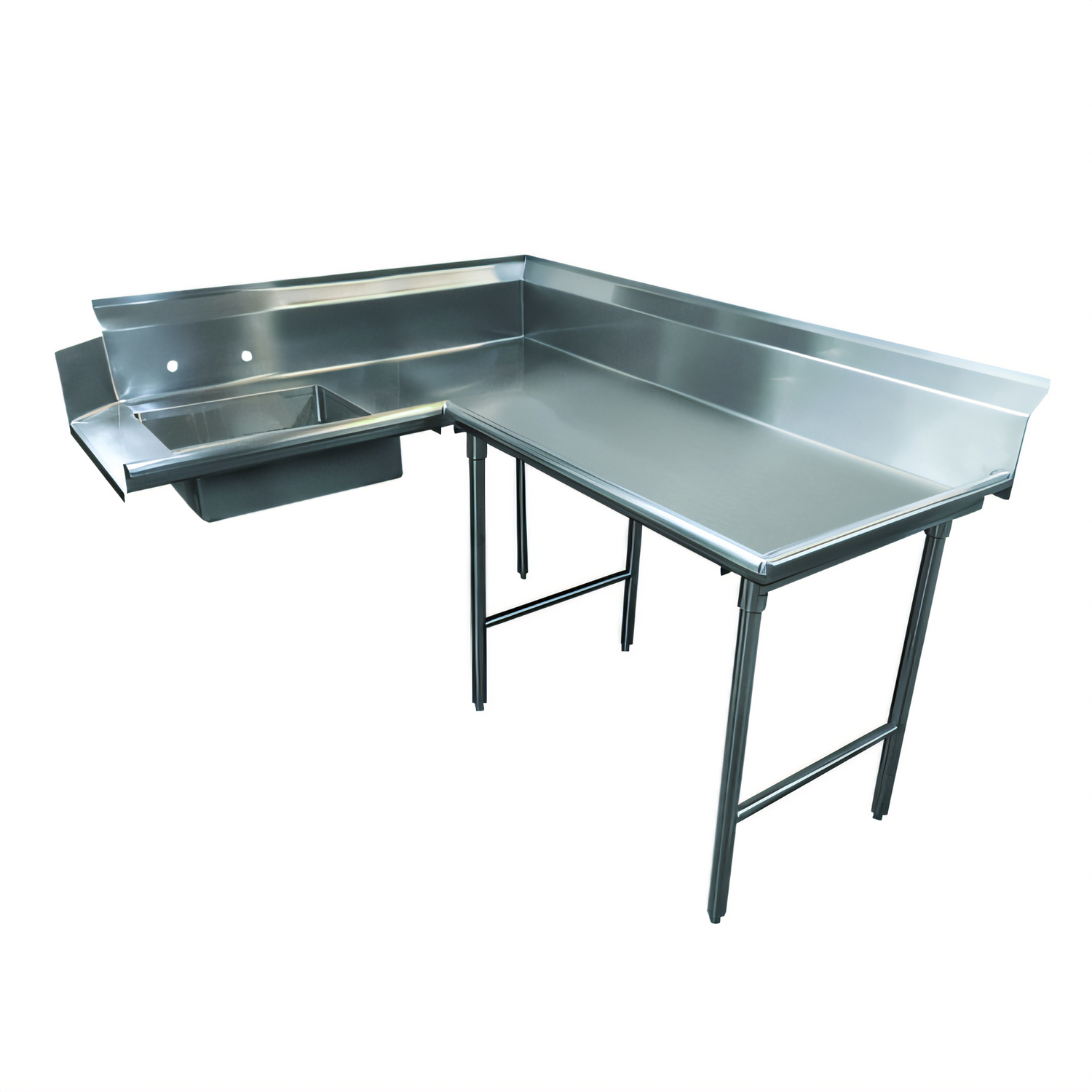

Advance Tabco “Korner” Soil Dishtable – Right-Side • 71" L • 304 SS

Model DTS-K70-72R (STANDARD Series)

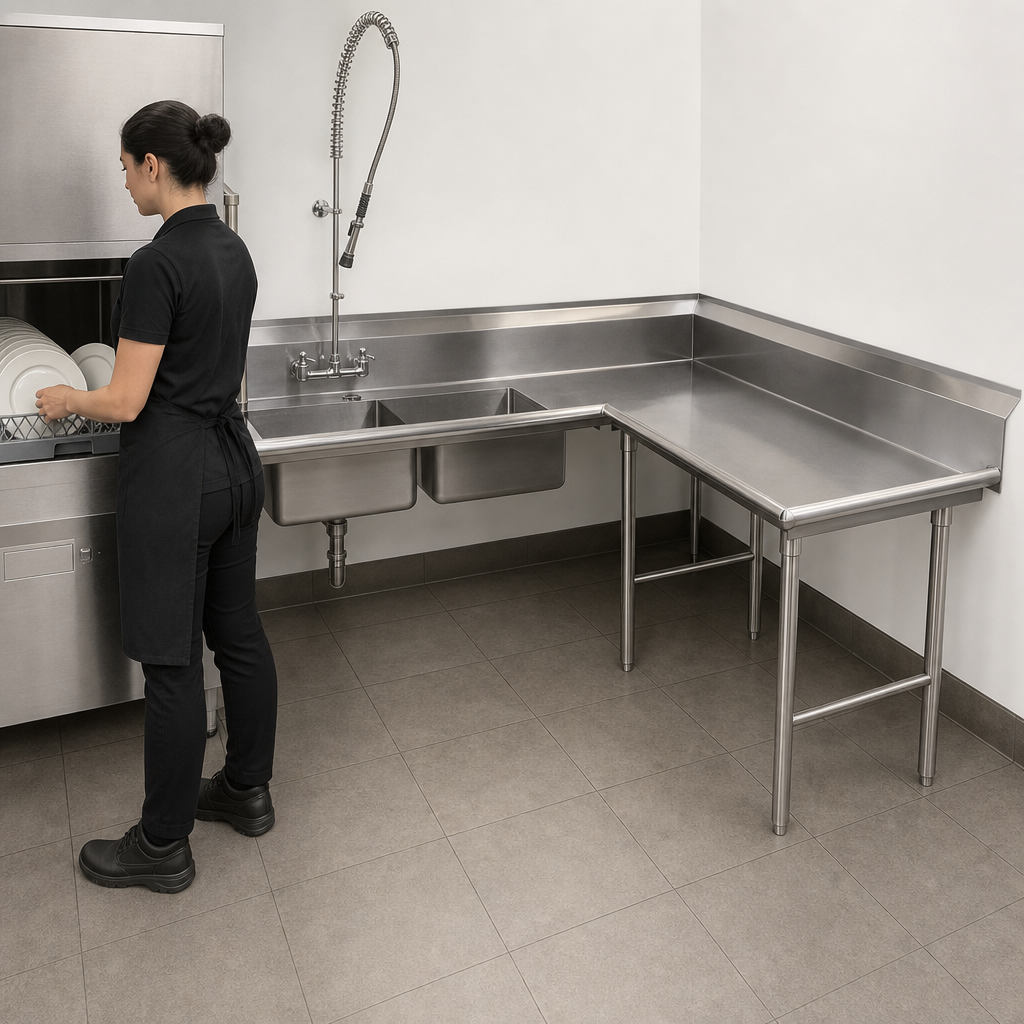

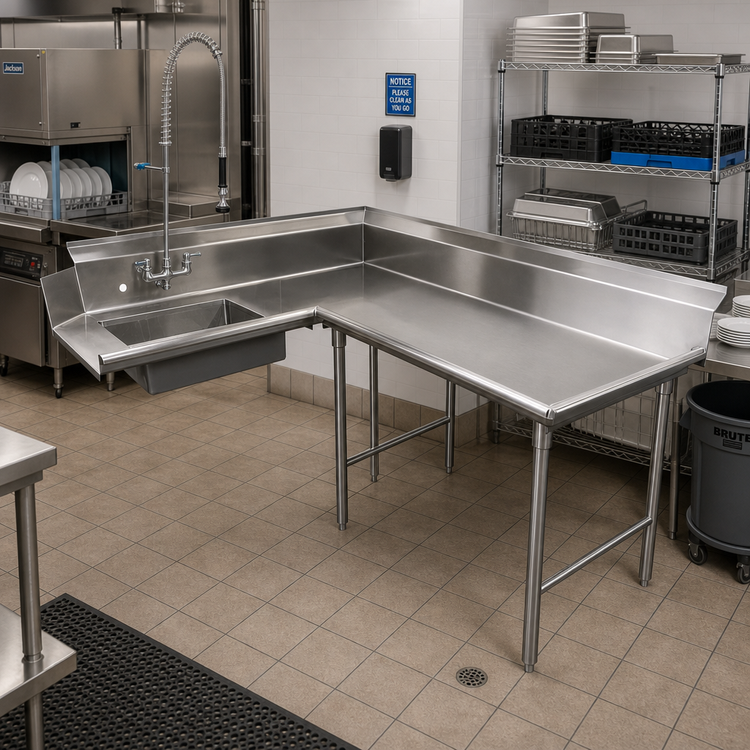

Turn an unused corner into a high-productivity dish room with the Advance Tabco Korner soil dishtable. This L-shaped unit mounts directly to the right of your door-type or conveyor dish machine, giving staff a generous landing area, an integrated pre-rinse sink, and the rugged durability of all-304 stainless steel.

Key Features

  • 16 ga 304 series stainless steel top with uniform satin finish & NSF certification.
  • Extra-large 10-1/2" backsplash with 2" return and tile edge for a watertight, sanitary wall seal.
  • 20" × 20" × 5" pre-rinse sink bowl with 1-1/2" IPS basket drain (included).
  • 8" on-center faucet holes pre-punched in splash—ready for your preferred pre-rinse faucet (not included).
  • L-shape “Korner” design eliminates dead space and keeps soiled ware flow moving toward the machine.
  • 1-5/8" Ø 16 ga stainless steel legs with welded cross-bracing and height-adjustable stainless bullet feet.
  • All TIG-welded; exposed welds are ground smooth and blended for a seamless look.
  • Tile-edge top speeds installation—just set, seal, and start washing.

Dimensions & Specifications

Overall length (L-side) 71" (nominal 6 ft)
Depth, both wings 30"
Work height 34"
Backsplash height 10-1/2" H with 2" return
Sink bowl size 20" W × 20" L × 5" D
Top material 16 ga 304 stainless steel
Legs / crossrails 16 ga 304 stainless steel tubing, TIG-welded
Feet Stainless steel bullet style, 1" adjustable
Drain included 1-1/2" IPS basket type
Faucet punch 2 holes @ 8" O.C.
Approx. ship weight 215 lb

Dimensions are nominal. Advance Tabco continually improves designs and may revise specifications without notice.

Dish Machine Compatibility

The 30" × 30" corner opening aligns with most 44"/66" door-type and conveyor dish machines. Always confirm clearance with Advance Tabco’s compatibility chart or contact Smart Fabrication™ for custom modifications.

Need it your way? Alternate lengths, left-hand orientation, overshelves, scrap chutes and more are available through Smart Fabrication™. Call 1-800-645-3166 for a fast quote.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Korner

Height

44.0in

Shipping Weight

230.0lbs

Width (end - corner) OA

61" - 72"

Shape

corner

Width (machine - corner) OA

61" - 72"

Leg Type

stainless steel legs

Splash Height

10"H splash

Stainless Series

300 series

Stainless Gauge

16 gauge

Direction

right to left

Specifications

Korner-Soil Dishtable, L-shaped, attaches to right of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with crossrails, 71" long, 16/304 stainless steel
